| Brand | Unbranded/Generic |
|---|---|
| ASIN | B081MR9M6J |
| Voltage output | 0V-12V (the minimum output is about 0.05V) |
| Item size | 90 * 70 * 28mm / 3.54 * 2.76 * 1.10in |

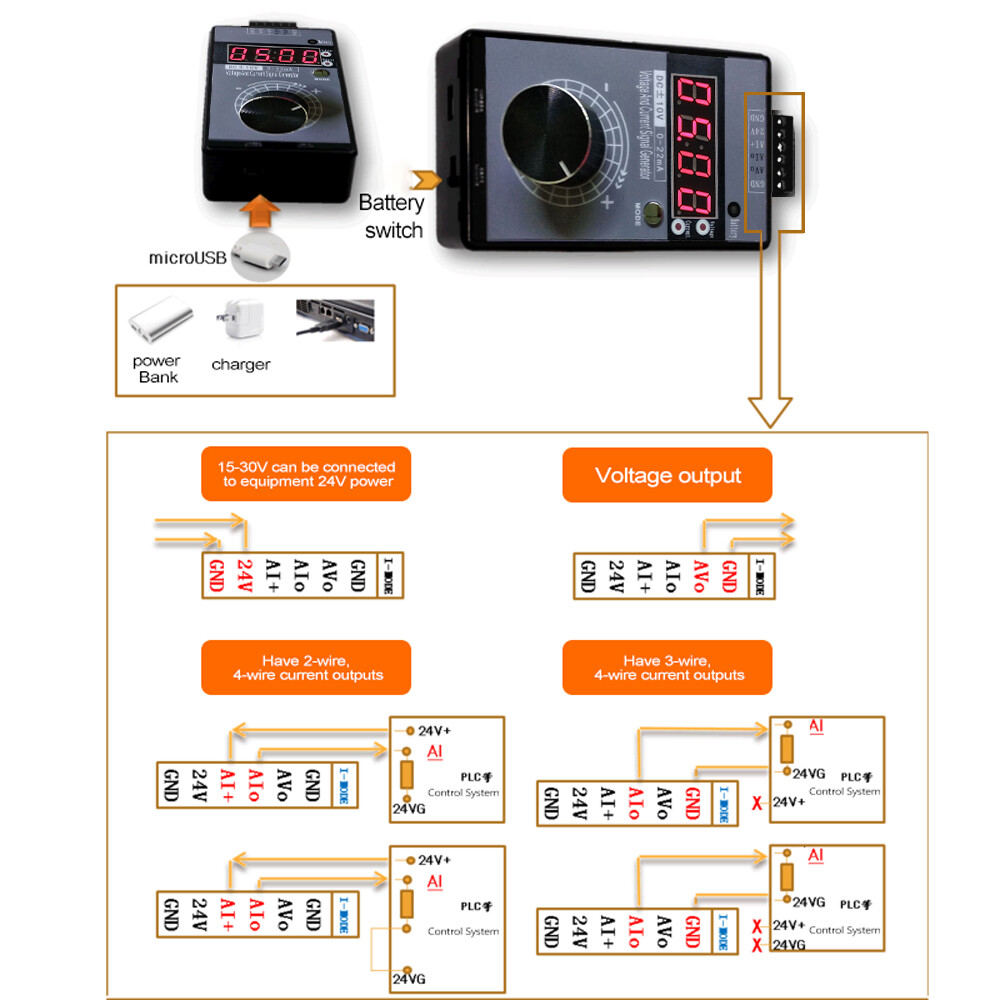

| Passive current output | 0-22 m A (the minimum output is about 0.06m A), external power supply up to 30V, load: 0-550Ω |
| Package weight | 120g / 4.23ounce |
| 24V voltage output | drive current: 35m A (Do not more than 35m A) |
| Package size | 150 * 100 * 80mm / 5.91 * 3.94 * 3.15in |
| Active current output | 0-22 m A (the minimum output is about 0.06m A), load: 0-550Ω |
| Operating environment | 0°C-50°C without condensation |
| Name | Signal Generator |

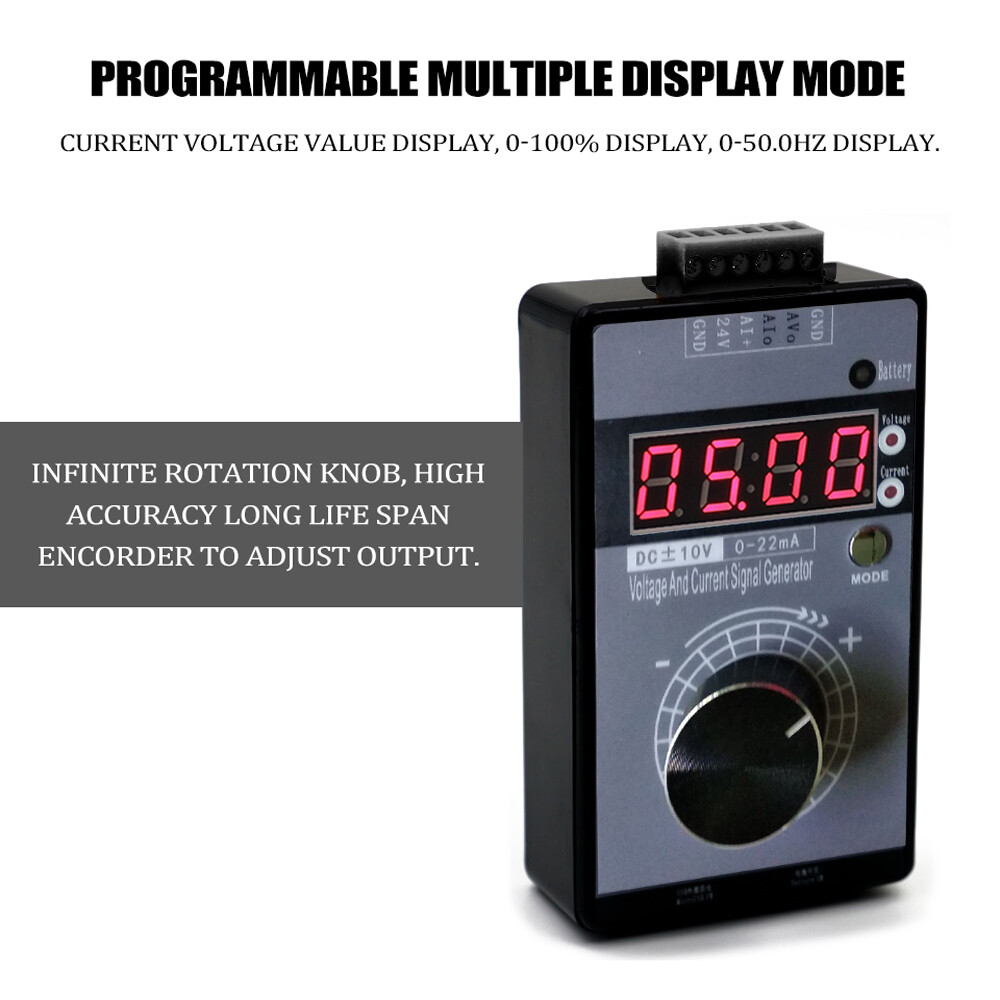

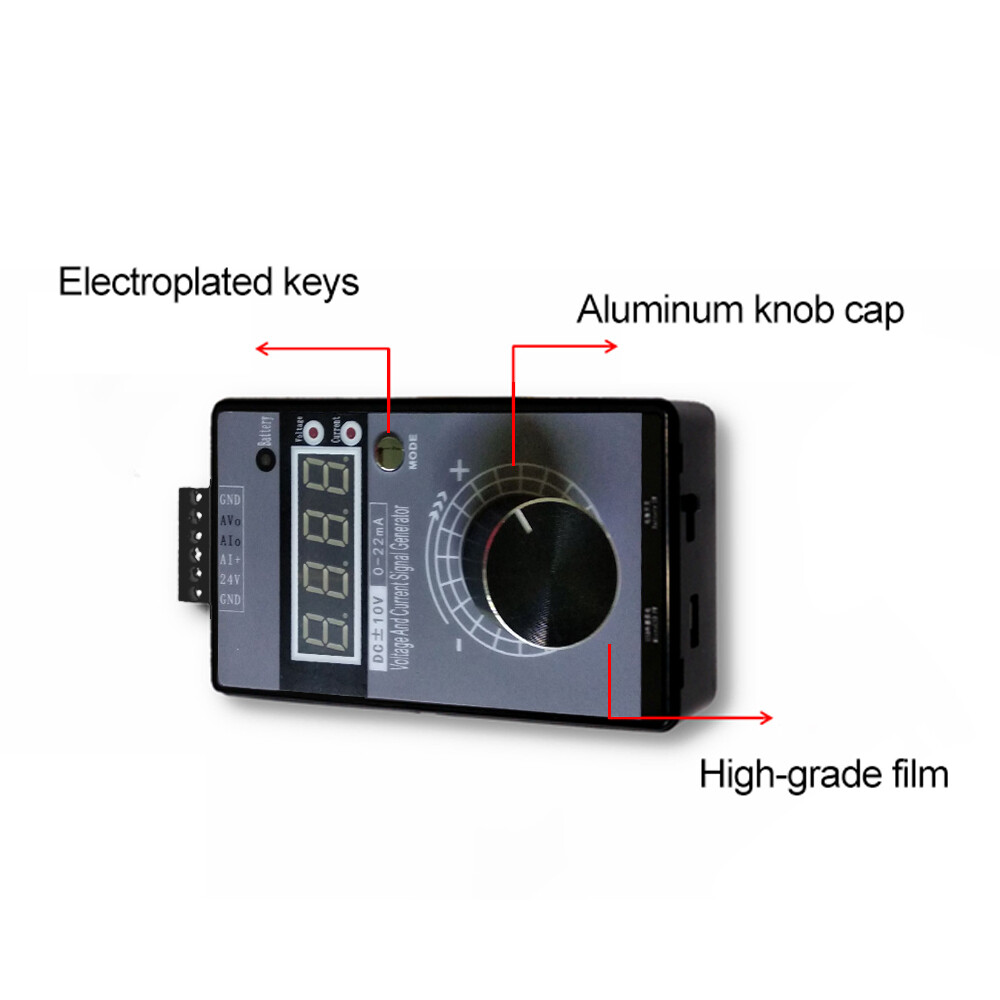

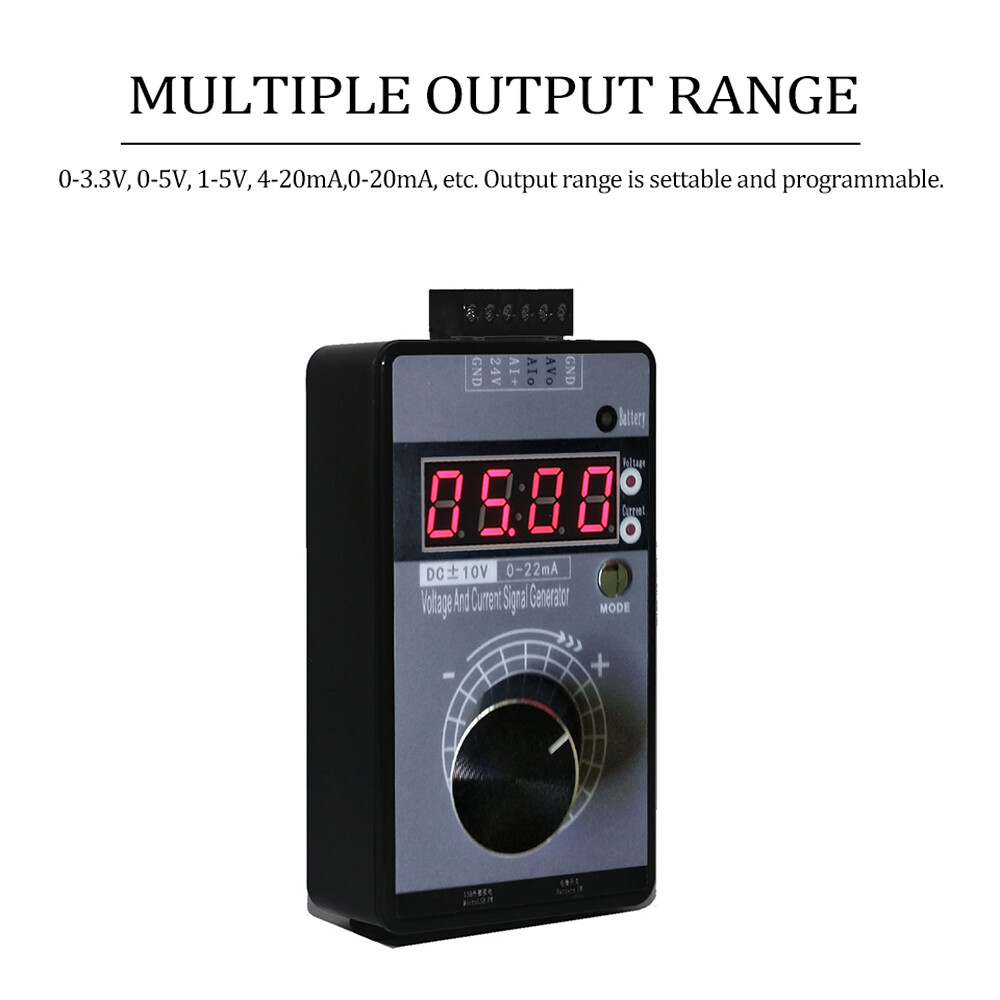

Check the listing for details. Adjustable Voltage Signal Generator Calibrator Simulationer O4B9. Condition: New. Listed at 34.00 USD. Multiple output : 0-3.3V, 0-5V, 1-5V, 4-20mA,0-20mA, etc. Output is settable and programmable. Current output : 0-22mA adjustable. 1 Signal Generato. Small size comfortable external shape: alloy adjustable knob, elegant external, easy to carry.
