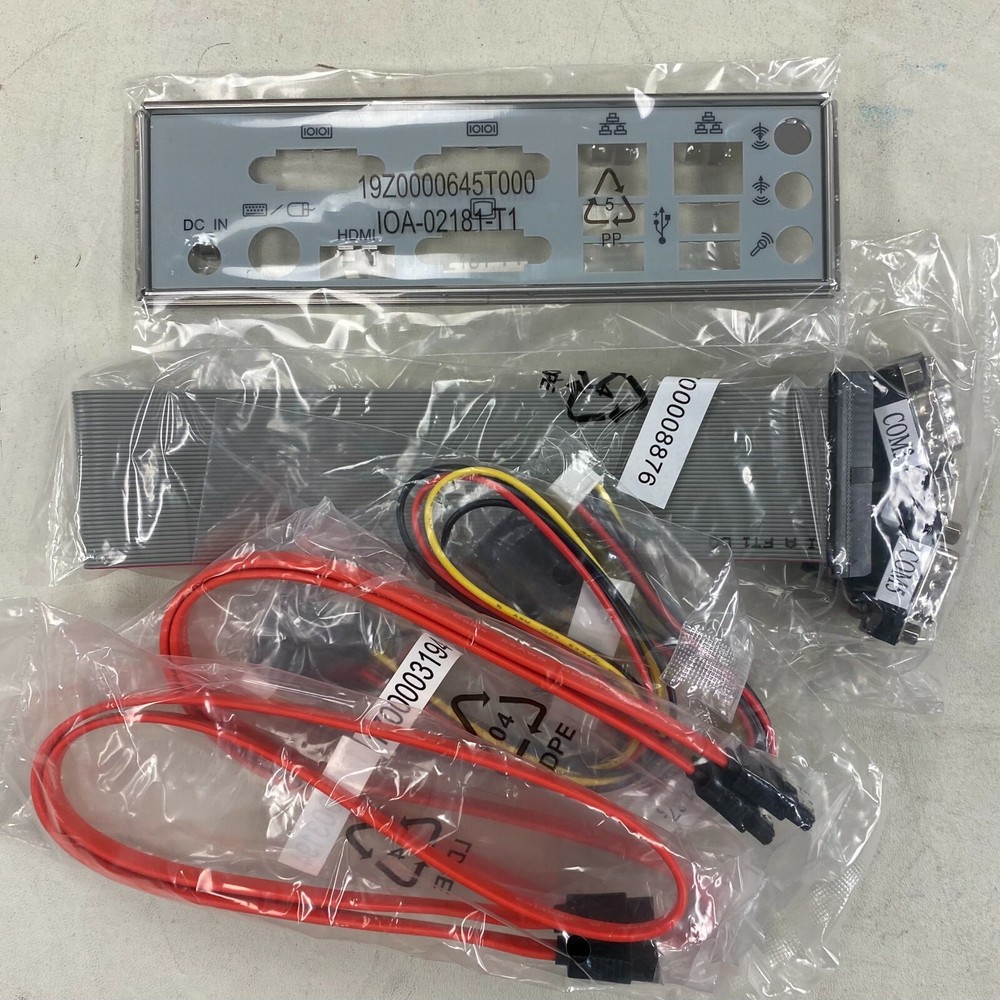

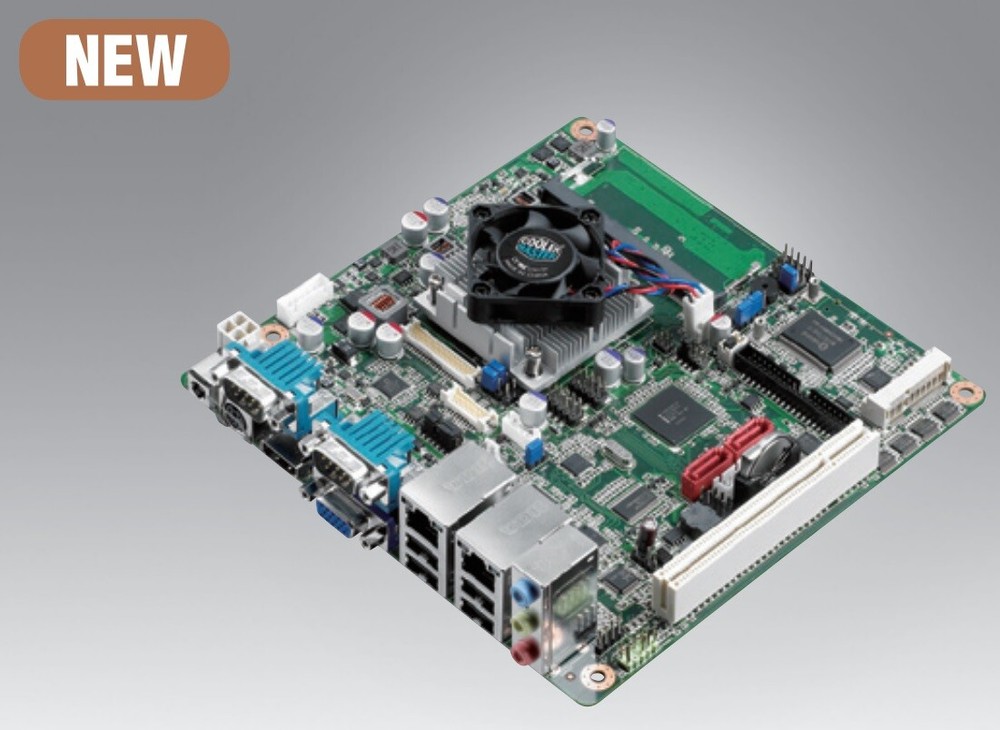

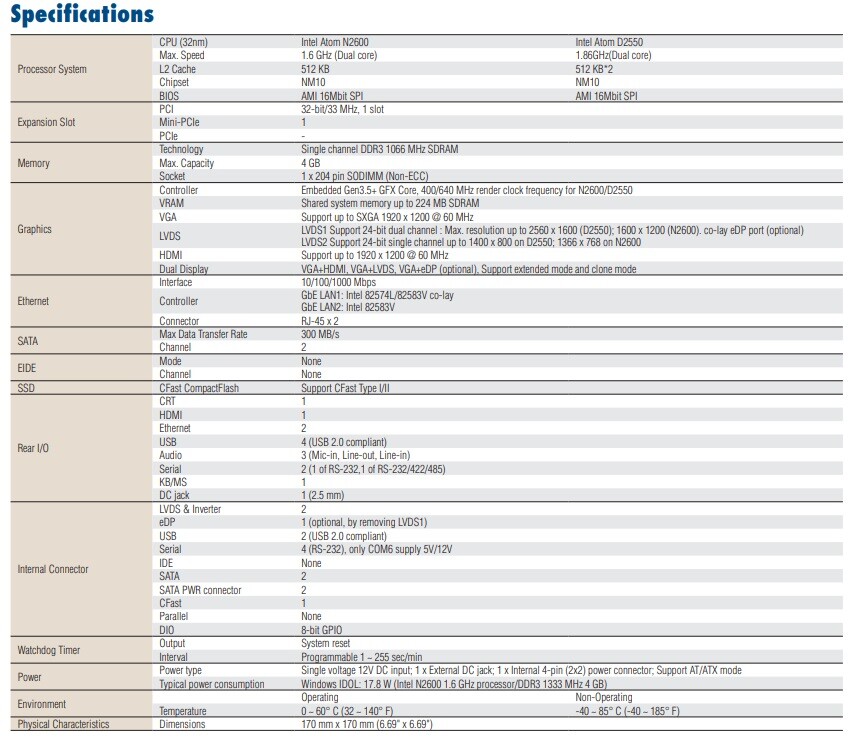

Check the listing for details. Advantech AIMB-214E-S6A2E ATOM 2550 Mini-ITX motherboard w/ 2GB RAM. Condition: New. Listed at 249.00 USD. FeaturesIntel® Atom™ D2550 dual core Mini-ITX with CRT/HDMI/2LVDS, 6COM, and Dual LAN portsƒ One 204-pin SODIMM up to 4 GB DDR3 1066 MHz SDRAM ƒ Supports 1 PCI and 1 Mini-PCIe expansion, 6 serial ports, 6 USB, and CFast ƒ Lower total cost of ownership with DC12V support, and supports 24/48-bit LVDS ƒ Onboard TPM 1.2 support (optional) ƒ Supports SUSIAccess and Embedded Software APIsSpecifications Processor System CPU (32nm) Intel Atom D2550 Max. Speed 1.86GHz(Dual core) L2 Cache 512 KB 512 KB*2 Chipset NM10 NM10 BIOS AMI 16Mbit SPI AMI 16Mbit SPI Expansion Slot PCI 32-bit/33 MHz, 1 slot Mini-PCIe 1 PCIe - Memory Technology Single channel DDR3 1066 MHz SDRAM Max. Capacity 4 GB Socket 1 x 204 pin SODIMM (Non-ECC) Graphics Controller Embedded Gen3.5+ GFX Core, 400/640 MHz render clock frequency for N2600/D2550 VRAM Shared system memory up to 224 MB SDRAM VGA Support up to SXGA 1920 x 1200 @ 60 MHz LVDS LVDS1 Support 24-bit dual channel : Max. resolution up to 2560 x 1600 (D2550); 1600 x 1200 (N2600). co-lay eDP port (optional) LVDS2 Support 24-bit single channel up to 1400 x 800 on D2550; 1366 x 768 on N2600 HDMI Support up to 1920 x 1200 @ 60 MHz Dual Display VGA+HDMI, VGA+LVDS, VGA+eDP (optional), Support extended mode and clone mode Ethernet Interface 10/100/1000 Mbps Controller GbE LAN1: Intel 82574L/82583V co-lay GbE LAN2: Intel 82583V Connector RJ-45 x 2 SATA Max Data Transfer Rate 300 MB/s Channel 2 EIDE Mode None Channel None SSDCFast CompactFlash Support CFast Type I/II Rear I/O CRT 1 HDMI 1 Ethernet 2 USB 4 (USB 2.0 compliant) Audio 3 (Mic-in, Line-out, Line-in) Serial 2 (1 of RS-232,1 of RS-232/422/485) KB/MS 1 DC jack 1 (2.5 mm) Internal Connector LVDS & Inverter 2 eDP 1 (optional, by removing LVDS1) USB 2 (USB 2.0 compliant) Serial 4 (RS-232), only COM6 supply 5V/12V IDE None SATA 2 SATA PWR connector 2 CFast 1 Parallel None DIO 8-bit GPIO Watchdog Timer Output System reset Interval Programmable 1 ~ 255 sec/min Power Power type Single voltage 12V DC input; 1 x External DC jack; 1 x Internal 4-pin (2x2) power connector; Support AT/ATX mode Typical power consumption Windows IDOL: 17.8 W (Intel N2600 1.6 GHz processor/DDR3 1333 MHz 4 GB)Environment Operating Non-Operating Temperature 0 ~ 60° C (32 ~ 140° F) -40 ~ 85° C (-40 ~ 185° F) Physical Characteristics Dimensions 170 mm x 170 mm (6.69" x 6.69")
