| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money Back |
| Brand | Unbranded |
| Model | Ameritron AL-80B |
| Type | RF Amplifier |
| MPN | Does Not Apply |

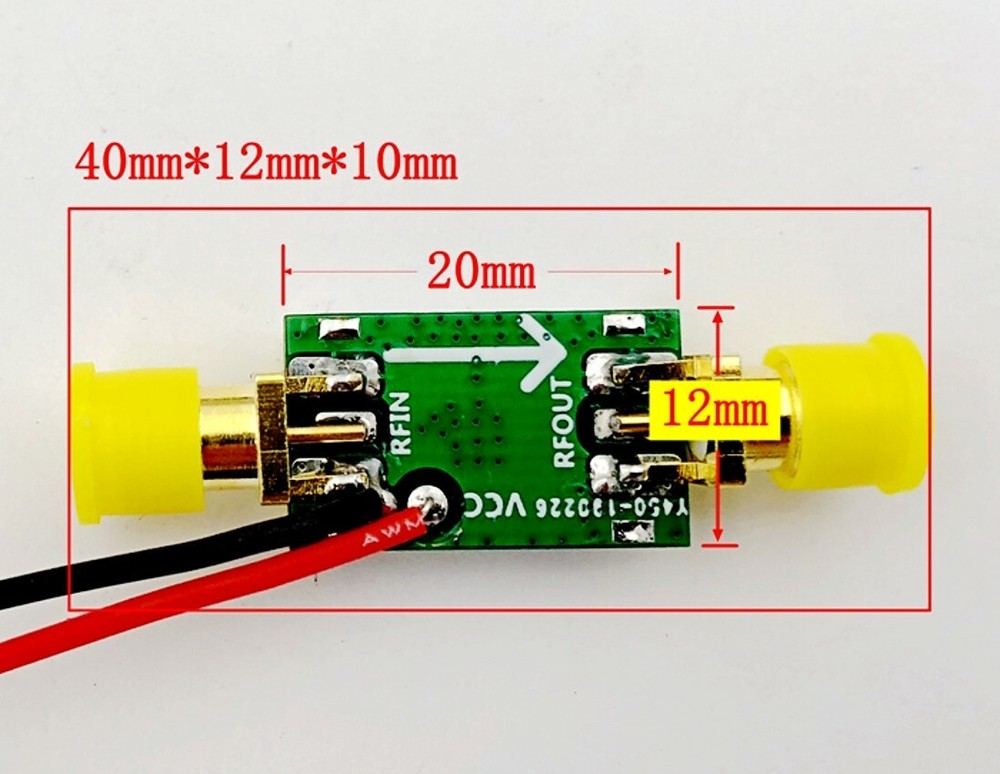

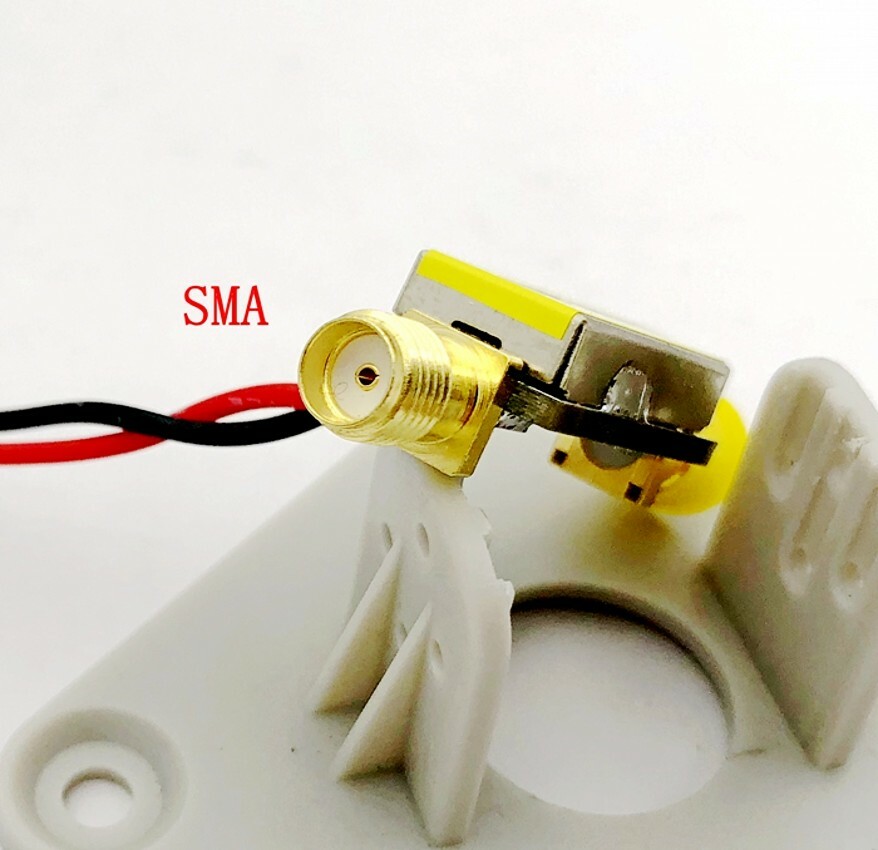

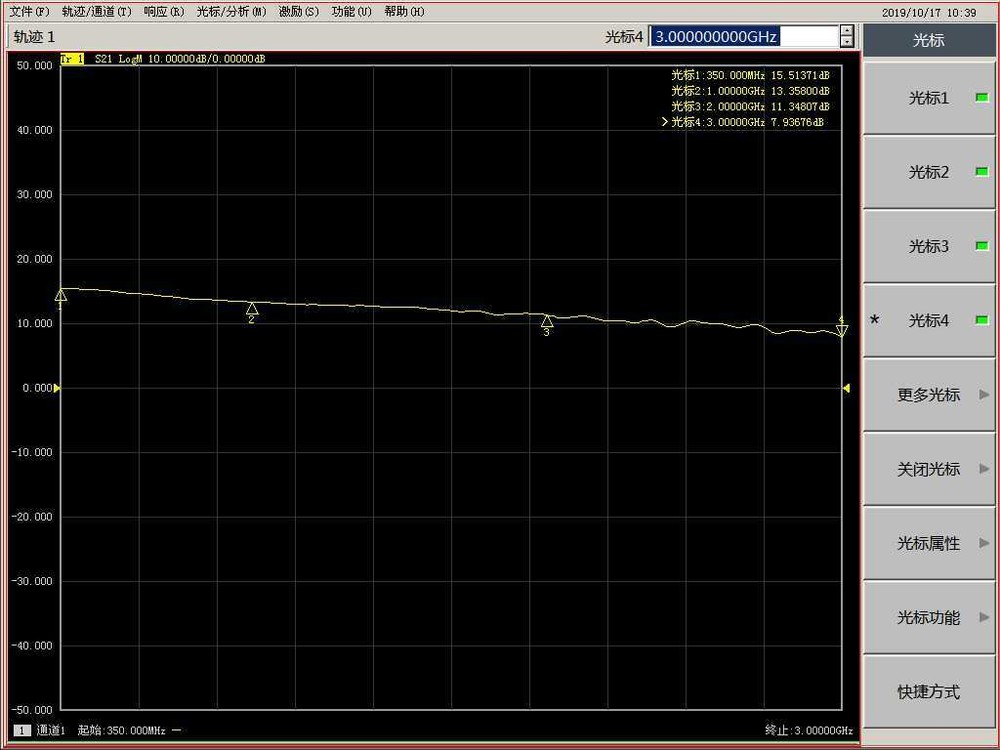

Check the listing for details. AH102 350-3000MHz Medium Power RF Amplifier Module Fixed Gain 13dB Single Supply. Condition: New. Listed at 15.56 USD. AH102 350-3000MHz Medium Power RF Amplifier Module Fixed Gain 13dB Single Supply DescriptionLinear Power Amplifier (AH102) First, the module parameters Power supply: 9V (200mA)Gain: 14.5DB@0.8GHzsize:Length * width * height (40mm * 12mm * 10mm) This size is included in the protruding SMA interface Length * width * height (20mm * 12mm * 6mm) does not contain SMA interface Noise figure: 3.8dB@800MHzP1dB=27dBm@800MHzWorking frequency: 350-3000MHzInput and output impedance: 50ΩSecond, the module physical map 三、实测增益曲线四、模块原理图
