| Applicable fiber: | SM MM DS and NZDS |
|---|---|
| Applicable Fibers | SM(G.652&G.657)、MM(G.651)、DS(G.657)、NZDS(G.655) |
| Brand | Signal Fire |
| Brand Name | signalfire |
| Built-in lighting | easy for night operation |
| Certification | CE,FCC,RoHS |
| Control technology | Real-time control and calibration of fusion ARC |
| Display | 5 inch TFT color display |
| Fiber Cleave Length | Coating less than 250um:8-16mm Coating less than 250-1000ym:16mm |
| Fiber diameter | Cladding Diameter:80-150ym Coating Diameter: 100-1000ym |
| Fiber holders 1 | 3 in 1 fiber holder, SM |
| Fiber holders 2 | MM, bare fiber, pigtail, Drop cable , multi fiber cable |
| Focus mode | Six motors Auto focus |
| Heating mode | Automatic heating(Preheating) |
| Heating Time | 18s |
| High-concerned chemical | None |
| Item | Optical Fiber Fusion Splicer |
| Magnification | 320x (X or Y axis single display), 160x |
| Model Number | AI-5 |
| MPN | AI-5 |
| Origin | Mainland China |
| Power supply | Input AC100-240V 50/60HZ Output DC13.5V/4A |
| Return loss | Better than 60DB |
| Screen | 5 inch TFT color display |
| Shrinkable tube | 60mm、40mm |
| Splice Loss | 0.025dB(SM) .0.01dB(MM) .0.04dB(DS/NZDS) |
| Splicing method | Fully automatic or Step by step splicing |
| Splicing Mode | Normal / high precision splicing |
| Splicing record storage | Synchronize to the phone, the server to cloud storage unlimited |
| Splicing Time: | 8s |
| Tension Test | Standard 2N |
| Wireless function | No |
Check the listing for details. AI-5 Signal Fire Automatic SM&MM FTTH Fiber Optic Splicing Machine Optical. Condition: New. Listed at 587.99 USD. Fiber Cleave Length Coating less than 250μm:8-16mm Coating less than 250-1000um:16mm. Splice Loss 0.02dB(SM)、0.01dB(MM)0.04dB(DS/NZDS). Splicng Mode Normal/high precision splicing. Splicing record storage Synchronize to the phone,the server to cloud storage unlimited.
You may also like
$430
1pcs AI-6C Optic Fiber Fusion Welding Splicing Machine FTTH
$1217.29
ONE RY-F600P FTTH Optical Fiber Fusion Splicer 5.1" LCD
$88.64
1set Fujikura Fusion Splicer FSM-90S/88S/41S/26S/36s/28s Electrode ELCT2-16B
$49.92
1set Electrode ELCT2-16B Fusion Splicer FSM-90S/88S/41S/26S/36s/28s
$68.33
3M Butt Connector Heatshrink Seamless MH18BCX Red Pack of 25
$87

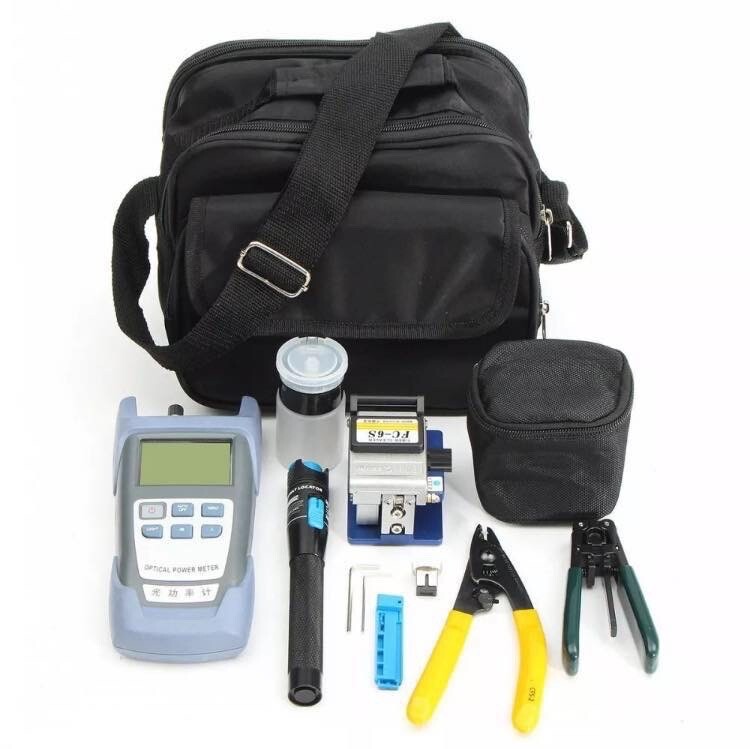

Fiber Optic FTTH Tool Kit FC-6S Cutter Cleaver Optical Power Meter Visual Device
