| Machine Type | Turret Punch Press |
|---|---|
| Power Source | Hydraulic |
| Turret Style | Thick |
| Maximum Sheet Size | 50"X70" (50"X144" with repo) |
| Maximum Hole Size (1/4") | 1.6" |
| Maximum Punching Capacity | 1/4" |
| Overall Dimensions | 12'X17'X7'H |
| Brand | Amada |
| Rapid Feedrates | 3150 IPM |
| Control | CNC |
| Type | Turret Punches & Punch/Laser Combo Machines |
| Capacity | 33 Tons |
| Weight (approx.) | 26,000# |
| Model | Pega 357 |
| Maximum Hole Size (10 gauge) | 3.5" |
| Turret Speed | 30 RPM |

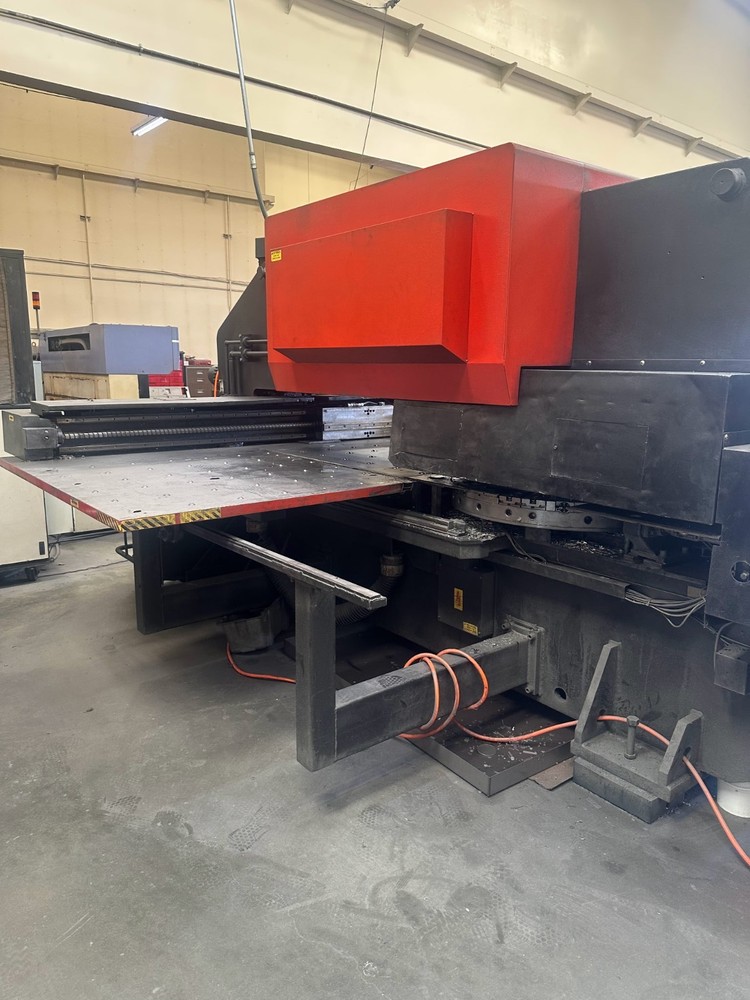

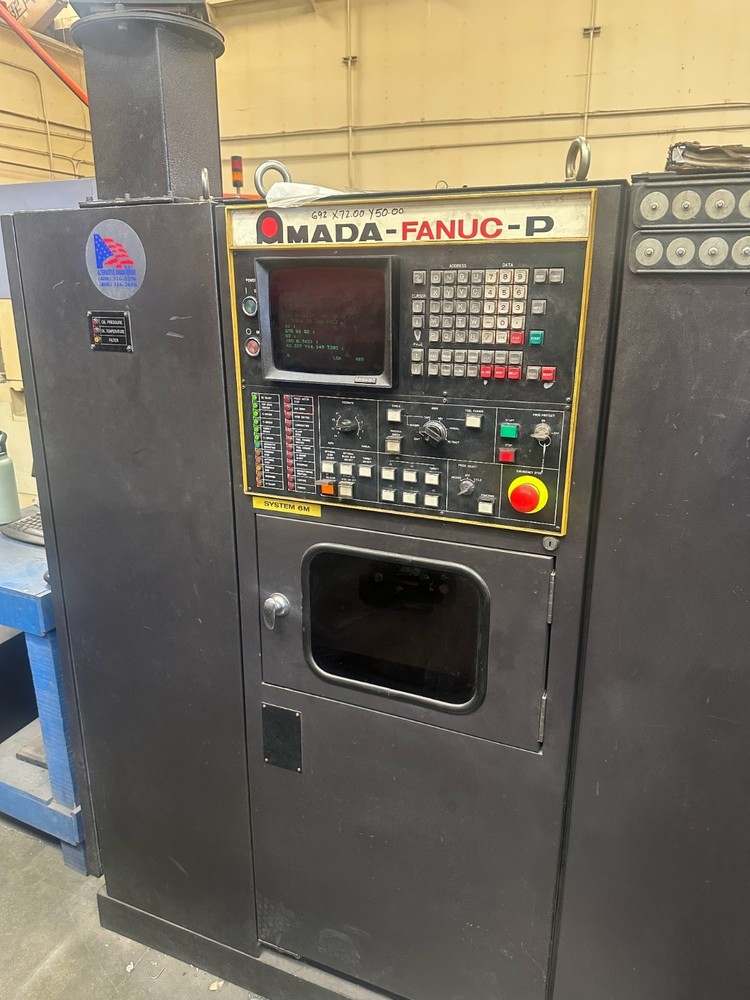

Check the listing for details. Amada Pega 357 CNC Turret Punch. Condition: Used. Listed at 16500.00 USD. Amada Pega 357 Fanuc 6M control mechanica l CNC turret punch press year 1988 Specifications Capacity: 33 tons (standard). 58-station "Thin Turret" layout, which includes two Auto-Index Maximum Traverse: 50" x 72" without repositioning. Maximum Sheet Size: Up to 50" x 144" with auto-repositioning. Maximum Material Thickness: 1/4" (0.250") mild steel. Weight: Approximately 2600 lbs Dimensions: Roughly 16' L x 12' W x 8' H. F.O.B Gilroy, CA 95020 As is where is no warranty Everything else is a fabrication 909 437 0531
