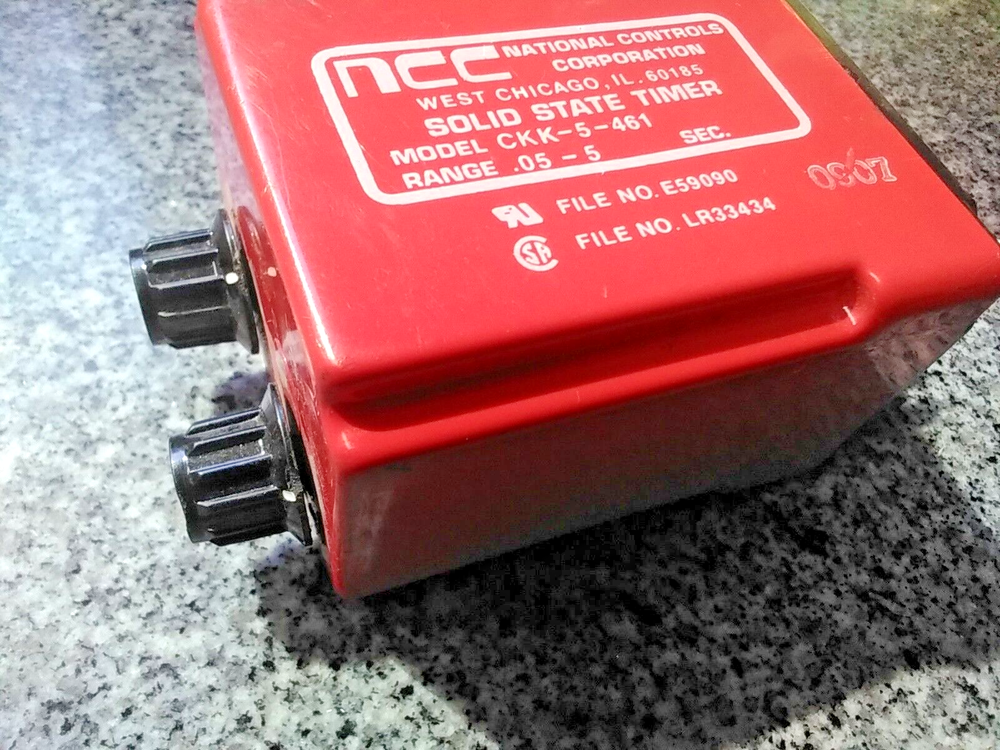

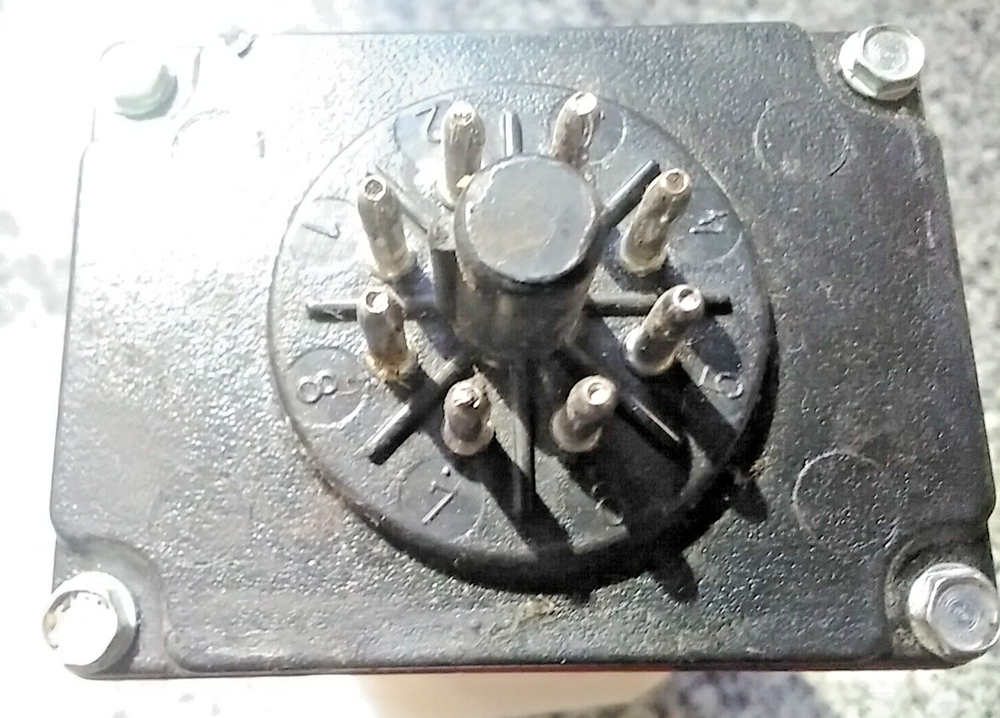

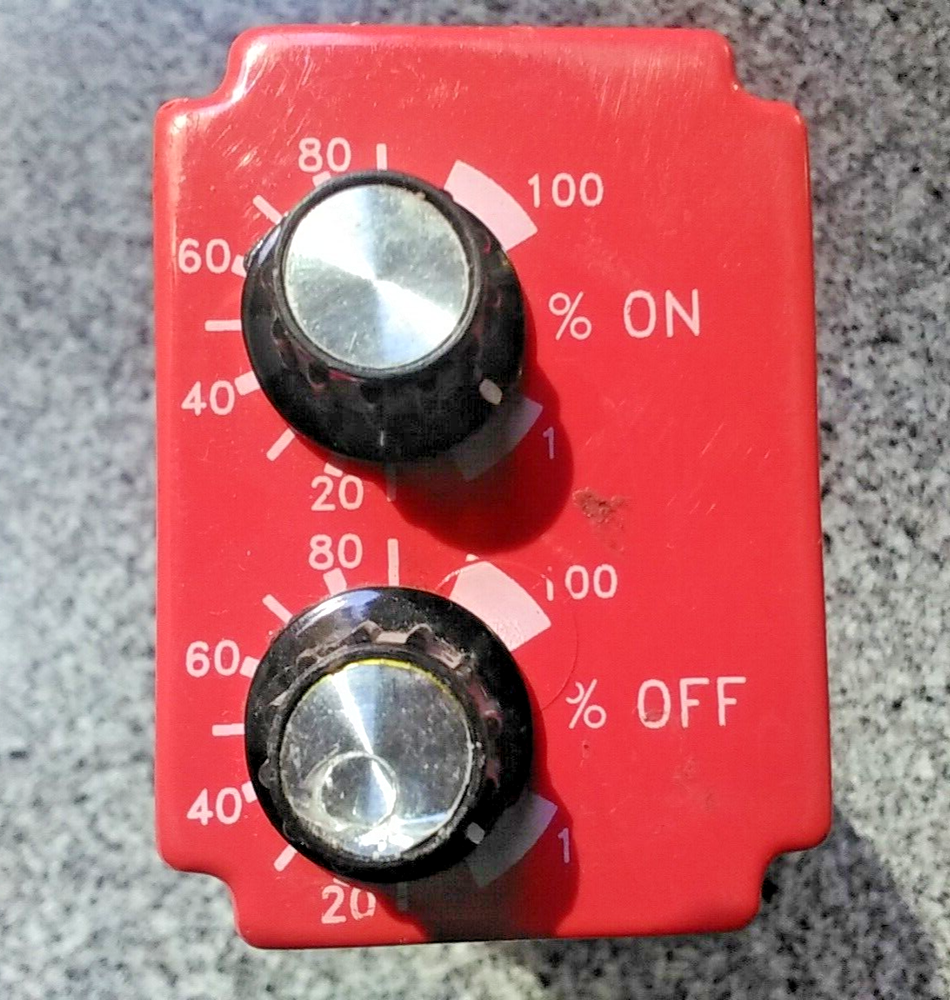

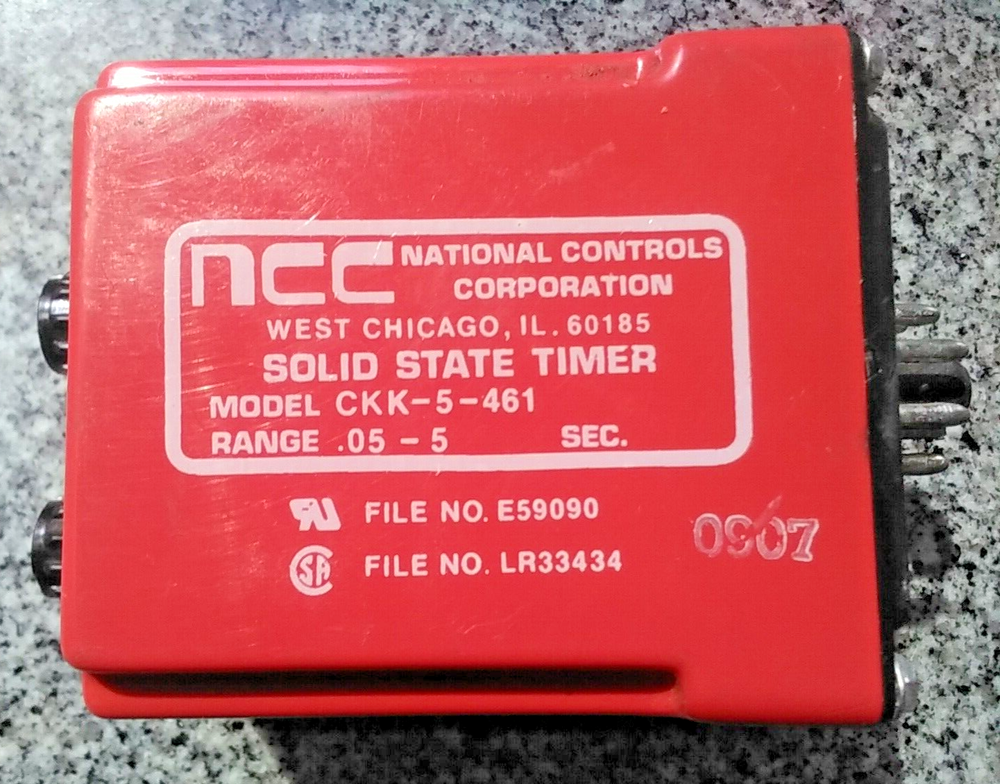

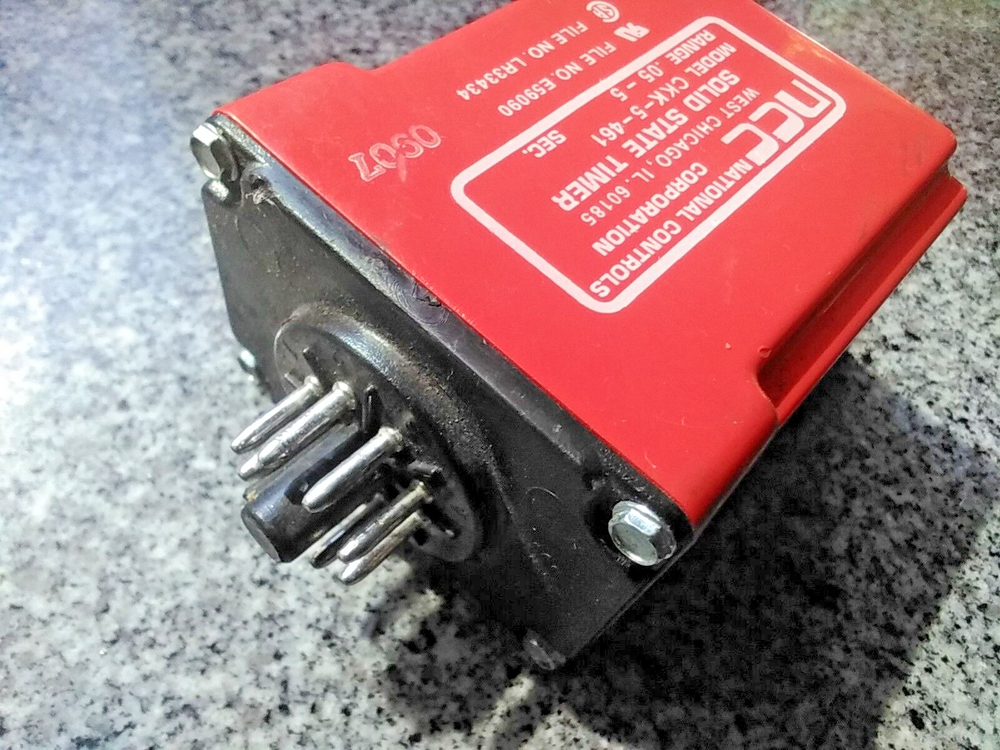

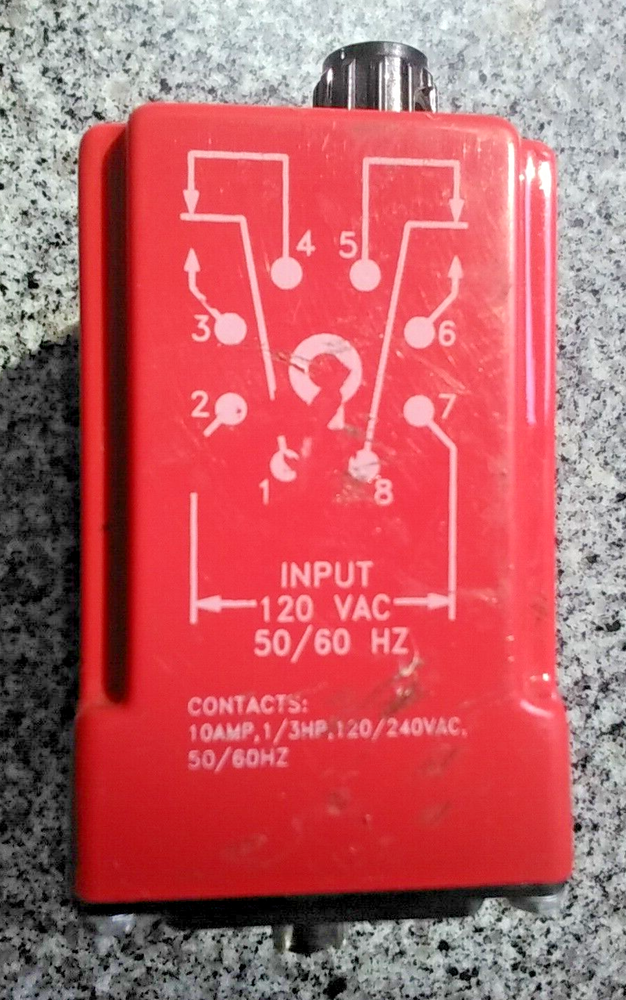

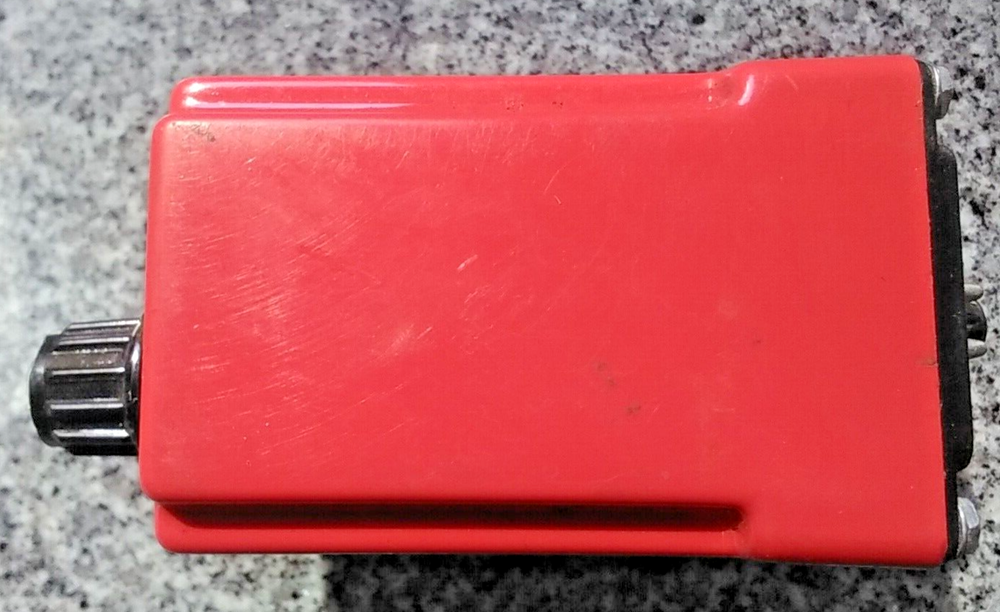

Check the listing for details. AMETEK NCC CKK-5-461 Solid State Timer 05-5sec. Condition: Used. Listed at 90.00 USD. NCC CKK-5-461 Solid State Timer 05-5sec Good overall condition and working order. Ships free here in the US. Part No:CKK-00600-461Alias/AKA:CKK-600-461Unit of Measure:Per EachRoHS:YesHTS:8536490075ECCN:EAR99Mounting:SocketContact Arrangement:DPDTDC Coil Voltage:N/AAC Coil Voltage:120 VContact Form:2 Form CMaximum Current Rating:10 ATermination Style:8-Pin Circular PlugTime Range:6 to 600 sec Repeat Cycle CKK Series FEATURES ● 100% functionally tested ● Digital timing circuit ● Time delays to 10 hours ● ±1% repeatability ● Individually adjustable ON and OFF times ● Fiberglass reinforced circuit board ● Internal components supported by heavy-duty chassis ● Reinforced base locator pin ● Polycarbonate flame-retardant housing ● File #E59090 Operating Logic: Upon application of voltage to the input terminals, the OFF delay is initiated. At the end of the OFF preset time, the relay coil is activated and the ON delay starts. At the end of the ON preset time, the relay coil is deactivated and a new cycle begins. The ON and OFF cycles will continue to alternate until voltage is removed. LOGIC FUNCTION DIAGRAM On Off On Off Input Voltage Relay Coil Repeat Cycle Function Adj. "On" Delay Adj. "Off" Delay SPECIFICATIONS TIME DELAY Adjustment: Knobs, factory fixed on special order (min. order required) Range: 50 ms to 1 hour in 8 ranges Repeatability: ±1% at constant temperature Accuracy: Maximum time -0%, +10% Minimum time +0%, -50% Reset Time: 500 ms max. INPUT Operating Voltage: 12, 24 VDC; 24, 120 VAC ±10% (DC models have reverse polarity protection; unfiltered input voltage to them must be fullwave rectified) Power Consumption: 3 VA max. Frequency: 50/60 Hz OUTPUT Type: Relay DPDT (2 form C) Rating: 10 A max. resistive at 240 VAC; 100 mA at 5 VDC min. load current Life: Mechanical: 10,000,000 operations Full Load: 500,000 operations PROTECTION Transient Voltage: 12 and 24 V timers are protected by an 8.8 joule metal oxide varistor 120 V timers are protected by a 30 joule metal oxide varistor Dielectric Breakdown: 1500 V RMS min. at 60 Hz between input and outputs and between outputs MECHANICAL Termination: 8-pin plug Mounting: Socket mount, part number MSO-0008P-012 ENVIRONMENTAL Storage Temperature: -23°C to 70°C Operating Temperature: -23°C to 55°C (3012-4) 1.75 2.40 .63 2.90 .53 7 1 8 2 3 4 5 6 Input PIN CONFIGURATION Voltage 6 4 5 3
