| All returns accepted | ReturnsNotAccepted |
|---|---|
| MPN | ALC-CMP-BT |
| Product Width (in) | 4.53 |
| Application Compatibilities | ARISTA Controllers |
| Mount Type | Ceiling |
| Product Height (in) | 4.53 |
| RoHS Certification | Y |
| Class 2 Wire Size Min | 22 |
| Voltage Selection Type | Selector Switch |
| Input Voltage Range(s) | 3 V Battery, 24 VDC |
| Data Transfer Options | Bluetooth |
| Material | Plastic |
| Function type | Occupancy; Scheduled ON/OFF; Vacancy |
| UL Certification | cULus |
| Operation Mode | Occupancy; Vacancy |
| Class 2 Wire Size Max | 16 |
| Brand | Intermatic |
| Wiring Options Low Voltage | Terminals |
| Backup Restoration Time | 1 Minute |
| Backup Type | Non-volatile |
| California Proposition 65 | none |
| Other Certifications and Compatibilities | Ashrae 90.1 2016; IECC 2018; Green Energy + |
| Operation Features | Presence |
| Backup Protection Time | Indefinite |
| PIR Coverage Area (sq ft) | 1200 |
| Product Depth (in) | 2.95 |

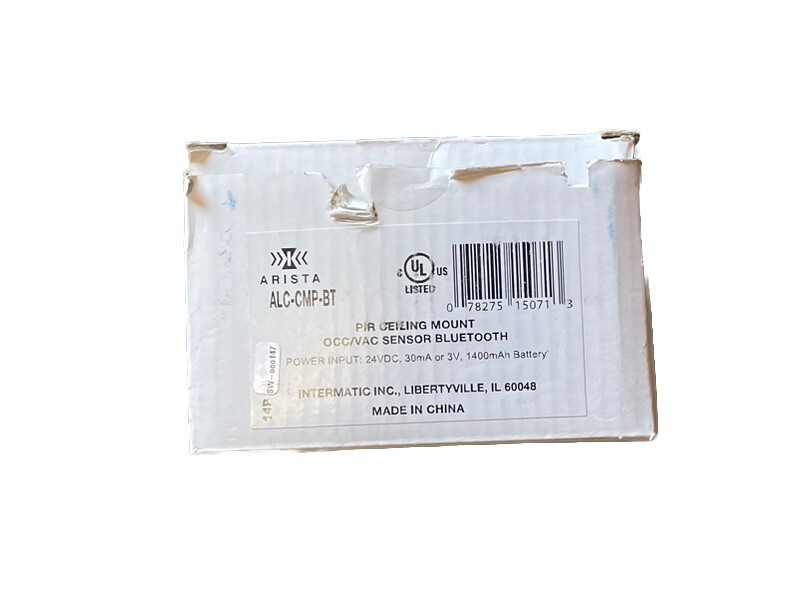

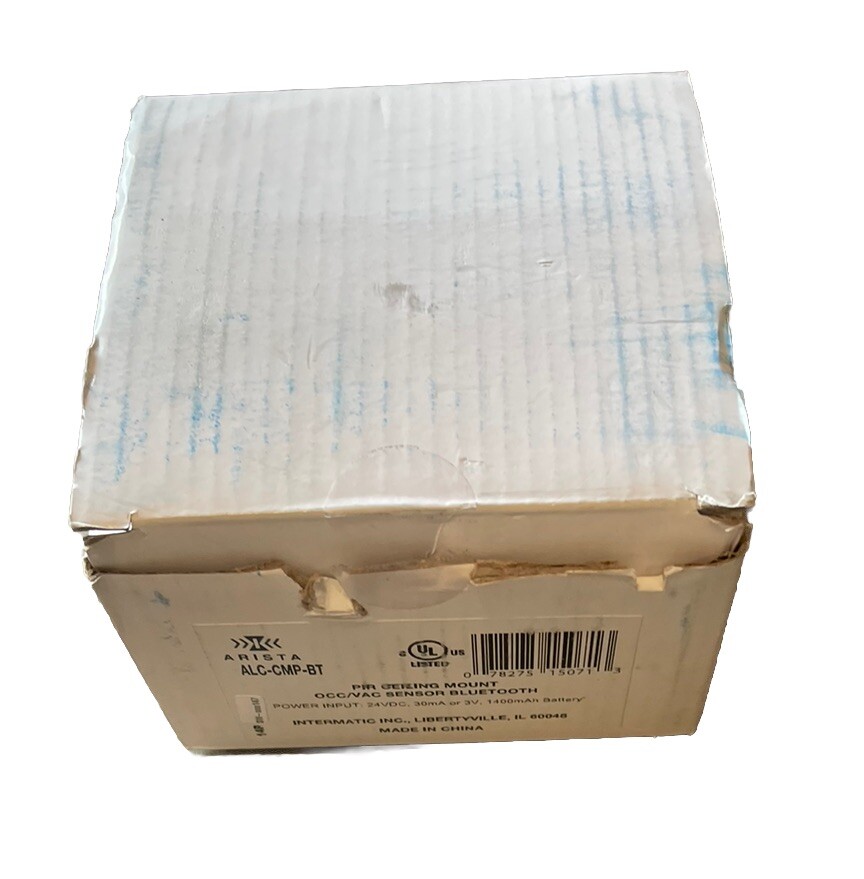

Check the listing for details. ๐ฅ(AN) PIR Ceiling Mount OCC/VAC Sensor ALC-CMP-BT, SAME โ๏ธ๐ฃ๐ฅ๐. Condition: New โ Open box. Listed at 189.36 USD. PRODUCT DESCRIPTION: The ALC-CMP-BT is a Passive Infrared Sensor designed for use with the ARISTAยฎ Lighting Controls System by Intermatic and will control lighting based upon occupancy/vacancy. If the space is configured for Occupancy and movement is detected, the sensor informs the ARISTA controller(s) in the space and the lights will illuminate. The lights will turn off after the ARISTA controller(s) deem the space vacant and the timeout period completes. If the space is configured for Vacancy, the ARISTA controller(s) in the space will only react when they are manually activated. The lights will turn off after the ALC-CMP-BT deems the space vacant and the timeout period completes. This sensor provides a 360ยฐ coverage pattern, up to 1200 ftยฒ. Pricing is available upon request. FEATURES: Battery or 24 VDC powered. Wired or wireless communications. Toolless battery replacement. Multiple mounting options. Adjustable sensitivity settings. Adjustable time-out settings. APPLICATIONS: Indoor Lighting Control Indoor Sensing Control This listing contains the following: 1 X PIR Ceiling Mount OCC/VAC Sensor ALC-CMP-BT ๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐๐ YOU MADE IT PAST THE DESCRIPTION!!!๐ ************************************************** Wฬฝอeฬฝอlฬฝอcฬฝอoฬฝอmฬฝอe Let me be the first to WELCOME you to the Web ๐. Here @ D&B, we put OUR customers FIRST! ๐๐๏ธ Yeah, you heard that correctlyโฆ We strive to provide the best possible customer service on the web. In doubt??? Check it out ๐ Donโt you wanna see what all the hype is about?!?!?! We have thousands of listings available, just click our name below and BOOM ๐ฅ Donโt see what you need?? Simply shoot me a message and Iโll gladly assist your needs. I have thousands of products waiting to be listed. But that doesnโt mean YOU need to wait! Okay, okay, look. Iโm going to be honest. I may respond right away, or 1 hr. But just bare with us as we are assisting the needs of other customers. Take this time to view the WEB ๐, and we will assist you as soon as possible. SAME โ๏ธ๐ฃ๐๐ (Same day tracking #) PRODUCT WILL BE BOXED. SHIPPING LABEL WILL BE PROVIDED TO CUSTOMER THE SAME BUSINESS DAY. BUSINESS HRS: Monday-Friday 7am-4pm Question: What if I purchase a product after 4pm? Answer: Unfortunately we would be unable to start the process of shipment. However, we will follow up the next business day. Tracking # will be provided asap. If you are in that situationโฆ itโs the best one to be in honestly๐ฅ๐ฅ Why?? Because the package will be shipped next business day guaranteed. ๐ฆ๐ฆ๐ฆ๐ฆ๐ฆ๐ฆ๐ฆ๐ฆ (B3,US,2,H,6)
