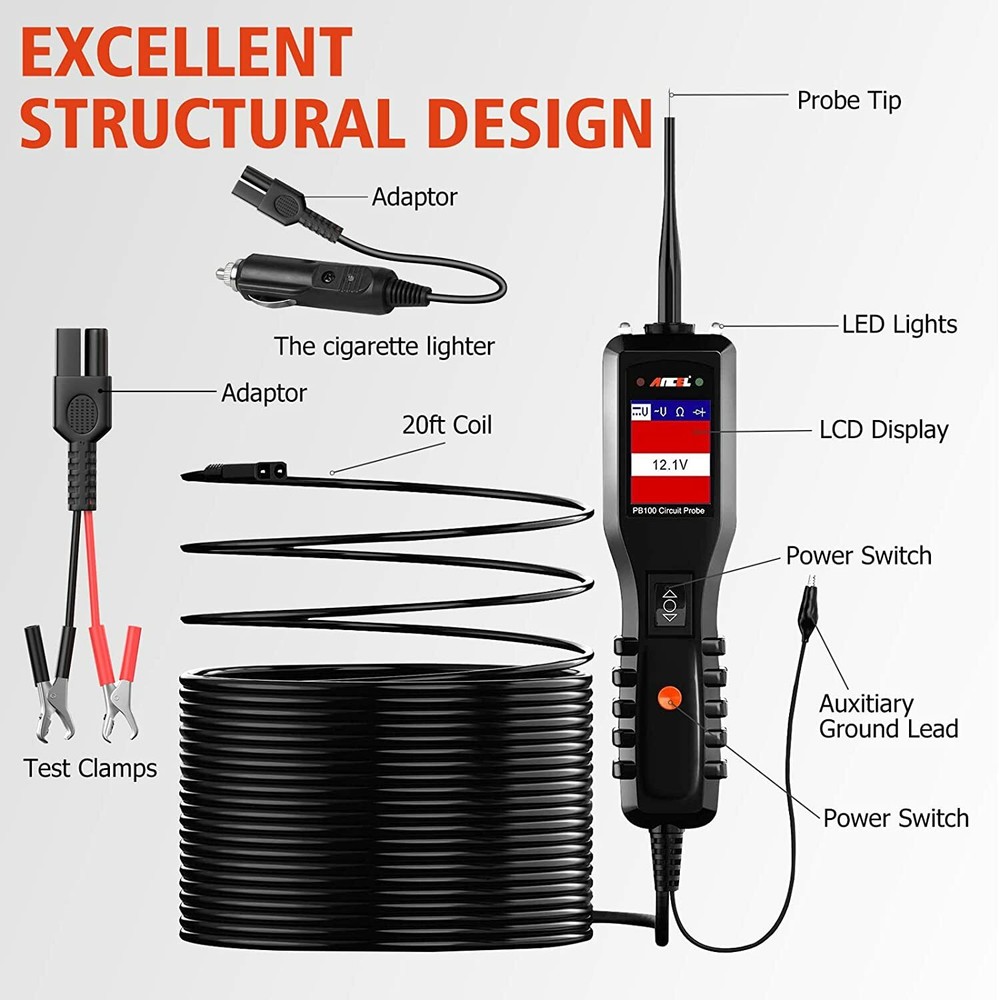

Check the listing for details. ANCEL PB100 Car Electrical Circuit Tester Powerscan AVOmeter Diagnostic Tool 12V. Condition: New. Listed at 68.79 USD. ANCEL PB100 Car Electrical Circuit Tester Powerscan AVOmeter Diagnostic Tool 12V Ancel PB100 Circuit Tester Automotive Diagnostic Tool 12V 24V Electrical Current Voltage Integrated Power Scanner Product Properties:DC voltage range: 0-65V; Resistance range: 0-100 kΩ; Rated current: 1-10 amps; Frequency response of sound passage: 0Hz to 10Khz.Perform current injection, measurement, ground test, polarity test, continuity test and component activation.Ergonomic housing design with waterproof, rugged, blow-molded housing, easy to handle and store.There are 4 modes to diagnose the electrical systems.(DC voltage, AC voltage, Resistance, Diode)AC- RMS, AC peak to peak, frequency and pulse width for signal testing.High voltage capability: displays up to 60 volts, 0.1 volt resolution.8-amp circuit breaker, automatic reset, no button to press.Three additional modes: MIN / MAX / audible monitoring.Automatically detects positive, negative and open circuit.Large color screen LCD with easy to navigate user menu.Comes with an additional 20ft extension cable.Find shorts to ground and to voltage.More uses are worth your expectation！Find The Short Circuits:In most cases, a short circuit will appear as a blown fuse or a tripping of an electrical protection device.Use the probe tip to activate and energize each of the fuse contacts..The contact which trips the circuit breaker is the shorted circuit.Find The Bad Ground: Probe the suspected ground wire or contact with the probe tip. If the circuit breaker tripped, this circuit is more than likely a good ground.Testing Trailer Lights: While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground , probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.Check Continuity: While the tool is in Resistance mode, using the probe tip with chassis is ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the vehicle’s electrical system.Activating Component: The component activation function is designed to generate activation signals to the tested components, such as activating lights, motors and other on-board electric equipments.Signal Circuit Testing: Once you extract a DTC from the vehicle and realize that troubleshooting begins with some kind of sensor circuit, there is a quick test you can perform to verify the code. Testing your sensor is easy while using the tool.Voltage & Polarity Testing: While the tool is in DC Voltage mode, contact the probe tip to a POSITIVE circuit. If contact the probe tip to an OPEN circuit, neither of the LED will light. ANCEL PB100 Product Function: 1. Work Mode There are four modes to diagnose the electrical systems,which can be accessed by depressing the Mode Button and cycling through each one. 3. Circuit Continuity Testing in Resistance mode While the tool is in Resistance mode,using the probe tip with chass is ground or the auxiliary ground lead,continuity can be tested on wires and components attached or disconnected from the vehicle's electrical system.When the probe tip is contacting a good ground,the LCD will indicate"0.0Ω" and green LED wiil be on,A beep tone will sound. 7. Signal Circuit Testing For example,you suspect there is a problem with your M.A.P.?sensor circuit,then follow the procedure involved with testing this sensor: Set the tool in AC Voltage mode,using the probe tip with chassis ground or the auxiliary ground lead. Connect vacuum pump to MAP sensor. Contact the probe tip to the MAP sensor positive terminal and observe the LCD readings which should be a sine wave in normal condition. Apply vacuum Release vacuum and observe the LCD readings Two power supply methods Powered by vehicle battery or cigarette lighter, Compared with other circuit testers that only use car battery power, PB100 provides more choices and is more convenient to use. FAQs: Q: Where can I find the probe tip? A: We keep the probe above the back of the device. (Warm note: Be more careful when operating because of the sharp probe tip.) Q: Why can not the probe tip itself stay engaged? It keeps falling out. A: You need to push it a little harder until you hear a "CLICK" sound, then it will stay engaged. Q: Why should I buy an ANCEL PB100? A: Our products are designed to help you save time and money in electrical diagnostics. Q: Where can I find training videos? A: You can learn by browsing the video on the page or the YouTube.PaymentDelivery detailsTerms of salesAbout usContact usPayment ♦ We accept all common forms of payment such as Credit Cards,Debit Card,Google Pay ect. ♦ Payment should be made within 4 days after bidding ends.Otherwise a Unpaid Item case will be opened to you. ♦ Please contact us if you need to use another method to pay.We are not responsible for buyers’ local taxes. ♦ Please include your special requests in eBay note if there is any,or you can send ebay message to us.Delivery details ♦ Shipping Methods: USPS First Class Mail Service /USPS Priority Mail Service/UPS Surepost Service/ UPS Ground Service. ♦ Processing Time:We will process your order within1 business day (excluding holiday and weekend) ♦ Shipping Time:Order will be shipped within 1 business day after payment confirmed(excluding holiday and weekend) ♦ Delivery Shipping: If you have any problems, you can contact us first or contact local USPS, UPS. ♦ Notice:For USA Buyer, We have warehouse in different places, parcel will be shipped from the nearest warehouseTerms of sales ♦ Buyer Guarantee We assure you that we are a honest and super reliable seller on ebay, any problems can be solved in a satisfing way for you and any loss will not be brought to you as long as you will kindly contact us via ebay message or your private email. ♦ Return Policy In case an item arrives faulty or not happy with your purchasing, please contact us in 30 days and keep it unused.We will instruct you on how to return and get refund or replacement,please email us first for return address and instructions. ♦ Kind Tips Please do not hesitate to leave us your Positive Feedbackand good review,If you are satisfied with our products. we work hard to make sure every customer 100% satisfied and resolve any problem for you. Thank you for your kindness. About us ♦ ANCEL TECHNOLOGY CO., LTD specializes in automotive intelligent diagnostics, detection and analysis systems, and automotive-related products for mechanics, repair shops, and DIYers. ♦ Ancel persists on technological innovation and has independent intellectual property rights, factory, and technical team. With the mission of providing customers with high-quality products, technologies and services in the automotive field. ♦ This year, our product line has made new breakthroughs, and successively released ANCEL AR500,DM500,DS300,DS600,DS700,HD8000,DP500,V6 HD,V5 HD,DP500. Next, we will continue to innovate and provide more quality products ♦ We support remote assistance by TeamViewer if you have any difficulty in software installation.Contact us ♦ Our customer-oriented service strives for buyers' 100% satisfaction. ♦ Please feel free to contact us via eBay message once you have any question before leaving neutral / negative feedback or open case. We will reply in 24 business hours. ♦ Business time: GMT8 (9:00-18:30) from Monday to Friday. ♦ Please leave us Positive Feedback and 5-stars★★★★★ selling ratings if you receive the product and are satisfied with it. as you know, every seller works hard for the positive feedback. We will do the same as soon as we can too.On Oct 19, 2024 at 19:20:28 PDT, seller added the following information:
