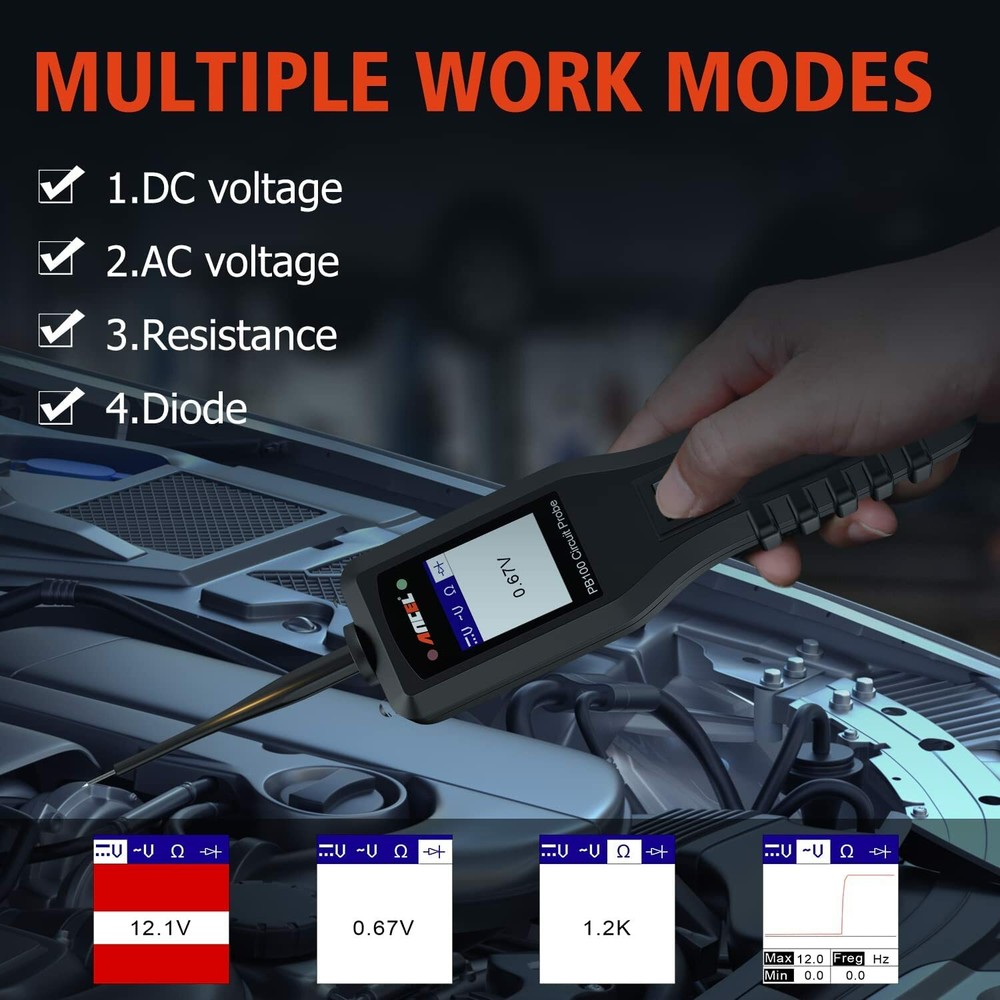

Check the listing for details. PB100 12V 24V Car Electrical Circuit Tester Powerscan AVOmeter Diagnostic Tool. Condition: New other (see details). Listed at 68.79 USD. Ancel PB100 Circuit Tester Automotive Diagnostic Tool 12V 24V Electrical Current Voltage Integrated Power Scanner Product Properties:DC voltage range: 0-65V; Resistance range: 0-100 kΩ; Rated current: 1-10 amps; Frequency response of sound passage: 0Hz to 10Khz.Perform current injection, measurement, ground test, polarity test, continuity test and component activation.Ergonomic housing design with waterproof, rugged, blow-molded housing, easy to handle and store.There are 4 modes to diagnose the electrical systems.(DC voltage, AC voltage, Resistance, Diode)AC- RMS, AC peak to peak, frequency and pulse width for signal testing.High voltage capability: displays up to 60 volts, 0.1 volt resolution.8-amp circuit breaker, automatic reset, no button to press.Three additional modes: MIN / MAX / audible monitoring.Automatically detects positive, negative and open circuit.Large color screen LCD with easy to navigate user menu.Comes with an additional 20ft extension cable.Find shorts to ground and to voltage.More uses are worth your expectation！Find The Short Circuits:In most cases, a short circuit will appear as a blown fuse or a tripping of an electrical protection device.Use the probe tip to activate and energize each of the fuse contacts..The contact which trips the circuit breaker is the shorted circuit.Find The Bad Ground: Probe the suspected ground wire or contact with the probe tip. If the circuit breaker tripped, this circuit is more than likely a good ground.Testing Trailer Lights: While the tool in DC Voltage mode, clip the auxiliary ground lead to the trailer ground , probe the contacts at the jack and then apply voltage to the probe tip. This lets you check the function and orientation of the connector and trailer lights.Check Continuity: While the tool is in Resistance mode, using the probe tip with chassis is ground or the auxiliary ground lead, continuity can be tested on wires and components attached or disconnected from the vehicle’s electrical system.Activating Component: The component activation function is designed to generate activation signals to the tested components, such as activating lights, motors and other on-board electric equipments.Signal Circuit Testing: Once you extract a DTC from the vehicle and realize that troubleshooting begins with some kind of sensor circuit, there is a quick test you can perform to verify the code. Testing your sensor is easy while using the tool.Voltage & Polarity Testing: While the tool is in DC Voltage mode, contact the probe tip to a POSITIVE circuit. If contact the probe tip to an OPEN circuit, neither of the LED will light. ANCEL PB100 Product Function: 1. Work Mode There are four modes to diagnose the electrical systems,which can be accessed by depressing the Mode Button and cycling through each one. 3. Circuit Continuity Testing in Resistance mode While the tool is in Resistance mode,using the probe tip with chass is ground or the auxiliary ground lead,continuity can be tested on wires and components attached or disconnected from the vehicle's electrical system.When the probe tip is contacting a good ground,the LCD will indicate"0.0Ω" and green LED wiil be on,A beep tone will sound. 7. Signal Circuit Testing For example,you suspect there is a problem with your M.A.P.?sensor circuit,then follow the procedure involved with testing this sensor: Set the tool in AC Voltage mode,using the probe tip with chassis ground or the auxiliary ground lead. Connect vacuum pump to MAP sensor. Contact the probe tip to the MAP sensor positive terminal and observe the LCD readings which should be a sine wave in normal condition. Apply vacuum Release vacuum and observe the LCD readings Two power supply methods Powered by vehicle battery or cigarette lighter, Compared with other circuit testers that only use car battery power, PB100 provides more choices and is more convenient to use. FAQs Q: Where can I find the probe tip? A: We keep the probe above the back of the device. (Warm note: Be more careful when operating because of the sharp probe tip.) Q: Why can not the probe tip itself stay engaged? It keeps falling out. A: You need to push it a little harder until you hear a "CLICK" sound, then it will stay engaged. Q: Why should I buy an ANCEL PB100? A: Our products are designed to help you save time and money in electrical diagnostics. Q: Where can I find training videos? A: You can learn by browsing the video on the page or the YouTube.PaymentDelivery detailsTerms of salesAbout usContact usPayment We accept all common forms of payment such as Credit cards、Debit card、Google Pay ect. Please contact us if you need to use another method to pay. Payment should be made within 4 days after bidding ends. Otherwise a Unpaid Item case will be opened to you. We are not responsible for buyers’ local taxes. Please include your special requests in eBay note if there is any.Delivery detailsShipping methods: USPS First Class Mail Service /USPS Priority Mail Service/UPS Surepost SERVICE/ UPS GROUND SERVICE I will process your order within one business day (excluding holiday and weekend)If you have any problems, you can contact me first or local USPS, UPSTerms of salesPlease do not hesitate to leave us your PositiveFeedbackandgood review If you are satisfied with our productsIf youare unsatisfiedwith your purchase,please email us first to get a better solution before you leaveaneutralornegative feedback, we work hard to make sure every customer 100% satisfied and resolve any problem for you. Thank you for your kindness. About usWe are a professional Authorized dealers of AUTEL, LAUNCH,ANCEL,FOXWELL, OBDSTAR， AUTOPHIX, KZYEE, NEXAS,Autek ，WOYO，etc. We support remote assistance by TeamViewer if you have any difficulty in software installation. Contact usAny questions, you can feel free to contact me by ebay message or whatsapp.Due to time difference, I may not be able to reply immediately, but I will reply within 24 hoursPlease contact me first before giving negative feedback or opening case. Wish we can solve the problem peacefully. Working hours:0:00 am - 3:00 am Pacific Time， 6:00-9:00 pm Pacific Time, 11:00 pm - 12:00 pm Pacific Time. On Oct 26, 2023 at 05:06:48 PDT, seller added the following information:
