| Model | ANCEL PB50 |
|---|---|
| Brand | ANCEL |
| Manufacturer Part Number | ANCEL PB50 PB100 PB500 PB600 Power Probe Kit |
| Model 1 | ANCEL PB100 |
| Display 1 | 1.77 inch TFT (160*128DPI) |
| Supply Voltage 1 | DC: 8V~35V |
| DC/AC Voltage Test 1 | 0~65V |
| Frequence 1 | 0Hz~10KHz |
| Resistance 1 | 0~100KΩ |
| Model 2 | ACNEL PB500 |
| Display 2 | 1.77 inch TFT (160*128DPI) |
| Supply Voltage 2 | DC: 8V~35V |
| DC/AC Voltage Test 2 | -110V~+110V |
| Frequence 2 | 0Hz~1MHz |
| Resistance 2 | 0~1MΩ |
| Model 3 | ANCEL PB600 |
| Display 3 | 2.4 inch TFT (320*240DPI) |
| Supply Voltage 3 | DC: 8V~35V |
| DC/AC Voltage Test 3 | -110V~+110V(True RMS Measure) |
| Frequence 3 | 0Hz~1MHz |
| Resistance 3 | 0~1MΩ |
| Fuel Injection | Voltage:0~260V, Time: 0~25ms |
| Duty Cycle | 0.0%~100.0% |
| Battery Test | 100-2000CCA,12V VehicleBattery |
| Cranking Test | Yes |
| Charging Test | Yes |
| Relay Test | 4-pin or 5-pin relays |
| Volt | 12 Volt |
| Accessories | User Guide, Probes, Clamps, Carrying Case |
| Features | Analog Display, Continuity Testing, Digital Display, Relay & Component Testing, Voltmeter |
| Vehicle Type | Passenger Vehicle, Motorcycle, Heavy Duty/Commercial, ATV |
| Warranty | 3 Year |
| Model 4 | ANCEL PB50 |
| Display 4 | 1.77 inch TFT (160*128 DPI) |
| Test Voltage 4 | 12V/24V |
| Extension Cable 4 | 13FT |
| Working Mode 4 | 4 |
| Supply Voltage 4 | DC: 8V~35V |
| Storage Temperature 4 | -40℃ (-40℉) to 65℃ (149℉) |

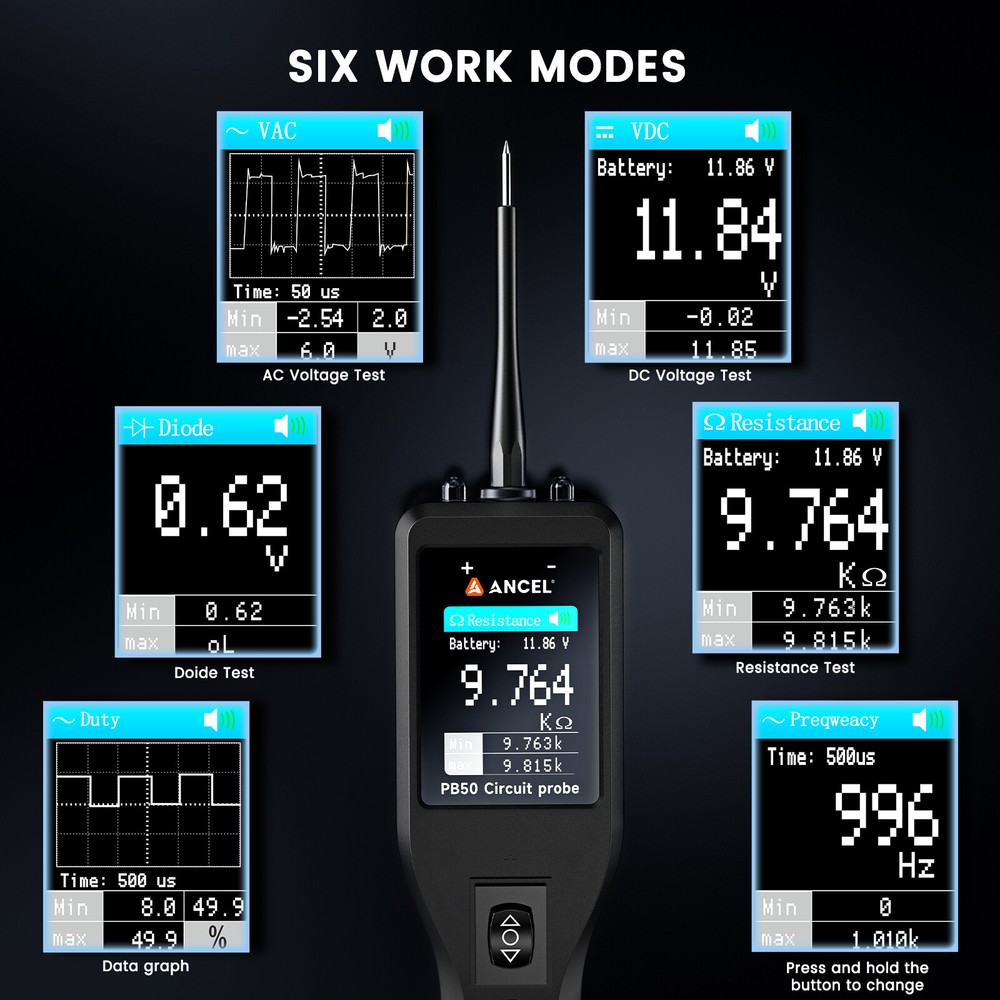

Check the listing for details. ANCEL PB100 PowerScan Circuit Tester Electrical Probe Diagnostic Power 12V/24V. Condition: New. Listed at 45.99 USD. ANCEL PB100 PB500 PB600 Power Circuit Probe Tester Kit Automotive Circuit Tester. About ANCEL PB50---13FT. ANCEL PB50 Product Function About ANCEL PB100---20FT. ANCEL PB100 Electrical System Circuit Tester Functions.
You may also like
$50
OTC Noid Light and IAC Tester Kit 3054B
$149

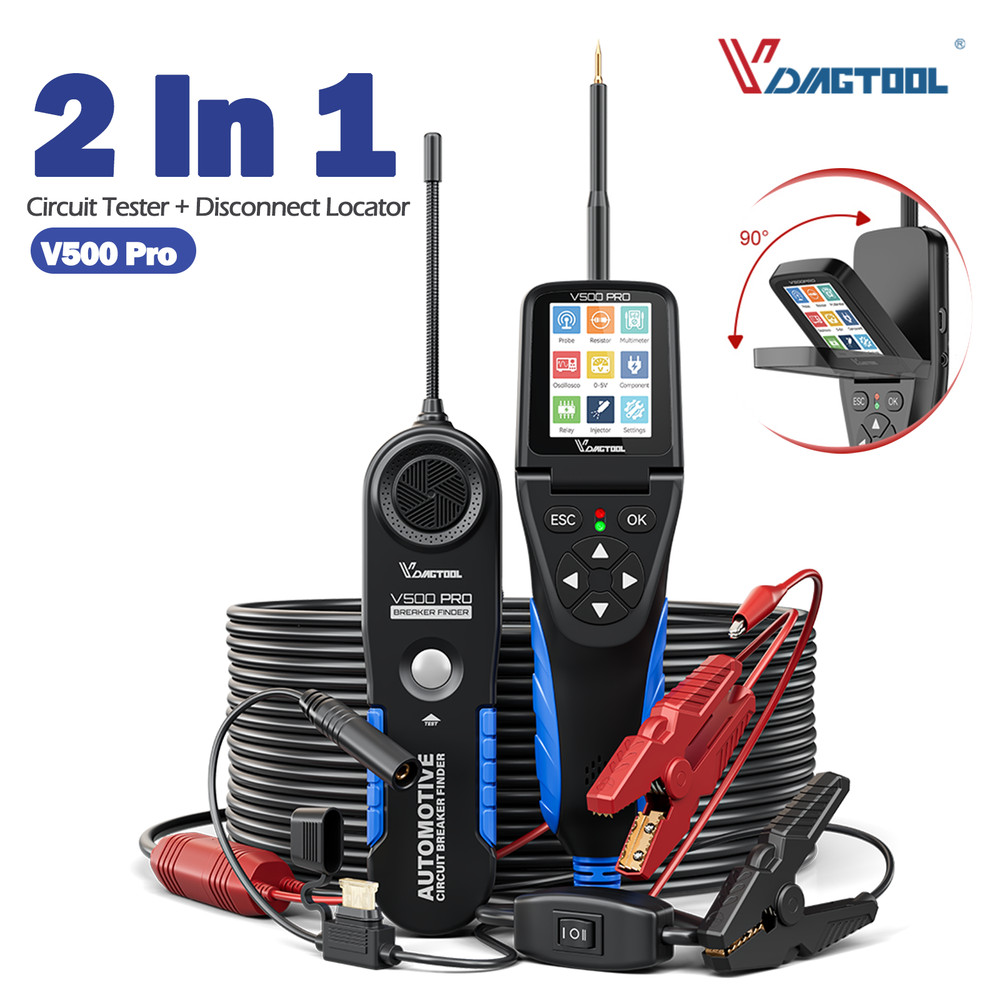

VDIAGTOOL PowerScan V500Pro Circuit Tester Electrical Power Probe Open Finder US
