| Country of Origin | United States |
|---|---|
| Brand | waltvotur |
| MPN | WA3736161UR |
| Type | Voltage regulator |
| Warranty | 1 Year |
| Frequency | 50-60 Hz nominal |
| Set point | 94 -98% Hz |
| UNIT POWER DISSIPATION | 12 watts maximum |
| Maximum input | /- 5 Vdc |
| Vibration | 20-100 Hz 50mm/sec |
| Operating temperature | -40 to, 70º C |
| Relative Humidity | 0-70º C 95% |
| Storage temperature | -55 to, 80º C |

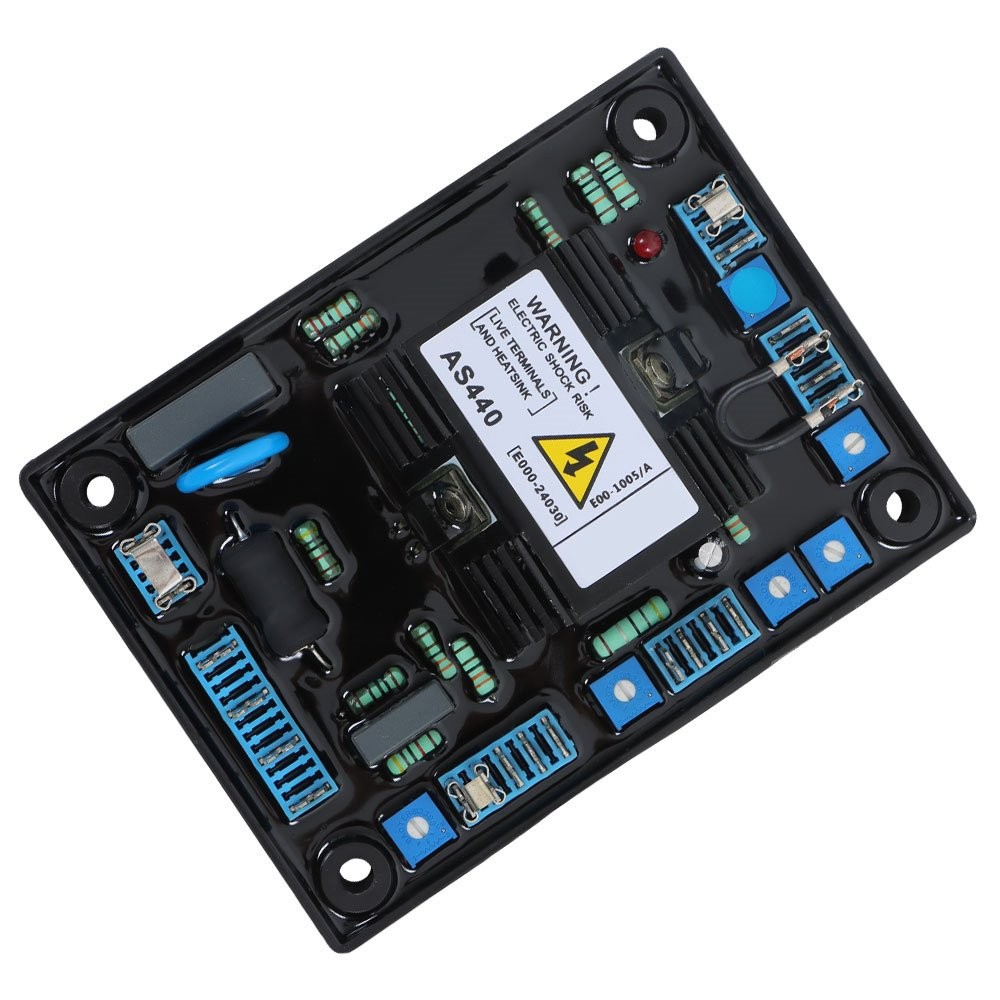

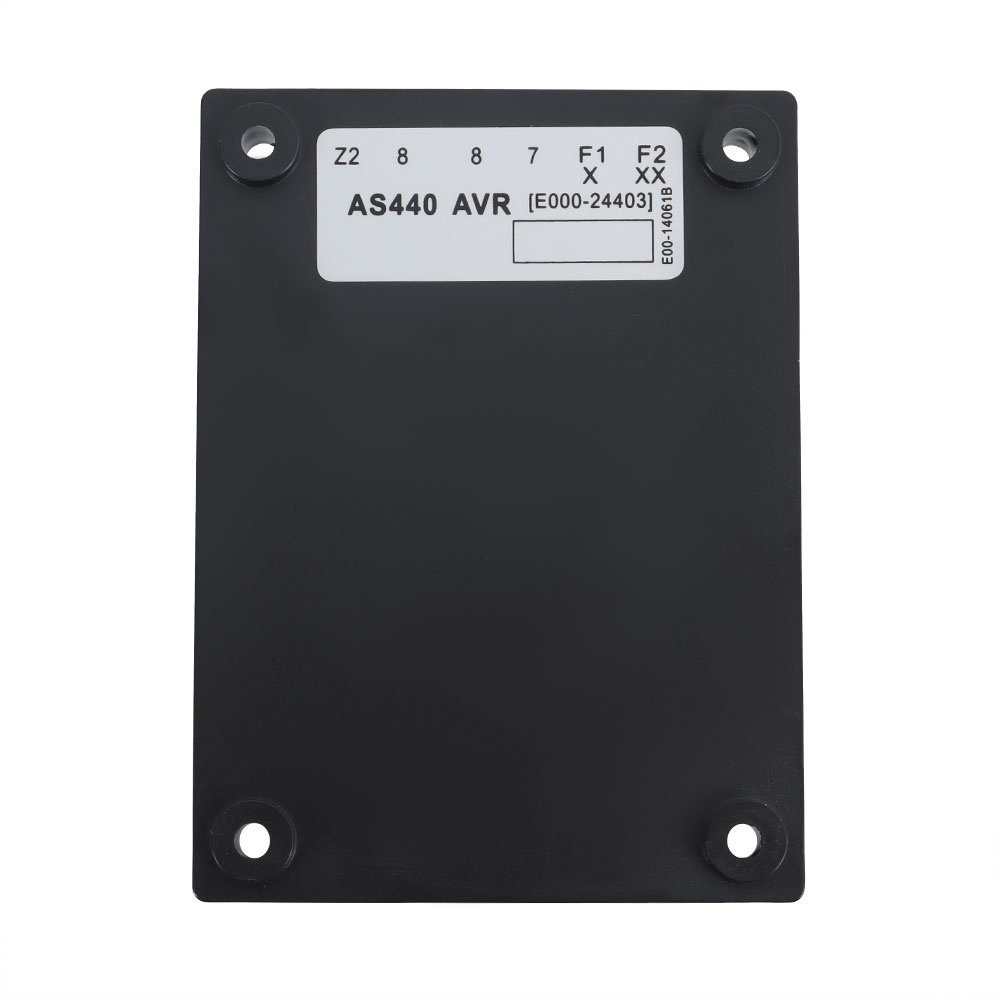

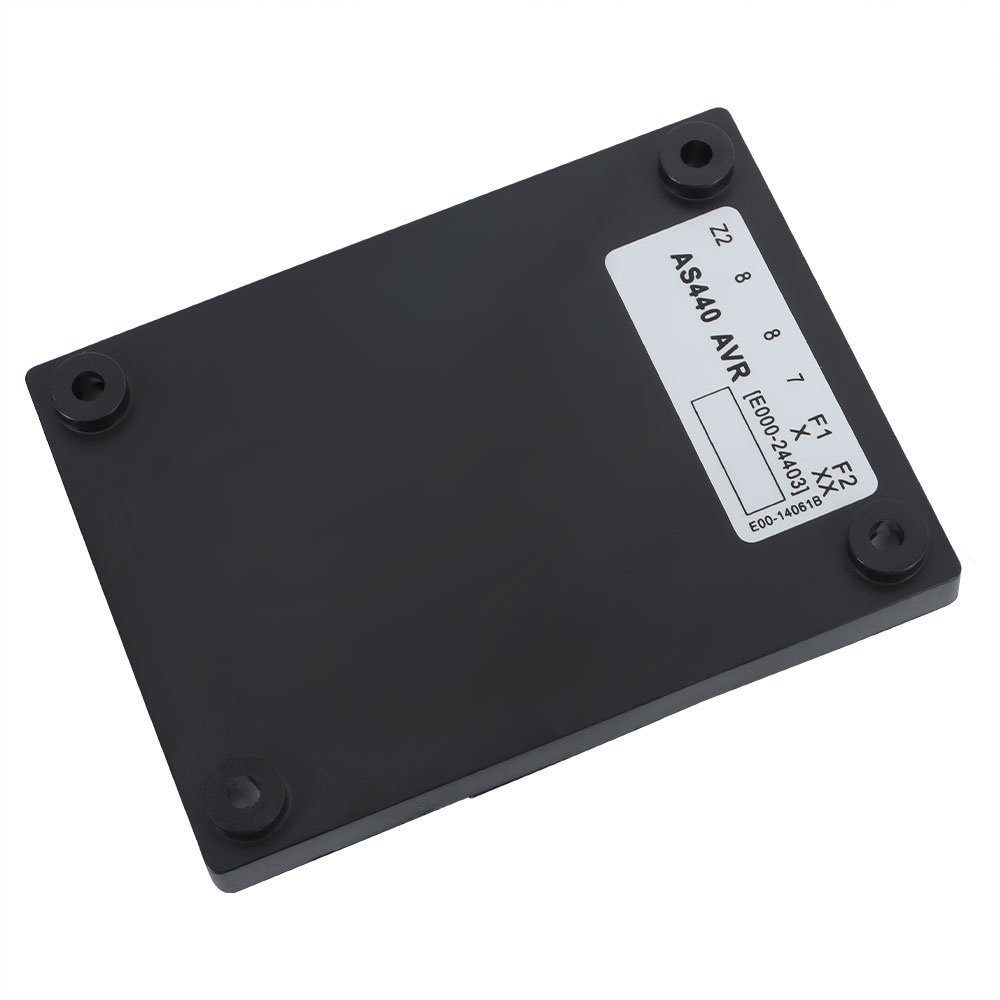

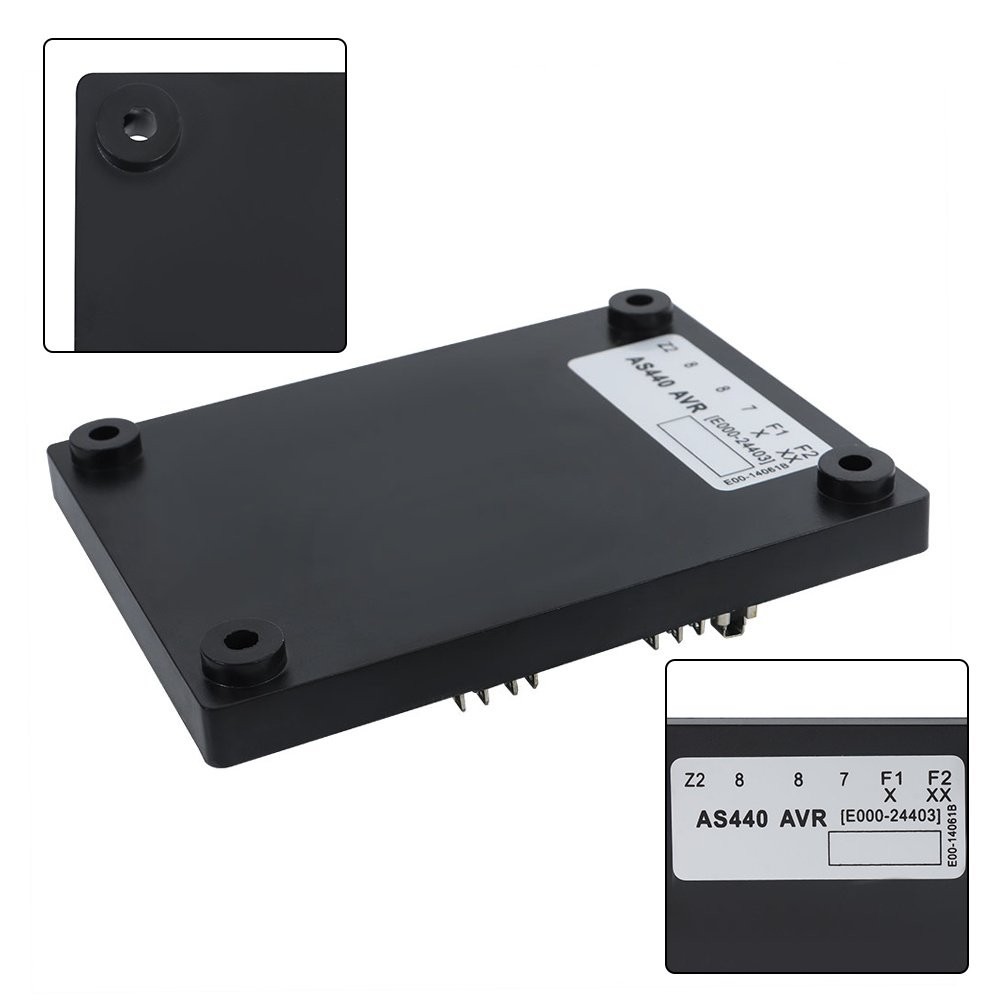

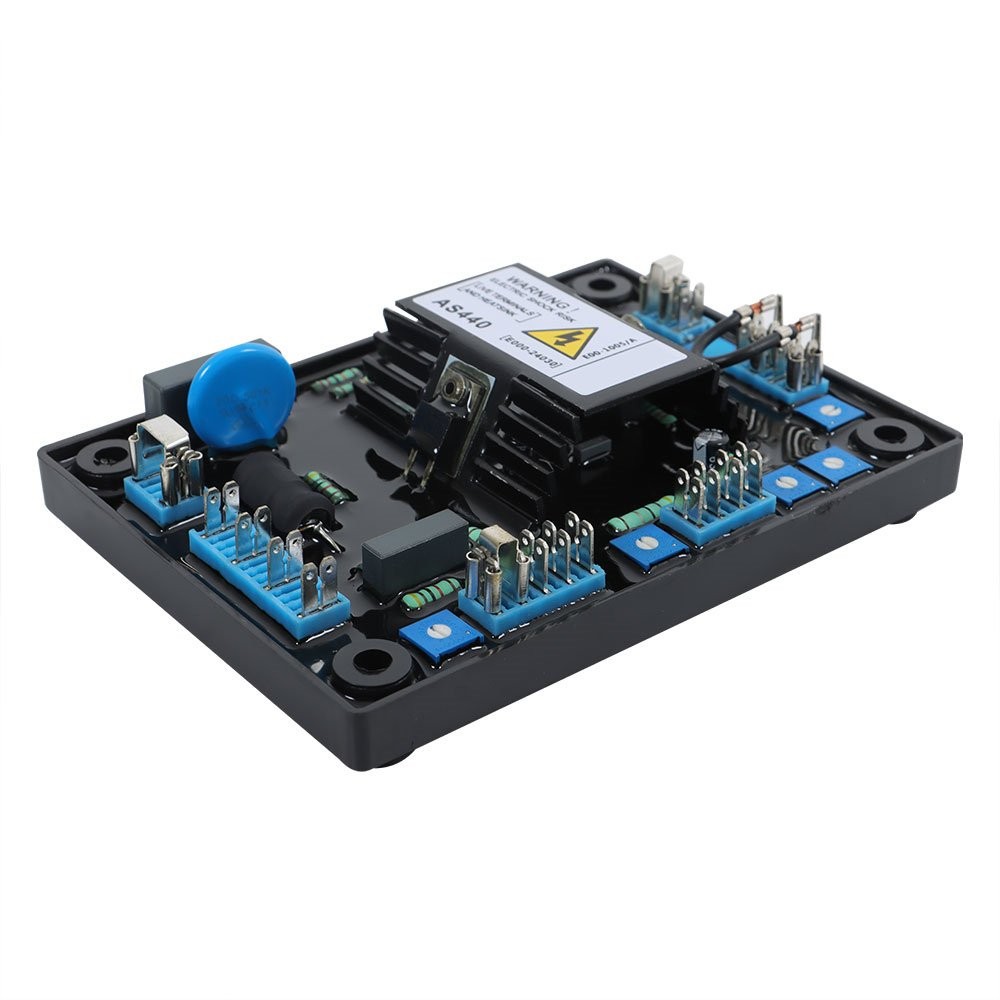

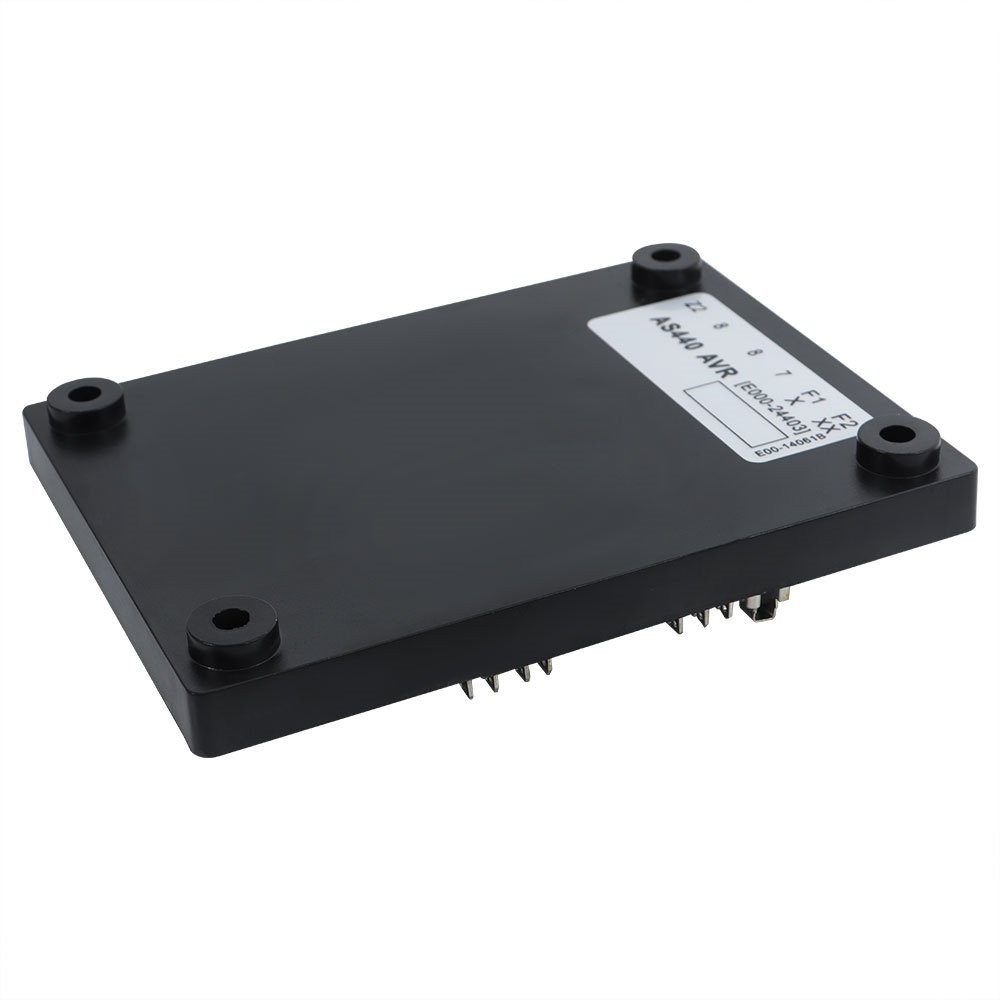

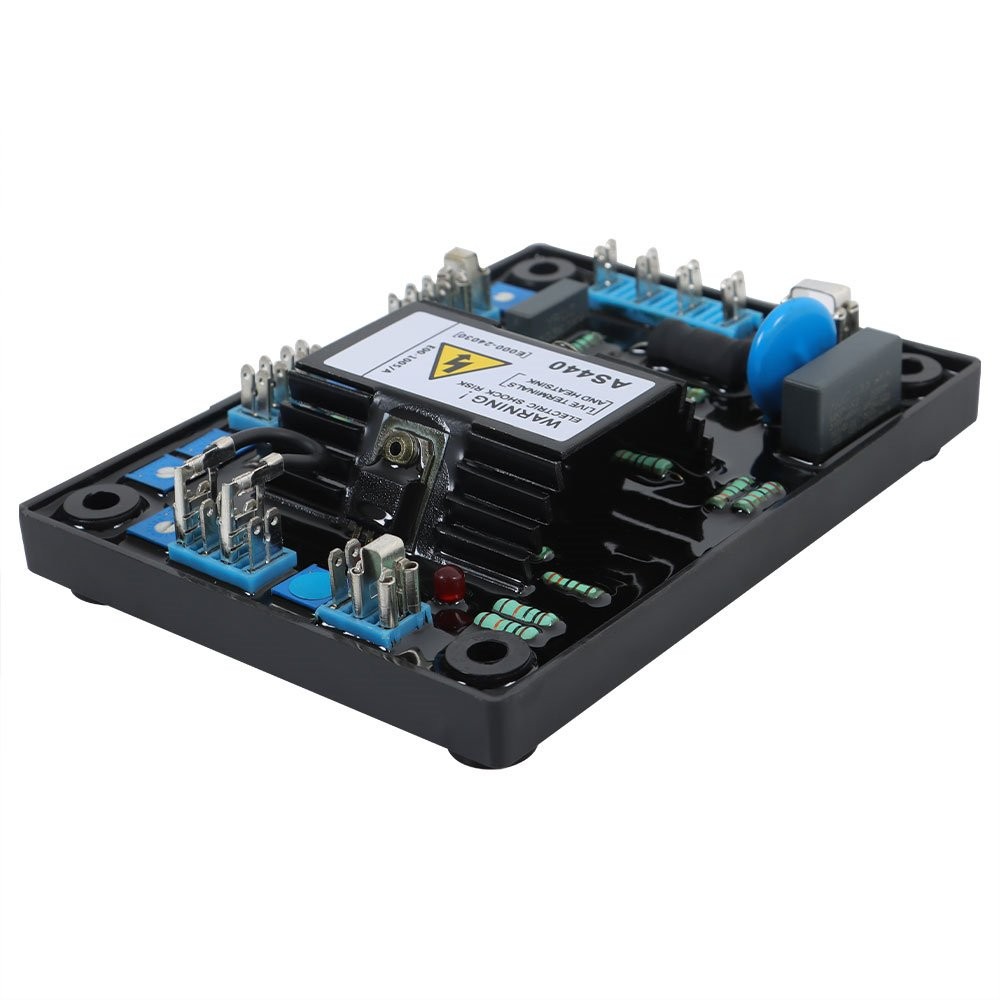

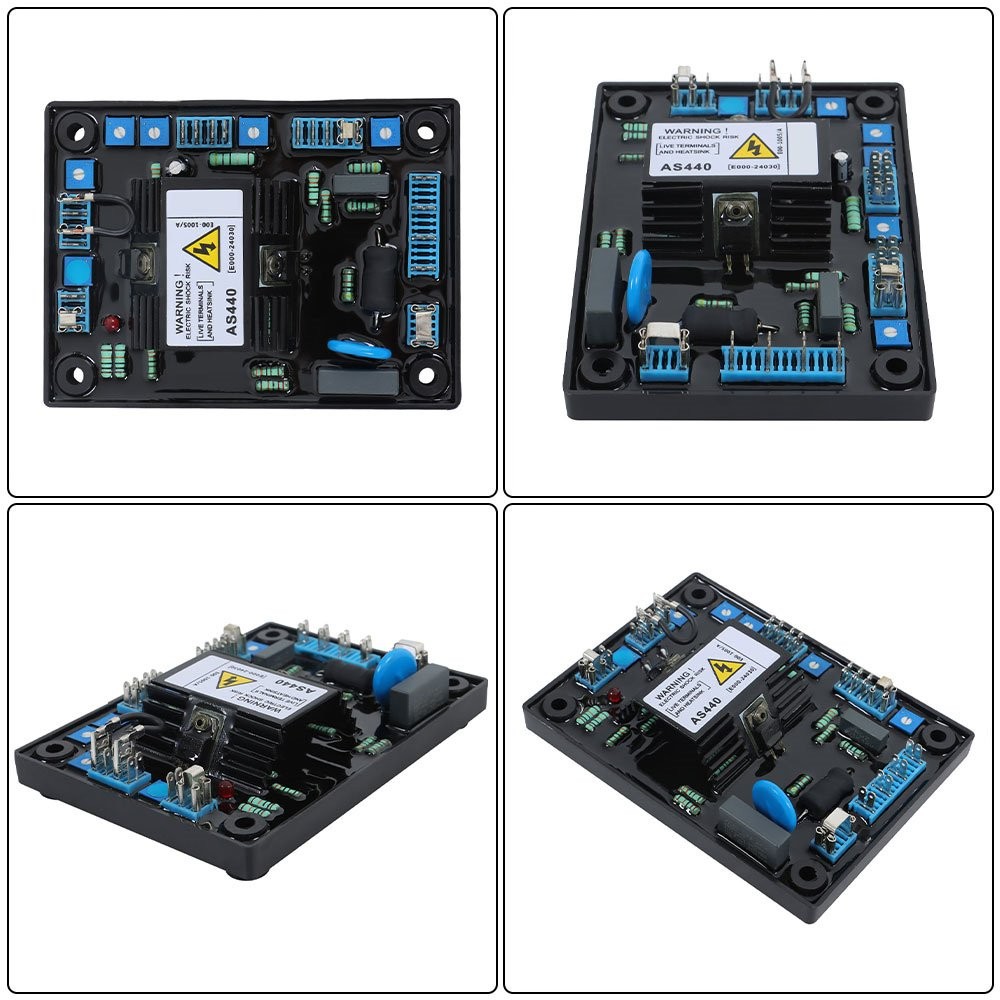

Check the listing for details. AS440 AVR Automatic Voltage Regulator Diesel Generator Circuit Board. Condition: New, Made in United States. Listed at 20.88 USD. Fitment： Condition: 100% Brand New Frequency:50-60 Hz Nominal Power Input Voltage:100-264 V Ac Typical System Response Avr Response: 20 Ms Filed Current To 90%: 80 Ms Machine Volts To 97%: 300 Ms External Voltage Adjustment:+/-10% With 1 K Ohm 1 Watt Trimmer Increasing Resistance Lowers Voltage. Analogue Input Maximum Input: +/- 5 Vdc Sensitivity: 1v For 5% Generator Volts Input Resistance 1k Ohm Quadrature Droop Input 10 Ohms Burden Max. Sensitivity: 0.07 A For 5% Droop 0pf Max. Input: 0.33 A Over Excitation Protection Set Point 75 V Dc Time Delay 10-15 Seconds .
You may also like
$186.49
A-Premium CV Axle Shaft Assembly Compatible with Hyundai Sonata 2016-2019 2.0...
$55.16
650-091 AVR 12V Printed Circuit Board Automatic Voltage Regulator
$544.5
Essex Electro Engineers B809D 72kW Generator Set Engine Card B809-3004
$356.99
Alternator 150A 12V for Camaro SS 1SS 2SS 2010-2015 6.2L 11486N
$249.99

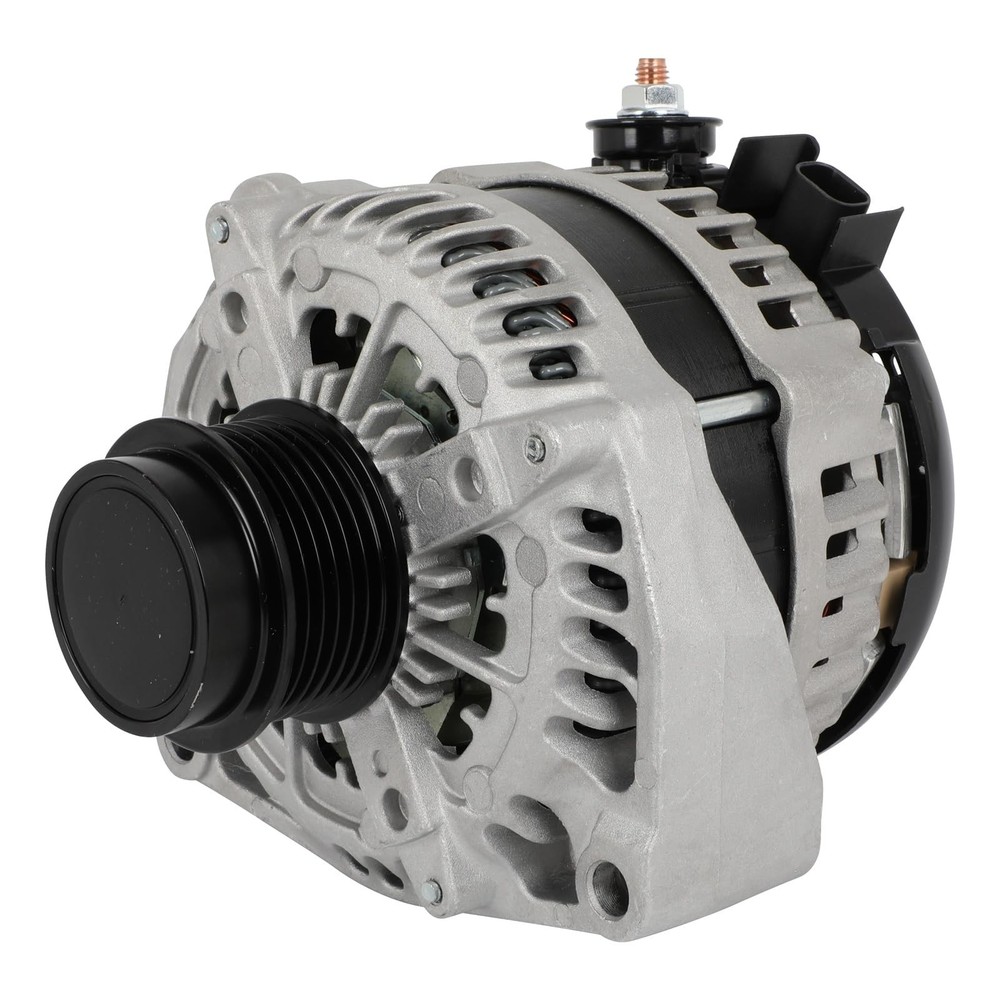

Alternator Compatible Escalade 6.2L Silverado 1500 4.3L Replace 14009
