| Signal Format Type | Digital Format |
|---|---|
| Video Format | HD |
| MPN | SWATEMTVSTA/HD08 |
| Functions | Live Production Switcher, Distribution, Production Switcher Control, Broadcast-Style Mix/Effects Switching, Video Effects, Creative Transitions, Built-In DVE, Supports Internal Media, 4 ATEM Advanced Chroma Keyers, SuperSource Processing, 8 Standards Converted 3G-SDI Inputs, 3G-SDI Outputs with 16 Channel Embedded Audio, 16-Source Multiview on a Single Monitor, Add Audio Expansion for More Microphones, Record Direct to Internal Cloud Storage or USB Disks, Outputs to Any Software that Supports USB Webcams, Includes Free ATEM Software Control Panel, Localized for 13 Popular Languages, Flexible and Redundant Power |
| Item Length | 23" |
| Number of Outputs | 8 |
| Brand | Blackmagic Design |
| Form Factor | Console/Tabletop |
| Type | Production Switcher |
| Output Interfaces | Video Outputs: 8x BNC, Audio Outputs: 2x 1/4" TRS Stereo Analog Female, Embedded Audio Output: SDI, Multiview Output: 16-Way Multiview, Monitor Output: 1x HDMI |
| Number of Inputs | 8 |
| Item Height | 6.35" |
| Model | Blackmagic Design ATEM Television Studio HD8 ISO |
| Input Interfaces | Video Inputs: 8x BNC (3G-SDI) Female, Audio Input: 1x BNC MADI Female, Audio Input: 1x 2RCA Stereo Analog Female, Audio Input: 2x XLR 3-Pin Analog Female, Audio Input: 1x XLR 5-Pin Female, Embedded Audio Input: SDI |
| Connectivity | 1x BNC Reference Input, 1x BNC Reference Output, 1x BNC Timecode, 4x RJ45 LAN Input/Output, 1x RJ45 Talkback Input/Output, 1x RJ12 Remote Input/Output, 2x USB-C Output |
| Features | 8-Input 3G-SDI 1080p60 Live Switcher, Record Each Input to Separate Files, Streaming Support, USB & M.2 Recording, Up to 16 Multiview Output Sources, Customizable Electronic LCDs, Redesigned Buttons and Layout, Supports Remote Internet Cameras, Blackmagic Cloud Integration, Audio Mixing, Transitions, T-Bar, AUX, Camera Control, Timecode, Talkback |
| Host System | Windows 10 or Later, macOS 12 or Later |
| Item Width | 14.8" |
| Item Weight | 14.9lb |
| Product Line | Blackmagic Deisgn ATEM Television Studio |

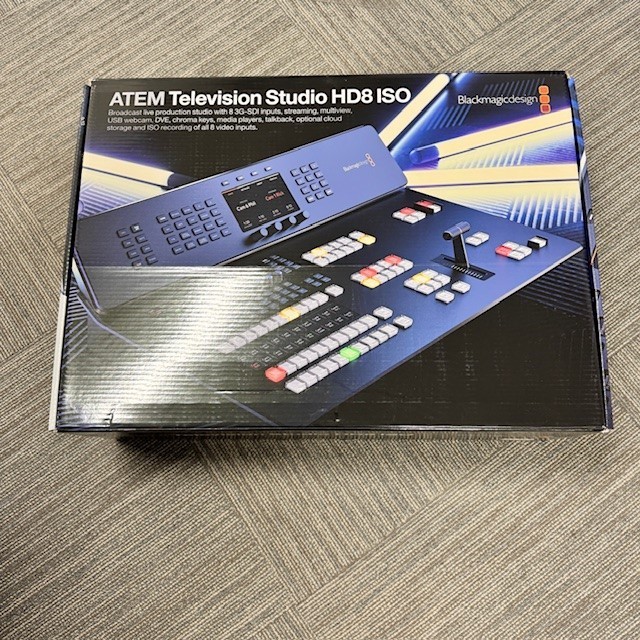

Check the listing for details. Blackmagic Design ATEM Television Studio HD8 ISO Live Production Switcher. Condition: Used. Listed at 3735.00 USD. The new ATEM Television Studio is a professional live production switcher built into a broadcast control panel so it can be used for high end work while being extremely portable. This means you can use it in small venues that don't have the access for equipment racks or broadcast vans. You get a powerful switcher with 8 standards converted SDI inputs, aux outputs, 4 chroma keyers, 2 downstream keyers, SuperSource, 2 media players and lots of transitions! Plus it includes a whole television studio of features such as hardware streaming, recording, audio mixer, talkback, multiview and optional internal network shared storage. ATEM Television Studio HD8 ISO includes all the features of ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs to separate video files.
