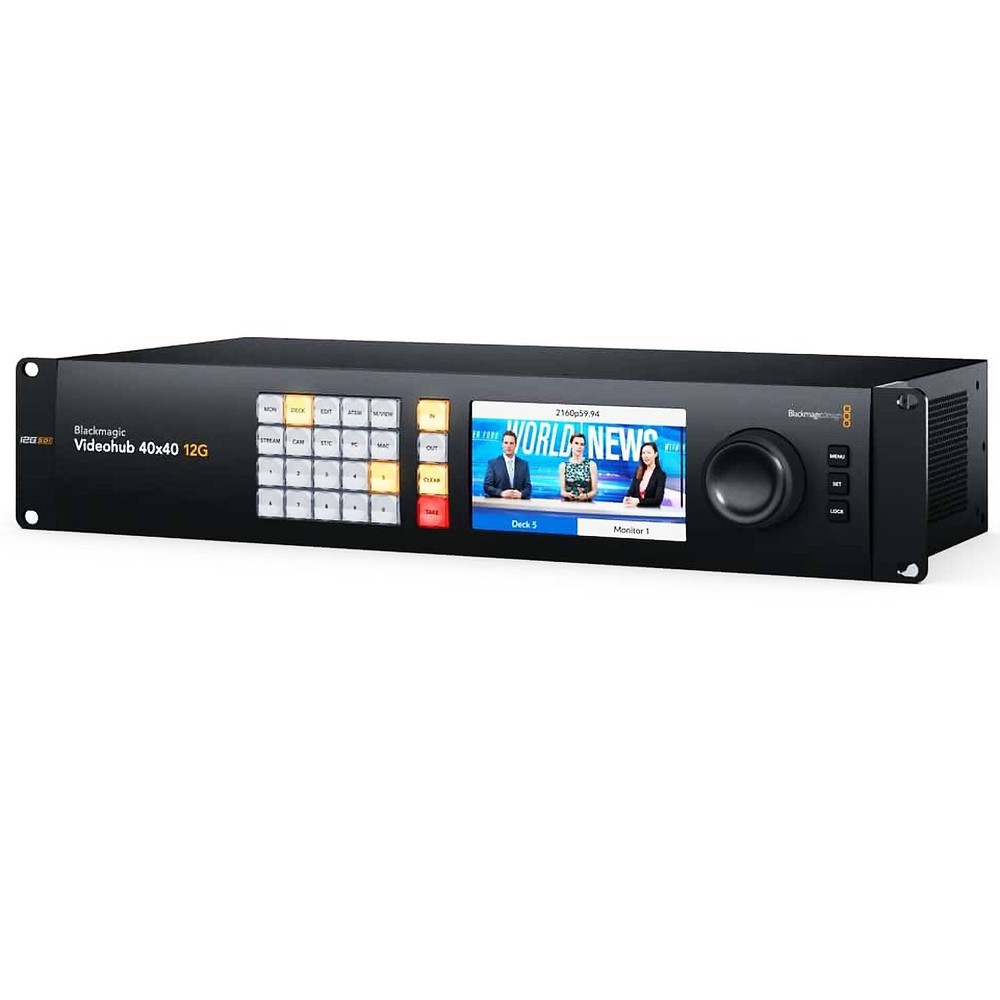

Check the listing for details. Blackmagic Design Videohub 40x40 12G Zero Latency Video Router. Condition: New. Listed at 3995.00 USD. Blackmagic Design Videohub 40×40 12G Zero Latency Video Router Blackmagic Videohub 40×40 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 40 12G-SDI inputs and 40 12G-SDI outputs, redundant power and reference connections in two rack unit’s size. The large full HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60. Features and further detailsTechnical Specifications ConnectionsSDI Video Inputs40SDI Video Outputs40SDI RatesDVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.Video Input Re-SyncNoneSDI ReclockingOn all SDI outputs.Reference InputsTri-Sync or Black Burst.Reference OutputsReference terminating loop output.EthernetSupports 10/100/1000 BASE‑T.Computer InterfaceUSB‑CStandardsSD Video Standards525i59.94 NTSC, 625i50 PALHD Video Standards720p50, 720p59.94, 720p601080i50, 1080i59.94, 1080i601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p601080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF302K Video Standards2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCIUltra HD Video Standards2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p604K Video Standards4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCISDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and BSMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601SDI Audio SamplingTelevision standard sample rate of 48kHz and 24-bit.SDI Video SamplingYUV 4:2:2 and RGB 4:4:4SDI Color Precision10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.SDI Color SpaceREC 601, REC 709, REC 2020SDI Auto SwitchingAutomatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard.SDI Metadata SupportVideo payload identification ancillary data as per SMPTE 352M.ControlBuilt in Control Panel24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5-inch color display.External Control PanelIncludes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.Control Panel ConnectionEthernetSoftwareSoftware ControlRouter control included free for Windows and Mac.Internal Software UpgradeVia included updater application.Operating SystemsMac 12.0 Monterey,Mac 13.0 Ventura or later.Windows 10, 64-bit.Windows 11.DisplaysBuilt in 5-inch LCD for video and menu settings.Power RequirementsPower Supply2 x Internal 100 – 240V AC 50/60Hz.IEC power cables required.Power Fail ProtectionCrosspoint connections preserved and restored instantly at power on.Power Usage46.5 W max.Physical Installation2 rack units height.Dimensions3.46 x 9.37 x 19”Weight12.3 Contact us We can be contacted at any time through eBay messages if you have any questions, comments or product requests. We will respond to you within 24 hours and do our best to help you out! We encourage our customers to contact us with any questions or concerns! We'd like to be sure you are completely satisfied with your purchase. NEW ITEMS return policy 1. If you are not satisfied with your product, you may return it within 30-day window upon receiving the product. 2. Returns on new items are subject to restocking fees anywhere from 10-50% at the discretion of the seller. All returns will be inspected for any missing or damaged packaging or accessories or any other devaluation of the product. 3. Return shipping costs for new items are the responsibility of the buyer 4. Shipping charges incurred during fulfillment of the orders be deducted from the refund. 5. Items returned because a buyer found a "better price" will be subject to a partial refund. 6. All new item returns must receive an RMA number prior to the return. 7. Return items must be repackaged properly in the same care you received. USED/OPEN BOX Items return policy ALL sales are final / NO RETURN Any Items above $1000 return policy 1. These items purchased are eligible for return with restocking fee of not less than 50%. 2. Items must be returned as unopened, in original brand-new condition, showing no signs of wear or usage. CANCELLATIONS New and used items are subject to a 5% processing fee if cancelled before delivery.
