| Item model number | 32A 8 Terminal |
|---|---|
| Item dimensions L x W x H | 1.57 x 1.18 x 0.39 inches |
| Current Rating | 20 Amps |
| Operating Voltage | 120 Volts |
| Product Dimensions | 1.57 x 1.18 x 0.39 inches; 7.83 ounces |
| Connector Type | Screw |
| Terminal | Screw |
| Contact Type | Normally Open |
| Operation Mode | ON-NONE-ON |
| Actuator Type | Rotary |
| Circuit Type | 2-way |
| Mounting Type Panel Mount | Specification Met CE |
| Model | 32A 8 Terminal |
| Switch Type Rotary | Material Copper |
| UPC | 7445017784759 |

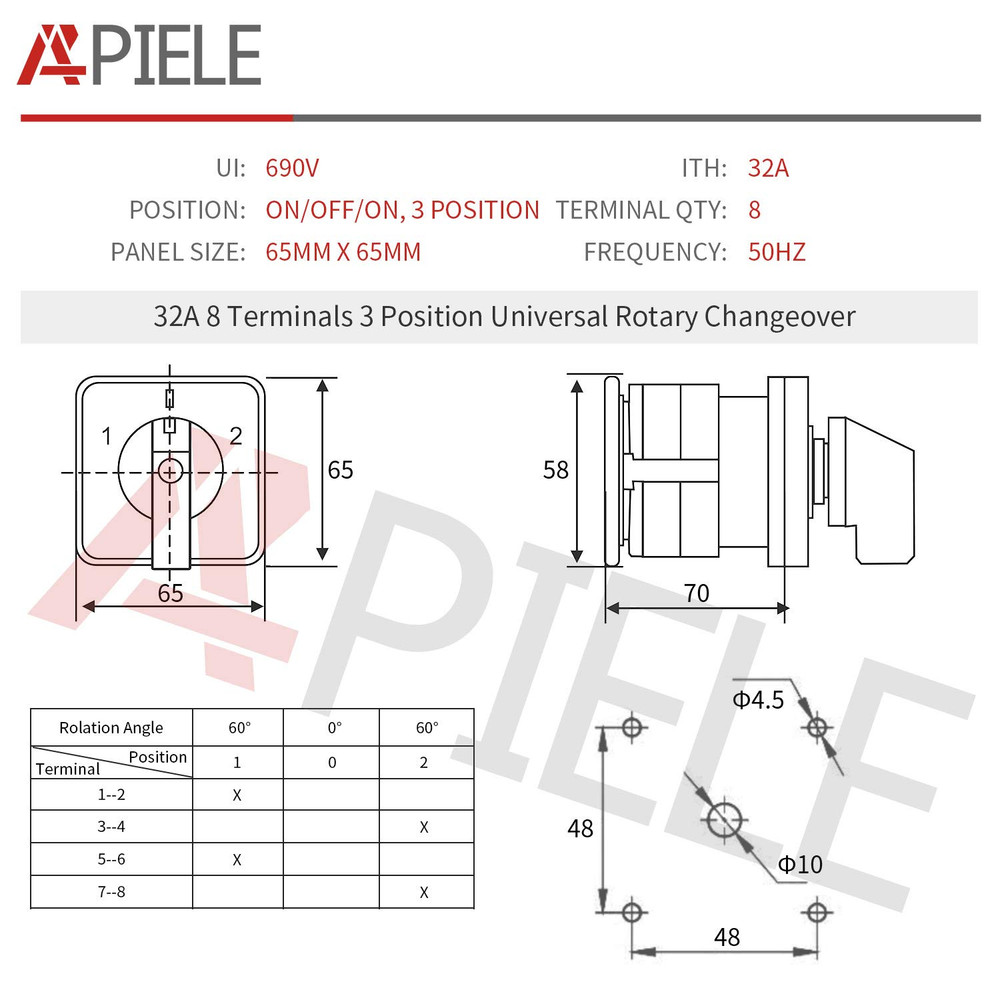

Check the listing for details. Changeover Selector Switch 3 Position 440V Universal Rotary Cam Selector (32A 8. Condition: New. Listed at 30.56 USD. 1 x Changeover Switch. Rated Volatge: 690V; ITH: 32A. Thicken material strengthen the conductive. Positioning angle: 60-0-60 Degree. Position 1 : 1-2, 5-6. Position 2 : 3-4, 7-8. Position: 3, ON-OFF-ON.
