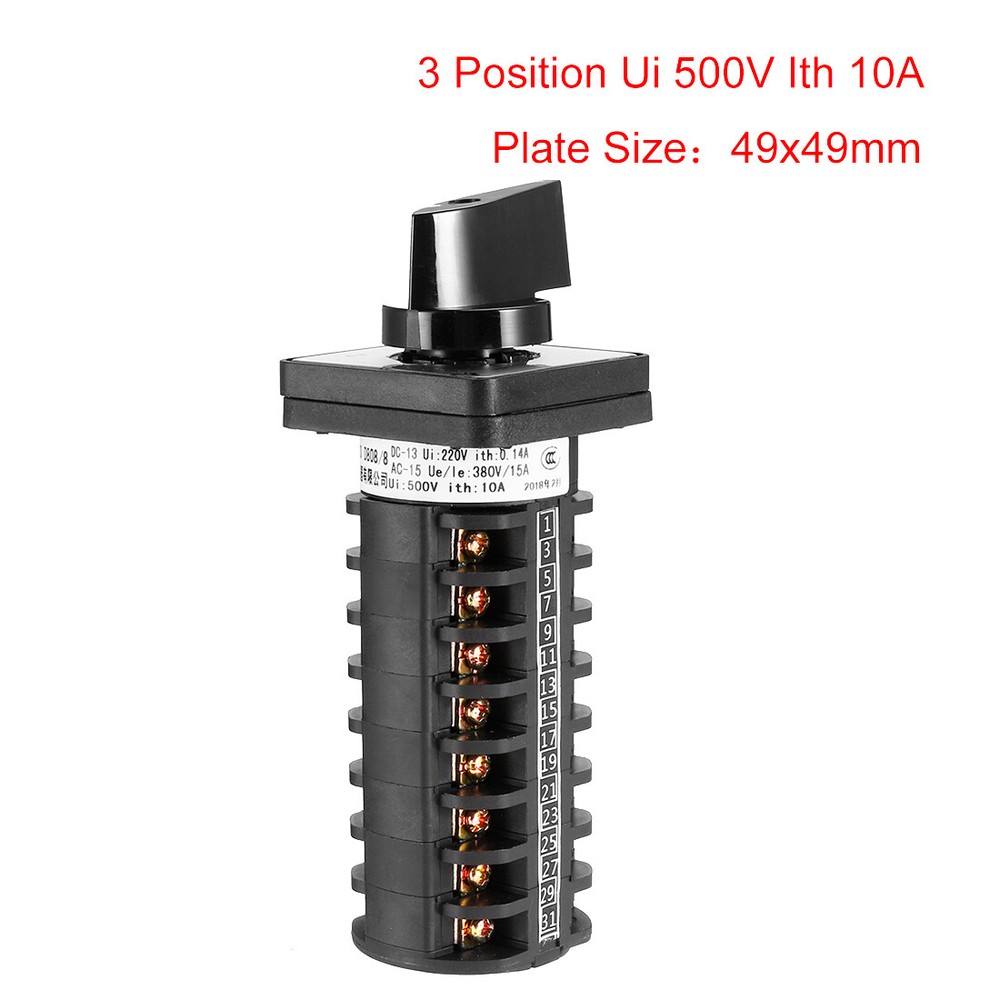

Check the listing for details. Changeover Switch 3 Position Rotary Selector Cam Switch 32 Terminal Latching 10A. Condition: New. Listed at 23.33 USD. Descriptions:*Suitable for the thickness between 1mm to 6mm of the mounting board.*Rotary selector design switch, easy to control, square plate and screws for easily mounting.*Changeover switch mainly suitable for electrical wiring in the power switch and asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit. Specification:*Model: LW8-10 D808/8 *Positions: 3*Terminals: 32*Ui: 500V ; Ith: 10A*Action Type: Latching*Positioning angle: 60-0-60 Degree*Mounting Type: Plate, Screw*Mounting Hole Distance: 36mm x 36mm / 1.42-inch x 1.42-inch (L*W)*Overall Size: 49 x 49 x 135mm / 1.93-inch x 1.93-inch x 5.31-inch (L*W*H)*Rating: DC-13: Ui:220V ith:0.14A; AC-15: Ue/Ie:380V/1.5A Package Content :*1 x Changeover Switch, 4pcs x Screw 3 Pole 6 Position Three Decks 21 Terminal Band Channel Rotary Switch Selector USD 10.69Latching AC 660V 20A 8 Terminals 5 Position Cam Combination Changeover Switch USD 14.07AC 660V 32A 3 Poles Latching Control Rotary Cam Changeover Switch USD 22.02SZW26-20 AC 660V 20A 4-Position Panel Mounting Rotary Selector Switch USD 18.39AC660V 20A 0-1 2 Position 8 Terminal Universal Rotary Cam Combination Switch USD 15.44CA10 3-Position 3-Phase Universal Rotary Cam Changeover Switch USD 16.91Changeover Switch 3 Position Rotary Selector Cam Switch 32 Terminal Latching 10A Descriptions: *Suitable for the thickness between 1mm to 6mm of the mounting board. *Rotary selector design switch, easy to control, square plate and screws for easily mounting. *Changeover switch mainly suitable for electrical wiring in the power switch and asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit. Specification: *Model: LW8-10 D808/8 *Positions: 3 *Terminals: 32 *Ui: 500V ; Ith: 10A *Action Type: Latching *Positioning angle: 60-0-60 Degree *Mounting Type: Plate, Screw *Mounting Hole Distance: 36mm x 36mm / 1.42-inch x 1.42-inch (L*W) *Overall Size: 49 x 49 x 135mm / 1.93-inch x 1.93-inch x 5.31-inch (L*W*H) *Rating: DC-13: Ui:220V ith:0.14A; AC-15: Ue/Ie:380V/1.5A Package Content : *1 x Changeover Switch, 4pcs x ScrewHot Item 1 Poles 12 Positions 6mm Shaft Diameter Electric Band Selector Rotary SwitchUSD 7.841P6T 1 Pole 6 Position 1 Deck Band Channel Rotary Switch Selector with KnobUSD 8.312P11T 2 Pole 11 Position Selectable 2 Deck Band Channel Rotary Switch SelectorUSD 8.39On/Off Two 2 Position Rotary Select Selector Switch 1 NO 10A 600V AC XB2-ED21USD 7.38AC 440V 10A DPST ON/OFF/ON 3 Position Rotary Selector Latching Button SwitchUSD 7.12PaymentWe accept eBay payment.Please do not email us to ask for other payment option.We appreciate prompt payment and look forward to your business in the future. Unpaid item will be filed without receiving payment in 7 days from listing ended.ShippingUsually we ship your order out within 24 hours in business day.For shipping and handling charges (S&H) for specific item, please refer to the item listing page for more details.Please make sure your shipping address is correct. We are not responsible for any loss in transit if a wrong address is provided.Return PolicyReturns for exchange are permitted and must be initiated by the buyer within 30 days upon receipt.If you would like to return your product(s) for repair / replacement / refund, please kindly contact our customer service representatives via email for an authorized RMA number. Your returned product(s) will not be processed without a completed RMA.About UsWe are continually expanding our product selection to better serve your need.We look forward to providing the best sevice to you - our dear customers, so take a look around our store and find the product that you want. You can put your trust in us!If you need any help or have any suggestions, please don't hesititate to contact us anytime , we will reply you within 24 hours and try the best to help you.DescriptionPolicyChangeover Switch 3 Position Rotary Selector Cam Switch 32 Terminal Latching 10A Descriptions: *Suitable for the thickness between 1mm to 6mm of the mounting board. *Rotary selector design switch, easy to control, square plate and screws for easily mounting. *Changeover switch mainly suitable for electrical wiring in the power switch and asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit. Specification: *Model: LW8-10 D808/8 *Positions: 3 *Terminals: 32 *Ui: 500V ; Ith: 10A *Action Type: Latching *Positioning angle: 60-0-60 Degree *Mounting Type: Plate, Screw *Mounting Hole Distance: 36mm x 36mm / 1.42-inch x 1.42-inch (L*W) *Overall Size: 49 x 49 x 135mm / 1.93-inch x 1.93-inch x 5.31-inch (L*W*H) *Rating: DC-13: Ui:220V ith:0.14A; AC-15: Ue/Ie:380V/1.5A Package Content : *1 x Changeover Switch, 4pcs x Screw 3 Pole 6 Position Three Decks 21 Terminal Band Channel Rotary Switch Selector USD 10.69Latching AC 660V 20A 8 Terminals 5 Position Cam Combination Changeover Switch USD 14.07AC 660V 32A 3 Poles Latching Control Rotary Cam Changeover Switch USD 22.02SZW26-20 AC 660V 20A 4-Position Panel Mounting Rotary Selector Switch USD 18.39AC660V 20A 0-1 2 Position 8 Terminal Universal Rotary Cam Combination Switch USD 15.44CA10 3-Position 3-Phase Universal Rotary Cam Changeover Switch USD 16.91Hot Item 1 Poles 12 Positions 6mm Shaft Diameter Electric Band Selector Rotary SwitchUSD 7.841P6T 1 Pole 6 Position 1 Deck Band Channel Rotary Switch Selector with KnobUSD 8.312P11T 2 Pole 11 Position Selectable 2 Deck Band Channel Rotary Switch SelectorUSD 8.39On/Off Two 2 Position Rotary Select Selector Switch 1 NO 10A 600V AC XB2-ED21USD 7.38AC 440V 10A DPST ON/OFF/ON 3 Position Rotary Selector Latching Button SwitchUSD 7.12PaymentWe accept eBay payment.Please do not email us to ask for other payment option.We appreciate prompt payment and look forward to your business in the future. Unpaid item will be filed without receiving payment in 7 days from listing ended.ShippingUsually we ship your order out within 24 hours in business day.For shipping and handling charges (S&H) for specific item, please refer to the item listing page for more details.Please make sure your shipping address is correct. We are not responsible for any loss in transit if a wrong address is provided.Return PolicyReturns for exchange are permitted and must be initiated by the buyer within 30 days upon receipt. If you would like to return your product(s) for repair / replacement / refund, please kindly contact our customer service representatives via email for an authorized RMA number. Your returned product(s) will not be processed without a completed RMA.About UsWe are continually expanding our product selection to better serve your need.We look forward to providing the best sevice to you - our dear customers, so take a look around our store and find the product that you want. You can put your trust in us!If you need any help or have any suggestions, please don't hesititate to contact us anytime , we will reply you within 24 hours and try the best to help you.
