| Current Rating | 10 Amps |
| Model | DC2C-E5AA |
| Maximum Amperage | 10.1 Amps |
| Current Type | AC |
| Switch Style | Subminiature Sealed DC Series |
| Material | ABS/Plastic |
| Type | Pin Plunger |
| Features | Environmentally Sealed IP6K7 |
| Color | Black |
| MPN | DC2C-E5AA |
| Finish | Thermoplastic |
| Operation Method | Micro Push Button |
| Power | 1/4 HP |
| Brand | Cherry Electrical |
| Application | Branch Circuit |
| Port Type | 3 Wire |

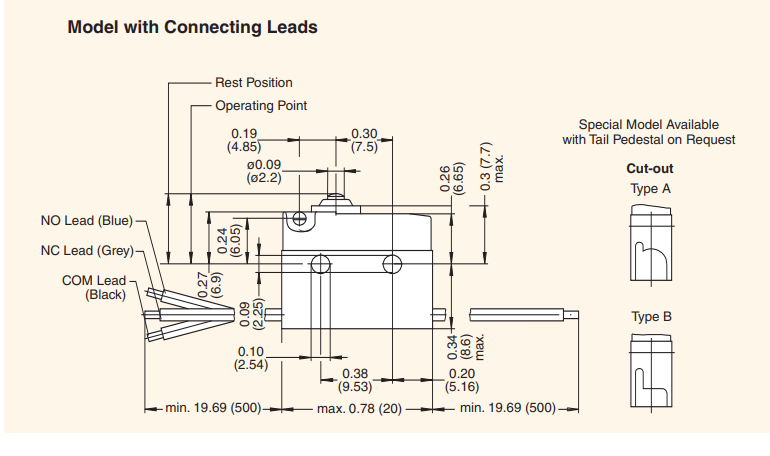

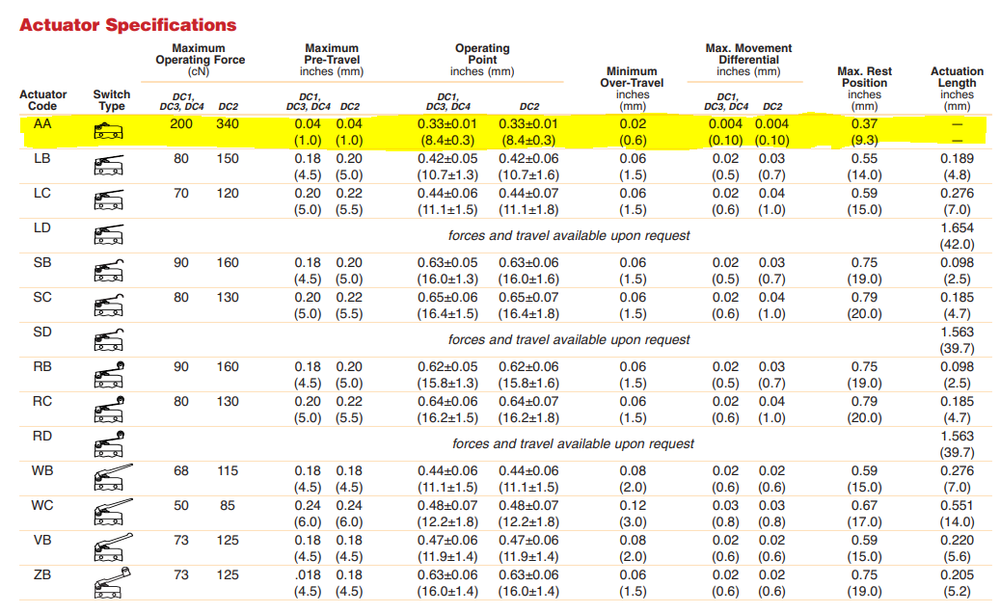

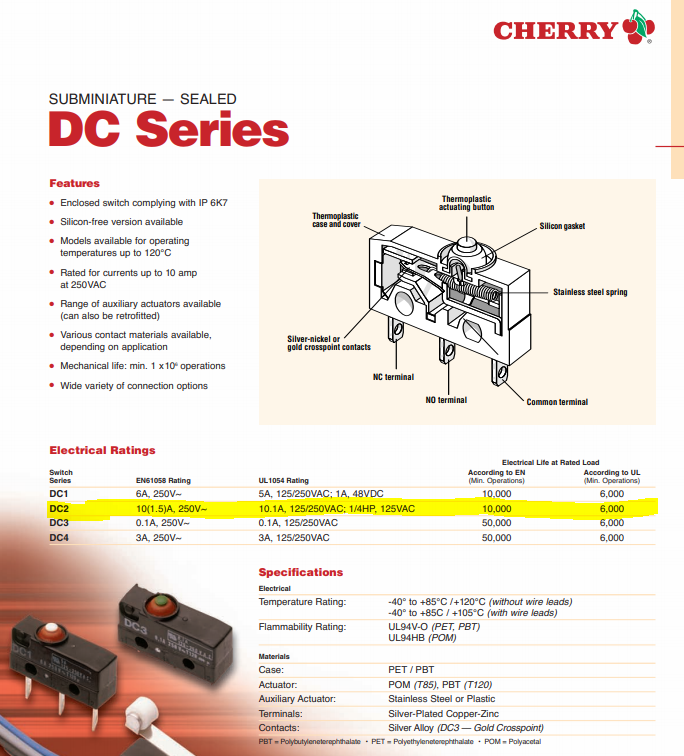

Check the listing for details. CHERRY - DC2C-E5AA - Switch, Sealed Micro Push Button, SPDT, 10Amp 125/250V NEW. Color: Black, Condition: New. Listed at 16.98 USD. CHERRY ELECTRICAL PRODUCTS - DC2C-E5AA Switch, Sealed Micro Push Button. Contacts: SPDT. Contact Ratings: 10.0Amp 125-250VAC (1/4HP 125V) 10(1.5A) 250VAC. Connection: (3) 16AWG wire leads 18.5" long. Contacts: Silver Alloy Case: PET/PBT Mech: Panel. Panel hole: 20.0mm long x 6.5mm wide x 15.3mm high, plus leads. Has two mount holes at 9.53mm (0.38") centers. Operating Temperature: -40 C to 105 C Note: Tiny Pushbutton. Minimum Electrical Cycle Life at Rated Load: 10,000 per EN, 6,000 per UL Listed: UL/CSA. Note: 340 Gram Operating Force. Environmentally Sealed IP6K7 Subminiature.
