| Brand | Unbranded |
|---|---|
| Color | White |
| Material | ABS, PC |
| Style | Modern |
| Circuit Breaker Type | Standard |
| Mounting Type | Wall Mount |
| Operating Temperature | -30~70℃/-22~158℉ |
| Input | 6 Strings |
| Output | 1 String |
| Number Of Poles | 6 |
| Current Rating | 63A |
| Number Of Max. Connection PV Array | 6 |
| Max. Input Current of Single PV Array | 15A |
| Total Input Current of PV Array | 90A |
| Max Input Voltage of Single PV Array | 1000V |
| Max Output Voltage | 600V |
| Protection Grade | IP65 |
| Relative Humidity | 0-95%, No Condensation |
| Cooling Method | Natural Cooling |
| Number of Surge Protection Devices | 1 |
| Surge Protection Device | 40KA, 600V |
| Number of Circuit Breakers | 1 |
| Circuit Breaker | 63A, 550V |

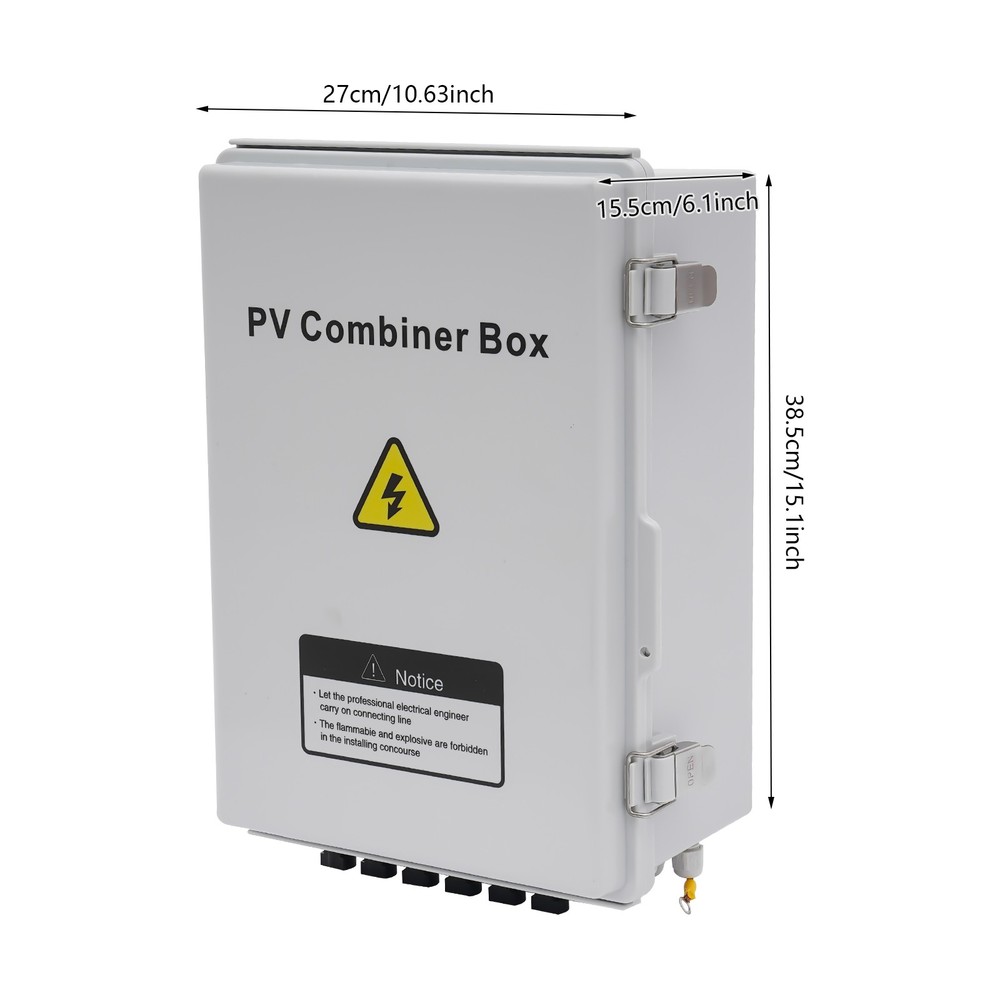

| Product Size | 27*15*39cm/10.6*5.9*15.35inch |
| Package Size | 35*25*15cm/13.78*9.84*5.9inch |
| Net Weight | 3.2kg/7.05 lbs |
| Gross Weight | 3.5kg/7.7 lbs |
| Type | PV Combiner Box |
| Application | industrial |
| Features | Waterproof |
| Resistance Properties | Dustproof |
| Current Output | 600V |
| Voltage | 600V-1000V |
Check the listing for details. Circuit Breaker Junction Box 63A for Solar Panel 6 String Solar PV Combiner Box. Color: White, Condition: New. Listed at 107.11 USD. Specification Color: White Material: ABS, PC Style: Modern Circuit Breaker Type: Standard Mounting Type: Wall Mount Operating Temperature: -30~70℃/-22~158℉ Input: 6 Strings Output: 1 String Number Of Poles: 6 Current Rating: 63A Number Of Max. Connection PV Array: 6 Max. Input Current of Single PV Array: 15A Total Input Current of PV Array: 90A Max Input Voltage of Single PV Array: 1000V Max Output Voltage: 550V Protection Grade: IP65 Relative Humidity: 0-95%, No Condensation Cooling Method: Natural Cooling Number of Surge Protection Devices: 1 Surge Protection Device: 40KA, 600V Number of Circuit Breakers: 1 Circuit Breaker: 63A, 550V Product Size: 27*15*39cm/10.6*5.9*15.35inch Package Size: 35*25*15cm/13.78*9.84*5.9inch Net Weight: 3.2kg/7.05 lbs Gross Weight: 3.
