| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money Back |
| Modified Item | No |
| Country/Region of Manufacture | China |
| Custom Bundle | No |

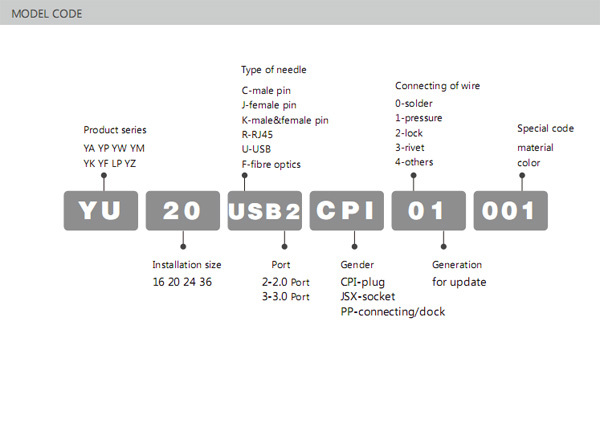

| Model | YU-USB3-JSX-01-003 |
| Minimum Operating Temperature (Actual) | -40°C |
| Minimum Operating Temperature (Nominal) | -40°C |
| Current Type | DC |
| Maximum Operating Temperature (Nominal) | 80°C |
| Connector A | USB 3.0 Type A Female |
| Connector B | USB 3.0 Type A Female |
| Pairing Extension Cable | YU-USB3-CPI-01-100 |
| Certificate | UL, CE, RoHS |
| Maximum Operating Temperature (Actual) | 80°C |
| Contact Material | Copper |
| MPN | YU-USB3-JSX-01-003 |
| IP Rating | IP67 |
| Non-Domestic Product | No |
| Body Material | ABS |
| Brand | CNLINKO |
| USB Type | USb 3.0 Type A |

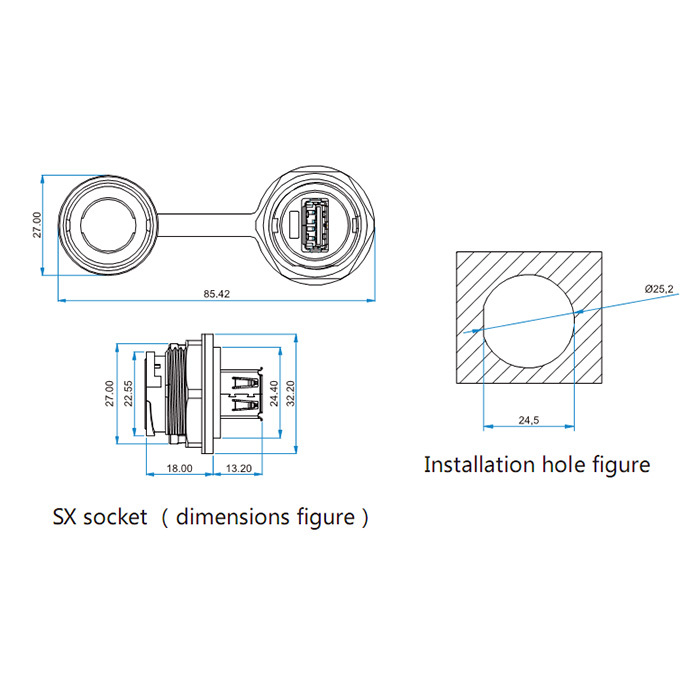

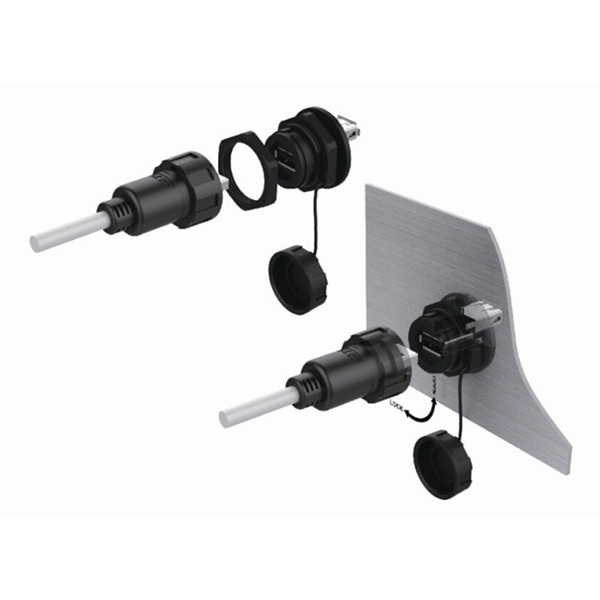

Check the listing for details. CNLINKO USB 3.0 Panel Mount Connector Female Socket Waterproof IP67 Data + Power. Condition: New. Listed at 11.79 USD. We are the only authorized eBay retailer for "CNLINKO" brand connector products, with complete warranty. Selling Item Model Number: YU-USB3-JSX-01-003 Pairing Extension Cable Model Number: YU-USB3-CPI-01-100 Features: ● Independent socket design, easy to install and operate● Achieve double-headed male to female adapter, snap locking, ensure safe and stable● Compatible with USB3.0/2.0, protection level IP67● Sheath of cable protect cable outlet well● Solid connections system can provide the solutions for data transmission in harsh environments Specification: Cable specification0.15m㎡～0.2m㎡/26-24 AWGDiameter range Φ5.5mm～Φ7mmContact diameter × number9Rated Current (A)1.5AContact resistance500MΩProtection levelIP67Durability>500 timesWorking temperature-40℃～80℃Connecting modeQuickly bayonet connectHousing, the insulating parts High-performance engineering plastics Hardware Zinc Alloy (pearl hard chrome) Copper needlesCopper ShellWaterproof circleSilica gelFlammability ratingUL94-V0 YU-USB Series Specification Sheet
