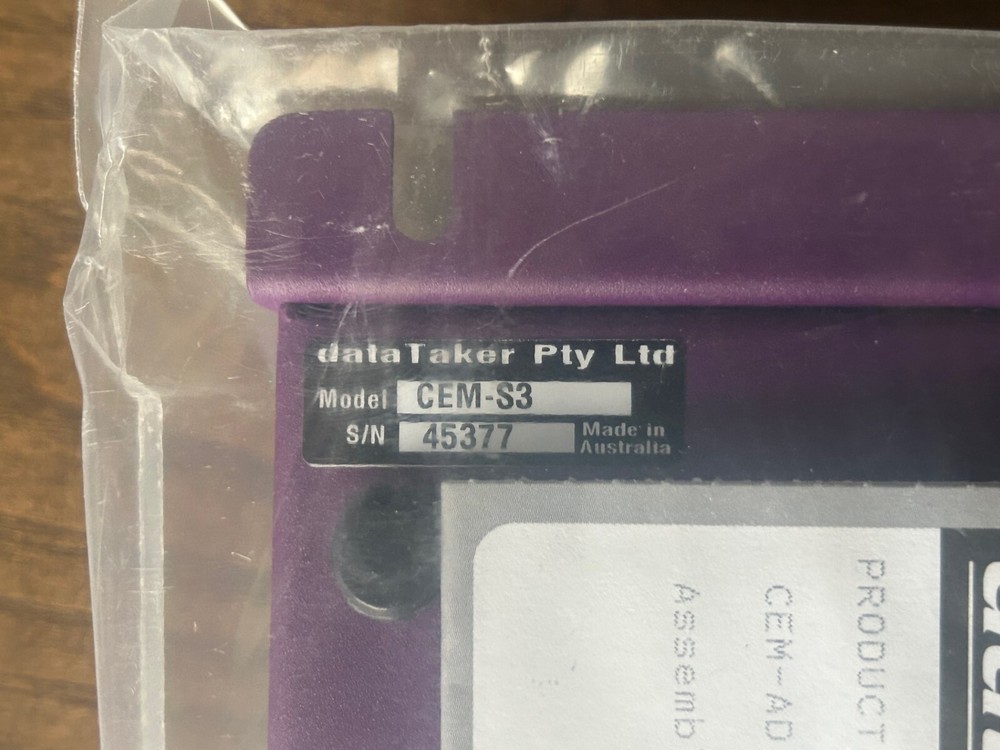

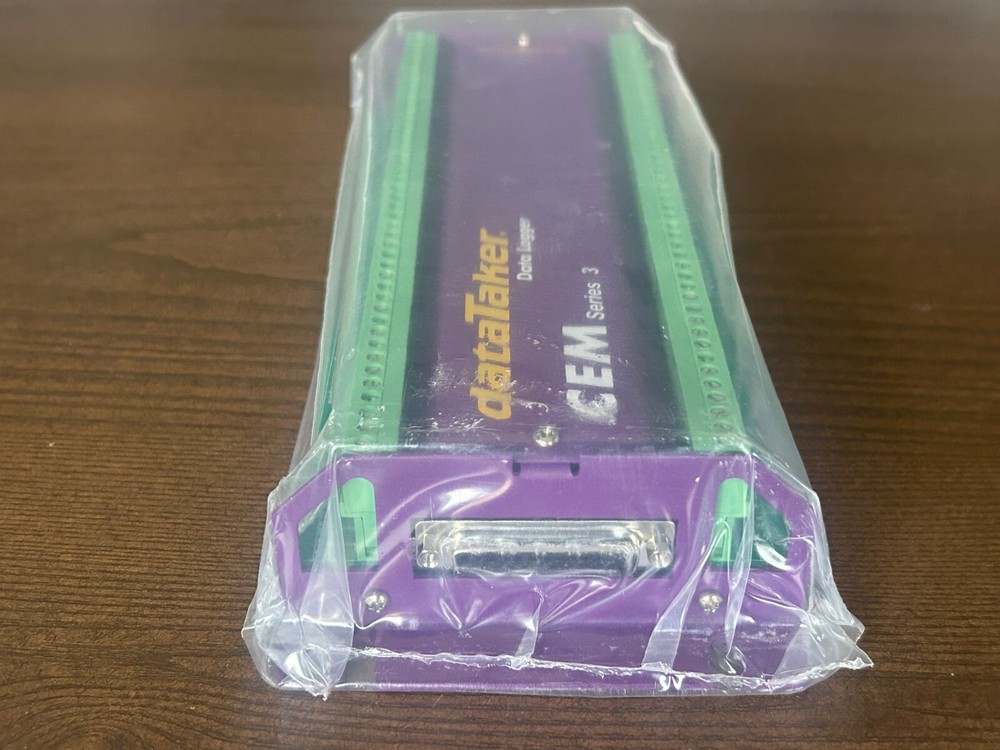

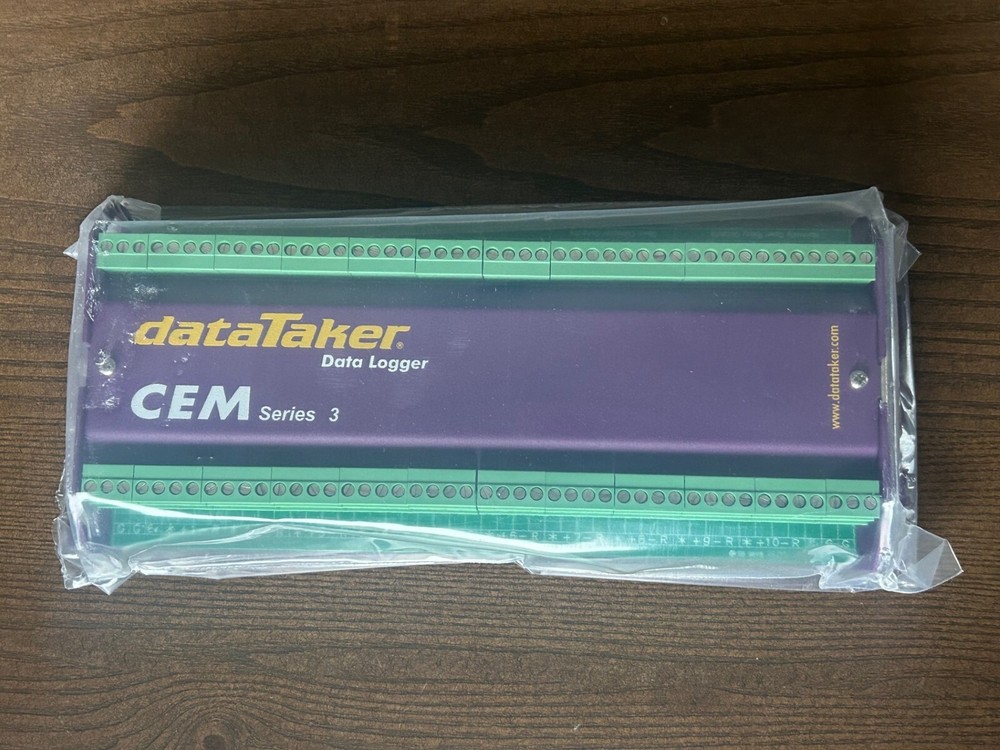

Check the listing for details. DATATAKER DATA LOGGER CEM SERIES 3 SEM-3. Condition: Neuf. Listed at 520.23 USD. DATATAKER DATA LOGGER CEM SERIES 3 brand new!! never used!!! • Full dataTaker Universal Channel Support• Robust Relay Multiplexer• Low Cost Channel Expansion• Easy to Set-Up• For the DT500 & DT600 range of dataTakers• Internal Reference Temperature Sensor• Powered from Host Unit You can easily increase the number of analog and digital channels that your dataTaker datalogger has by using the dataTaker Channel Expansion Module (CEM).Designed to suit the DT500, DT505, DT515, DT600, DT605, DT615 dataTakers, each CEMwill add 10 differential or 30 single ended analog voltage channels, or 10 resistance or RTDchannels, or 10 current or 4–20mA loop channels, in any combination.The analog input channels use relay multiplexing, providing voltage measurement of up to±100V when used in conjunction with relay multiplexed dataTakers.The CEM also has 20 digital input channels, as well as 5 open collector 200mA/30Vdcdigital outputs and 5 voltage free 110Vac/5A output contacts. Easy Setup A maximum of 2 CEMs can be connected to a dataTaker. You simply plug them into thedataTaker using a provided cable. They are powered from the dataTaker through this cableand dataTaker firmware has an intelligent CEM controller, so reconfiguration of the dataTakeris not necessary.The CEM has an internal temperature sensor which can be used for cold junctioncompensation when using thermocouples. There is a floating single ended reference inputwhich allows a remote common connection to be used when making voltage measurement.In addition, a terminal is provided for external switched sensor excitation. Solid Construction Construction of the CEM is similar to a dataTaker, with the same removable screw terminalsand a sturdy powder coated steel case, height 50mm and weight 1.0kg. Mounting holes in theend plates of the CEM allow mounting to a plate or case using fixing bolts, and threaded studshave been provided on the top lid to allow for easy stacking.The operating temperature range is –20°C to +70°C, and maximum humidity 85%RH.
