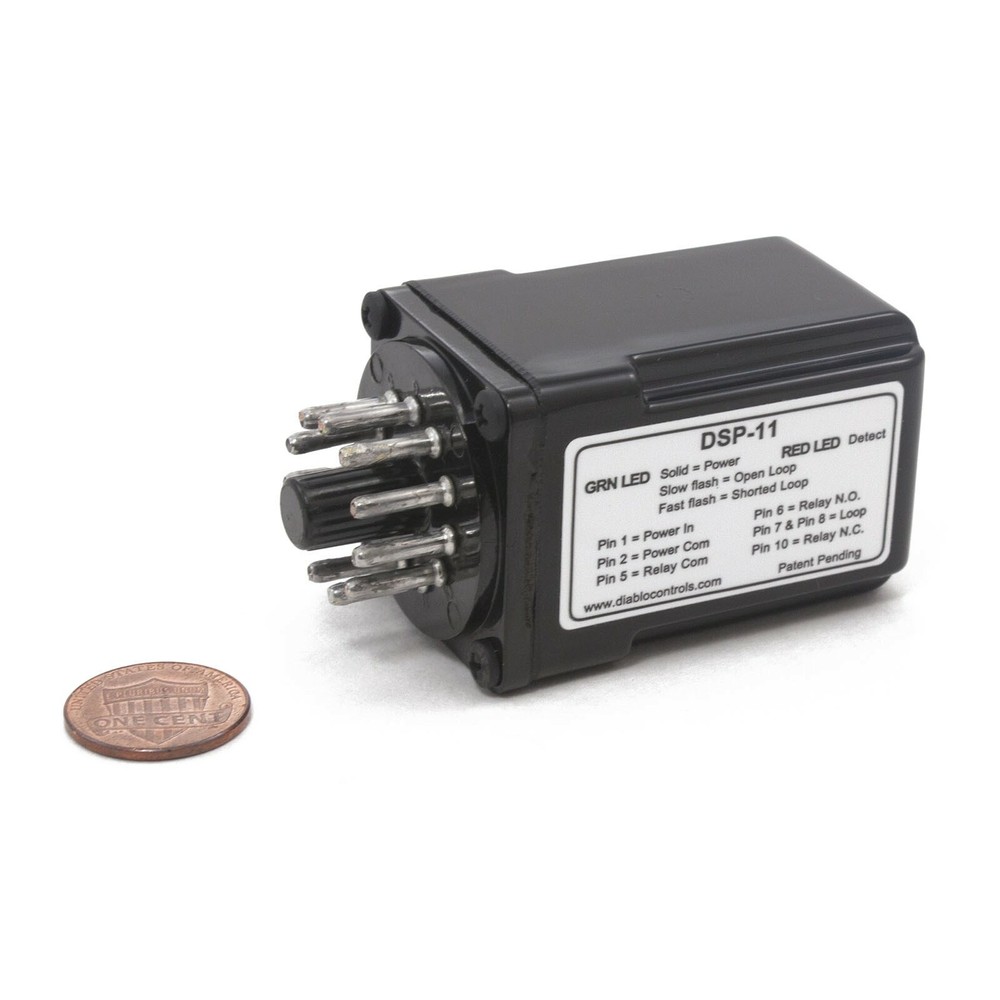

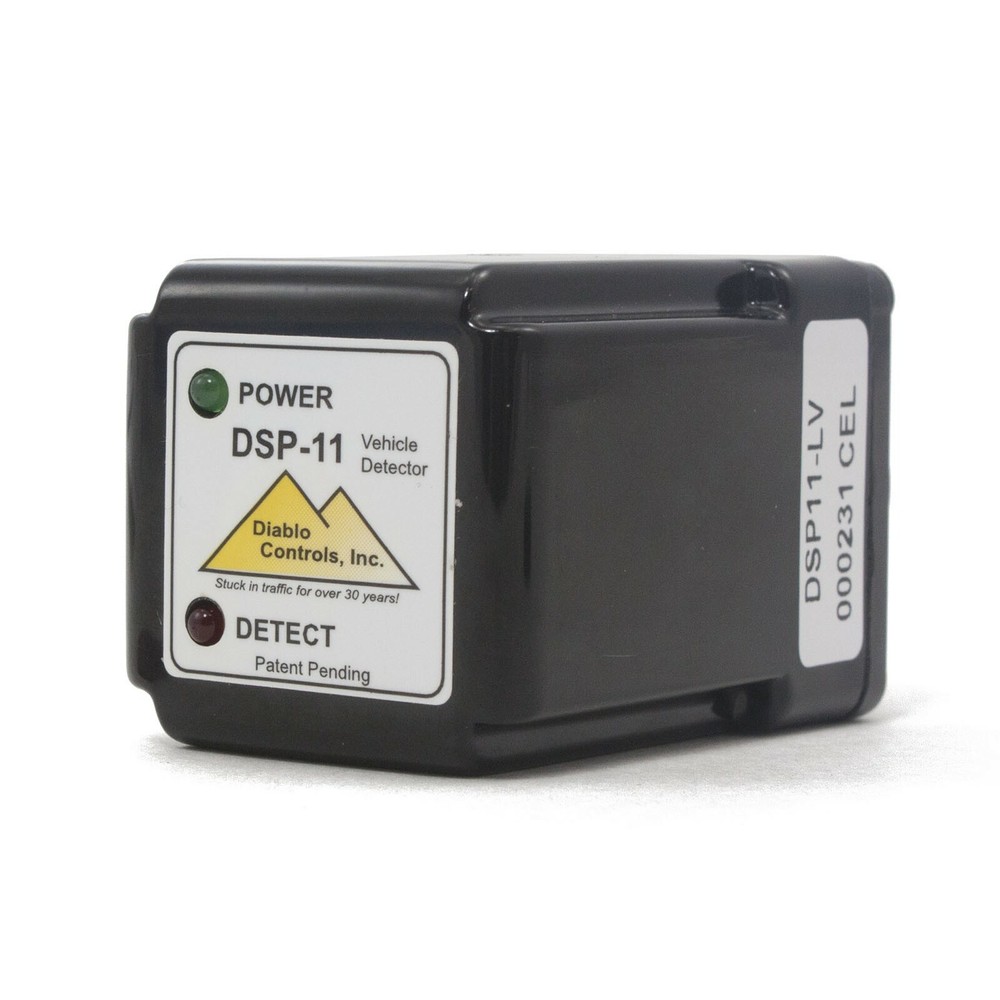

Check the listing for details. Diablo Controls DSP-11-LV Microdetector Vehicle Loop Detector. Condition: New. Listed at 87.95 USD. Diablo Controls DSP-11-LV Microdetector Vehicle Loop Detector Diablo Controls DSP-11-LV Microdetector Vehicle Loop Detector OPERATION The Diablo DSP-11 Vehicle is a simple, switchless vehicle detector available with the industry standard 11-pin base. Two models for your complete 11-pin vehicle detector needs: - The Diablo DSP-11-LV which will operate on any voltage - and any polarity from 10 to 30 Volts AC or DC. - The Diablo DSP-11-117 operates on 117 VAC lines. This series of Diablo’s detectors are covered by United States patent number US 7,132,959 “Non-Interfering Vehicle Detection”. These detectors are virtually crosstalk free in most applications and have been specifically designed to handle parking, drive-through and access control applications. FEATURES Loop Size - Works on any in-ground inductive loop from 20 to over 1500 mH. Indicators - Separate Power/Fail and Detect LEDs. Detect Memory - Power interruptions of short duration are ignored. If power fails for approximately 1. seconds or less the detector “remembers” a vehicle. Sensitivity - Automatic - compensates for large loops and long lead-ins. Output Relay - 1A at 125VAC General use, 1A at 30 VDC resistive. Both N.O. (closes for detect) and N.C. (opens for detect) outputs. Loop Failure - The green power indicator flashes slowly if the loop circuit is open and quickly if the loop circuit is shorted. This detector will output a “Detect” for either of these loop failed conditions. Model Types DSP-11-LV - Low voltage version 10 to 30 Volts AC or DC DSP-11-117 - Medium voltage version for 117 Volts AC Fail Safe Operation - The DSP-11 series of detectors are designed to be “Fail Safe” in their operation. The detector will output a “Detect” (contact closure) for a “Failed”loop condition OR a loss of power to the detector. This “Fail Safe” detector should always be used on “safety” loops. Connector - Standard 11-pin (Amphenol 86CP11) Pin assignments are: Pin 1 (black wire) - Power in (See model type) Pin 2 (white wire) - Power in (See model type) Pin 5 (yellow wire) - Output relay common Pin 6 (blue wire) - Output relay N.O. - (closes for detect) Pin 7 (gray twisted wire) - Loop input Pin 8 (brown twisted wire) - Loop input Pin 10 (pink wire*) - Output relay N.C. - (opens for detect) *This wire is black (with white) on some harnesses. Operating Temperature - -35°F to 165°F (-37°C to 74°C) Size - Height: 1.4” Width: 1.4” Depth: 2.75” overall Payments & Returns Policy
