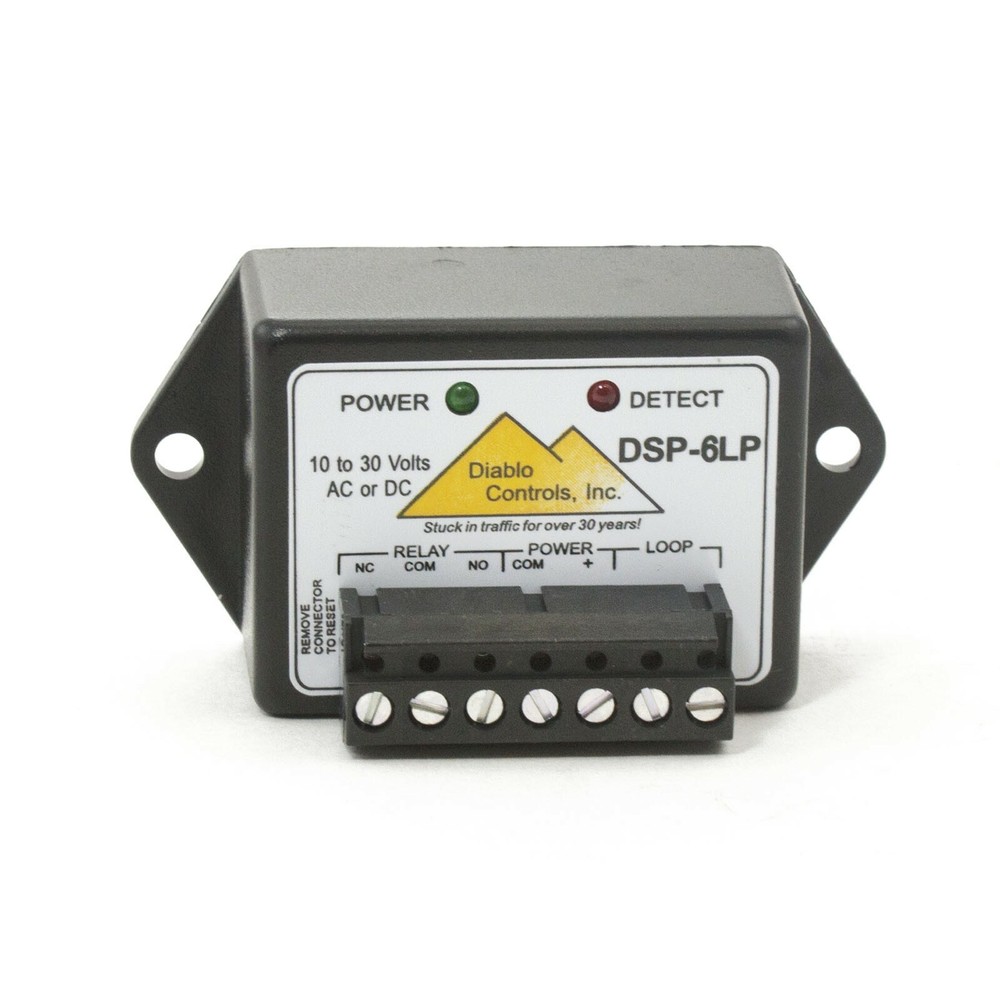

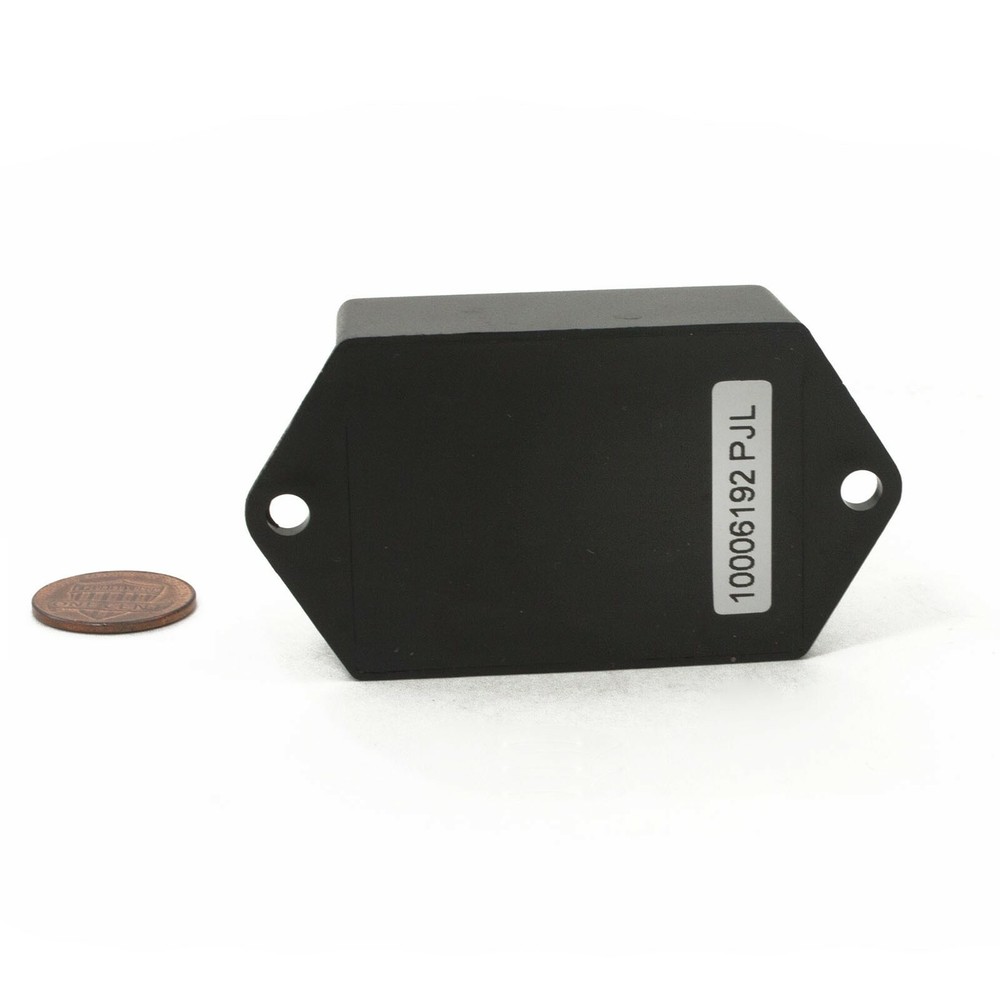

Check the listing for details. Diablo Controls DSP-6LP Microdetector Vehicle Loop Detector. Condition: New. Listed at 88.95 USD. Diablo Controls DSP-6LP Microdetector Vehicle Loop Detector Diablo Controls DSP-6LP Microdetector Vehicle Loop Detector OPERATION The Diablo DSP-6LP vehicle detector is designed for solar powered gate applications. This loop detector will operate on any voltage from 10 to 30 Volts AC or DC and draws approximately 1 milliampere while waiting for a car. The power LED winks continuously once per second to indicate the detector is operating in the low power mode. The Diablo DSP-6LP detector beats all competition for reliability, simplicity, and “no car” current consumption. This series of Diablo Loop detectors are covered by United States patent number US 7,132,959 “Non-Interfering Vehicle Detection”. These detectors are virtually crosstalk free in most applications. Working on battery-powered and other parking and access control loop applications, the Diablo DSP-6LP is preset to the normal sensitivity level used in parking/access control applications, and tunes itself to the best operating frequency. This micro-sized detector will automatically adjust its sensitivity level when used on different sized loops. Environmental conditions are constantly compensated with the Diablo Control DSP-6LP HYPERTRACK software. Environmental conditions are constantly compensated with the DML-9LP’s HYPERTRACK software. FEATURES Loop Size - Works on any in-ground inductive loop from 20 to 1200 mH. Indicators - Separate Power and Detect LED’s. The green Power LED will wink continuously once per second under normal operation. The red Detect LED will turn on solid for a vehicle. Sensitivity - Automatic - compensates for large loops and large lead-ins. Output Ratings - Single output, 1 amp relay at 30 VDC Resistive - The relay common, NO, and NC contacts are available. Ordering Information – DSP-6LP standard version. Power - 10 to 30 Volts AC or DC. Approximately 1 mA (no car and all loop sizes) and less than 25 mA with a car on the loop. Size - Height: 1.52” Width: 2.9” Depth: 1.56” Connector - Removable 7-pin terminal block. Pin assignments are shown below -from left to right: 1 - Relay (NC) (opens for detect) 2 - Relay Common 3 - Relay (NO) (closes for detect) 4 - Power Common 5 - Power in (10 to 30 Volts AC or +DC) 6 - Loop 7 - Loop Operating Temperature -35°F to 165°F (-37°C to 74°C) Payments & Returns Policy
