| External Power | 6V |
| Microphone | Φ12.7mm (1/2') test condenser microphone |
| The output interface | AC signal output USB data cable output |
| Sound Pressure Level Range | 25dB~130dB (A) |
| MPN | 2023 |
| Calibration | Use class 1 sound level calibrator |
| Range | 25dB~130dB (A) |
| Frequency weighting | A, C, and Lin(Linear) |
| Weight | 185g (Not Including Batteries) |
| Sound Pressure Level Accuracy | In accordance with IEC61672 standard, class 2 |
| Power Supply | 4x1.5V AAA Size (UM-4) Battery |
| Brand | CNYST |
| Accuracy | In accordance with IEC61672 standard, class 2 |
| Model | Sound Level Meter |
| Country/Region of Manufacture | China |
| Time Weighting | Fast (F), Slow (S), Impulse (I) |
| Operating Condition | Temperature: -10°C~50°C |

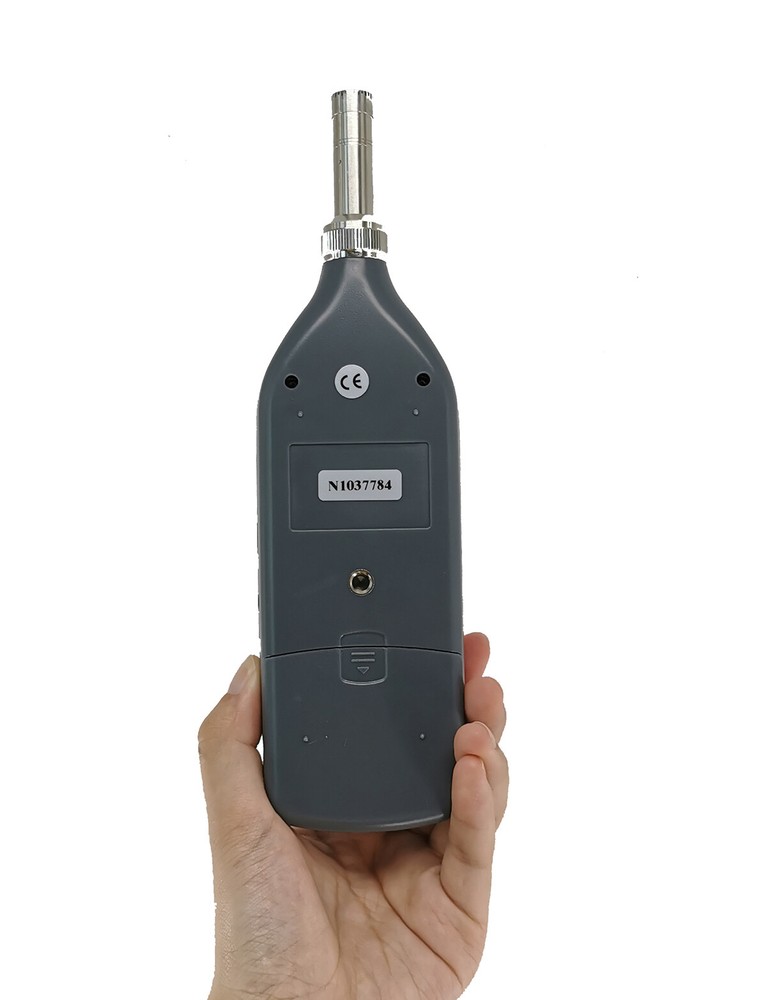

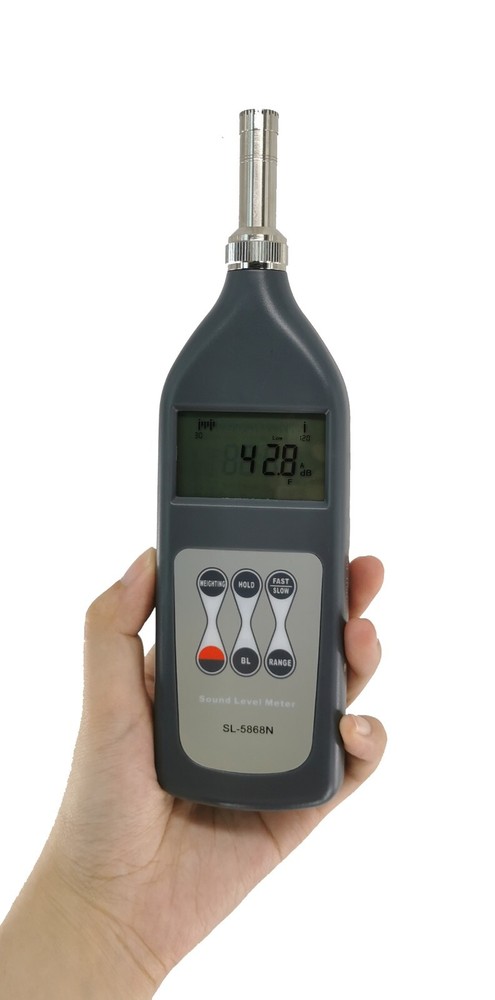

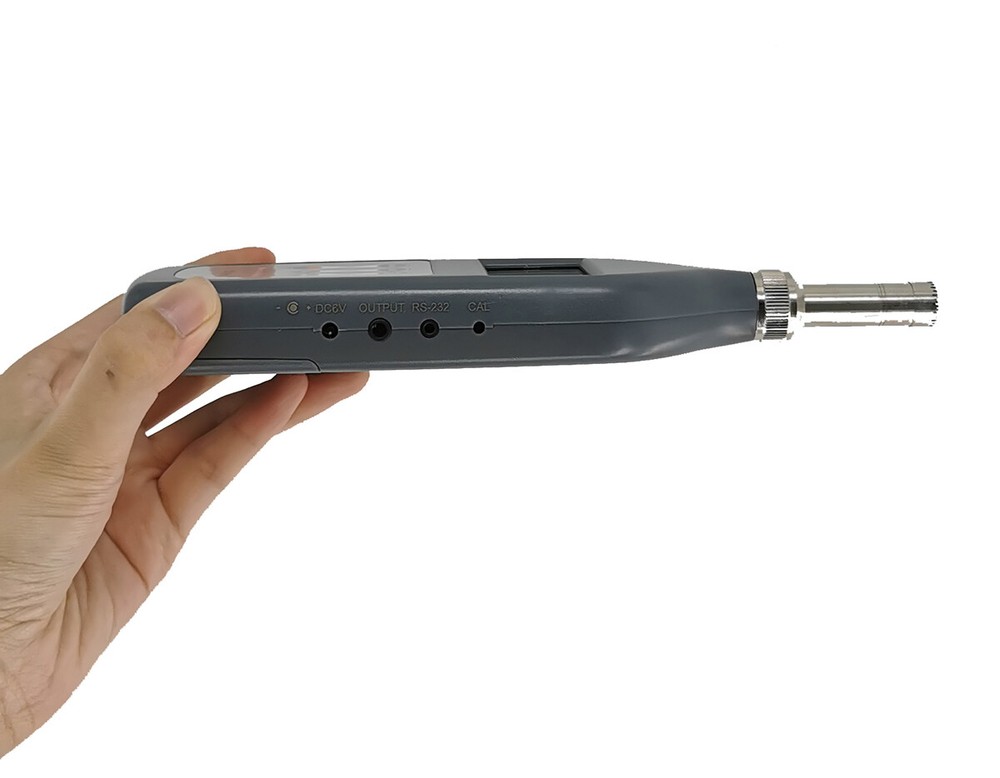

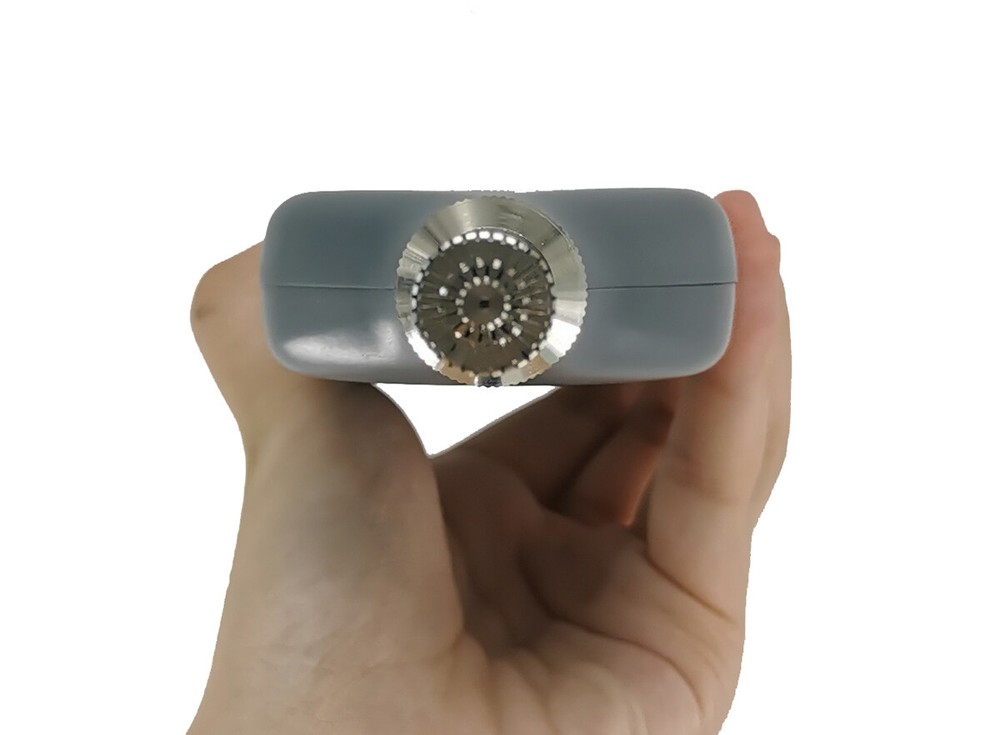

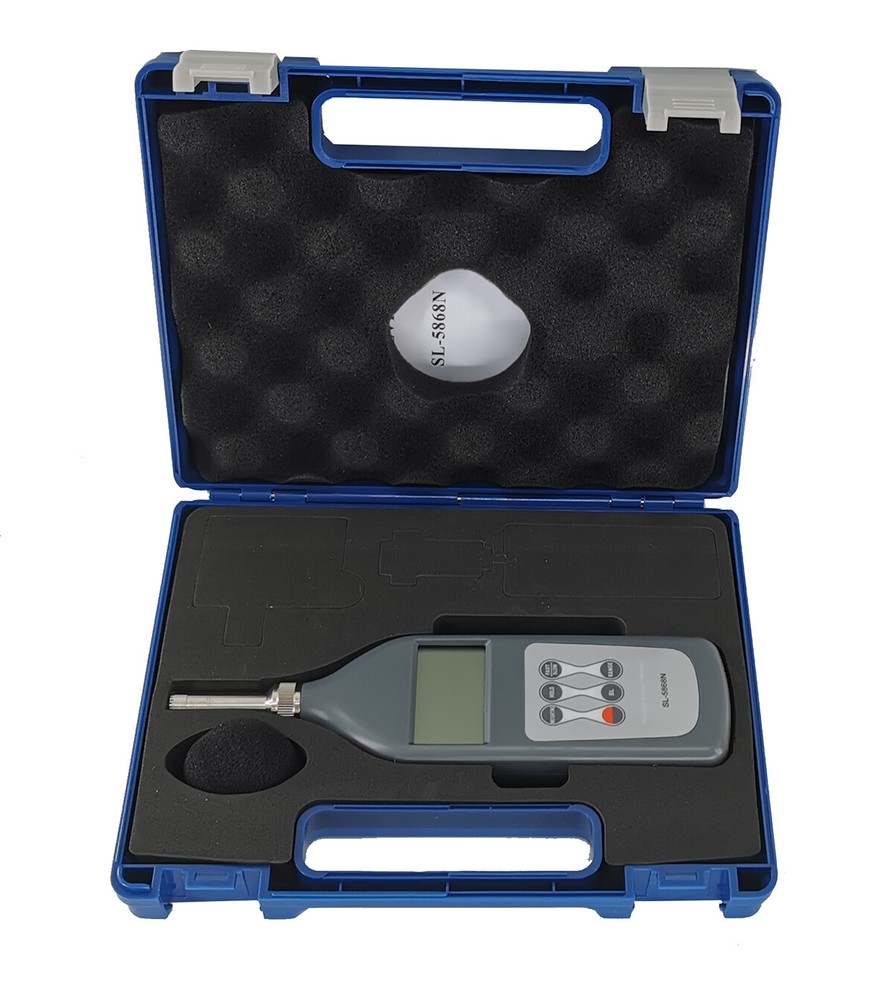

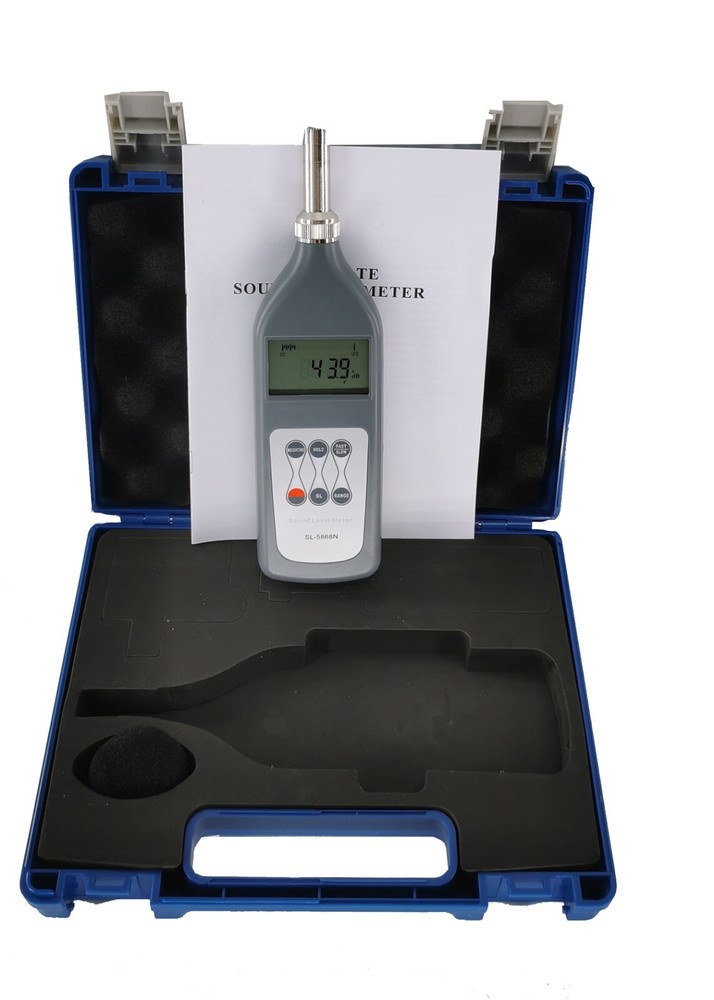

Check the listing for details. Digital Handheld Impulse Integrating Sound Level Gauge Range 25dB~130dB (A). Condition: New. Listed at 490.50 USD. Digital Handheld Impulse Integrating Sound Level Gauge Range 25dB~130dB (A)Note: Battery not Included During The Shipping !!!Spec:The Impulse Integrating Sound Level Meter is a universal sound level meter, an integrated sound level meter. It can also measure Accumulated percentile sound level.Features* Its performance is in accordance with GB/T 3785-2010 standard level 2 And IEC 61672:2013 Class 2 sound level meter requirements. It also meets the JJG 188-2017 standard. * With the function of integration and statistics, 800 groups of single measurement and 6 days of regular measurement can be achieved. The stored data can be read and printed. The collected data can be checked when the regular measurement ispaused. * The three time weighting F, S, and I can be selected. * The digital detection technology is used to replacesome traditional sound level meters, the stability andreliability are greatly improved. * Large screen display is adopted, with clear and intuitive display. With dynamic scale display. * Optional Bluetooth printer for data printing. * Use USB data output to connect with PC. * Provide Bluetooth data output choice. SpecificationsMicrophoneΦ12.7mm (1/2') test condenser microphoneFrequency weightingA, C, and Lin(Linear)Range25dB~130dB (A)Range controlManual, three gears, linear range > 60dBTesting Range30dB~90dB (dynamic scale display 10dB~100dB)50dB~110dB (dynamic scale display 30dB~120dB)70dB~130dB (dynamic scale display 50dB~140dB)AccuracyIn accordance with IEC61672 standard, class 2Time WeightingFast (F), Slow (S), Impulse (I)DisplayLarge screen dynamic LCD, instantaneous sound level, with analogammeter display.The output interfaceAC signal outputUSB data cable outputCalibrationUse class 1 sound level calibratorPower Supply4x1.5V AAA Size (UM-4) Battery(not included)External Power6VWeight185g (Not Including Batteries)Dimensions227mmx63mmx26 mmOperating ConditionTemperature: -10°C~50°CStandard AccessoriesMain UnitWindscreenCarrying Case (B04)ManualOptional Accessories (Extra charge)CDData CableBluetooth Data AdapterBluetooth printerPrinter power adapterExternal power supply (6V)
