| Speed | 5000 |
| Frequency Range | 10μΩ~200kΩ |
| Dimension & Weight | 220mm×85mm×259mm / 2kg |
| Adjustment | short-circuit reset full range |
| Basic Accuracy | 0.2% |
| Display Max | 5000 |
| Custom Bundle | No |
| Measurement Functions | LCR meter |
| Product | Resistance Tester |
| MPN | 2022 |
| Range | 8 ranges, auto & manual |
| Modified Item | No |
| California Prop 65 Warning | LCR Meter |
| Power Supply | V: 198VAC~240VAC Fre:50Hz Power:15VA |
| Brand | VTSYIQI |
| Form Factor | Resistance Tester |
| Accuracy | 0.2% |
| Model | Resistance Tester |
| Output Impedance | Resistance Tester |
| Parameter | DCR |
| Measurement current | I-Max: <100mA (micro current test, compatible wit |
| Country/Region of Manufacture | China |
| Display | show |
| Measurement Range | 10μΩ~200kΩ |

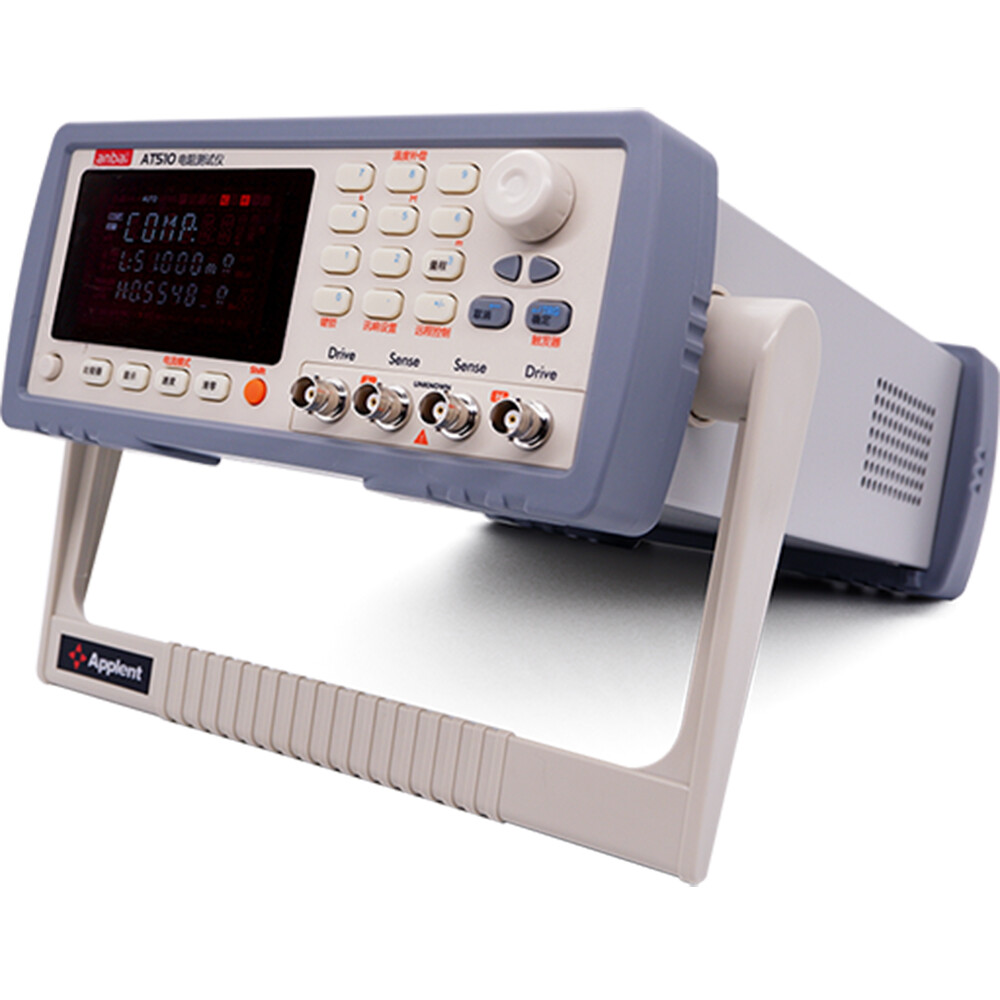

Check the listing for details. Digital Low Ohm Meter DC Low Resistance Tester Instrument Accuracy 0.2%. Condition: New. Listed at 749.93 USD. Digital Low Ohm Meter DC Low Resistance Tester Instrument Accuracy 0.2% Description:**It is an economical typeDC low resistance tester, which is an upgraded version of AT511A.**It has a wider test range: 0.01mΩ~200.0kΩ, and the maximum display 5000数. At the same time, the test speed is improved: the fastest can reach 10 times per second and the reading is stable. The improved automatic range test circuit and the fully electronic switch design can instantly switch from the highest range to the lowest range.**It uses 0.8-inch high-brightness digital tube display, all Chinese keys and indicators, so that the instrument display is clearer, and the fool-like operation interface is also easy to use.It uses superior low-current test characteristics, and is especially suitable for resistances that are sensitive to test current, such as platinum thermal resistance, copper thermal resistance, PTC ceramic thermal resistance, alloy wire DC resistance, DC resistance of current protection devices, etc. Feature:*0.8 inches big font, highlight LED display*Automatic test and provide manual range function*Comparator function*Short-circuit Zero-Adjust for each range*Accuracy: 0.2%*Max Reading: 5000*Automatic and manual with 8 ranges*Measurement range: 01mΩ~200.0kΩ*Fast:10 times/second, Slow:3 times/second Specification:ParameterDCRAccuracy0.2%Measurement Range10μΩ~200kΩMeasurement currentI-Max:
