| Mounting Style | DIN Rail |
|---|---|
| Brand | Unbranded |
| Type | Screw Terminal |
| Current Type | AC/DC |
| Plug Type | Screw Terminal |
| Maximum Amperage | 30A |
| Material | Brass, Plastic |
| Box Shape | Cuboid |
| Suitable For | Interior |

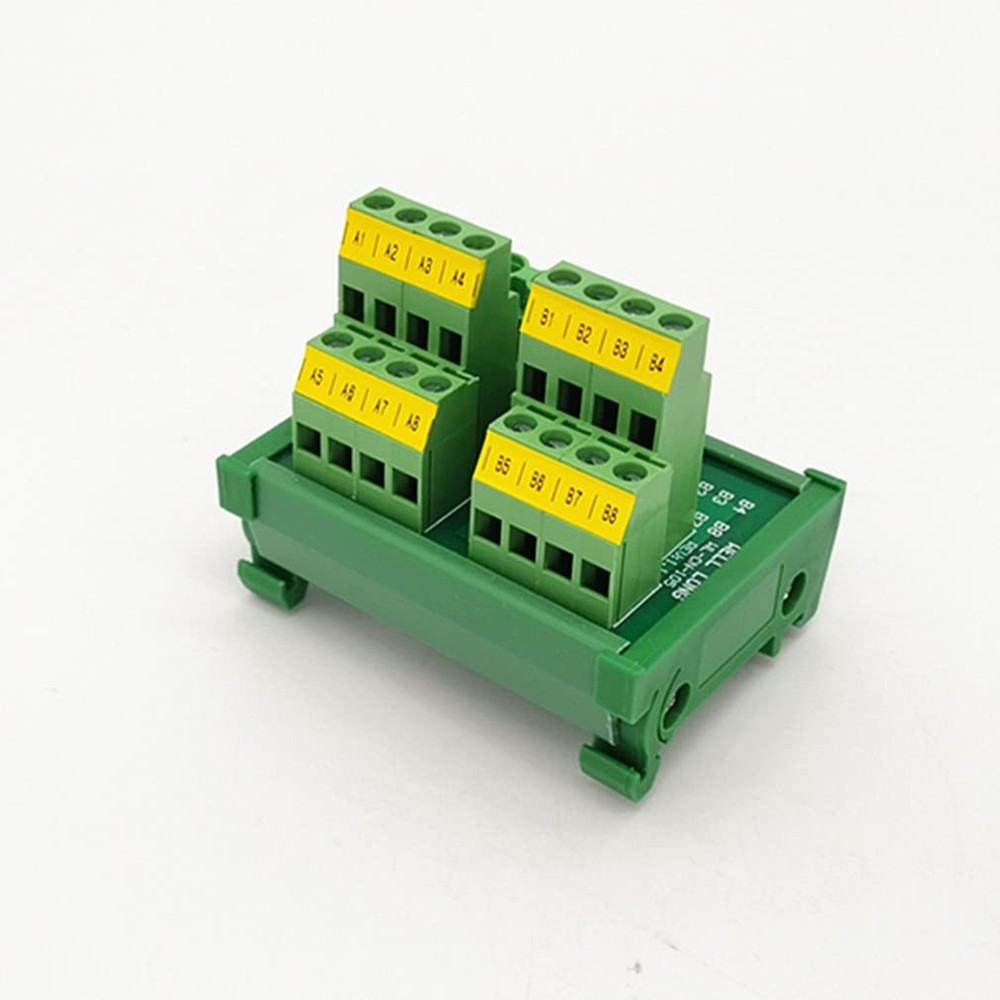

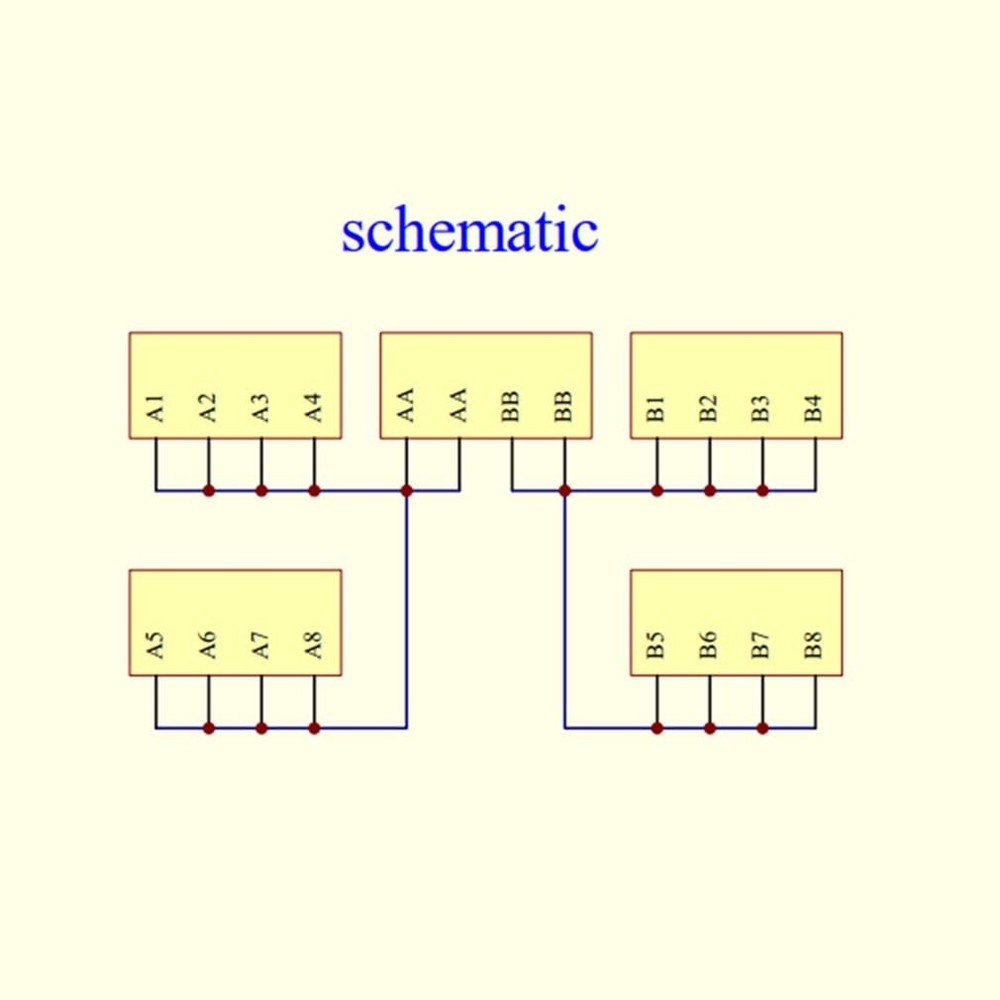

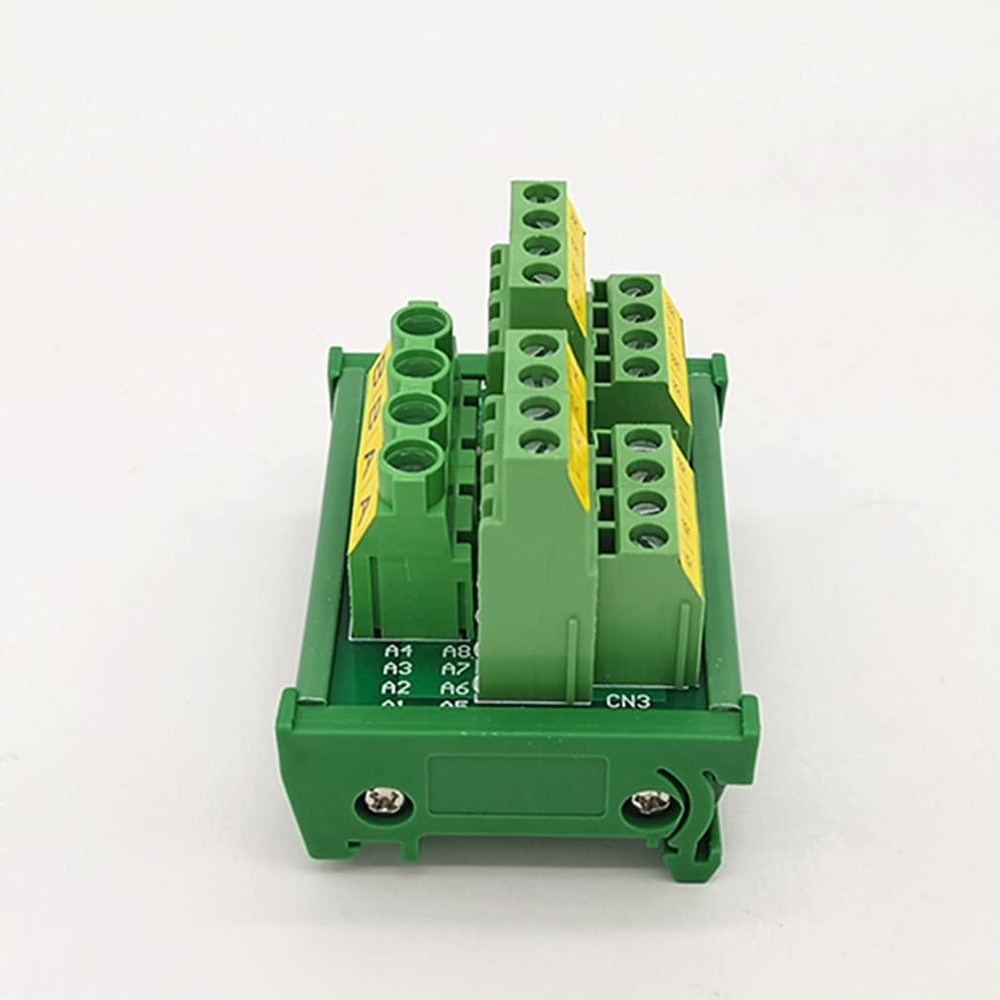

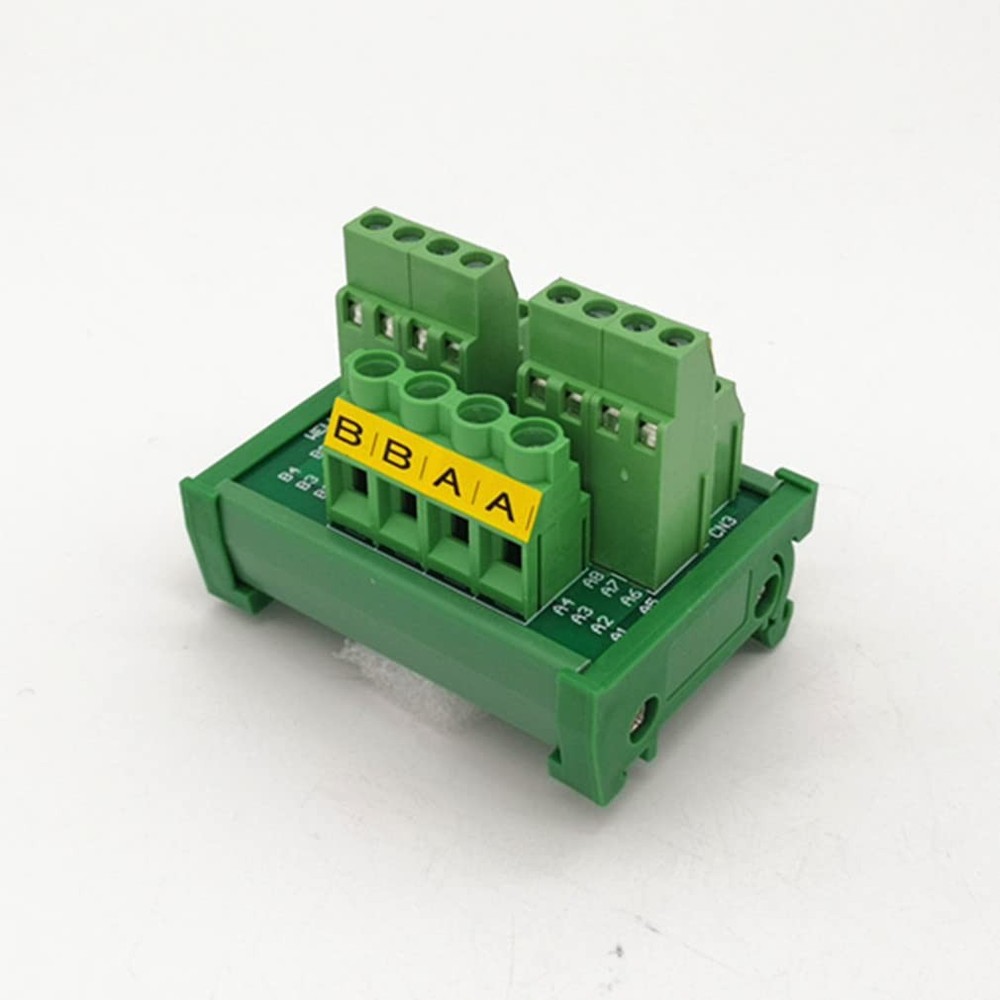

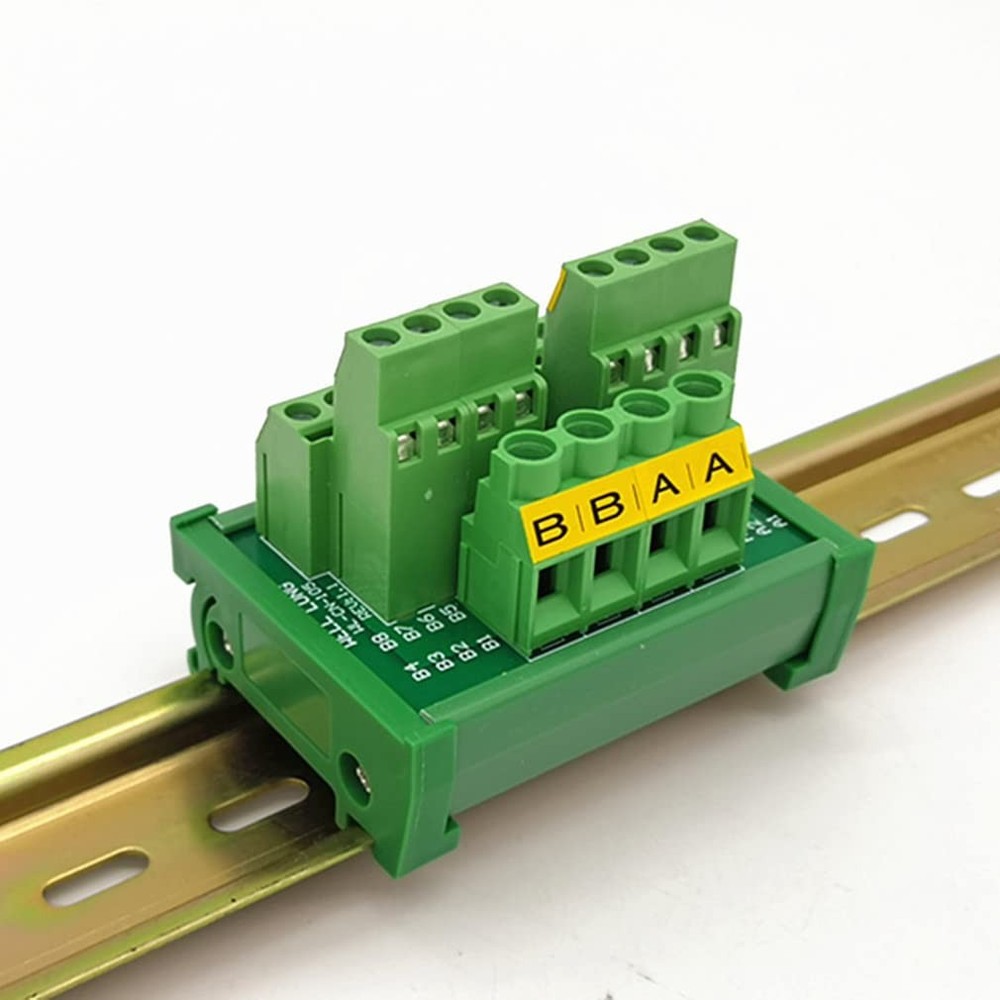

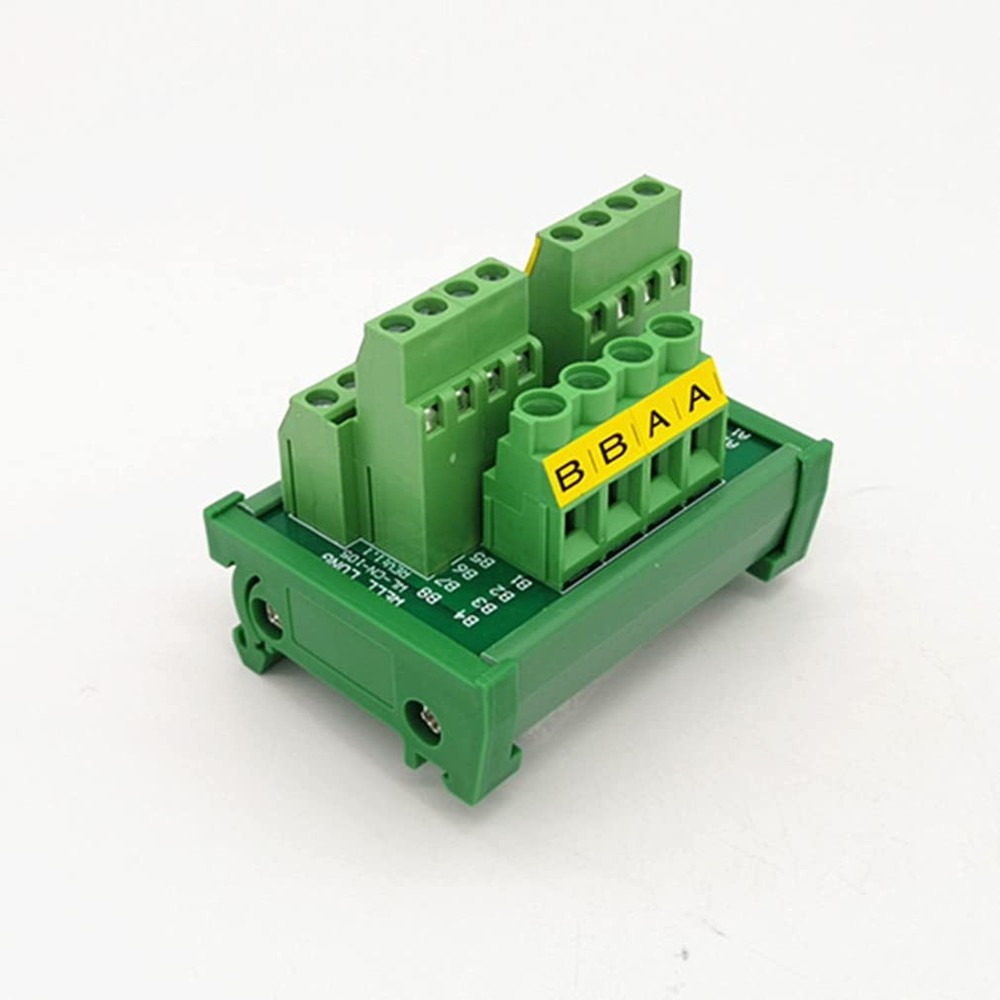

Check the listing for details. DIN Rail Mount 2x8 Position Power Distribution Module Board.. Condition: New. Listed at 22.98 USD. DIN Rail Mount 8 Position Power Distribution Module Board.DIN rail mountable - for width 35 / 32 / 15mm rails. FR-4 fiber glass PCB, dual copper layers. Voltage:250Vac/dc. Current Rating :30A Dimensions:64x 48x 53mm(W x L x H). Input terminals: CN1 Position (AA BB) pitch - 7.62mm/0.3", current 30A for per position, wire size 26~12 AWG, stripping length 8mm, Metric M3 slotted screw. Output terminals:CN2/CN3 Position (A1~A8/B1~B8) pitch - 5.08mm/0.2", current 28A for per position, wire size 26~12 AWG, stripping length 8mm, Metric M2.5 slotted screw.
You may also like
$50
Square D Schneider Electric HOMC30UC Cover Assembly Indoor Rectangular Green
$28.99
Dongguan NO-MJ24PX Recessed Furniture Distribution Unit 2 Outlets USB & USB-C
$199.99
Eaton BRP24L125G Main Lug Loadcenter 125A 1PH 1P 120/240V 24 Spaces 48 Circuits
$200

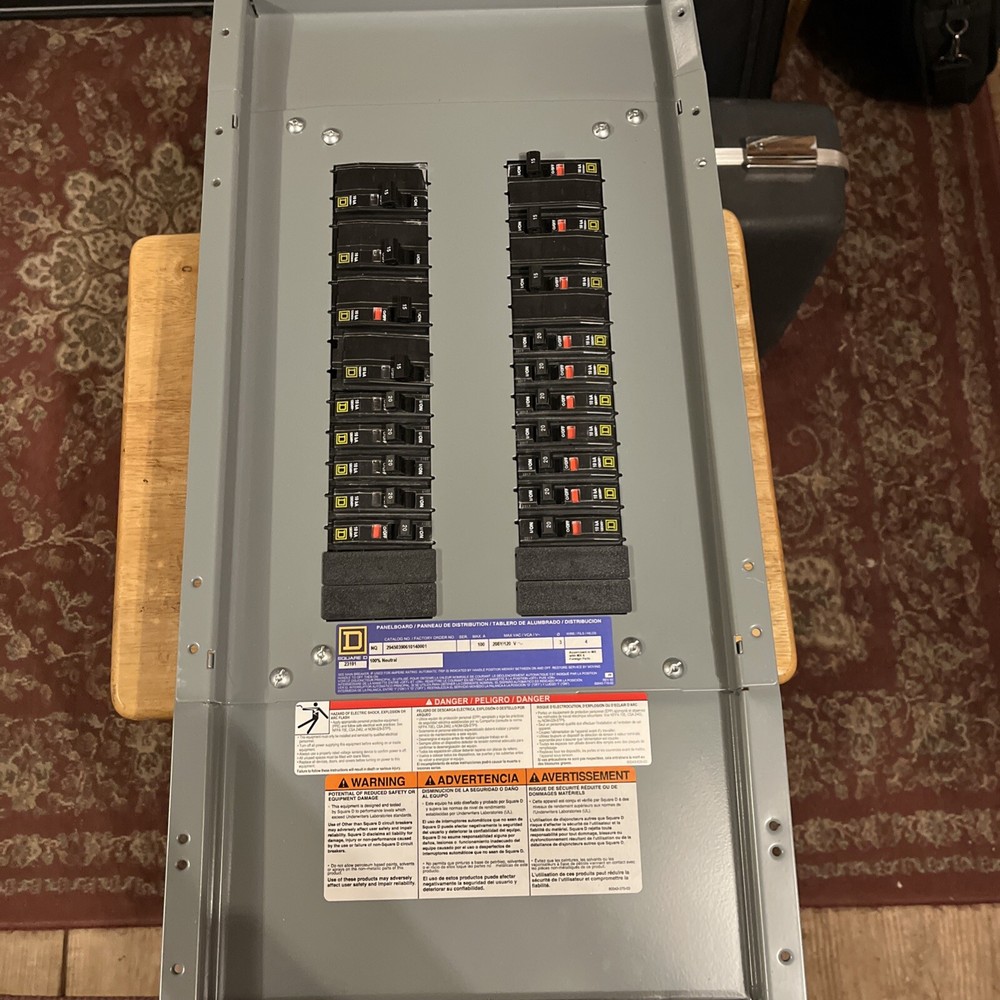

Square D MH32 Panel Only. As Pictured.
