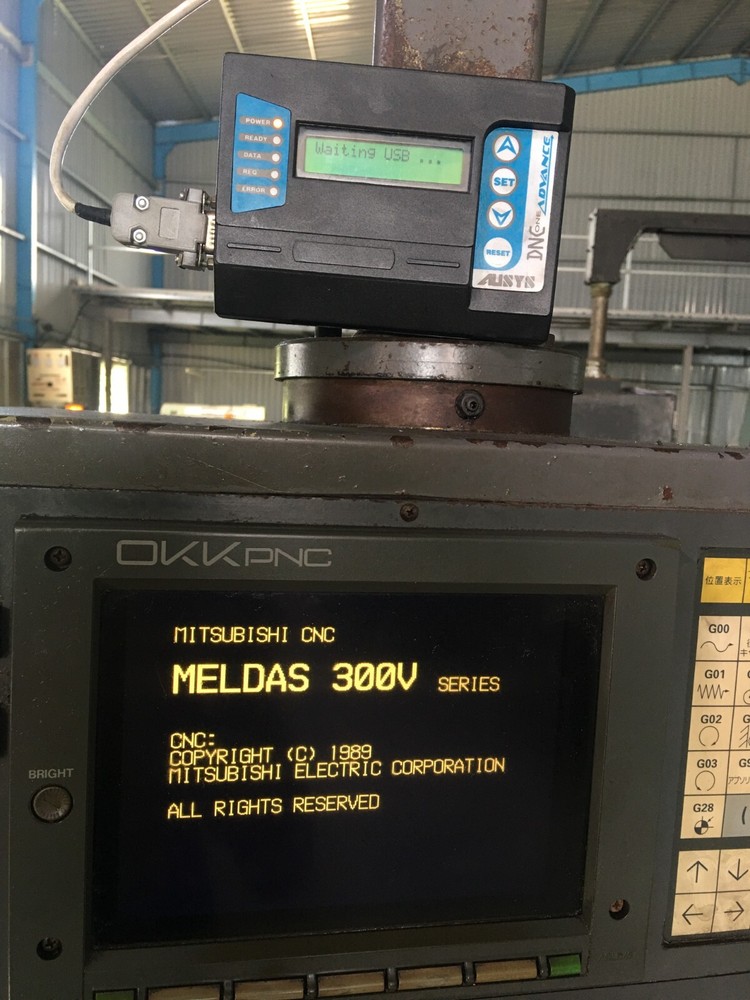

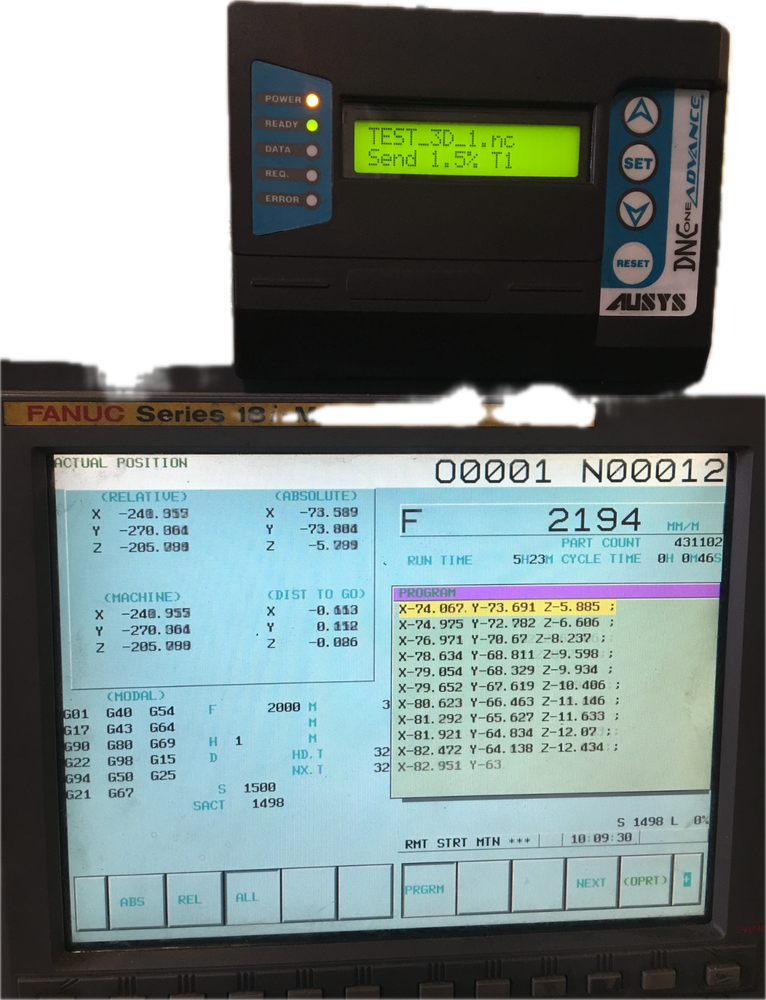

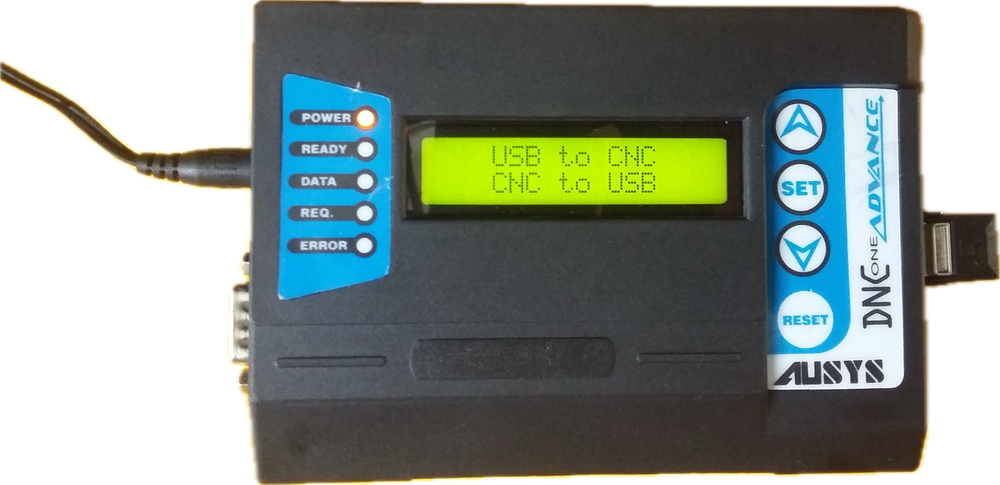

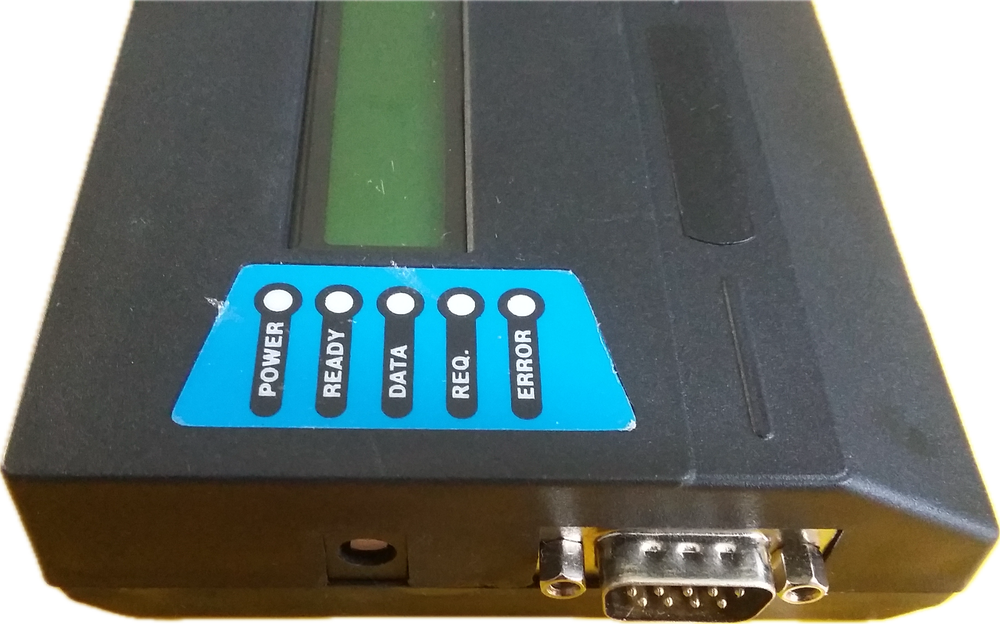

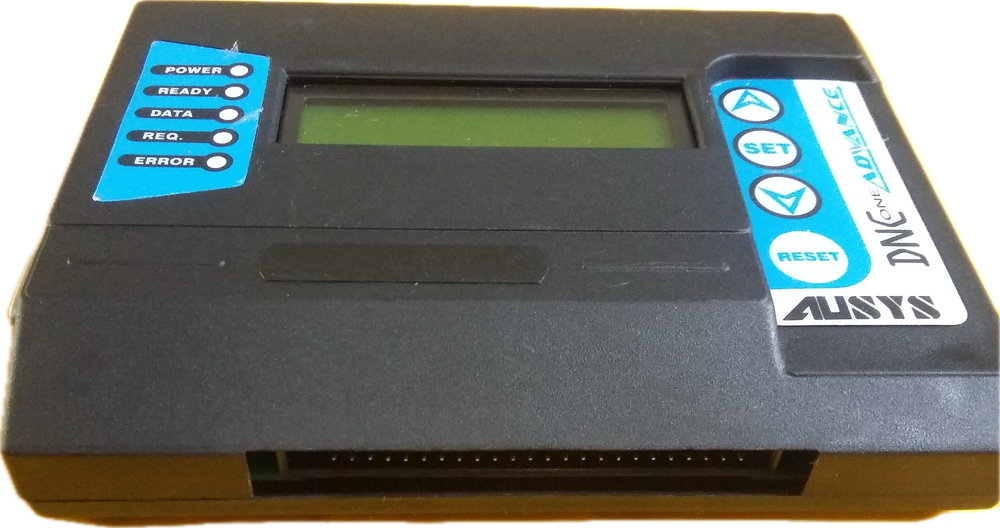

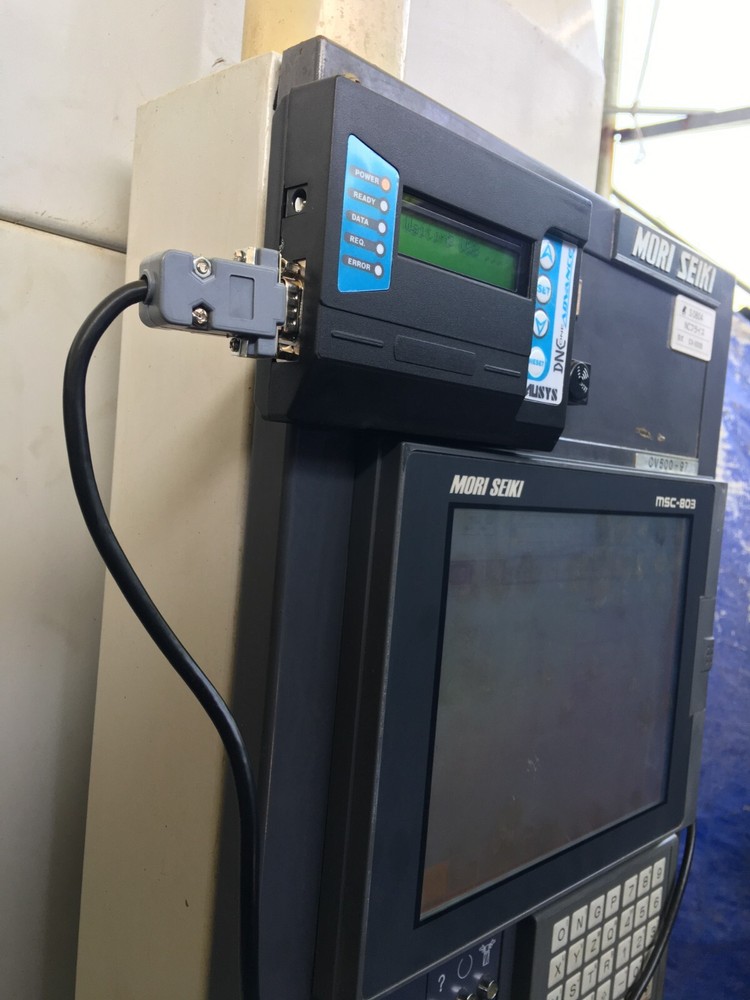

Check the listing for details. DNC ONE. program transmission device for cnc machine. Condition: New. Listed at 149.00 USD. This is a Portable Program Transfer Device that transfers CNC machine programs from a standard USB flash drive (Thumb Drive, Pen Drive, memory stick…) to or from the CNC control through the RS232 communications port, also referred to as Drip feed DNC or Up-Loading & Down-Loading.Features:· Support USB 2.0, all brands and various capacities of USB flash drive.· Large file size support, upto 4GB.· Long file names support, upto 50 characters· Extension of file name supports: *.?NC, *.TXT,*.NC, *.TAP· User Communications Settings· Select the files you want to transfer in a list displayed on the LCD screen easily and simply.· Support Fanuc tape parallel and serial rs232 communications· Support view CNC program file before transfer.· Transfer/Receive CNC program to/from CNC machine.· Drip Feed - if supported by CNC· Backup parameters from CNC machine to USB flash drive.· Repeat last file sent to CNC "t" times· ASCII, ISO and EIA codesets are fully supported.· AutoCut program - Usefully when you are running a large job and your tool breaks then you would have to start from where you left off.· Integrated timer - Allow you to set the time to stop CNC machine periodically for change the tool when the tool is over lifespanSpecifications:· Dimension(W/H/D): Approx 150mm/30mm/100mm· Weight: 300g (10.5 oz)· Display: Text LCD 16x2 - display list of program file, status, parameter setting, error,...· Diagnostics LED: Power, Ready, Send, Request, Error· User Button: Up, Select, Down, Reset· Input: 2 USB ports, 1 DC power port.· Output: Fanuc Tape parallel, serial rs232· Power supply: 12V DC – 1A power supply adapter, or draw power from the rs232 port or parallel port.RS232 parameters:· BaudRate: 1200~115200 · Data Bit: 7~8 Bit · Stop Bit: 1~2 Bit · Parity: None/Even/Odd· Hand Shake: Hardware/Software Applications:· Compatible with CNC machines currently uses operating systems such as Fanuc, Mitsubishi, Yasnac, Okuma, Mazak,Haas ...· Replace computer running DNC software. Benifits:· Cost cheap: Using this device will save a significant cost· Simple: Just Plug & Play no other installation requires· Do not waste space: Due to compact so will not waste space in the production area.· Stable, Simple operation and does not take much time, can work continuously for long time · Reliable/Time saving: The USB flash drive is enough to store many program so time will be save when running multiple product Package includes:· 1 x RS232 cable & adapter 12VDC· 1 x USB reader - DNC transfer device· The manual (electric copy) - Download from website.link to download the user manual of the DNC ONE devicelink 1-ONEdriver : MANUAL DNCdevice
