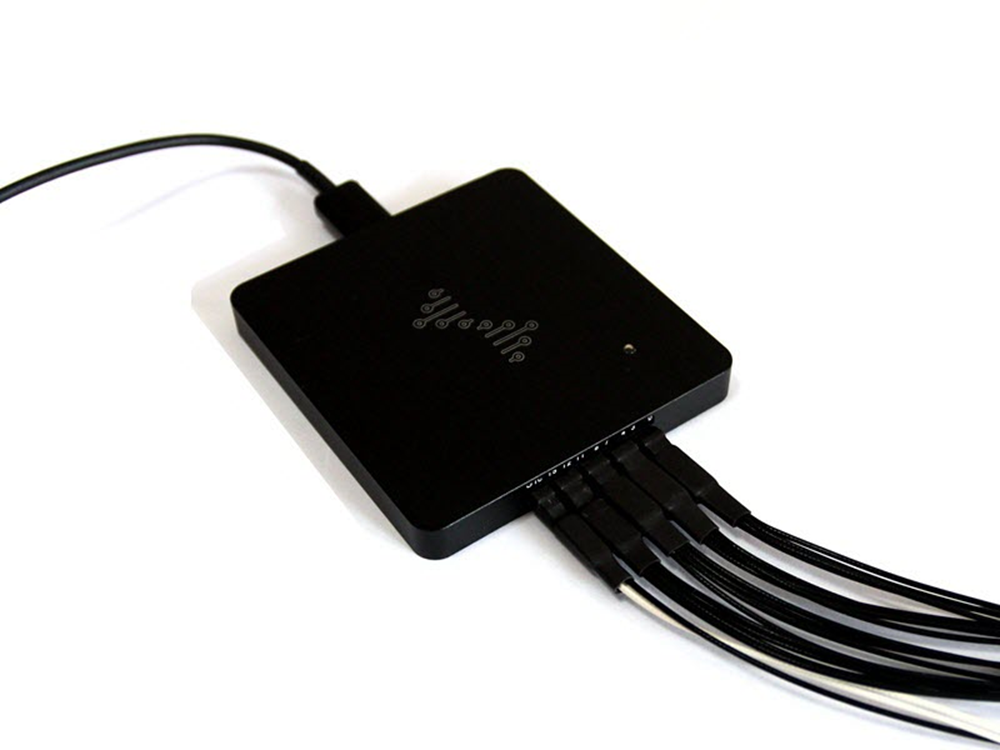

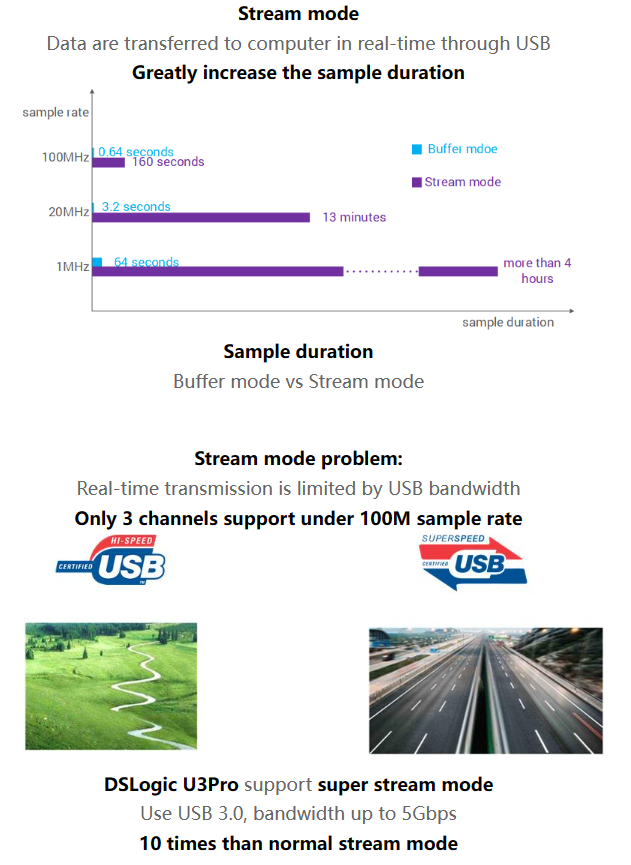

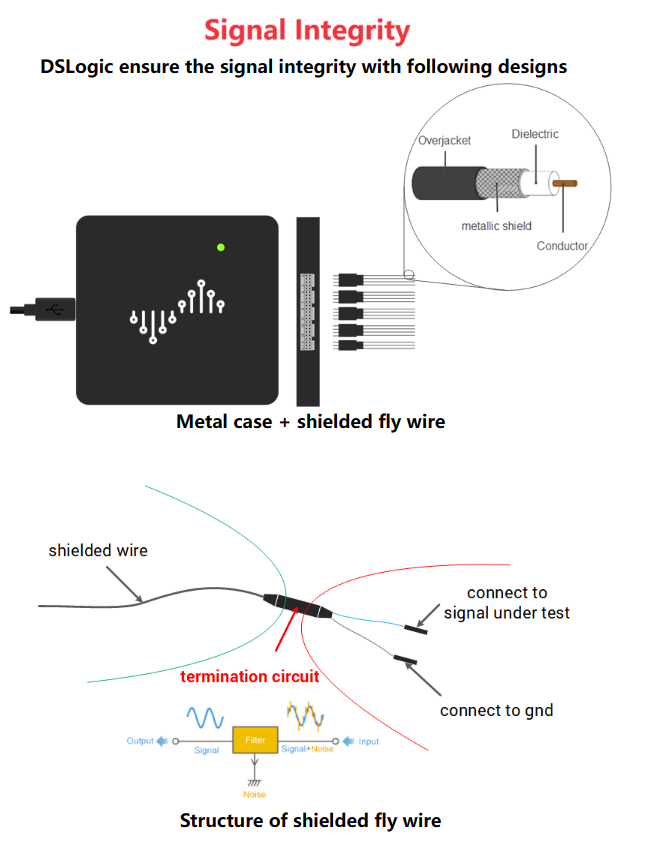

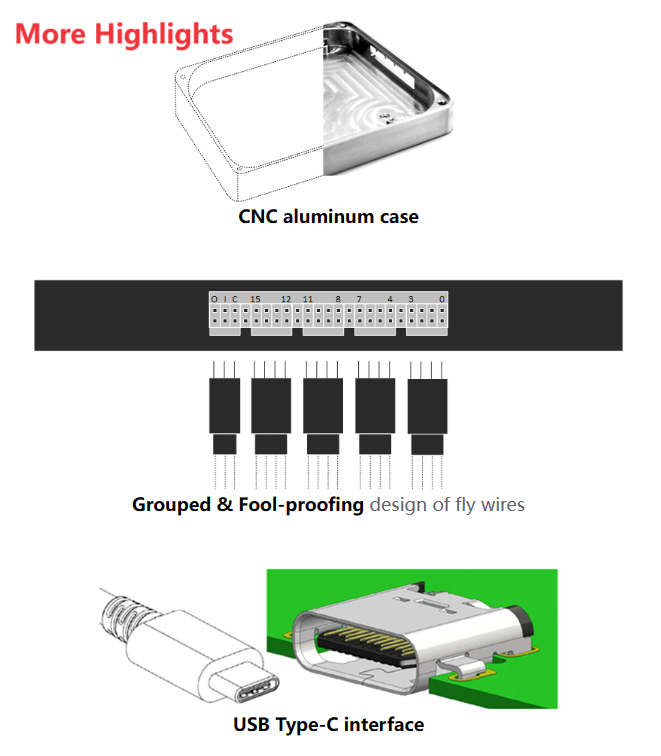

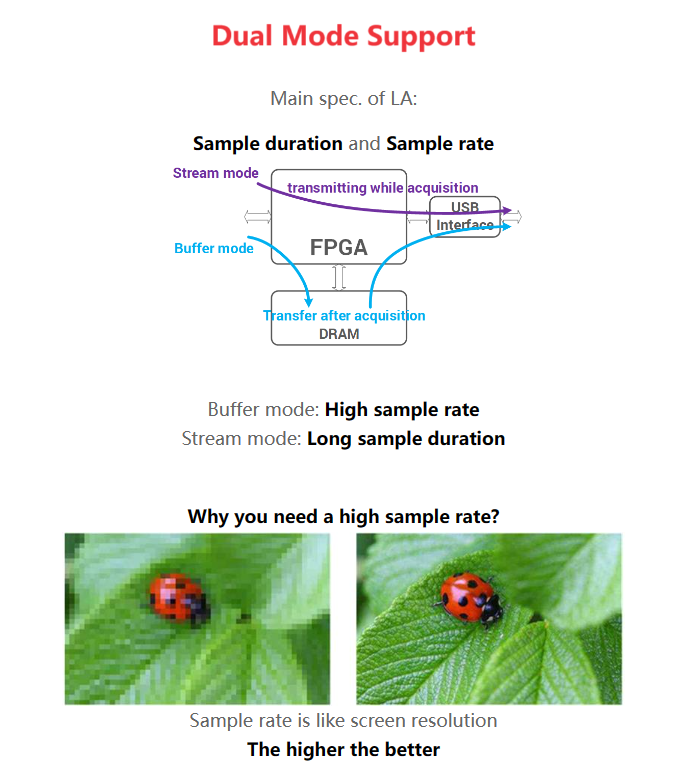

Check the listing for details. DSLogic Series USB-based Logic Analyzer. Condition: New. Listed at 182.00 USD. Details Supports Windows XP-Win 10, MacOS, Linux, supports dual mode, high sampling rate in buffer mode, and long sampling time in stream mode. Adopting a shielded cable design to eliminate noise interference and restore the true signal, ensuring that high-frequency signals can be transmitted without distortion throughout the entire signal acquisition path. DSLLogic not only supports regular protocol parsing to directly display protocol data content, but also supports multi-layer protocol stacking, making data display more intuitive and understandable. Grouping and anti reverse plugging cable interface, Type-C interface, forward and reverse plugging, ultra long lifespan. All metal CNC integrated shell, better shielding, better heat dissipation, and higher aesthetic value. Product Description DSLogic is a series of USB-based logic analyzer, with max sample rate up to 1GHz, and max sample depth up to 16G. DSLogic is protected by a CNC metal case to enhance noise immunity. Combined with shielded fly wires, DSLogic can be used to capture up to 250MHz digital signals (under 1G sample rate). Specification： Model DSLogic Plus （USB2.0/400MHz/16 channels） DSLogic U3Pro16 （USB3.0/1GHz/16 channels） DSLogic U3Pro32 （USB3.0/1GHz/32 channels） USB transfer rate USB2.0 (480Mbps) USB3.0 (5Gbps) Supported modes buffer, stream Maximum sampling rate (per channel) Buffer mode： 400MHz（4 channels） 200MHz（8 channels） 100MHz（16 channels） Buffer mode： 1GHz（8 channels） 500MHz（16 channels） Buffer mode： 1GHz（8 channels） 500MHz（16 channels） 250MHz（32 channels） Stream mode： 100MHz（3 channels） 50MHz（6 channels） 25MHz（12 channels） 20MHz（16 channels） Stream mode： 1GHz（3 channels） 500MHz（6 channels） 250MHz（12 channels） 125MHz（16 channels） Stream mode： 1GHz（3 channels） 500MHz（6 channels） 250MHz（12 channels） 100MHz（30 channels） 50MHz（32 channels） Minimum collectible pulse width 5ns 2ns The highest signal that can be collected 100MHz 250MHz Maximum collection depth Stream mode：16G Buffer mode：256M Buffer mode：2G Maximum collection time Stream mode: 160 seconds @ 100M sampling rate 4 hours @ 1M sampling rate 19 days @ 10K sampling rate Stream mode: 16 seconds @ 1G sampling rate 160 seconds @ 100M sampling rate 4 hours @ 1M sampling rate 19 days @ 10K sampling rate Hardware memory 256Mbits 2Gbits Trigger Simple trigger 16 level hardware trigger Protocol Trigger (I2C/SPI/...) Threshold 0-5V adjustable (0.1V step) Voltage withstand range ±30v Impedance 250K//~13pF State sampling Maximum 50MHz Interface High frequency shielded wire Each channel has a shielded ground Packing list: Model DSLLogic Plus DSLLogic U3Pro16 DSLLogic U3Pro32 Packing list 1x DSLLogic Plus host 1x USB 2.0 data cable 1x 4 sets of shielded ribbon cables 1x DSLLogic U3Pro16 host 1x USB 3.0 data cable 1x 4 sets of shielded ribbon cables 16x Professional signal clamp 1x DSLLogic U3Pro32 host 1x USB 3.0 data cable 1x 8 sets of shielded ribbon cables 32x Professional signal clamp
