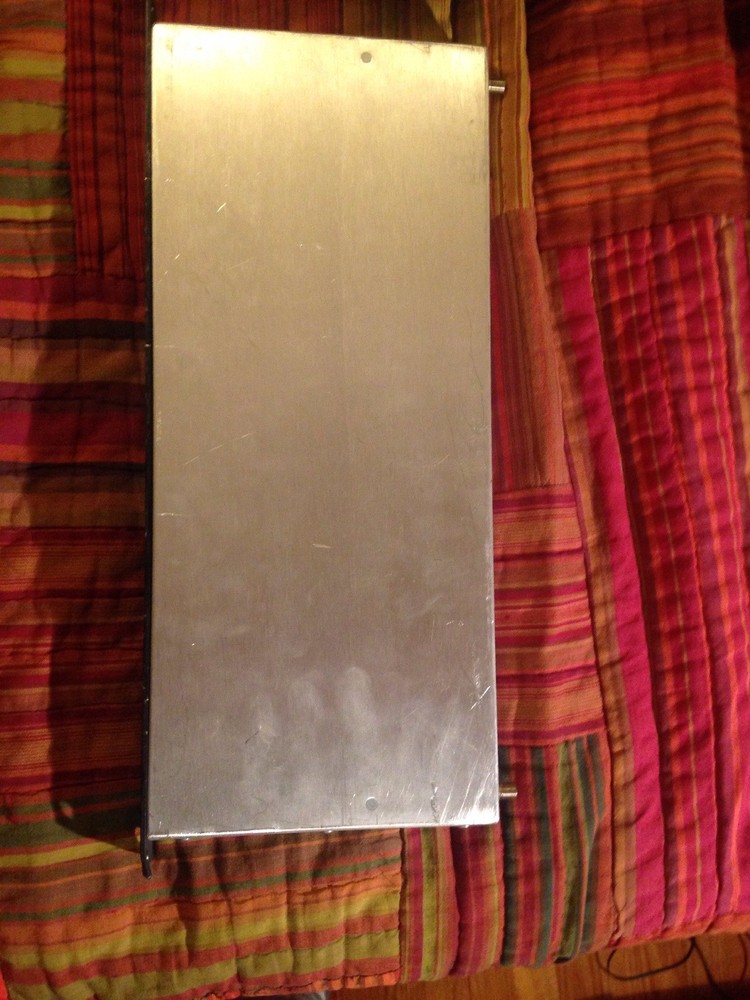

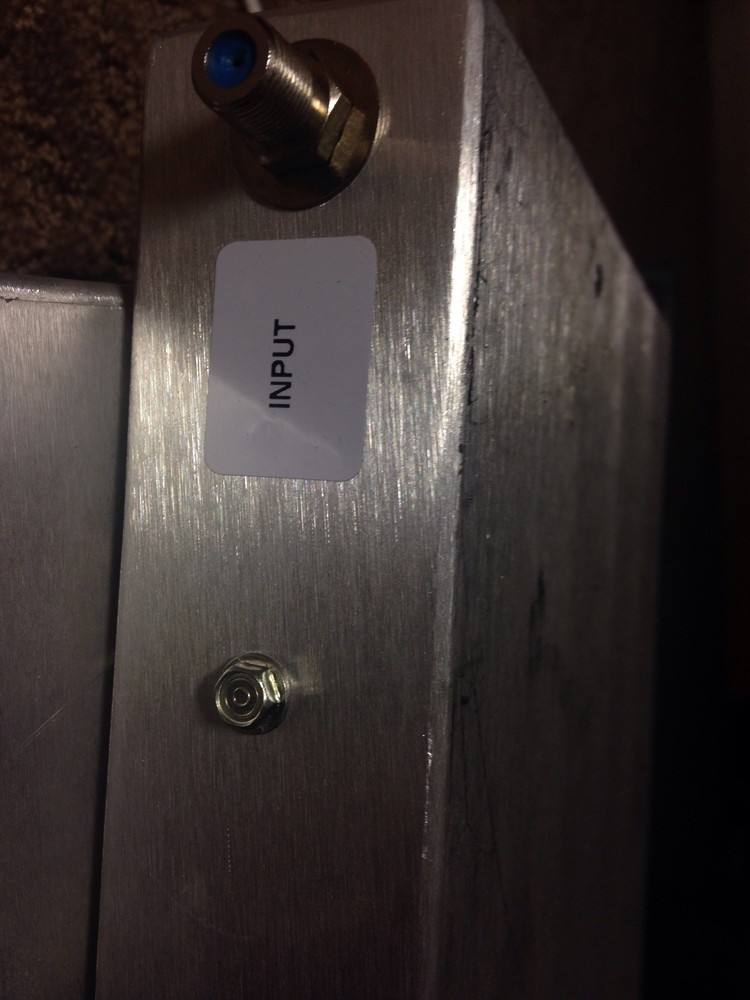

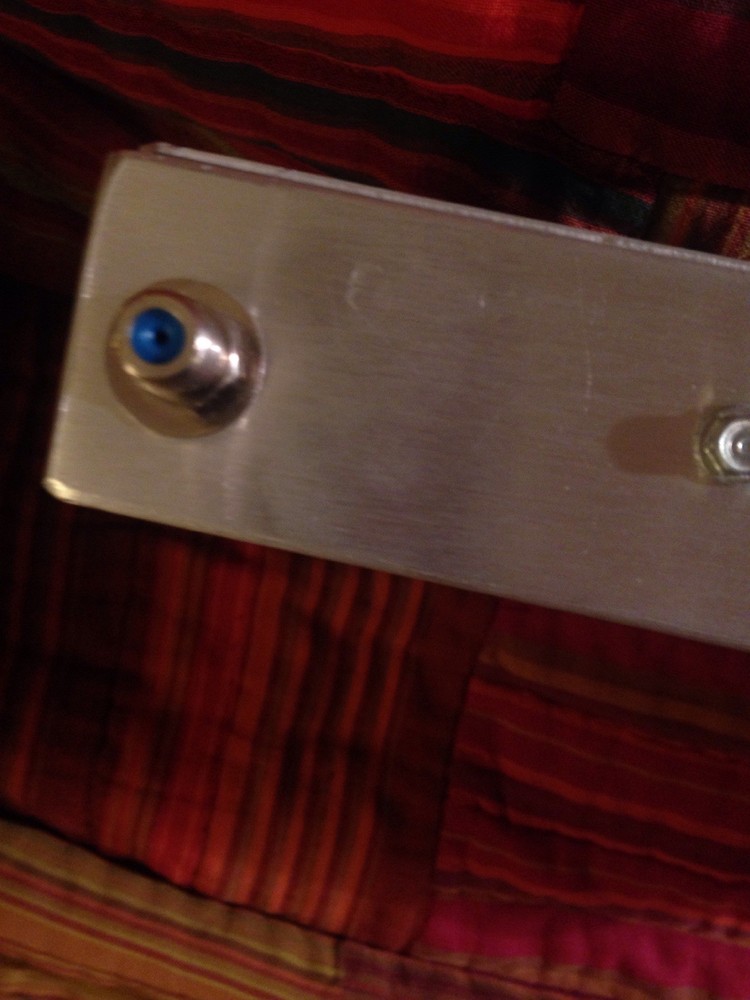

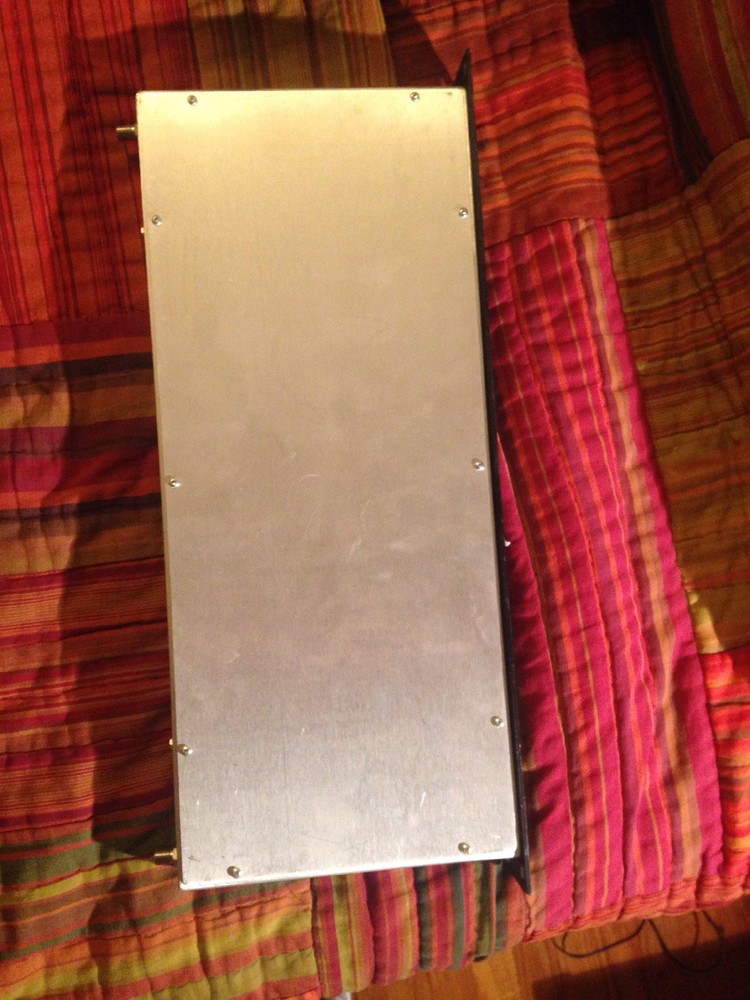

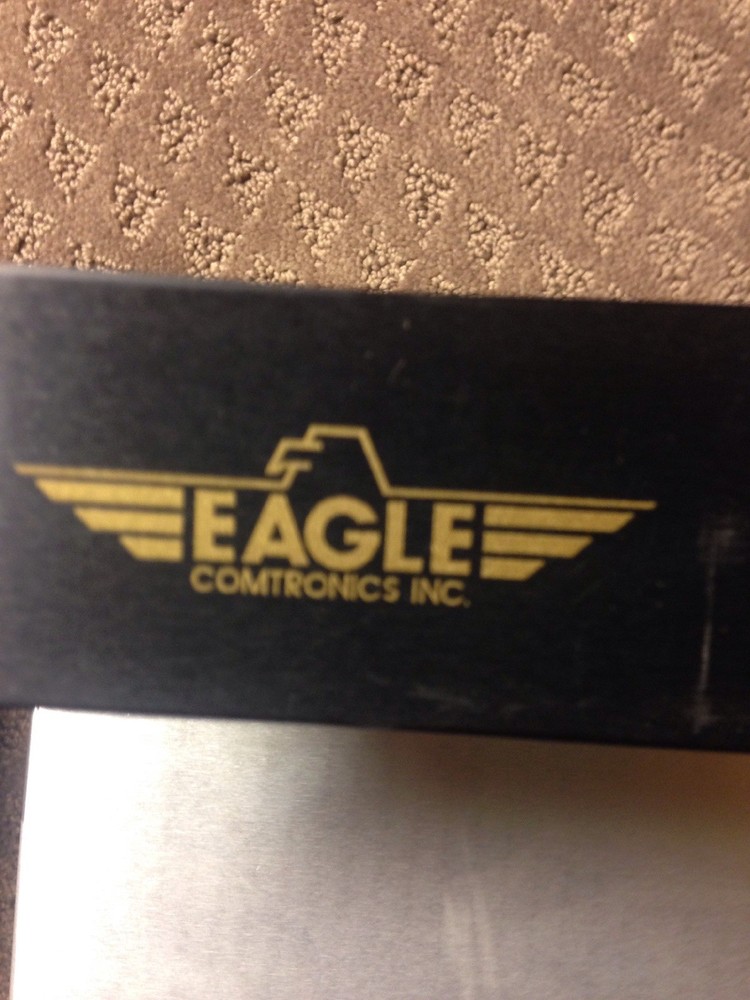

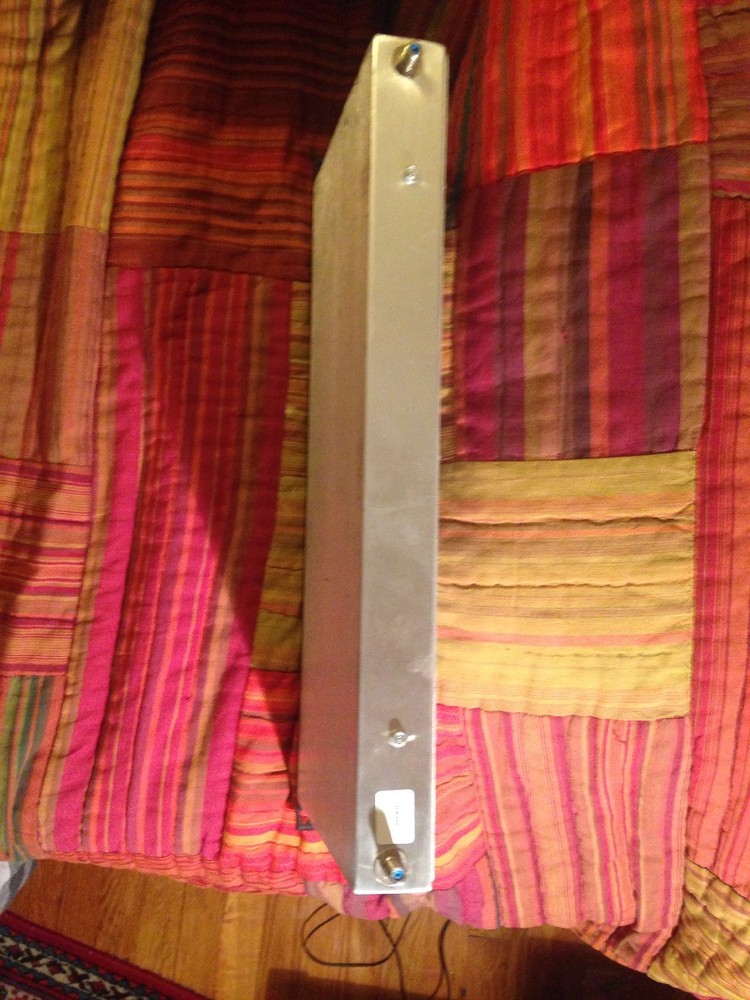

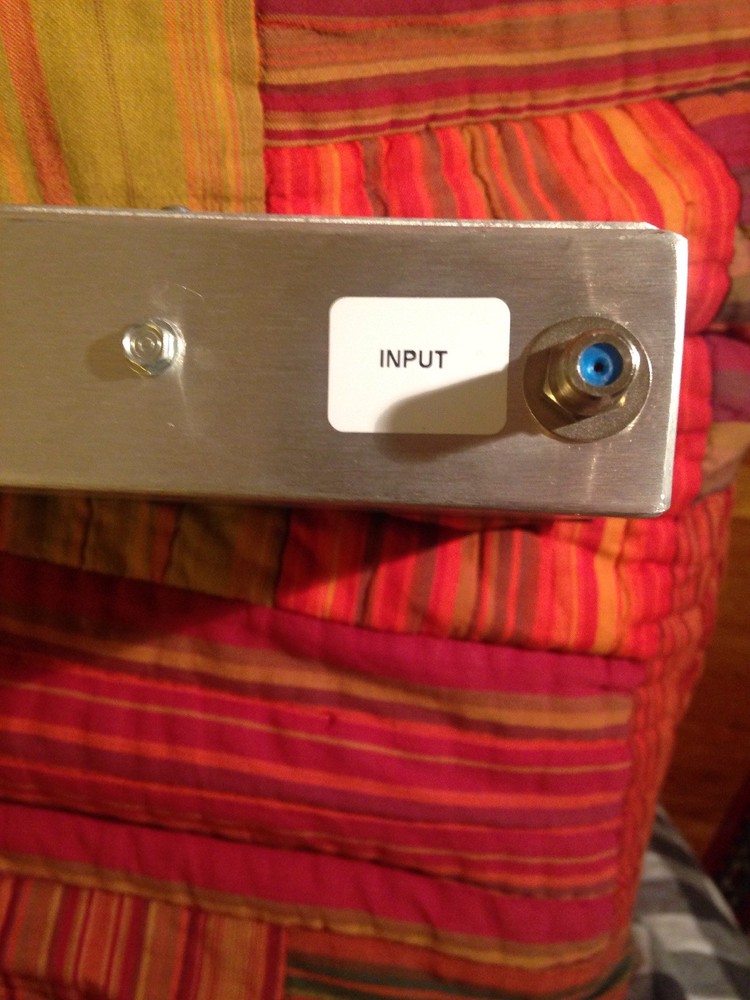

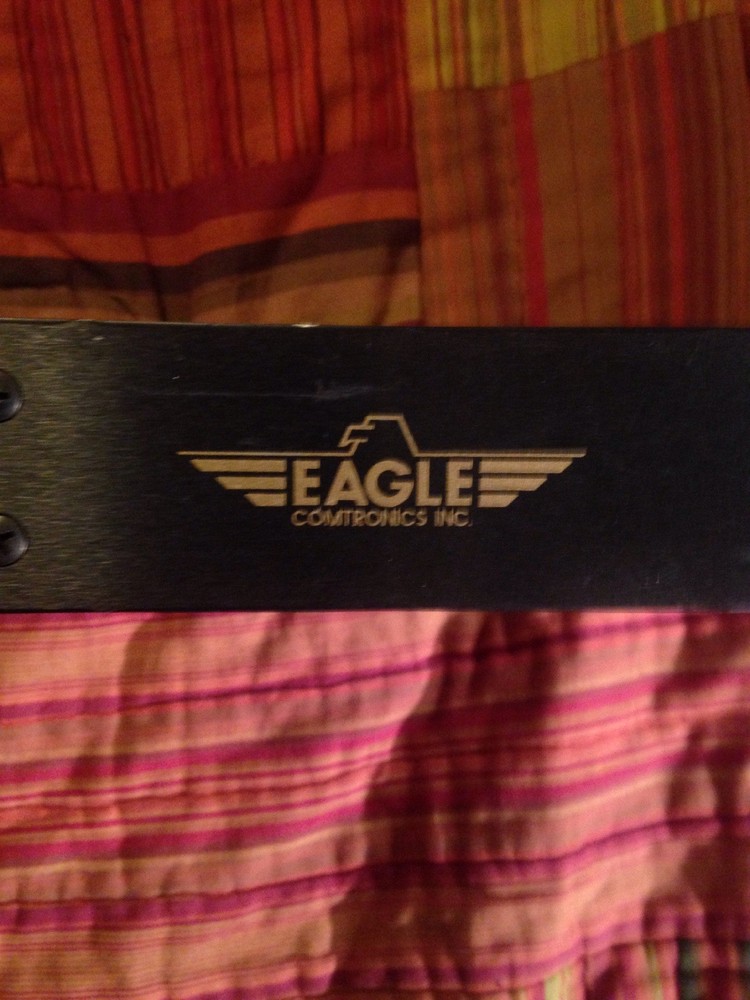

Check the listing for details. Eagle Comtronics EBWD-16-R Filter. Condition: Used. Listed at 55.00 USD. Eagle Brick Wall Digital Deletion Filters The EBWD series of Channel Deletion filters attenuate the entire QAM while preserving the adjacent QAM and/or analog channels. This allows the reinsertion of a new channel or data signal without interference from the original signal. * These filters work seemlessly with all digital insertion equipment in the market today. Application Removal of a selected analog or digital channel or frequency to allow the reinsertion of a locally originated signal. Commercial Accounts, Schools, Hospitals, Hotels, Homeowners Features Low Insertion Loss 1 GHz Performance Temperature / Frequency Stable Passes Adjacent QAM Channels Rack Mount or Wall Mount Options Connectors “F” Type Power Passing Available Specifications CHANNELS: 2 through 135 Specifications subject to change without notice. PASSBAND: 5 MHz - 750 MHz (ch 2,3) 5 MHz - 1 GHz (ch 4-135) * 1 GHz Ext available for channels 2 and 3 QAM CHANNEL REJECTION: -35 min entire QAM ADJACENT CARRIER LOSS: -3.0 dB typ. ADJACENT CHANNEL GROUP DELAY: < 500 ns INSERTION LOSS: -1 dB typ. TEMPERATURE RANGE: 32° F to +140° F IMPEDANCE: 75 Ohms Ordering Information EBWD-XX-D-(R or W) XX=CHANNEL, R=RACK MOUNT, W=WALL MOUNT Multiple Channel
