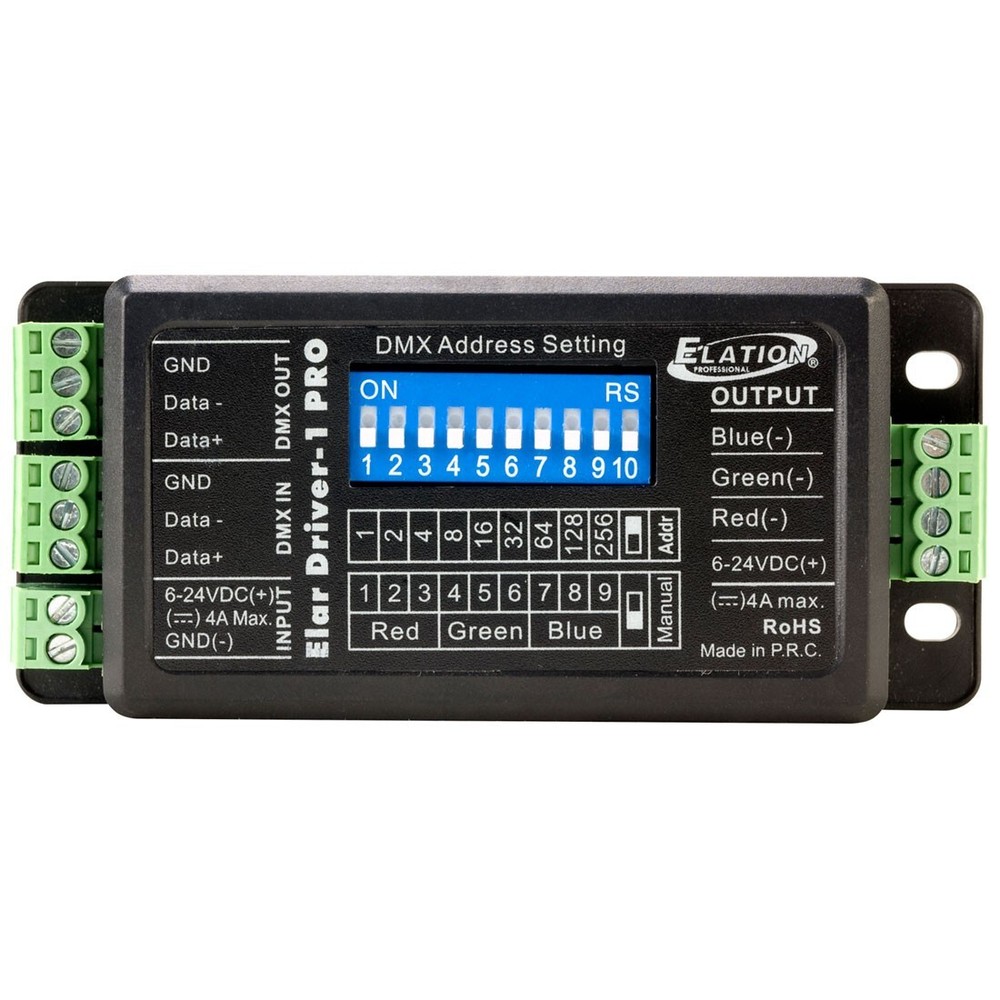

Check the listing for details. Elation ELAR Driver1 Pro LIMITED STOCK!. Condition: New. Listed at 76.00 USD. Elation ELAR Driver1 Pro LIMITED STOCK! THIS ITEM IS SHIPPED DIRECTLY FROM THE VENDOR AND IS SUBJECT TO THEIR AVAILABLITY Limited stock available The Elation ELAR DRIVER1 PRO™ is an ETL listed RGB LED driver which provides 3 channel RGB control and flicker free 2,000 Hz PWM di mming via DMX-512 and manual RGB variable intensity control via onboard dip switches. The driver is contained in a compact polycarbonate housing and includes 12-14 AWG wire terminal blocks for 2-pin power, 3-pin DMX in/out, and 4-pin LED connections, dip switches for DMX addressing, and is powered by 6-24VDC 5A. Its small compact design allows for easy mounting and integration into any system and includes a linking clip to attach additional drivers together. FEATURES Compact RGB LED Driver 3 Channel RGB DMX-512 Control Manual RGB Variable Intensity Control Flicker Free 2,000 Hz PWM Di mming via DMX-512 12-14 AWG Wire Terminal Block Connections 6-24VDC 5A Power Requirement SPECIFICATIONS CONTROL / CONNECTIONS DMX IN via 3-pin Terminal Block (included) POWER IN via 2pin Terminal Block (included) DMX OUT via 3-pin Terminal Block (included) DMX/POWER OUT via 4pin Terminal Block (included) SIZE / WEIGHT Length: 3.5" (90 mm) Width: 1.6" (39.9 mm) Height: 0.8" (20 mm) Weight: 0.12 lbs. (0.05 kg) ELECTRICAL / THERMAL Refresh Rate 2,000 Hz Power Input 6-24VDC 5A Power Output 6-12VDC 5A Max | 24VDC 4A Max 32°F to 104°F (0°C to 40°C) APPROVALS CE | cETLus | RoHs | IP20
