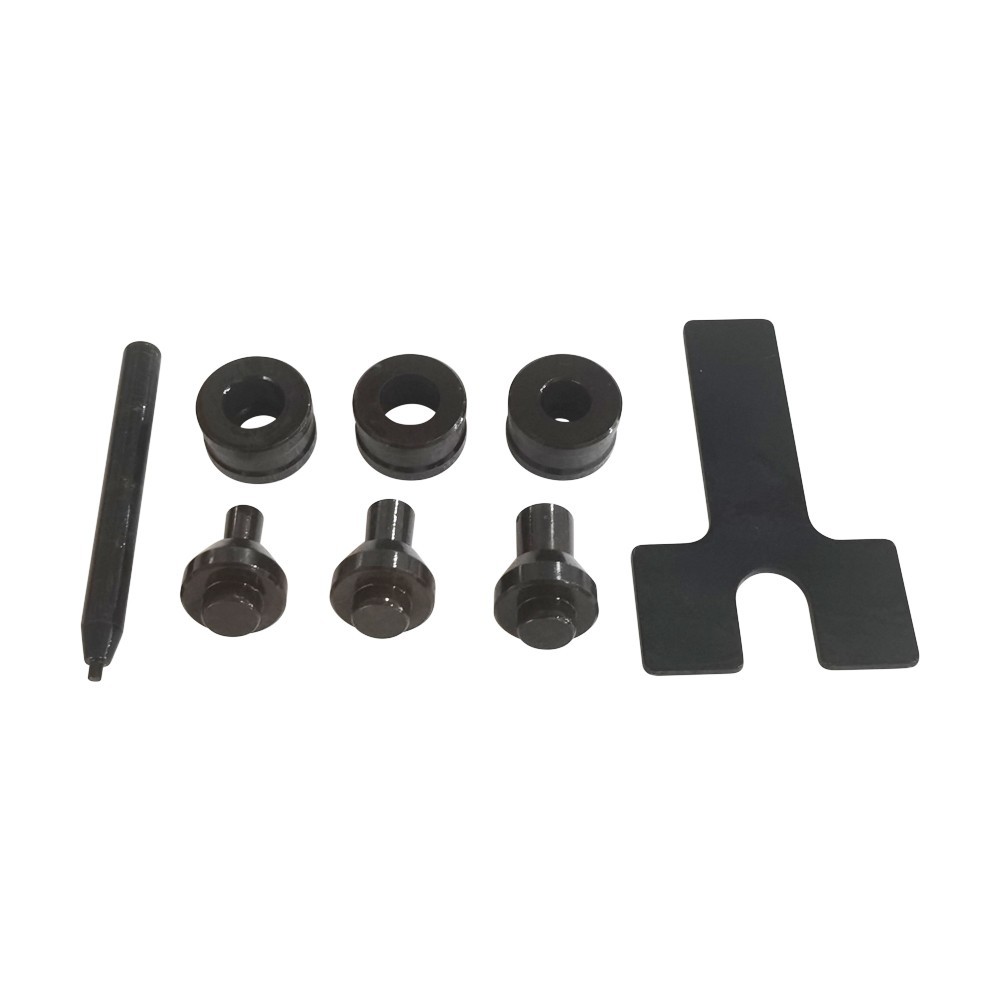

| Punching dies | 3/8"/5/8"/1/2"/3/4" |
|---|---|

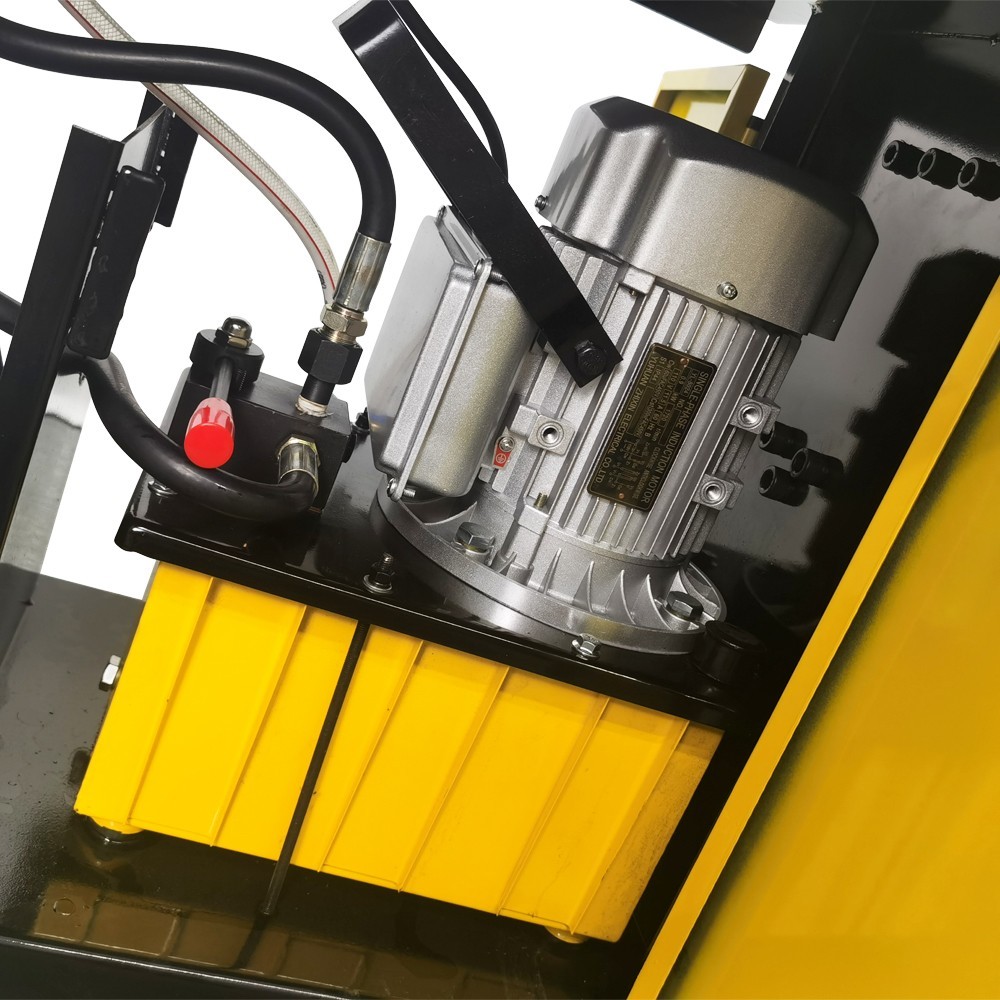

| Tank capacity of hydraulic pump | 2.11gal(8L) |

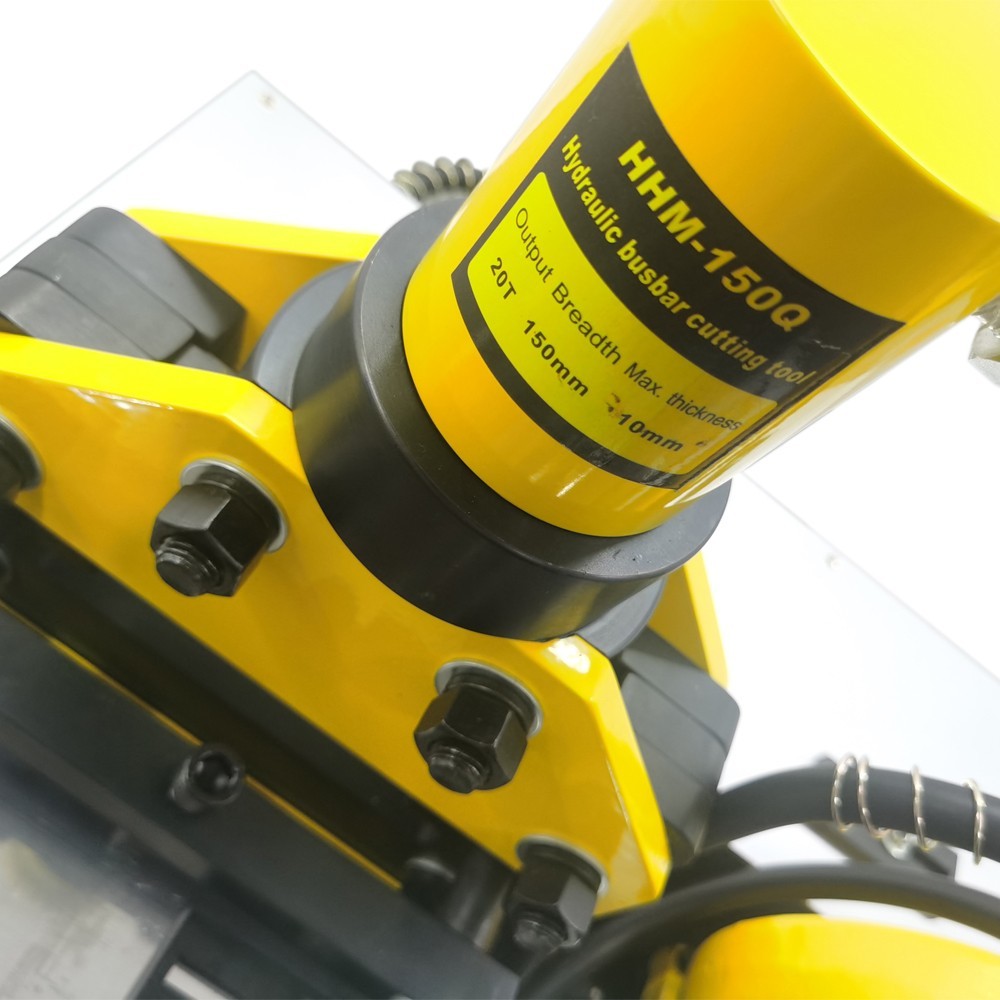

| Cutting max(Width*Thickness) | 5.90"*0.39"(150mm*10mm) |
| MPN | 56-056276 |

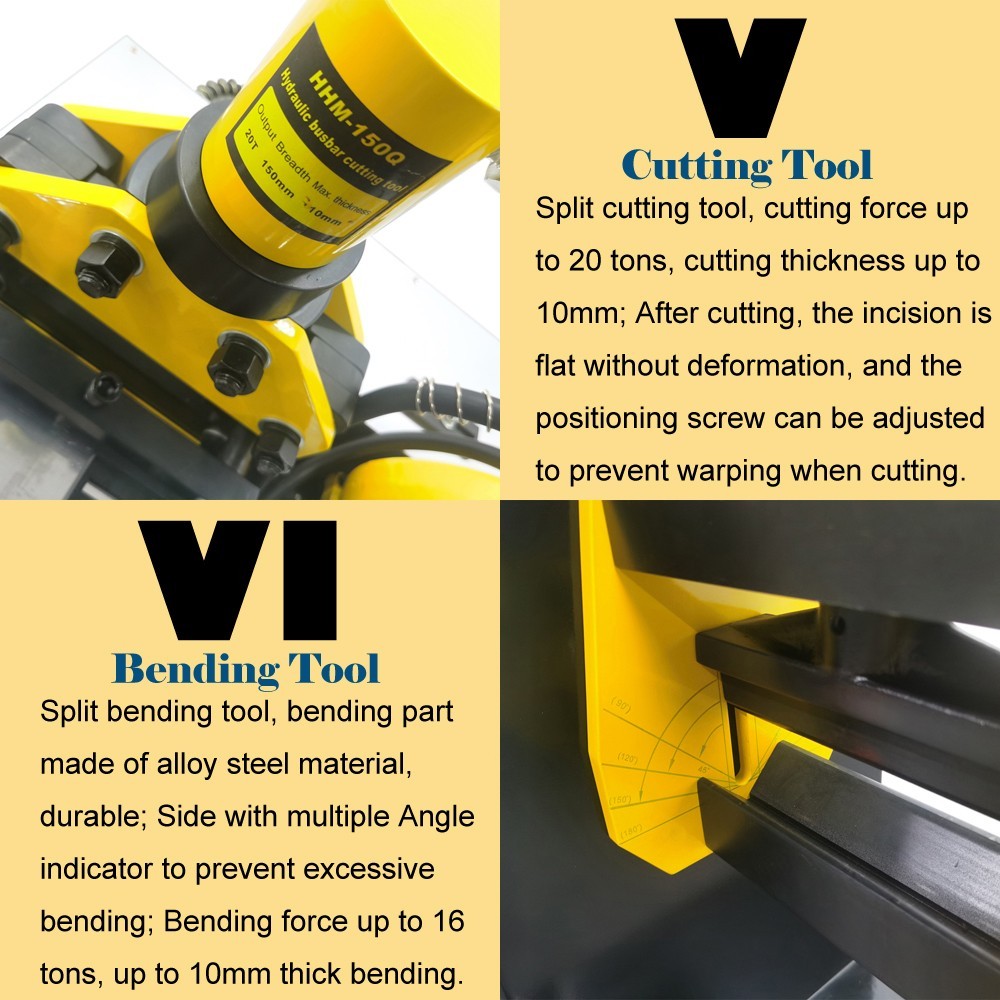

| Output cutting force | 20ton |
| Punching max(Thickness) | 0.39"(10mm) |
| Brand | TECHTONGDA |

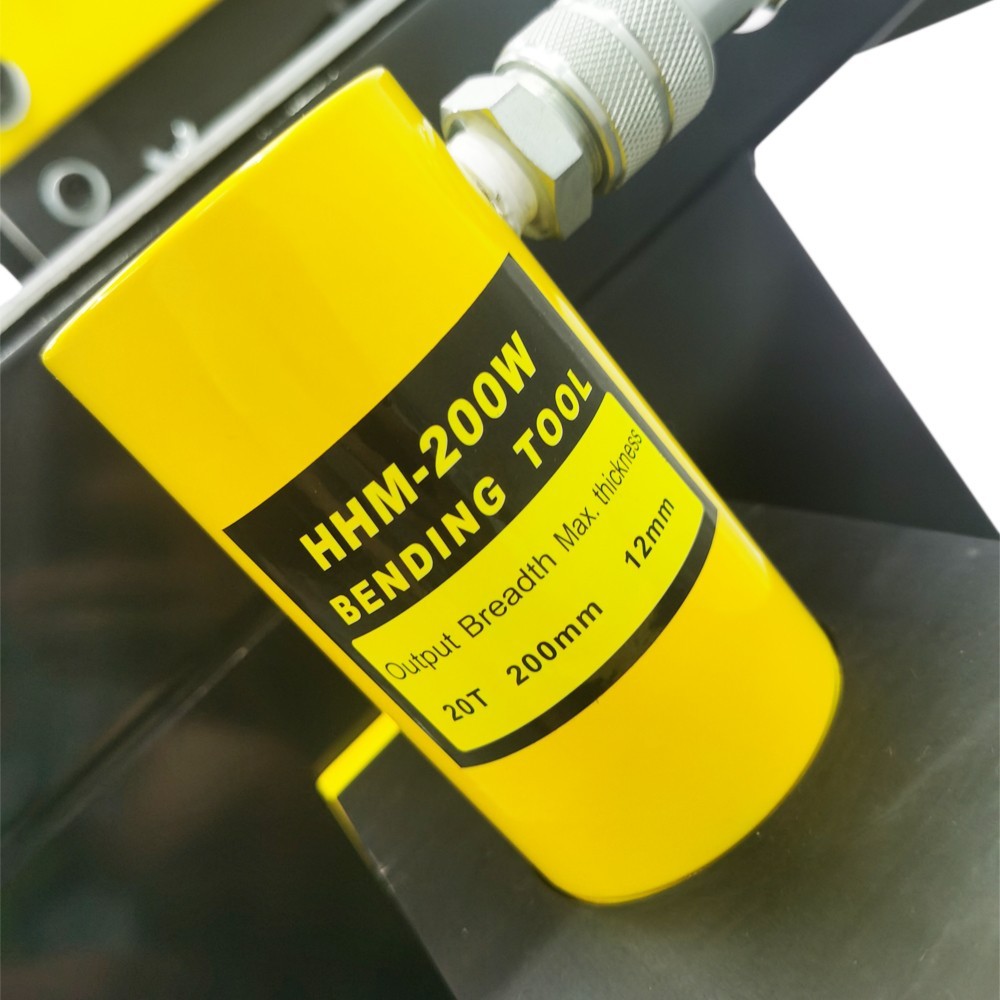

| Bending max(Width*Thickness) | 7.87"*0.47"(200mm*12mm) |

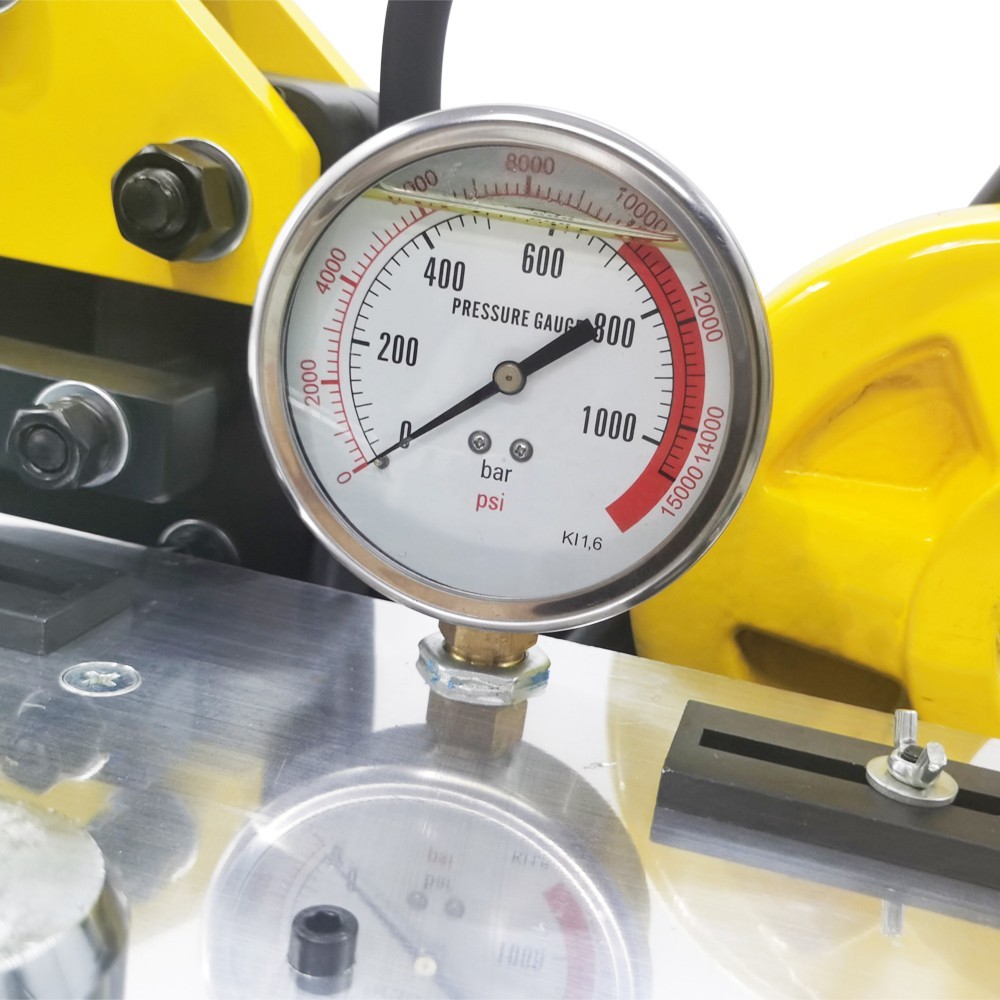

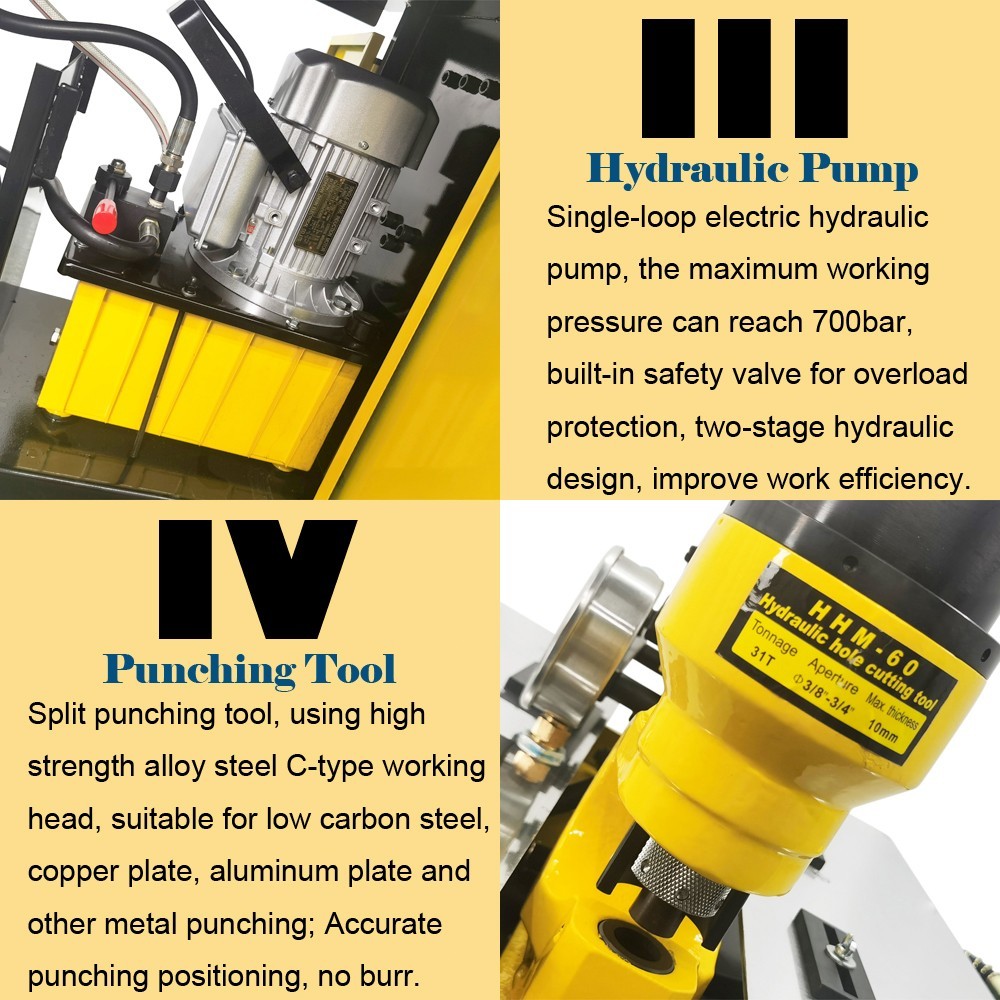

| Hydraulic pump pressure max | 700bar(10152psi) |
| Throat depth of punching | 2.75"(70mm) |
| Output bending force | 16ton |
| Voltage | AC110V 60Hz 1.2HP(900W) |
| Model | HHM-150H |
| Flow rate of hydraulic pump | 0.7L/min-5L/min |

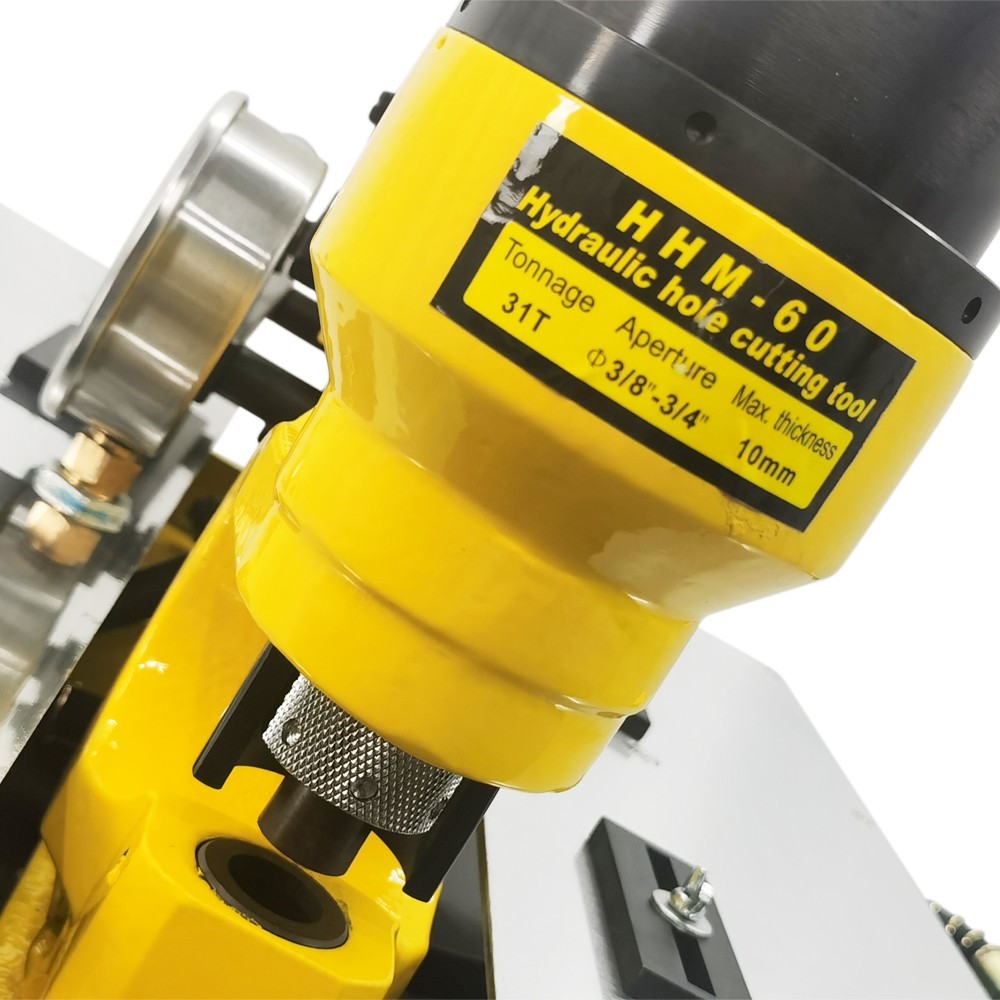

| Output punching force | 31ton |

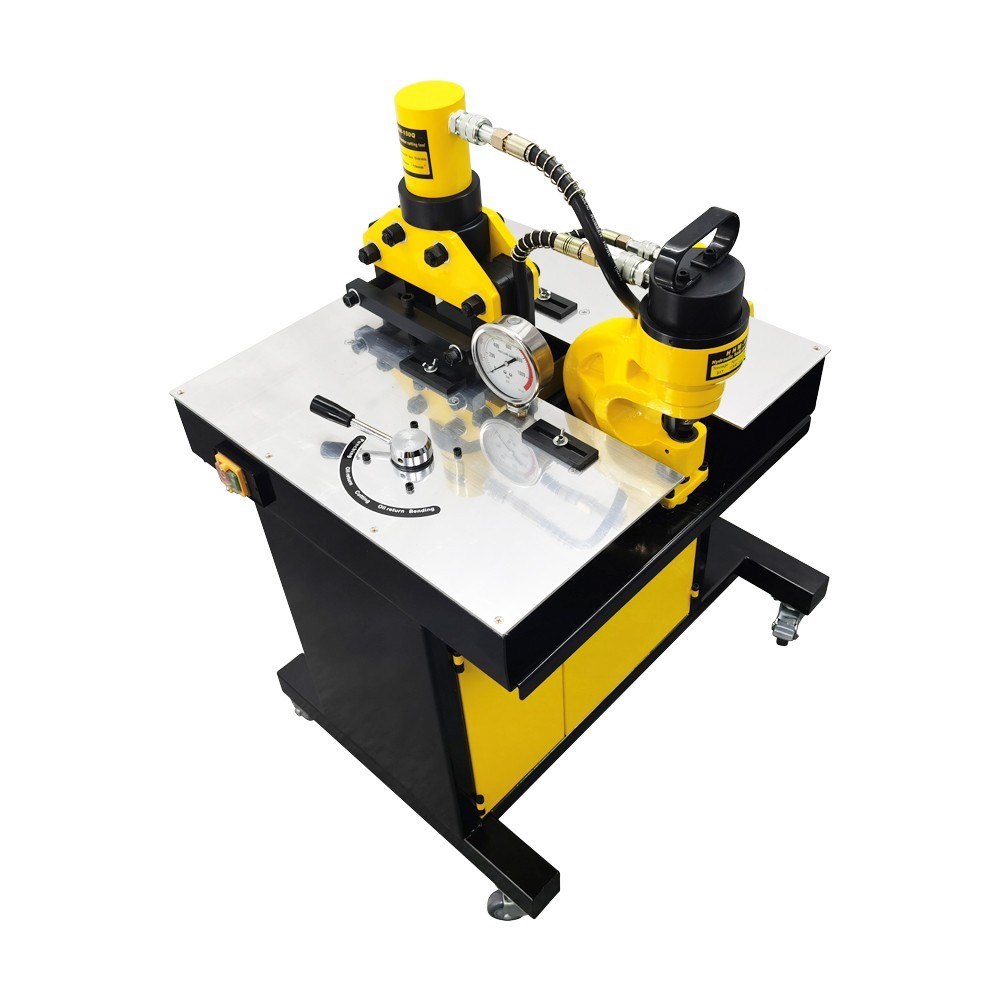

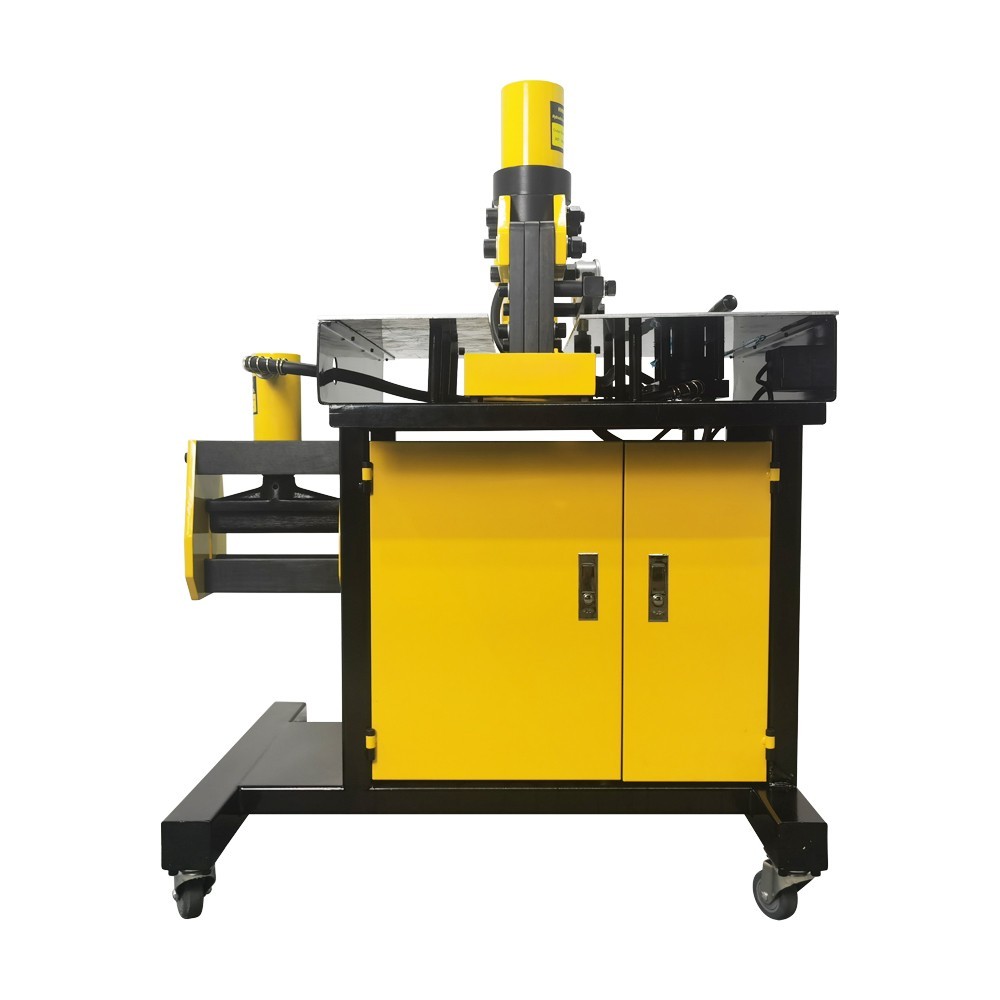

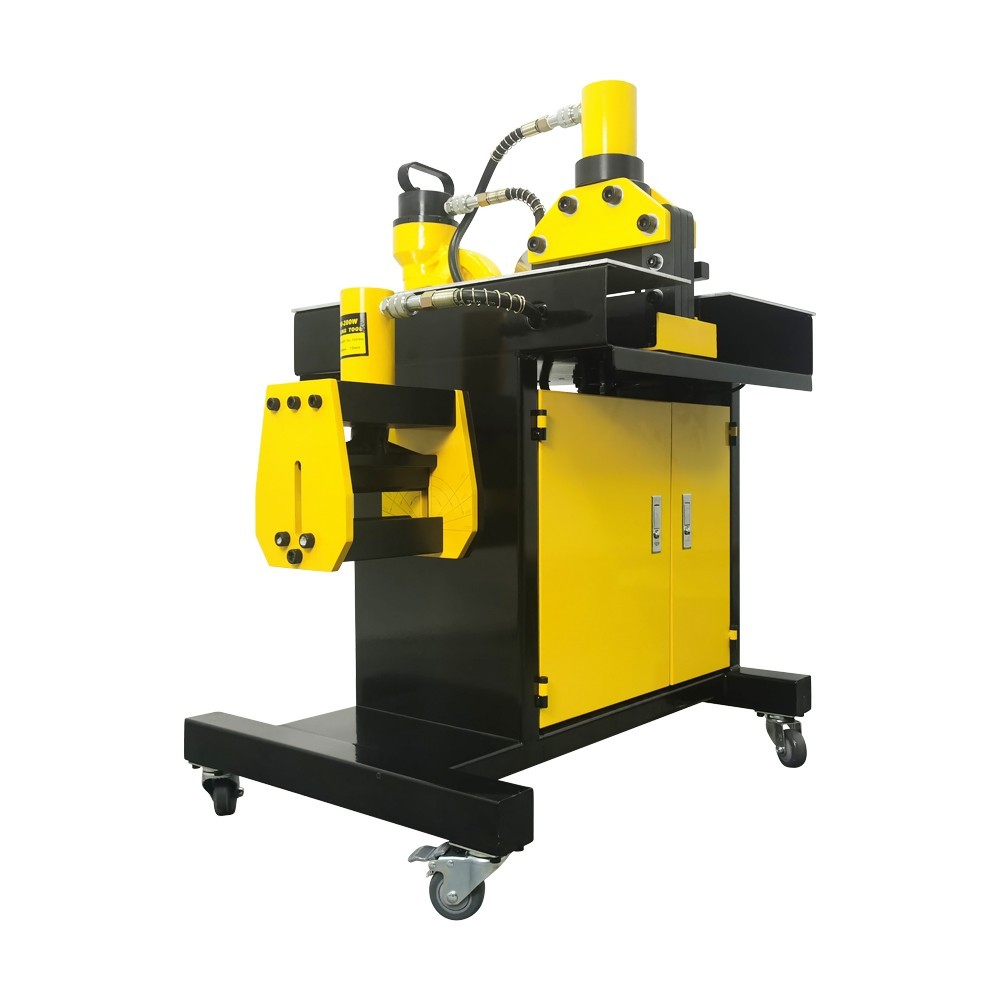

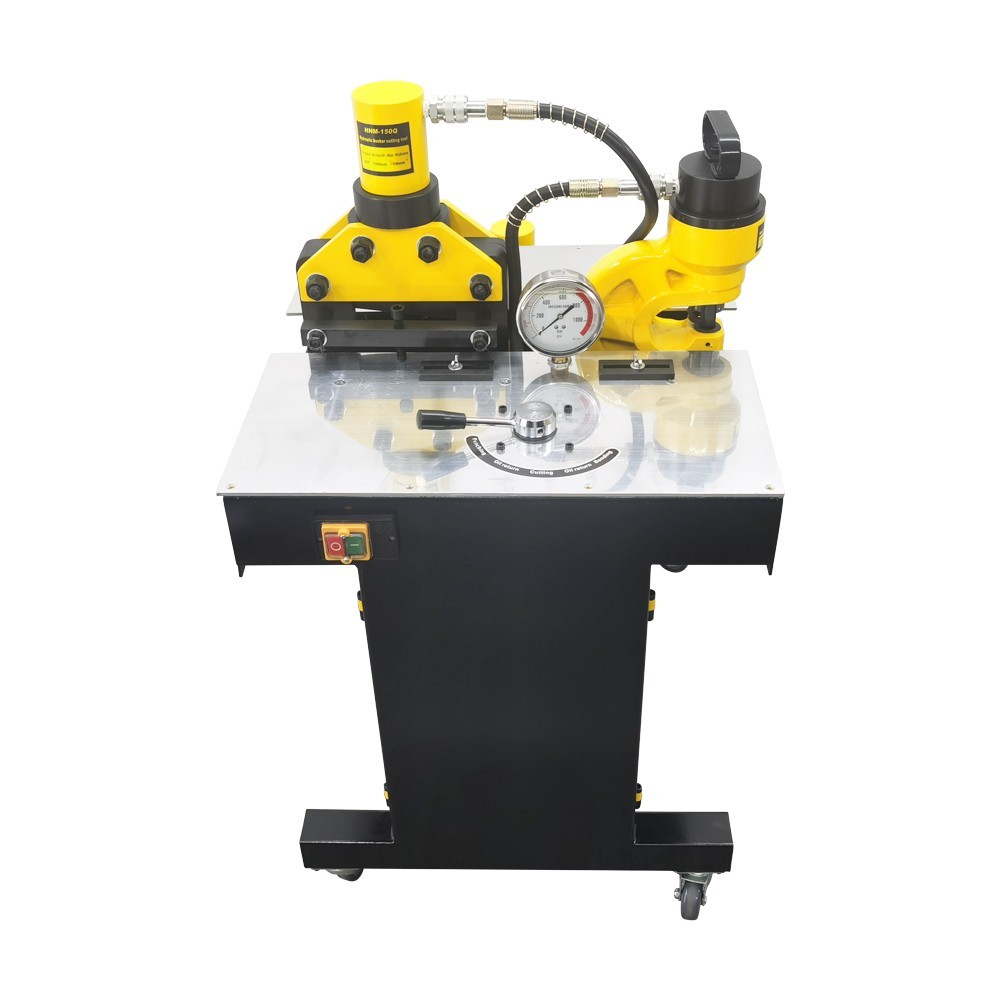

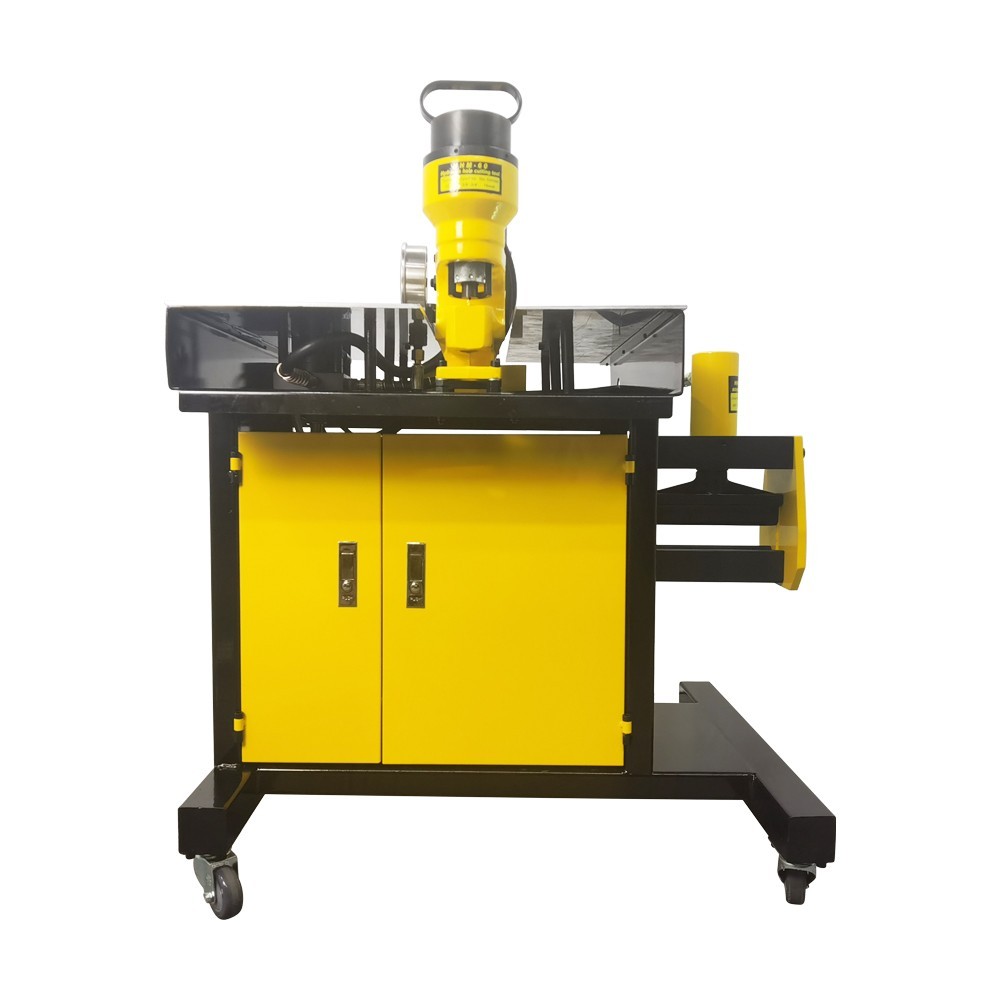

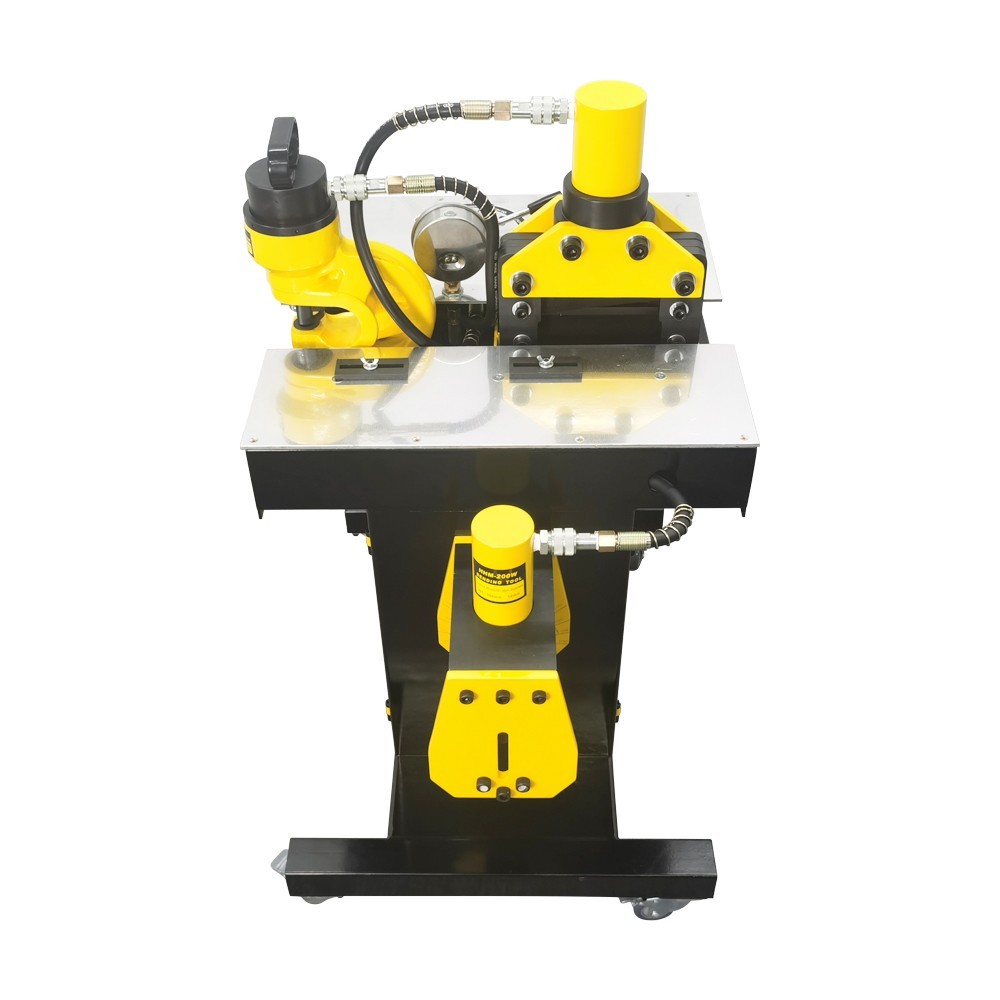

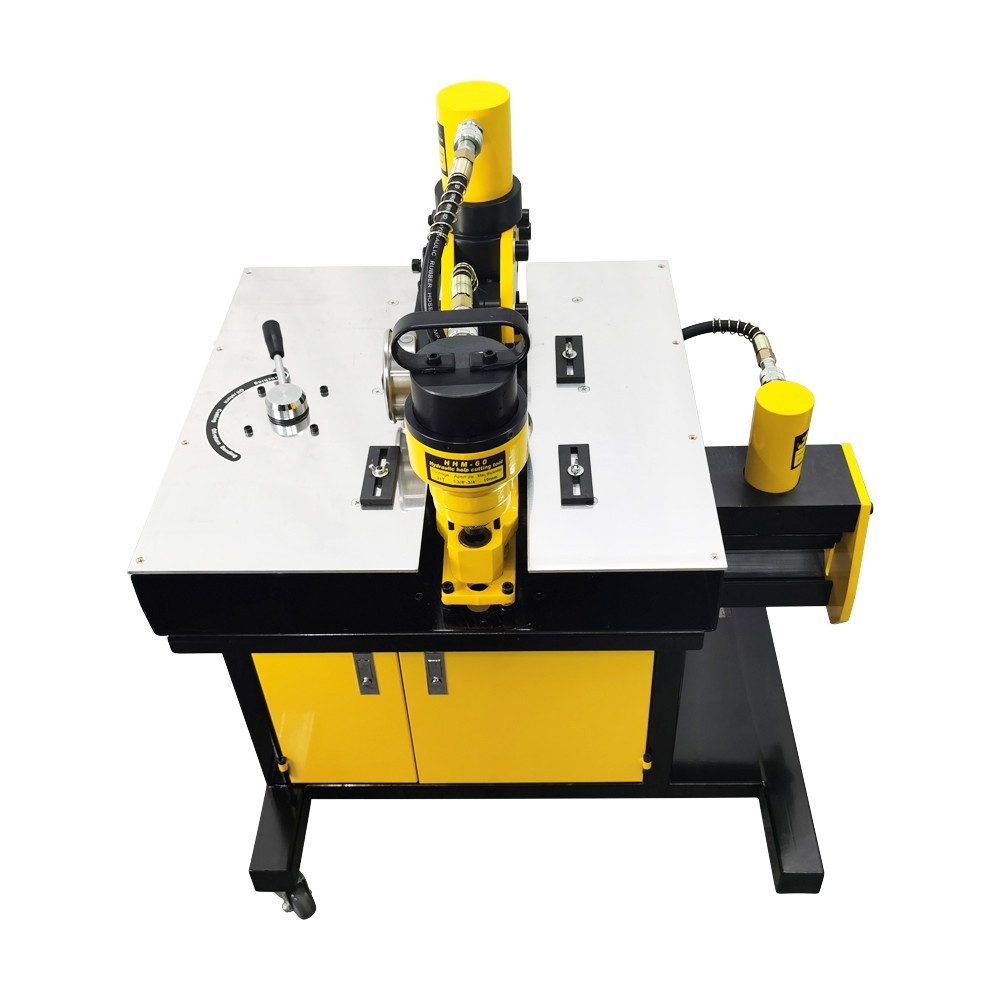

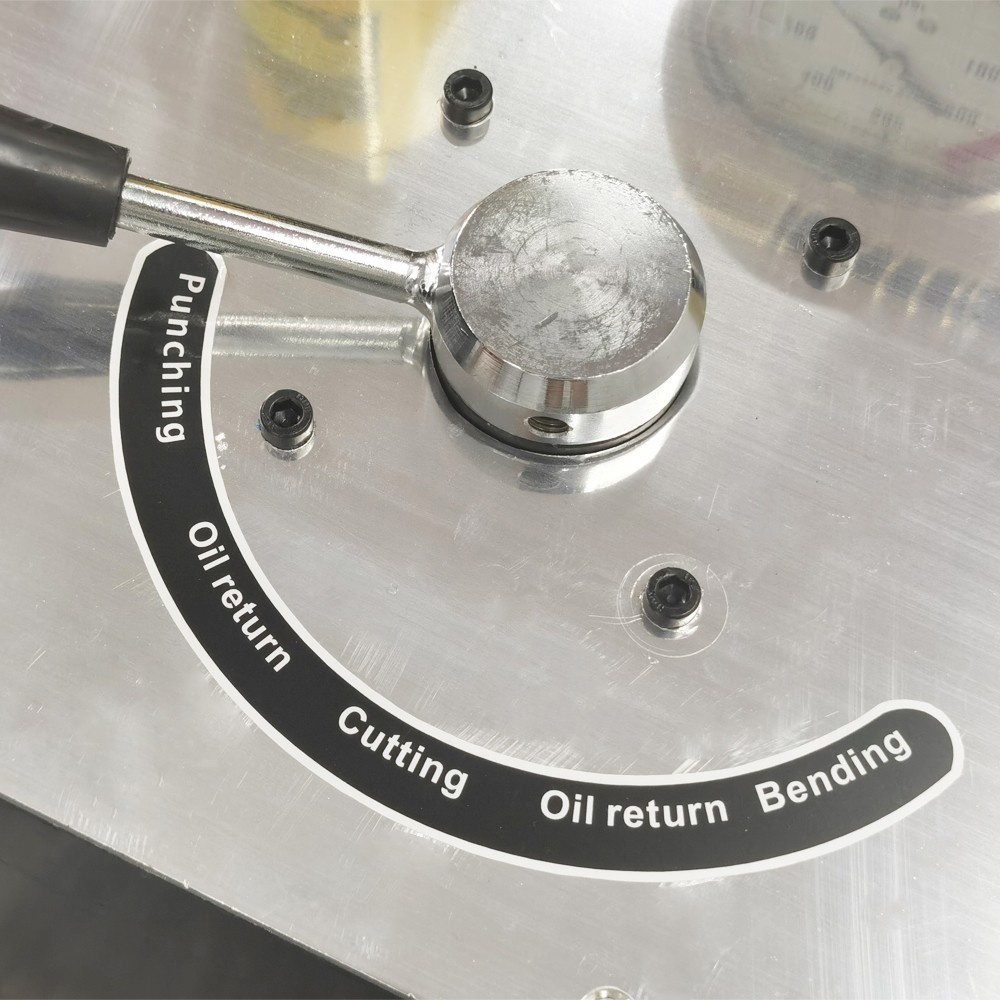

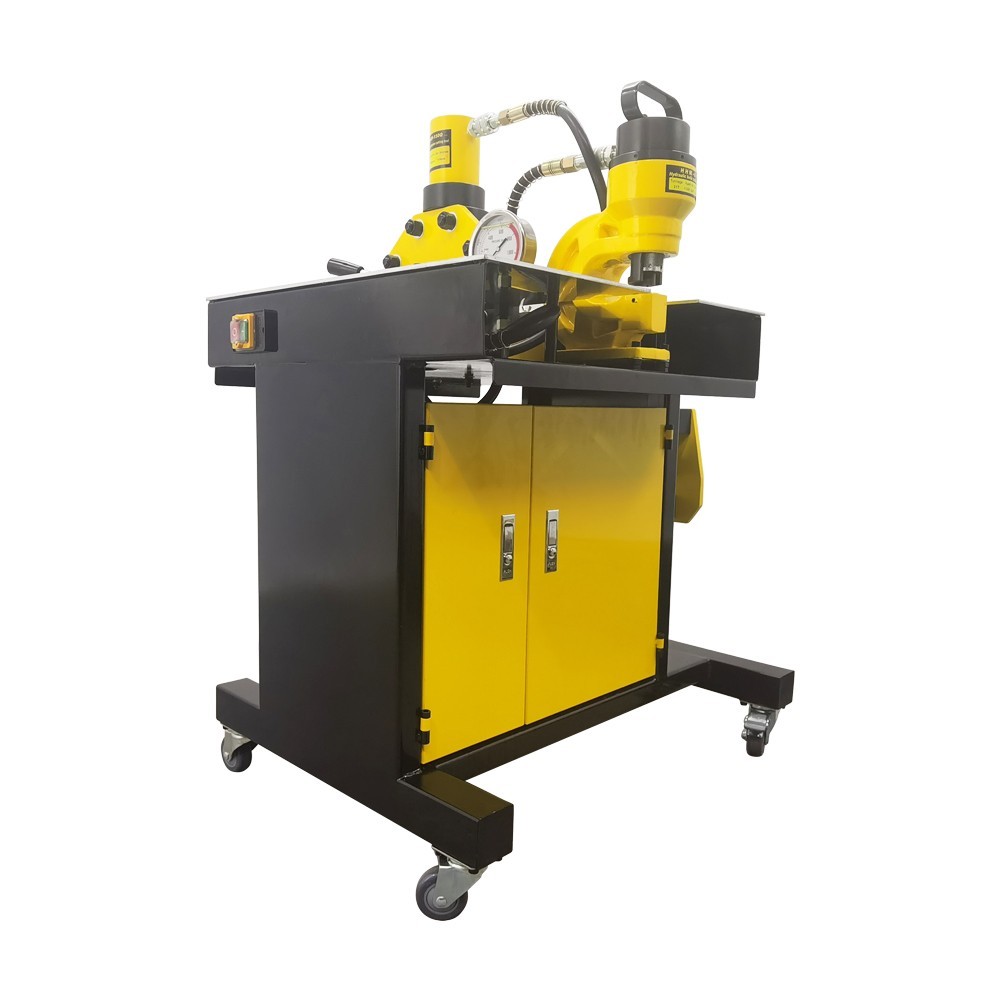

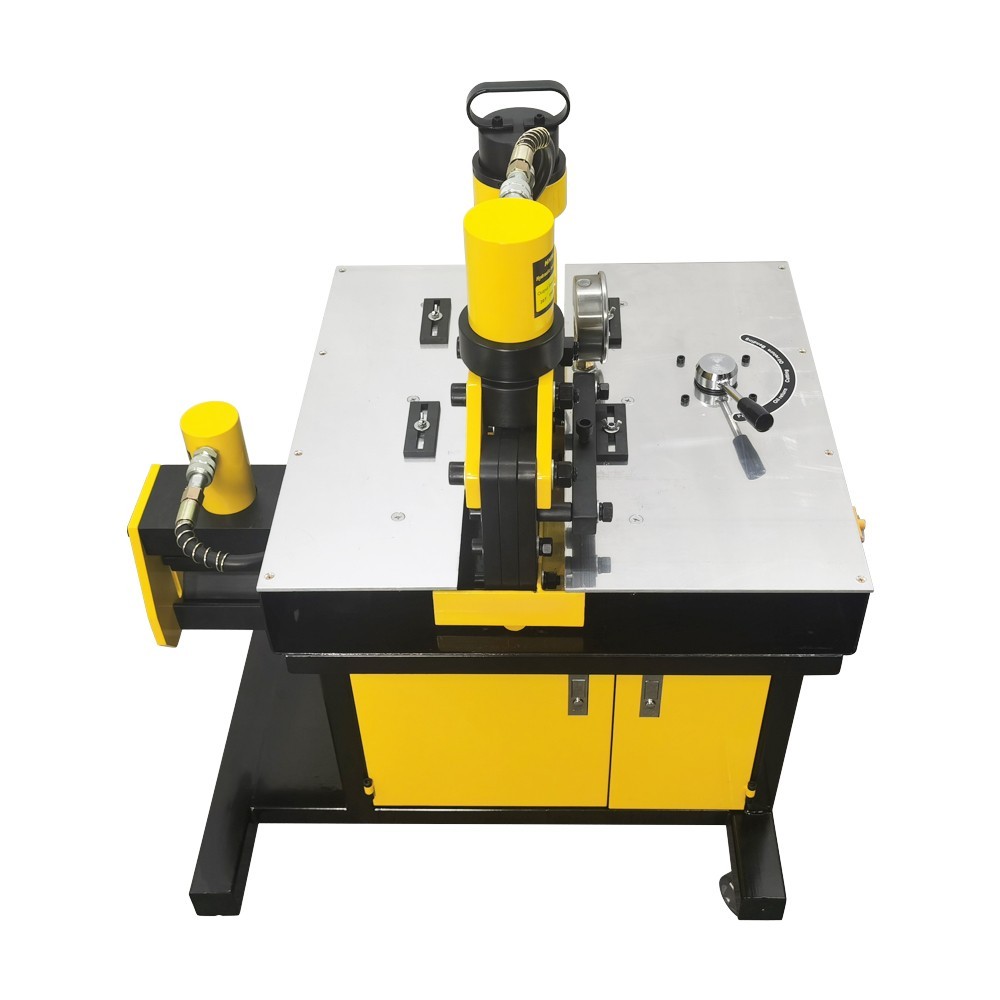

Check the listing for details. Electric Hydraulic Bus Processor Cutter/Bender/Hole Puncher Multi-function 110V. Condition: New. Listed at 2203.40 USD. Busbar Processor 1 Punching Dies 6(Three sets) Dowel 1. Throat depth of punching: 2.75"(70mm). Bus processing machine has shearing, punching, bending three processing units, the main function for processing different specifications of copper, aluminum bus, just use the corresponding processing unit, can be convenient, fast to copper, aluminum row shear, punching, bending and other different processing.
