| ※Features※ | ※High-quality Material※Storng Stability※Quality Service※ |
|---|---|
| ▶Highlights◀ | ▶Long Service Life◀▶Excellent Service◀▶Good Stability◀ |
| * Feature * | *Durable Material*Beautiful Appearance*Easy to Install* |
| ❤Highlights❤ | ❤Premium Material❤Long Service Life❤Ideal Gift❤ |
| 🔥Feature🔥 | 🔥High Performance🔥High Safety🔥Creative Design🔥 |
| ★Features★ | ★★★Reliable Quality★★★Easy installation★★★Good Stability★★★ |
| Highlights | Sturdy and Durable,Long Service Life |
| Table size | Φ100mm |
| Load | 45kg |
| Itinerary | 360° |
| Packing size | 23*13*16cm |
| Parallelization | 80μm |
| Resolution / Pulse(no subdivision) | 0.01 ° |
| Recoil | 0.005° = 18" |
| Material | Aluminum-black anodized |
| Top board beat | 15μm |
| Transmission mode | worm gear (reduction ratio 1/180) |
| Weight | 1.7kg |
| Guide rail | bearing |
| Product model | HT03RA100 |
| Absolute on-axis accuracy | 0.01° = 36" |
| Repeatability | 0.005° = 18" |
| Rotation speed (maximum) | 25° / sec |
| Gross weight | 2kg |
| Resolution / Pulse(20 subdivisions) | 0.0005° |
| Eccentricity | 10μm |
| Lost movement | 0.005° = 18" |
| Brand | TBVECHI |
| MPN | DOESN NOT APPLY |
Check the listing for details. Electric Motorized Rotation Platform - Precision Optical Rotary Stage 100mm. Condition: New. Listed at 300.09 USD.
You may also like
$20.89
6500K-7000K USB 72 LED Ring Light Microscope Illuminator Adjustable Focus Lamp
$106.22
Zeiss 451225 Stage Plate For Invertoskop Axiovert
$229
SCHOTT FOSTEC HIGH TRANSMISSION GLASS FIBER LIGHT GUIDES 40”
$11.99
Metal Microscope Mirror Bracket w/ Glass Microscope Mirror Reflector Assembly
$225.25
Keyence VH Microscope Stand with X-Y Table
$25
Set of 4 Nikon Microscope Replacement Feet for 50i & 55i
$23.99
LOT OF 2 P 51 PERIPLAN 10X MICROSCOPE EYEPIECES VINTAGE PAIR EYE PIECES RARE
$40

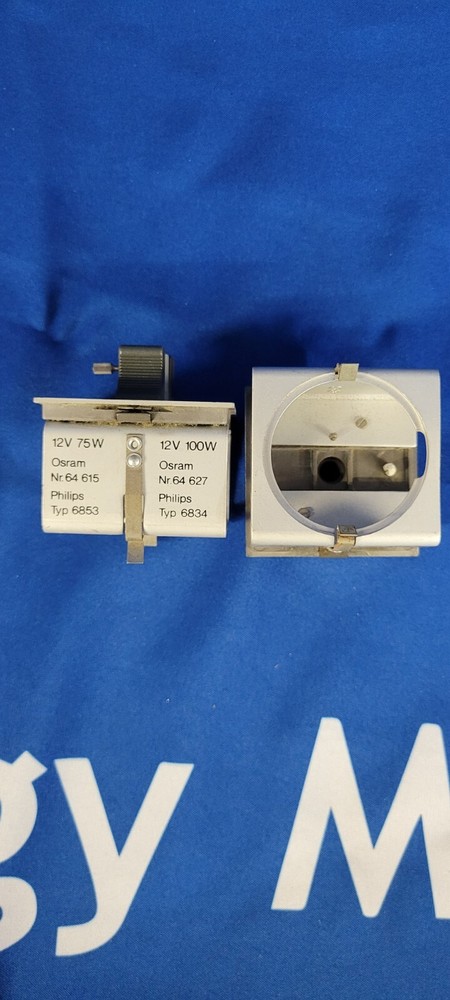

Zeiss LFS200 Fiberoptic Light source Lamp holder
