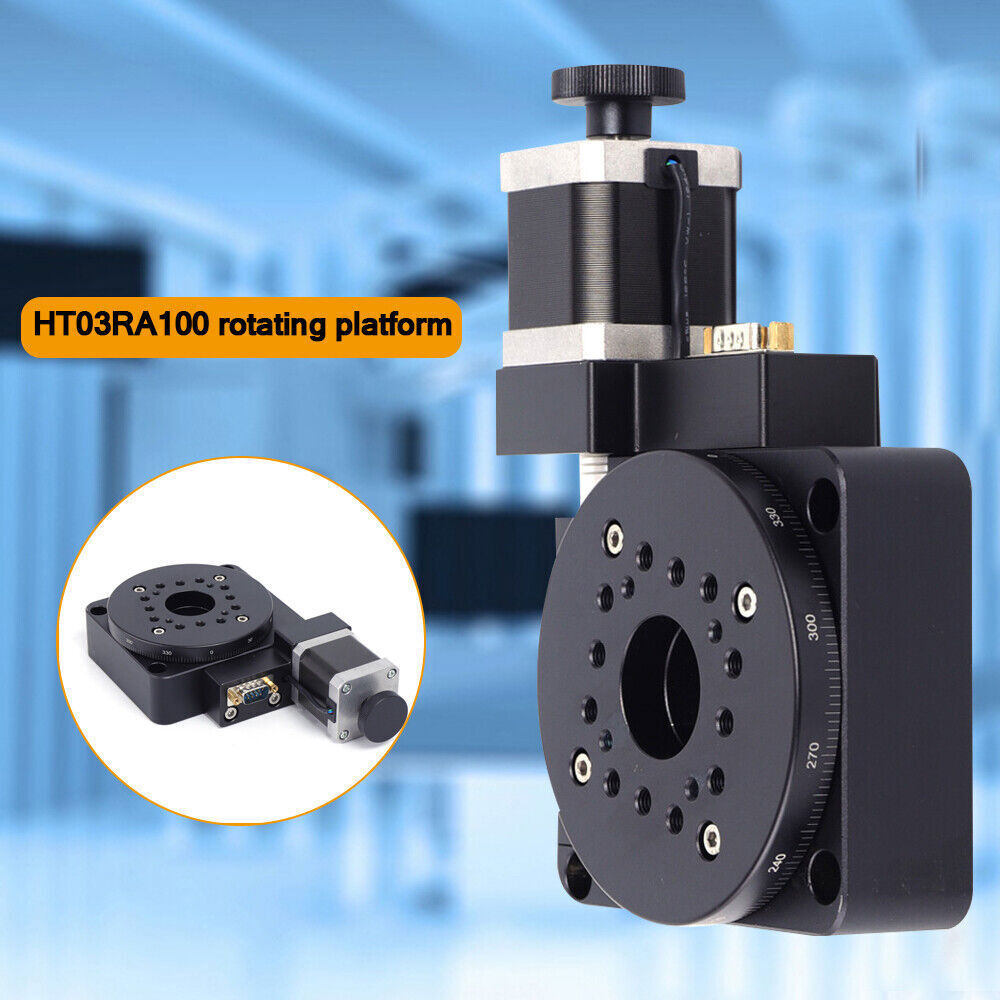

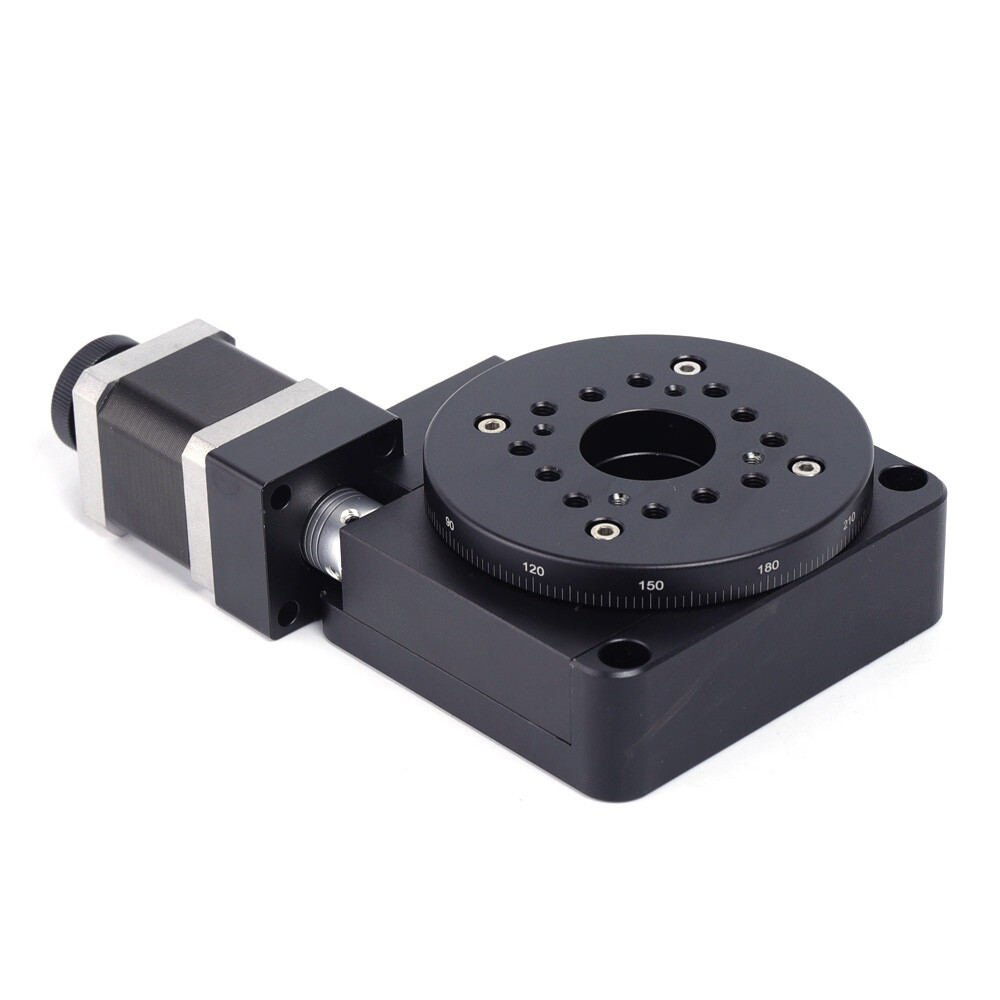

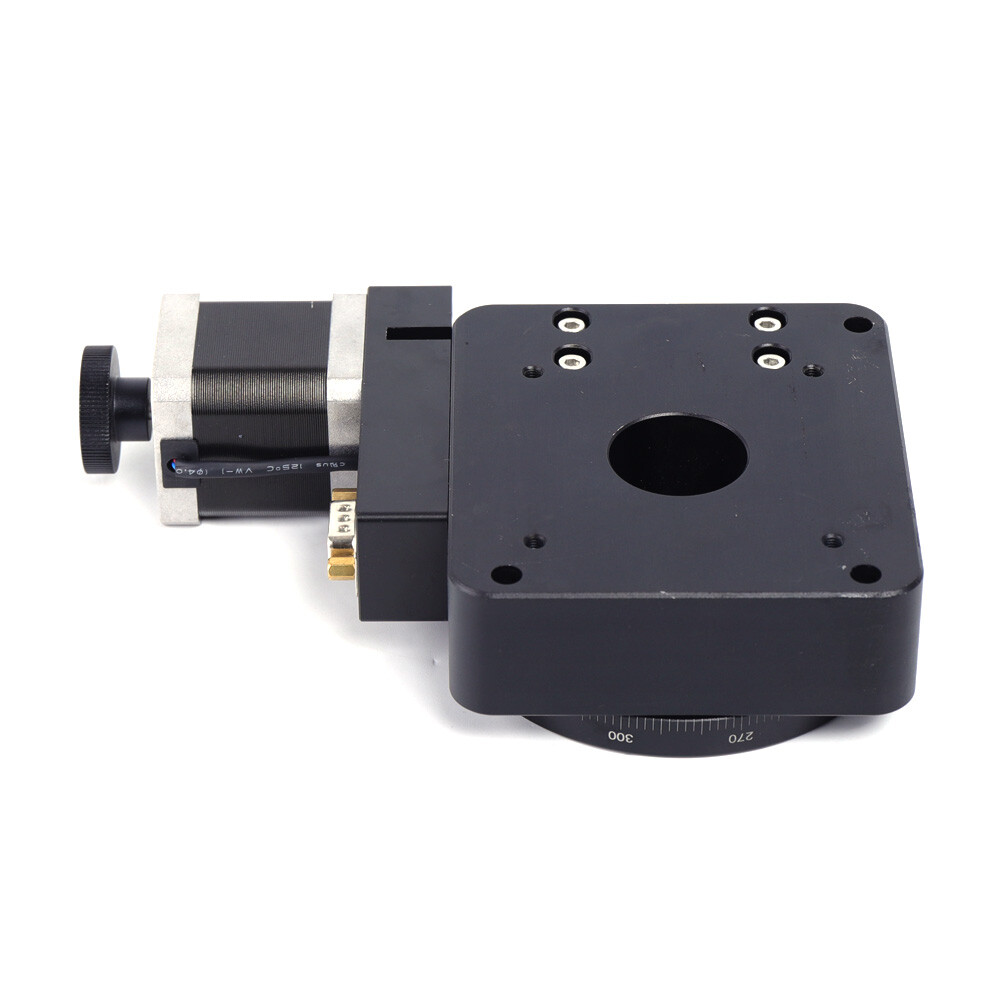

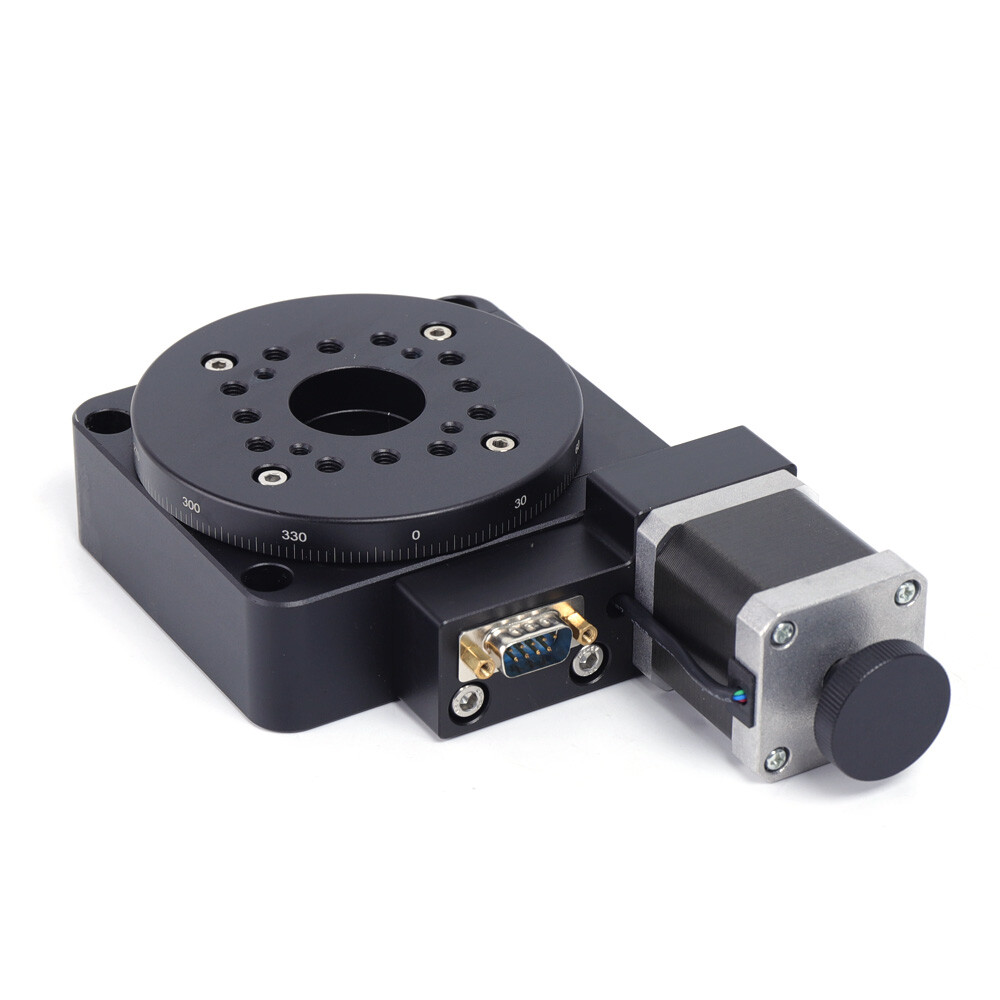

Electric Optical Rotation Platform Motorized Rotation Stage Optical Rotary Table

Name: Electric Optical Rotation Platform Motorized Rotation Stage Optical Rotary Table
SKU: 298181534866
Price: 305.73 USD
Availability: InStock

$152.87

$305.73 -50%

Brand Unbranded

Condition New

Item ID 298181534866

※Features※	※High-quality Material※Storng Stability※Quality Service※
▶Highlights◀	▶Long Service Life◀▶Excellent Service◀▶Good Stability◀
* Feature *	Durable MaterialBeautiful AppearanceEasy to Install
❤Highlights❤	❤Premium Material❤Long Service Life❤Ideal Gift❤
🔥Feature🔥	🔥High Performance🔥High Safety🔥Creative Design🔥
★Features★	★★★Reliable Quality★★★Easy installation★★★Good Stability★★★
Highlights	Sturdy and Durable,Long Service Life

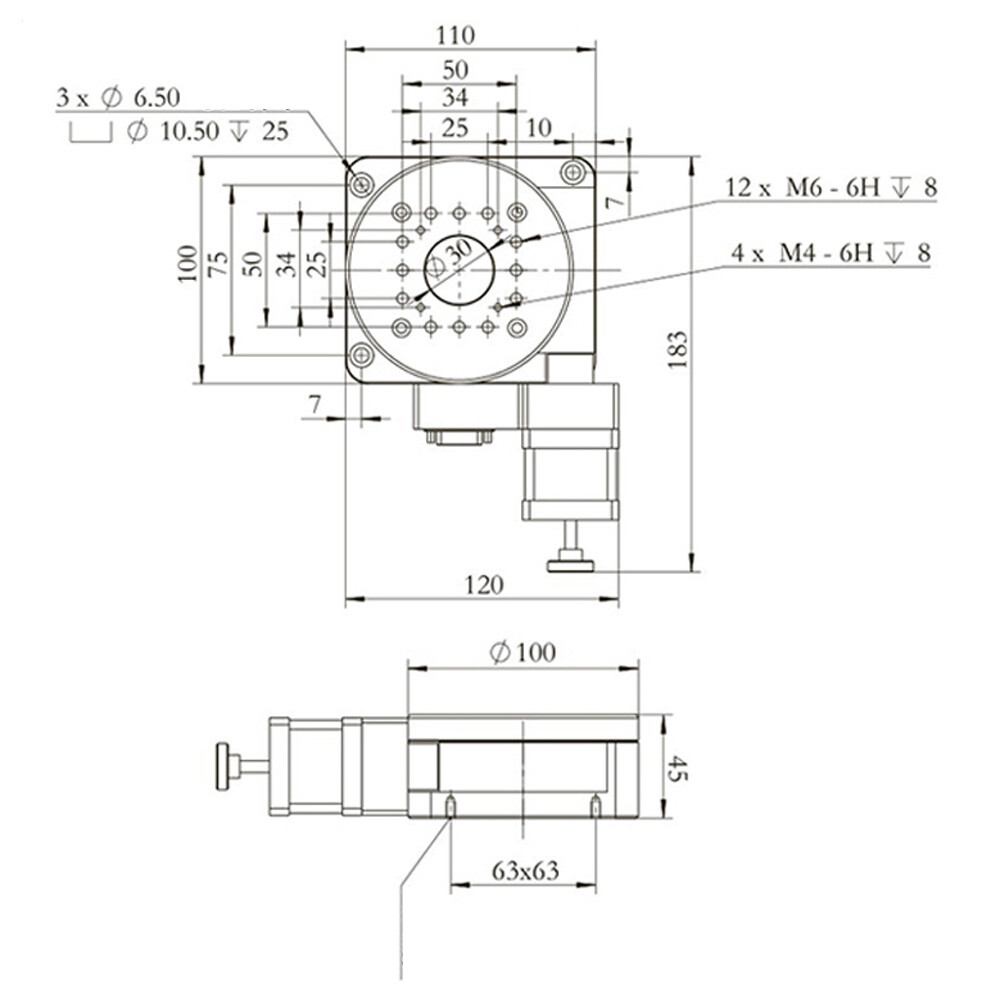

Table size	Φ100mm
Load	45kg
Itinerary	360°
Packing size	231316cm
Parallelization	80μm
Resolution / Pulse(no subdivision)	0.01 °
Recoil	0.005° = 18"
Material	Aluminum-black anodized
Top board beat	15μm
Transmission mode	worm gear (reduction ratio 1/180)
Weight	1.7kg
Guide rail	bearing
Product model	HT03RA100
Absolute on-axis accuracy	0.01° = 36"
Repeatability	0.005° = 18"
Rotation speed (maximum)	25° / sec
Gross weight	2kg
Resolution / Pulse(20 subdivisions)	0.0005°
Eccentricity	10μm
Lost movement	0.005° = 18"
Brand	Unbranded

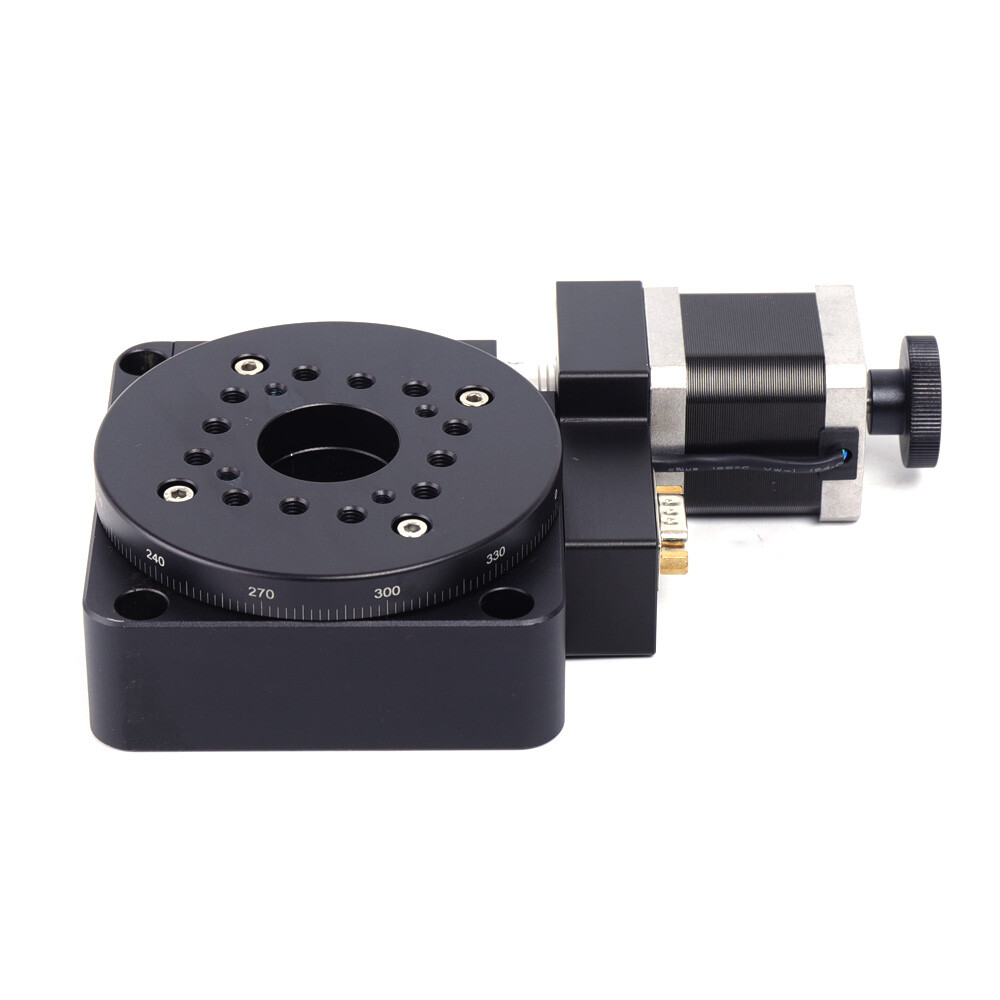

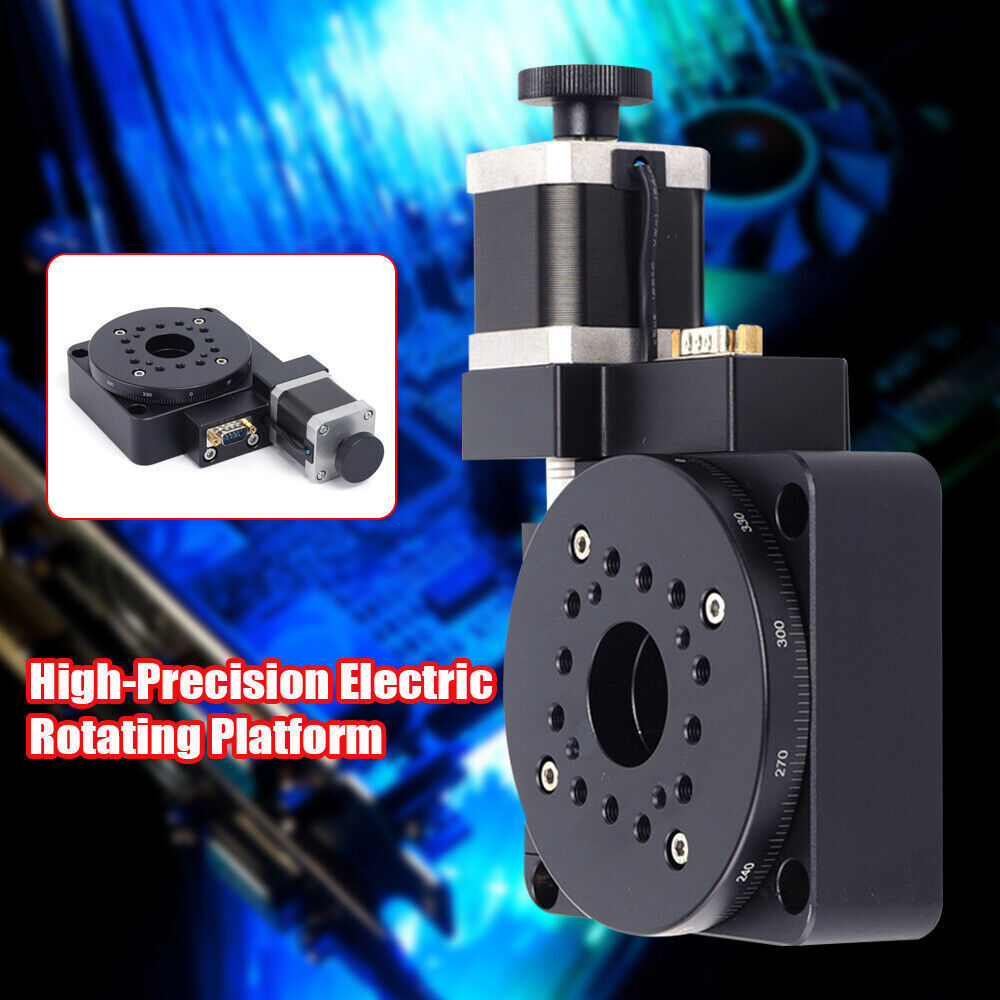

Check the listing for details. Electric Optical Rotation Platform Motorized Rotation Stage Optical Rotary Table. Condition: New. Listed at 305.73 USD. ★High-precision electric rotating platform, new construction, new technology; key indicators have passed strict inspection. Rotation speed (maximum): 25° / sec. Dash the outside of the platform to easily read the scale.
