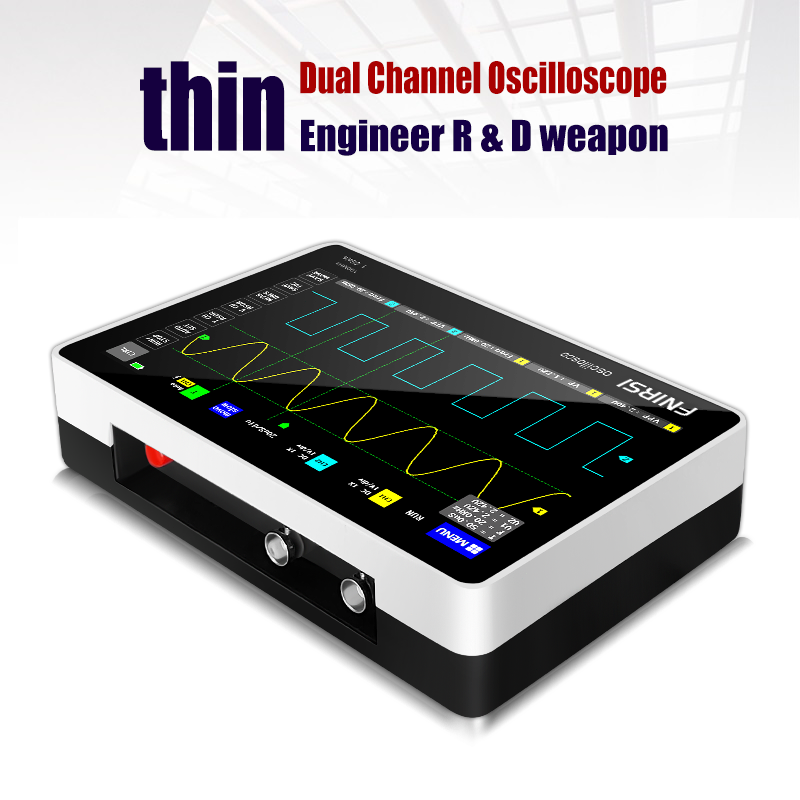

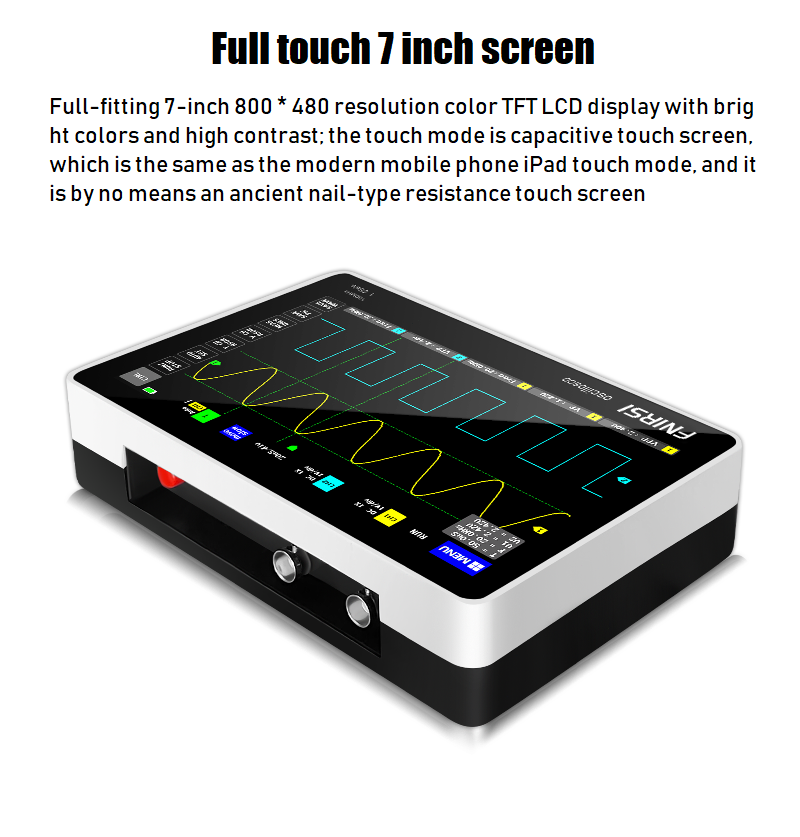

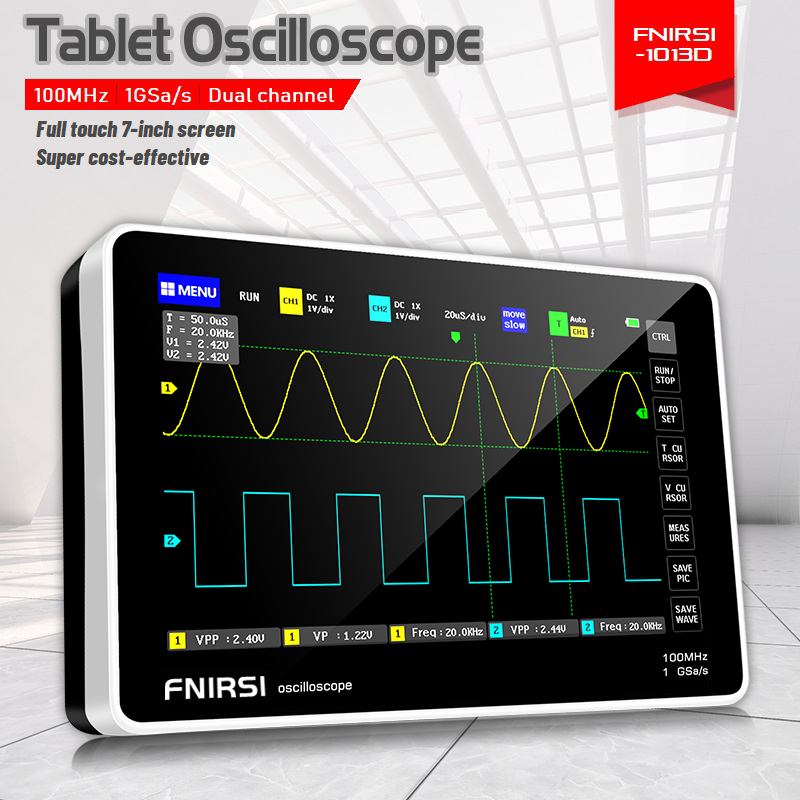

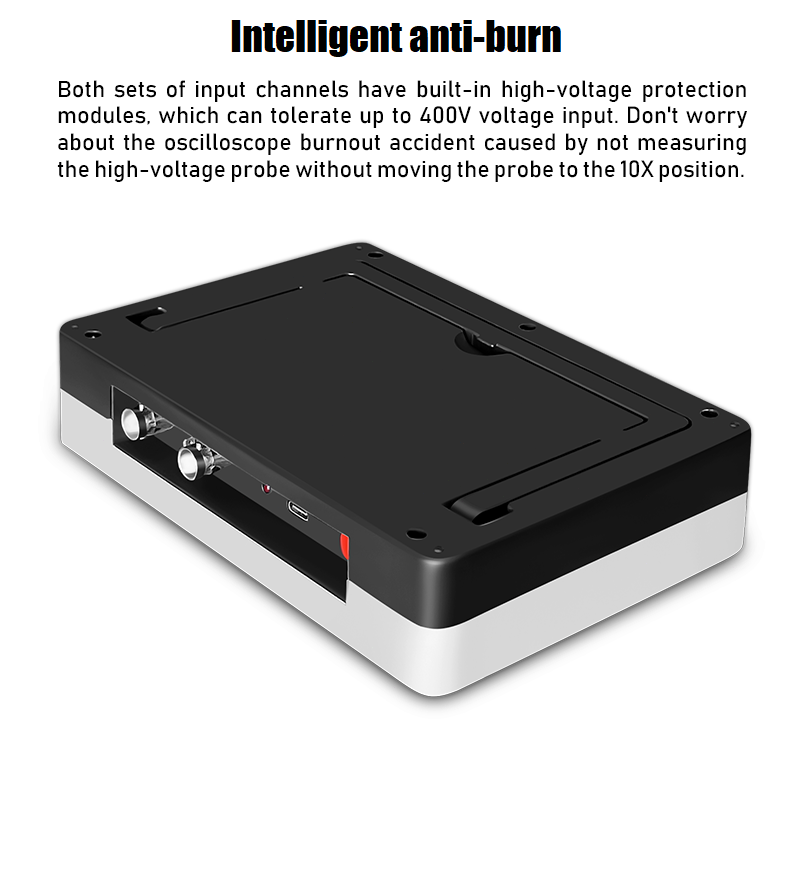

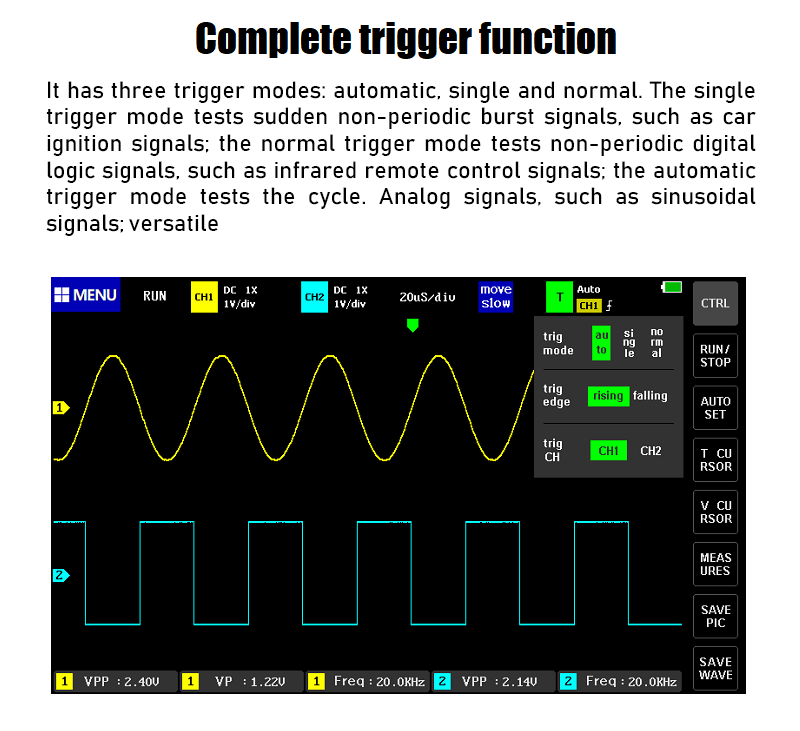

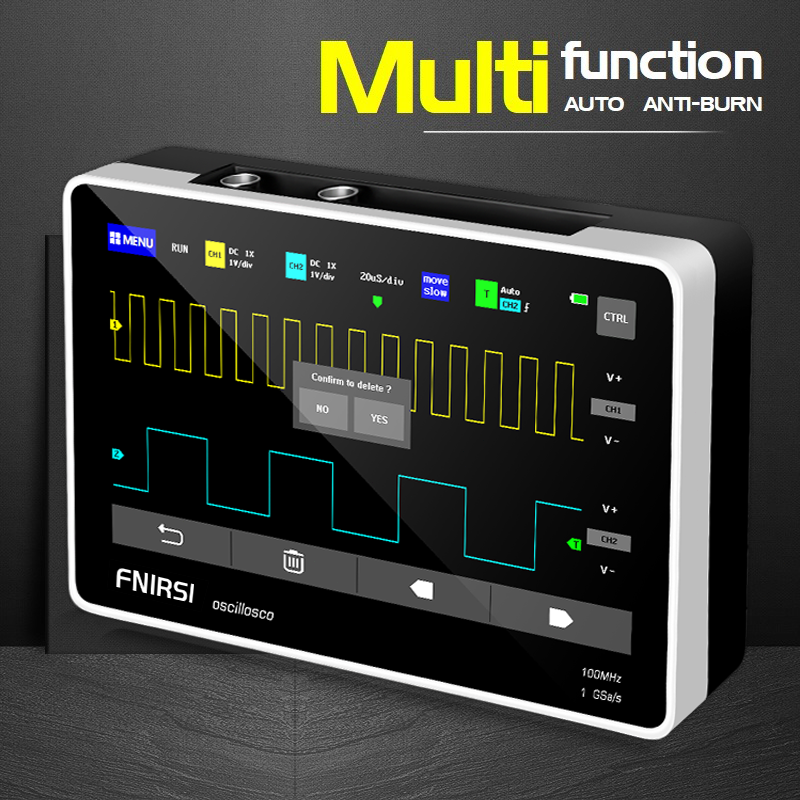

Check the listing for details. FNIRSI Mini 7" Touch Panel Digital Tablet Oscilloscope 2CH 100MHz Bandwidth 1GS. Condition: New. Listed at 147.89 USD. Normal 0 7.8 磅 0 2 false false false EN-US ZH-CN X-NONE FNIRSI-1013D 7" Digital Tablet oscilloscope 2CH 100Mhz 1GSa/s Sampling Rate Intelligent anti-burn osciloscopio With Storage And Touching Screen Language: English FNIRSI 1013D is a portable dual-channel oscilloscope with bandwidth up to 100 MHz. The oscilloscope is equipped with a 7-inch color display and a built-in lithium battery which provides up to 4 hours of continuous operation. Vertical resolution is 8 bit, and the real-time sampling rate is 1 GS/s. The internal memory of the device is 1 GB, and it is enough to store 1000 signals. FNIRSI 1013D also has a USB interface for connecting to a computer. The oscilloscope is designed for diagnostics and tuning of radio and electronic equipment. Features: 1. Intelligent anti-burn , 1X can withstand up to 400V withstand voltage. 2. 100MHz analog bandwidth @ 1GSa/s sampling rate (1X=5MHz 10X=100MHz). 3. Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast. 4. Capacitive touching screen, the same as the touching mode of modern mobile tablet, is not a resistive touching screen with ancient nail operation. 5. High measurement voltage range, 1X can measure 0~40V, 10X can measure 0~400V 100X can measure 0~4000V. 6. Up to 12 parameters measurement: VPP, VP ,Vmax, Vmin, Vavg, Vrms, Frequent, Duty+ ,Duty- ,Time+, Time- ,Period. 7. Cursor measurement function, it is convenient to manually measure the period and frequency and voltage. 8. Complete triggering function (single, normal, automatic). 9. At any time, the waveform display (pause function) is frozen. 10. Equipped with high efficiency One-button AUTO. 11. One-button waveform storage and screenshot. 12. Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data. 13. Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc. 14. Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis. 15. Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals. 16. FFT display function, can analyze the spectral characteristics of the signal. 17. Built in 6000mAh rechargeable lithium battery fully charged for 4 hours of continuous use at the highest screen brightness. 18. Memory compression technology, waveform refresh screen does not flicker. 19. Screen brightness adjustment. 20. Background grid brightness adjustment. 21. Ultra thin, easy to carry. Technical Specifications： Channels 2 Bandwidth 100 MHz Real-time Sample Rate 1 GS/s Storage Depth 240 KB Input Input Coupling DC, AC Input impedance 1 Ω Probe Attenuator 1 X, 10 X Highest Test Voltage 40 V (1X probe), 400 V (10X probe) Horizontal System Time Base Scale 50 s / div - 10 ns / div Vertical System Time base scale 50 mV / div - 500 V / div Rise time < 3 ns Vertical Resolution 8 bit Voltage Accuracy ± 2% Frequency Accuracy ± 0,01% Trigger System Trigger Mode Auto, Normal, Single Trigger Type Ascending/descending edge Measuring System Automatic Measurements VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty +, Duty-, Time +, Time-, Period Cursor Measurements XY, Y trigger General Specifications Display color TFT display, 7 inches, 800 × 480 pixels Power built-in 6000 mAh lithium battery, up to 4 hours of continuous work, 5 hours of charging Interface USB (5 V / 2 A) Built-in Memory 1 GB Waveform Storage 1000 picture + 1000 waveform Dimensions 184 × 124 × 50 mm Net Weight 650 g Package include: 1 x FNIRSI-1013D Digital Oscilloscope 2 x 100MHz Oscilloscope Probe（1X and 10X） 1 x 5V2A Charger（Include USB data line） 1 x User manual (English)
