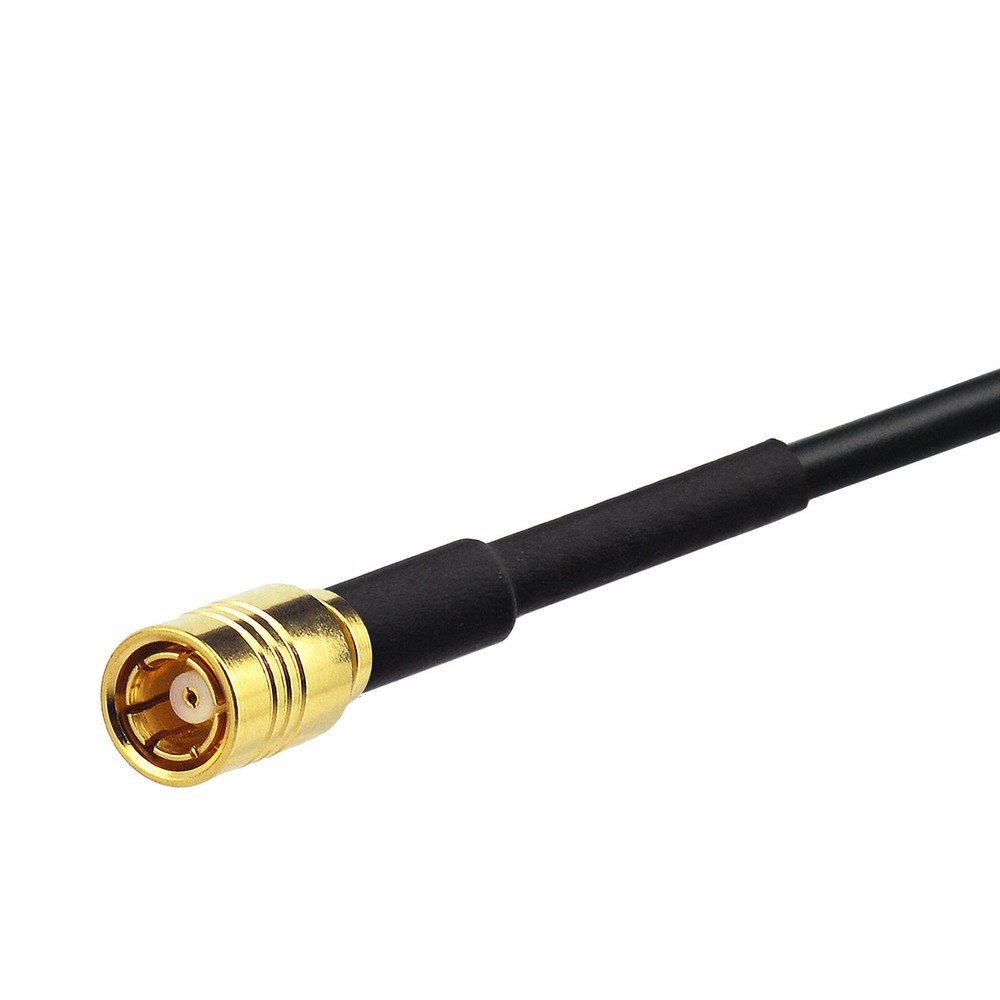

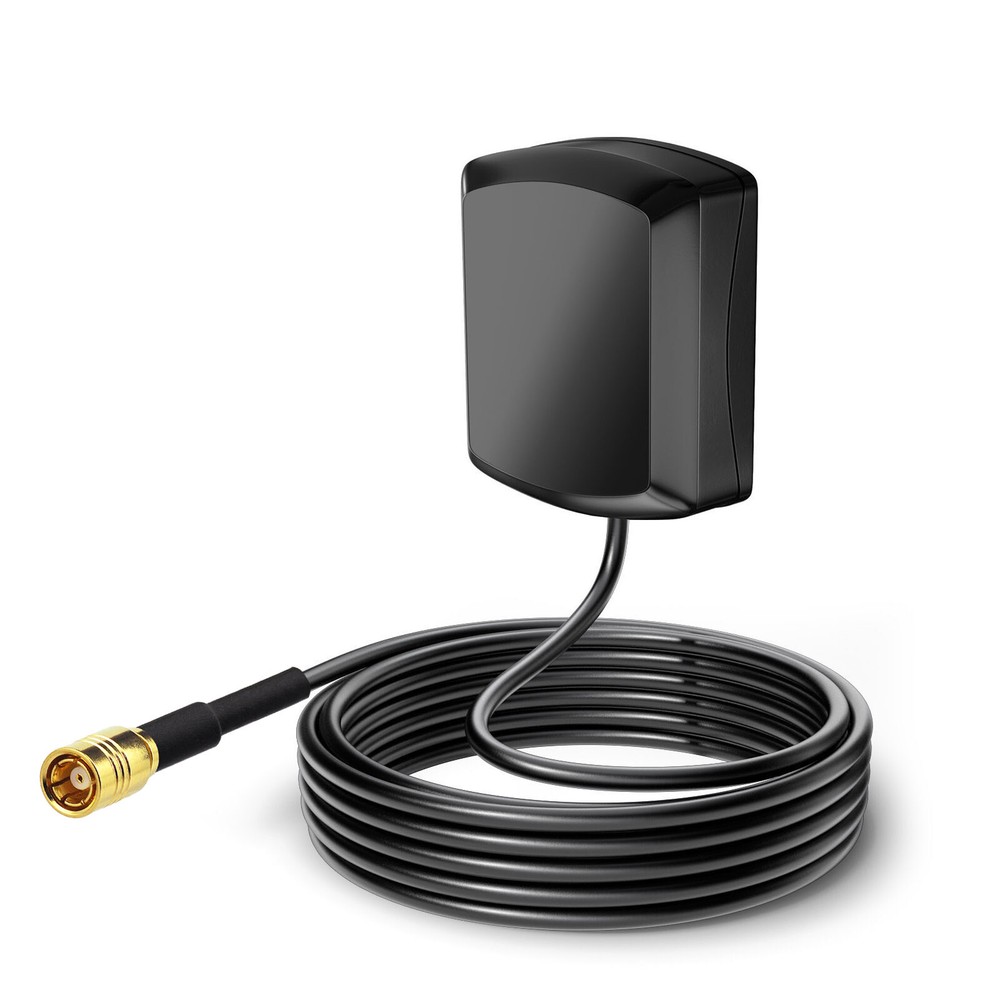

Check the listing for details. GPS Active Antenna SMB Plug for BMW Navigation System E38 E39 E46 X5 Z3 Z4. Condition: New. Listed at 9.80 USD. Feature GPS Type: GA01 End Connector: SMB Connector Gender:Plug Connector Polarity: Standard Cable Length: 3m Characteristic: (i) Dieletric Antenna Center Frequency 1575.42MHz±3 MHz V.S.W.R 1.5:1 Band Width ±5 MHz Impendence 50 ohm Peak Gain ＞3dBic Based on 7×7cm Ground Plane Gain Coverage ＞-4dBic at –90°＜0＜+90°(Over 75% Volume) Polarization RHCP (ii) LNA/Filter LNA Gain (Without Cable) 28+/-3dB Noise Figure 1.5dB Typ. Filter Out Band Attenuation (f°=1575.42MHz) 7dB Ｍin f0+/-20MHZ 20dB Ｍin f0+/-50MHZ 30dB Ｍin f0+/-100MHZ V.S.W.R ＜2.0 DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other DC Current 5mA /11mA/15mA Max (iii)Mechanical Weight ＜100gram Size: 48x39x16mm Mounting Magnetic Base Housing Black (iv)Environmental Working Temp -40℃~+85℃ Storage Temp -45℃~+100℃ Vibration Sine Sweep 1g(0-p)10~50~10Hz each axis Relative Humidity 95% Non-condensing (V)FEATURES: Compact Construction/ Low Profile/ Fully Waterproof Magnet and Screw Mount Base Excellent Temperature Stability Low Noise Figure High Sensitivity (VI) APPLICATIONS: Automobile GPS Bluetooth Receiver Vehicles /Car Tracking Navigation System AVL / Fleet Management Systems External Antenna for Handheld GPS External Antenna for PDA NavigatonPacking List1 x GPS AntennaPayment Terms1.We accept payment via Paypal only.2.For auction items, please make sure your Paypal valid before bidding and make your payment within two business days after the end time of the auction.Shipping Terms1.All items will be shipped within 2 business days upon receipt of payment.2.Items will be shipped to your Paypal address, please check your address and phone number carefully before payment.3.We will provide suitable delivery service for you, orders of light weight and less than $200 will be given priority to be shipped via ordinary Hong Kong / China / Singapore postal airmail service, if necessary, we shall consider the use of express delivery.4.For order reached $200 will be sent via express methods (DHL, Fedex, UPS, TNT, EMS) without extra fee. But we would need extra charge for delivery to remote areas if necessary.5.If you want specific service of delivery methods, please state that in the remark/comment area when placing the order or contact us.6.We provide shippments DDU (Delivered Duty Unpaid), items may be subject VAT or import duties/taxes levied by customs of your country, which were not included in the price, shipping charges and our services. For more information regarding customs policies of your country, please contact your local customs office.Delivery Date (China/Hong Kong/Singapore Post Air Mail) Destination First DeliverySecond DeliveryDelays Date RangeProbabilityDate RangeProbabilityDate RangeProbability United States6-10 days>90% 10-25 days
