| All returns accepted | ReturnsNotAccepted |
|---|---|
| Timer Control | N/A |
| Custom Bundle | No |
| MPN | V7-1C27E9 |
| Item Length | 1.5 In end to end |
| Switch Style | Pin |
| Smart Home Compatibility | None |
| Suitable For | Interior |
| Port Type | Quick Connect |
| Current Type | AC/DC |
| Item Height | .81 In |
| Number in Pack | 1 |
| Number of Outlets | 0 |
| Compatible Wire Gauge (AWG) | 16-20 |
| Features | Universal Series Compatibility |
| Finish | Plastic |
| Room | N/A |
| Item Width | .40 in |
| Mounting Style | Bolt-On |
| Operating Temperature | 82 C Max,-40 C Min |
| Maximum Amperage | 15A |
| Number of Positions | 1 |
| Color | Black |
| Current Rating | 15 A |
| Number of Phases | 2 |
| Material | Plastic |
| Orientation | Horizontal/Vertical |
| California Prop 65 Warning | None |
| Brand | Honeywell |
| Operation Method | On/Off |
| Type | Pin Plunger |
| Contact Configuration | Single Pole Normally Open |
| Bulb Compatibility | N/A |
| Model | V7 Series |
| Coil Voltage | 125 AC |
| Number of Circuits | N.O., COM |
| Country/Region of Manufacture | Mexico |
| Resistance Properties | None |
| Smart Home Protocol | None |
| Application | Automotive |
| Power | 1/2 HP 125-277V AC |

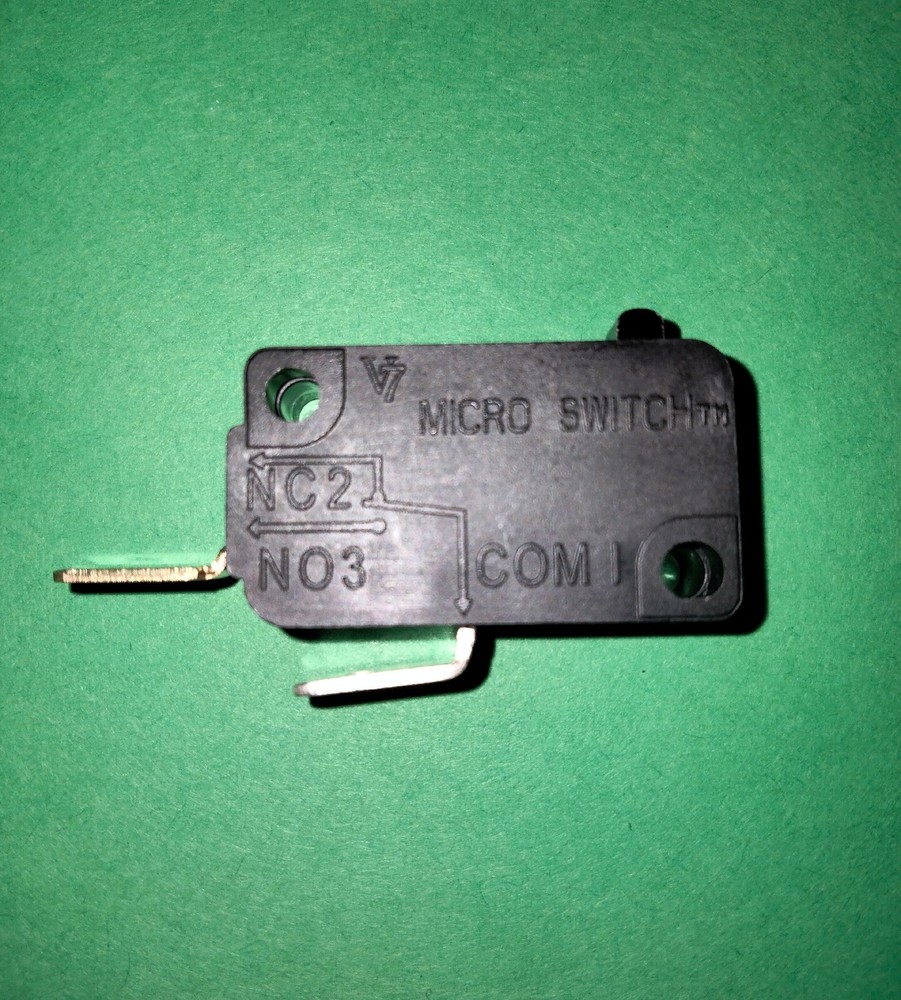

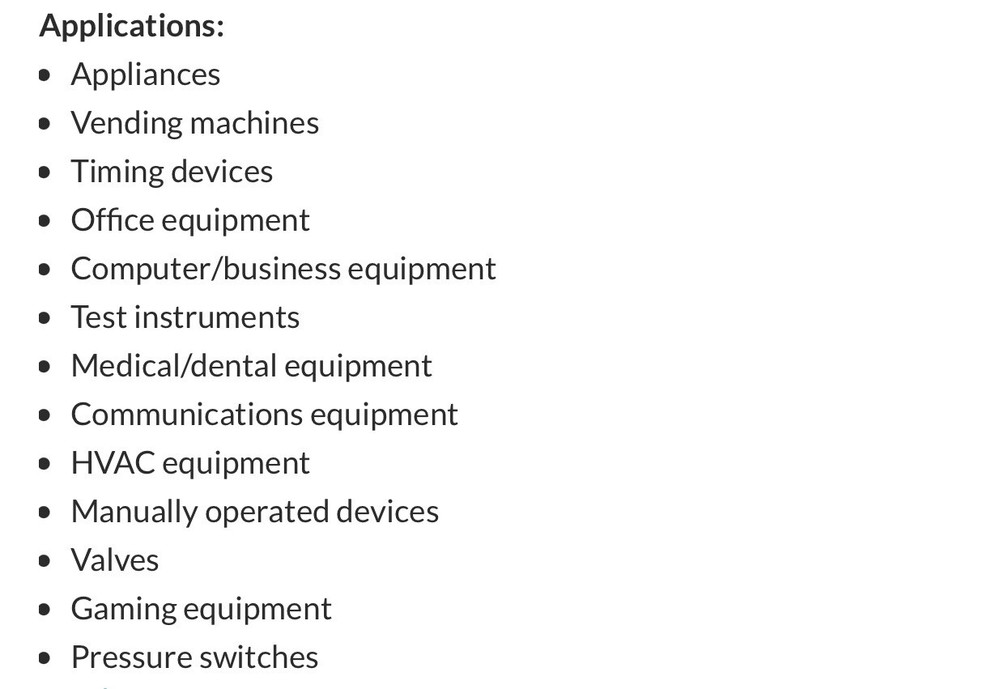

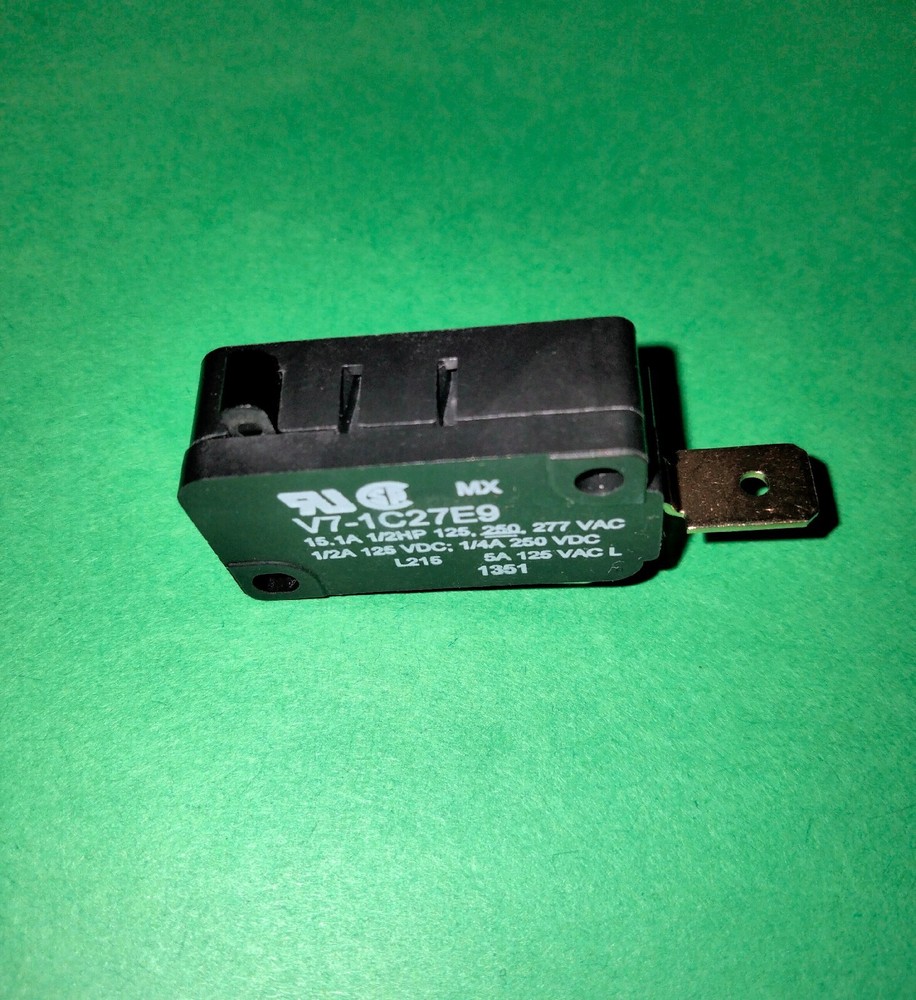

Check the listing for details. Honeywell - Micro Switch V7-1C27E9 Miniature Basic Switch 15A @ 125V, SPNO. Color: Black, Condition: New – Open box. Listed at 3.75 USD. MICROSWITCH V7-1C27E9 Miniature Basic Switch, SPNO , 15 A at 125,250 or 277 V AC, Pin Plunger Actuator, Maximum Operating Force:150gf (5.3oz)Quick Connect Termination:0.187" (4.7mm)Mounting Style: Chassis MountActuator Style: Pin Plunger (1.5 In.)Mounting Holes: 2,9 mm (0.11 In)Temperature Range: -40F to 185 F Applications:Vending machine Timing devices Office equipment Computer/business equipment Test instruments Medical/dental Equipment Communication Equipment HVAC equipment Manually operated devices Valves Gaming equipment Pressure switches - I Am NOT an Authorized Distributor for any of the manufacturers' products I market and sell - an Independent Reseller
