| All returns accepted | ReturnsNotAccepted |
|---|---|
| Timer Control | N/A |
| Custom Bundle | No |
| MPN | V7-7B17D8-048 |
| Item Length | 2 ln. Lever, 3 In. end to end |
| Switch Style | Lever |
| Smart Home Compatibility | None |
| Suitable For | Interior |
| Port Type | Quick Connect |
| Current Type | AC/DC |
| Item Height | .81 In |
| Number in Pack | 1 |
| Number of Outlets | 0 |
| Compatible Wire Gauge (AWG) | 16-20 |
| Features | Universal Series Compatibility |
| Finish | Plastic |
| Room | N/A |
| Item Width | .40 in |
| Mounting Style | Bolt-On |
| Operating Temperature | 82 C Max,-40 C Min |
| Maximum Amperage | 11 A |
| Number of Positions | 1 |
| Color | Black |
| Current Rating | 11 A |
| Number of Phases | 2 |
| Material | Plastic |
| Orientation | Horizontal/Vertical |
| California Prop 65 Warning | None |
| Brand | Honeywell |
| Operation Method | On/Off |
| Type | Standard Straight Lever Microswitch |
| Contact Configuration | Single Pole Double Throw |
| Bulb Compatibility | N/A |
| Model | V7 Series |
| Coil Voltage | 125 - 277V AC |
| Number of Circuits | N.O.,N.C., COM |
| Country/Region of Manufacture | Mexico |
| Resistance Properties | None |
| Smart Home Protocol | None |
| Application | Automotive |
| Power | 1/3 HP 125V |

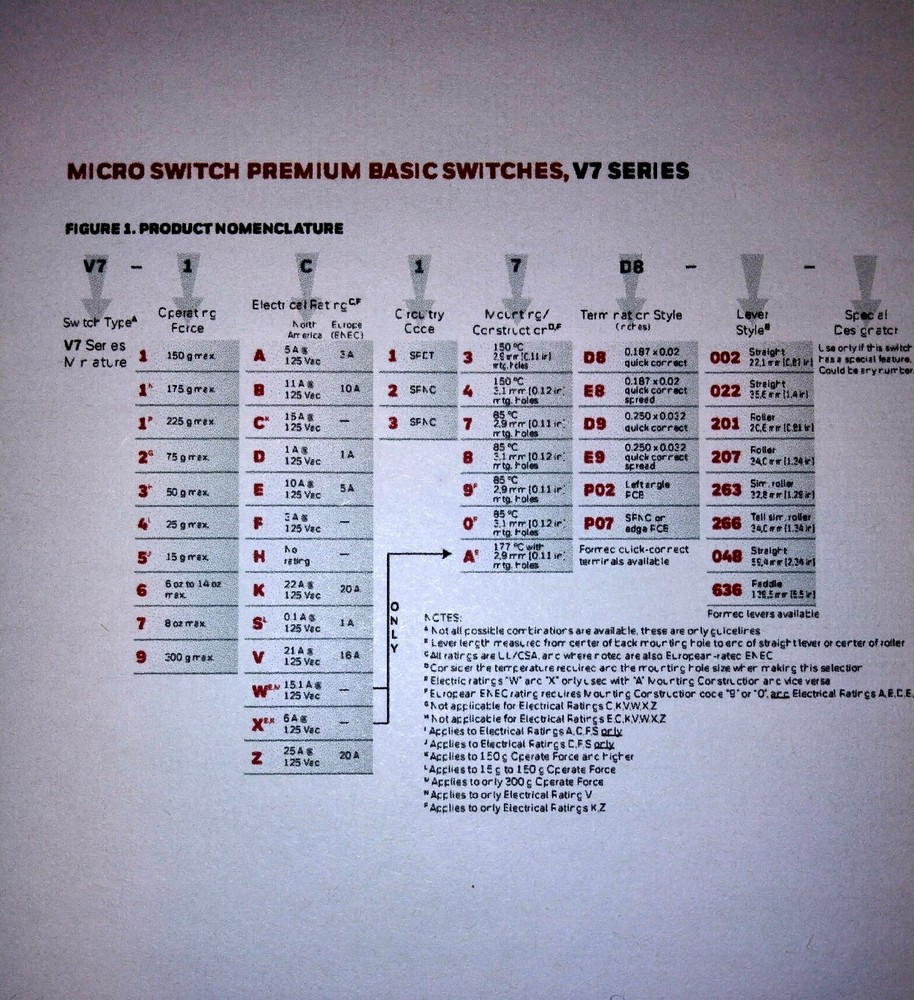

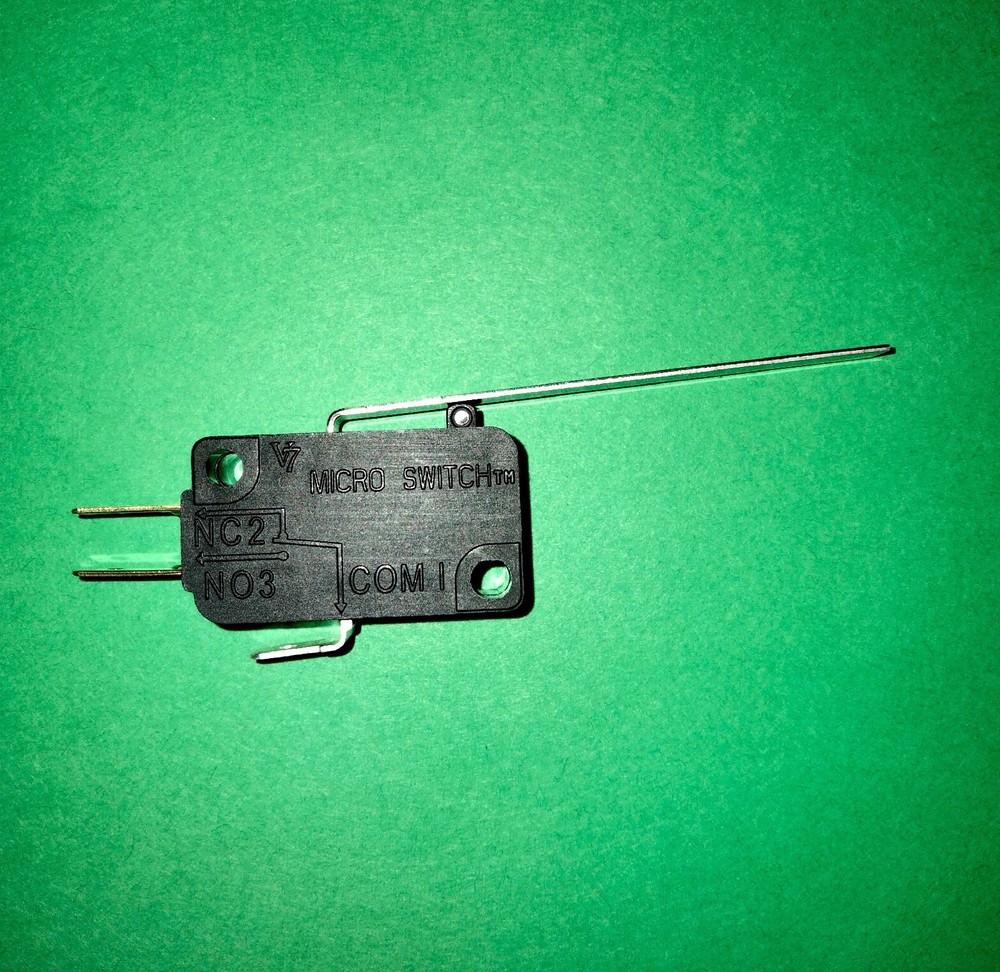

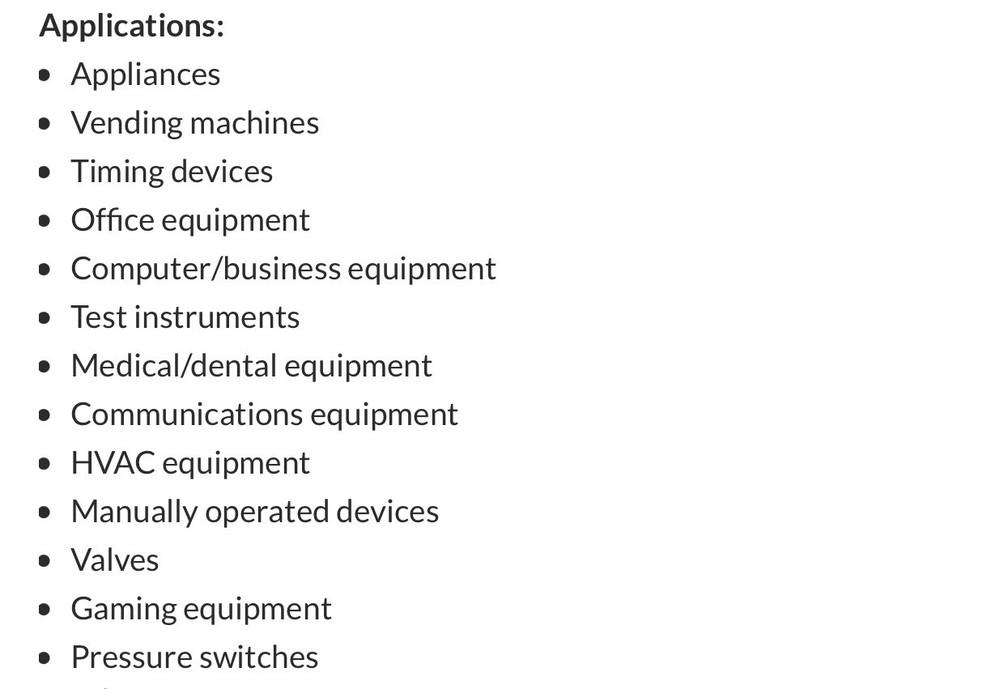

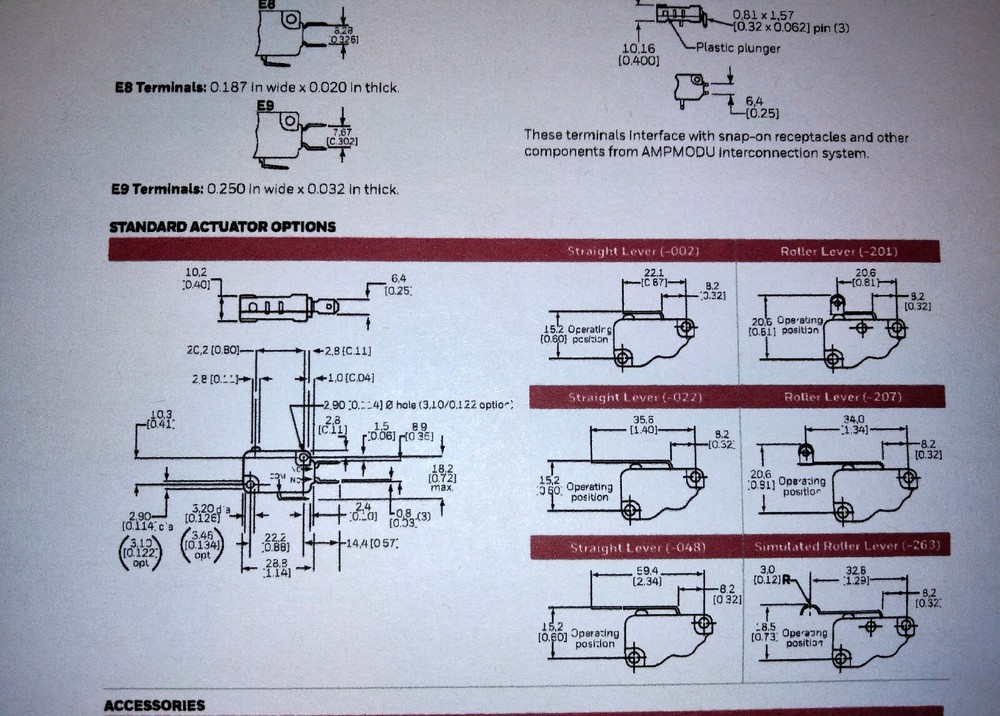

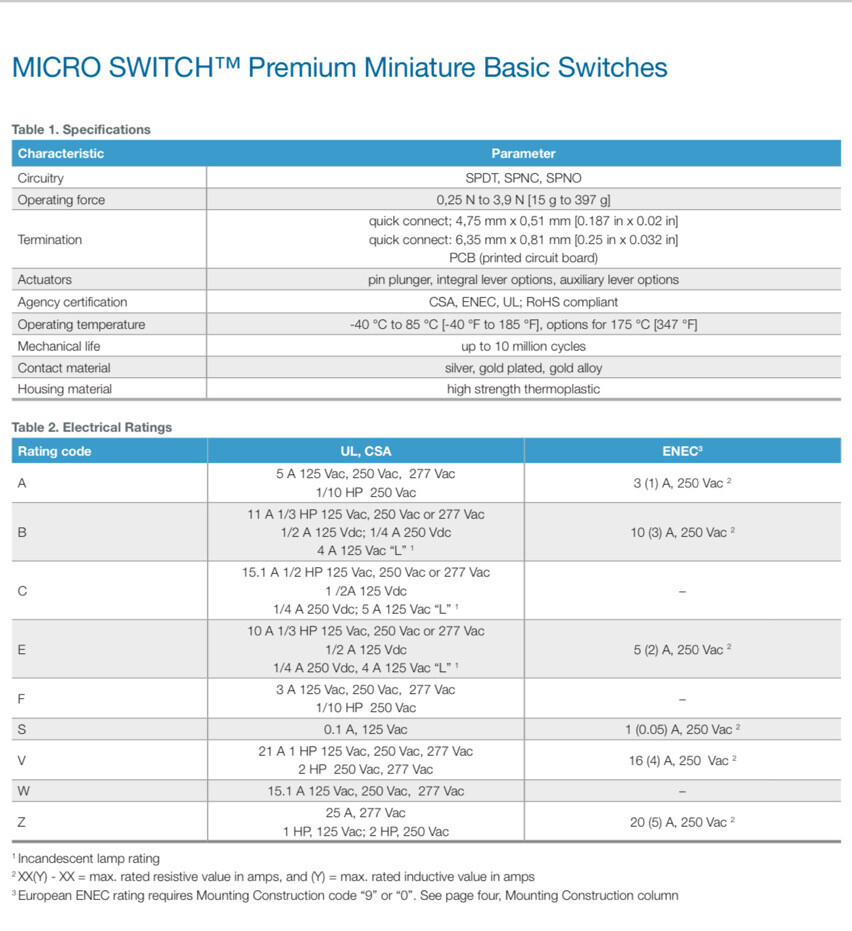

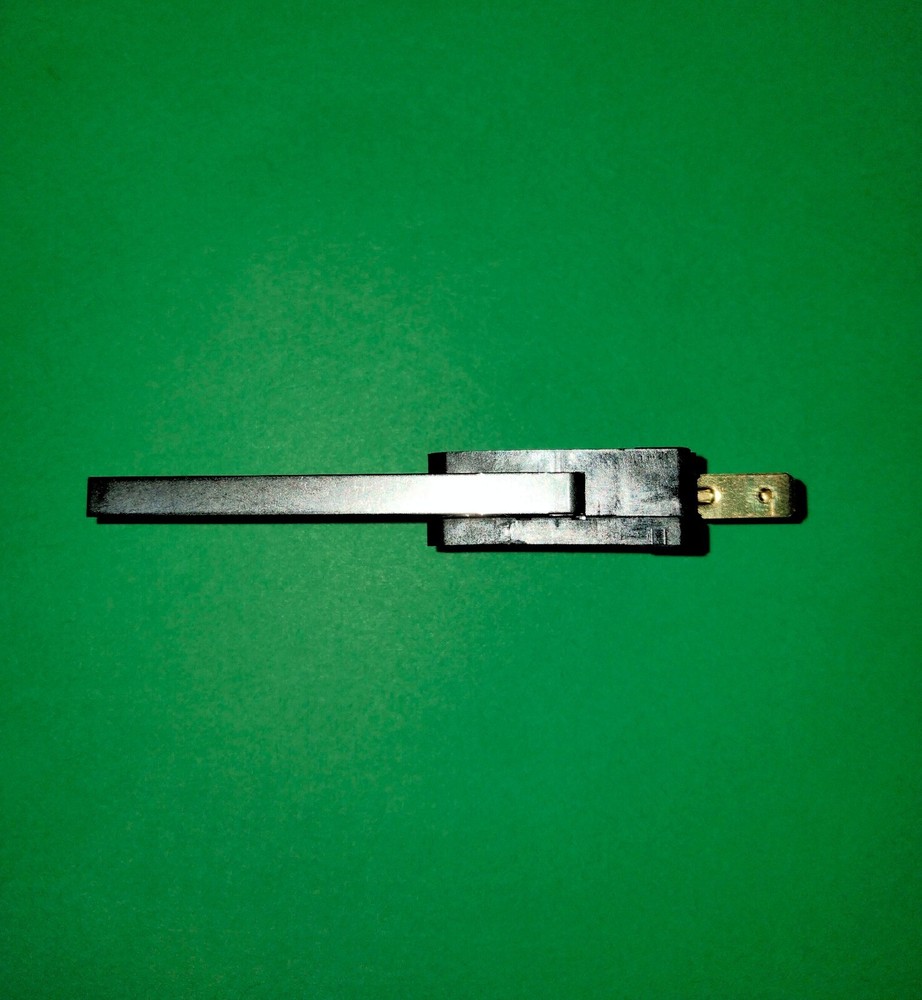

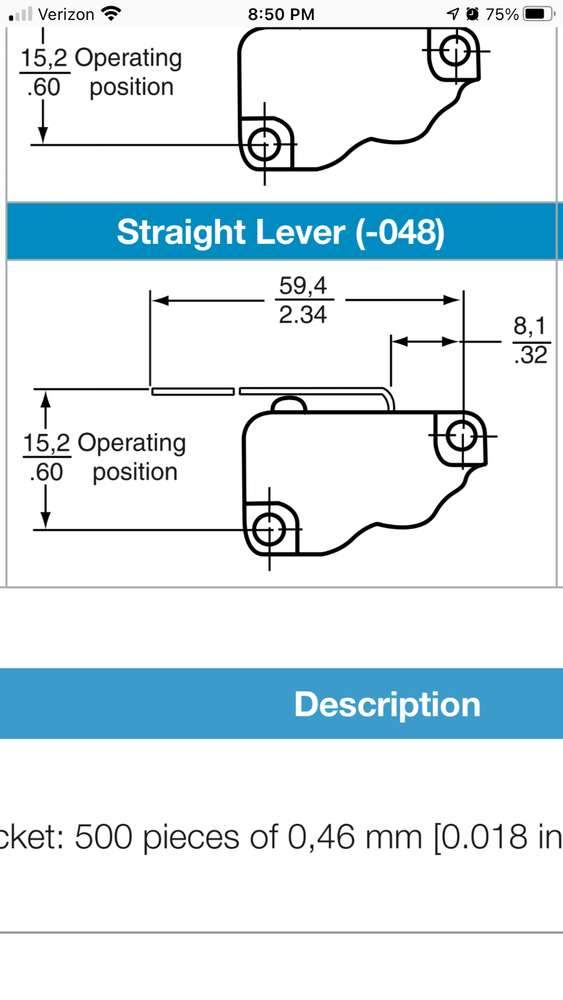

Check the listing for details. Honeywell-Micro Switch V7-7B17D8-048 Miniature Basic Switch 11A @ 125V, SPDT. Color: Black, Condition: New. Listed at 3.75 USD. MICROSWITCH V7-2B17D8-048 Miniature Basic Switch, SPDT , 11 A at 125 ,250 OR 277V ac, Lever Actuator, Maximum Operating Force:60gf (2.11OZ) Quick Connect Termination: 0.187" (4.7mm) Mounting Style: Chassis Mount Actuator Style: Straight Lever (2 Inch) Mounting Holes:2,9 mm (0.11 In) Temperature Range: -40F to 185 F Applications: Vending machine Timing devices Office equipment Computer/business equipment Test instruments Medical/dental Equipment Communication Equipment HVAC equipment Manually operated devices Valves Gaming equipment Pressure switches - I Am NOT an Authorized Distributor for any of the manufacturers' products I market and sell - an Independent Reseller
