| Operating Temperature | 82C |
| Maximum Amperage | 1 A |
| Number of Positions | 2 |
| Color | Black |
| Current Rating | 1-15 A |
| Number of Phases | 1 |
| Material | ABS/Plastic |
| MPN | V3L-235-D8 |
| Item Length | 1.097" |
| Switch Style | Micro Switch |
| Orientation | Horizontal/Vertical |
| Suitable For | Interior |
| Brand | Honeywell |
| Operation Method | On/Off |
| Current Type | AC |
| Type | Long Straight Lever |
| Number in Pack | 1 |
| Item Height | 0.626" |
| Model | V3L Series |
| Features | Lever Actuation |
| Application | Automotive |
| Finish | Black |
| Item Width | 0.397" |

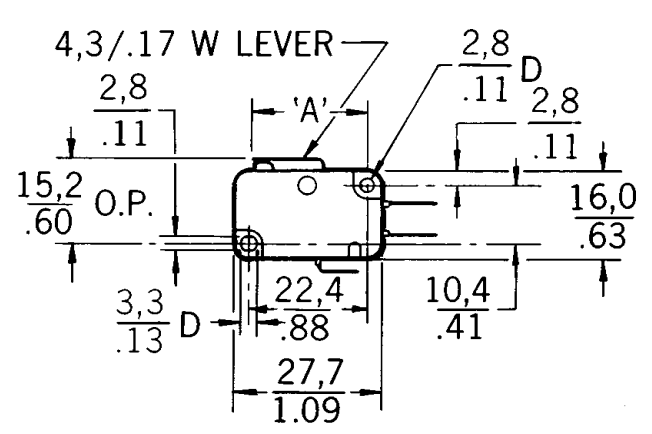

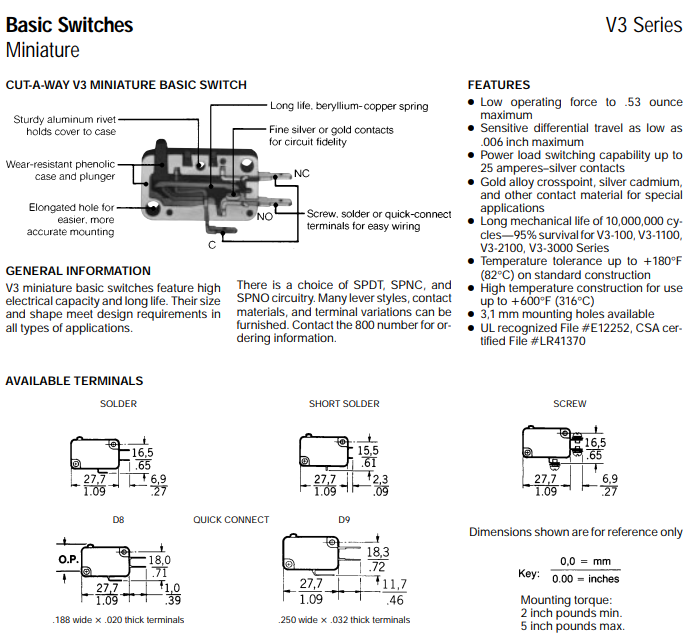

Check the listing for details. Honeywell/Microswitch - V3L-235-D8 Switch, Micro, Lever, SPDT.. Color: Black, Condition: New. Listed at 34.98 USD. Honeywell/Microswitch - V3L-235-D8 Switch, Micro, Lever, SPDT. Honeywell’s MICRO SWITCH™ V3L miniature switches are designed for long term-reliability in a rugged switch packaged with a thermoplastic housing. These switches may be installed in a wide range of applications from simple or precision on/off limits, presence/absence sensing, or embedded in pressure or temperature assemblies. Contacts: SPDT. Contact Ratings: 1Amp 125VAC. Snap Action Switch w/ Normally Open & Normally Closed Contact (N.O./N.C.) Connection: Male 3/16" Quick Connect (QC) Terminals (0.188" Wide x 0.020 Thick) Mech: PCB, 2 Hole Mount at 0.96" Centers. Panel Hole: 1.097" long x 0.397" wide x 0.626" high. Extra Long Leaf: Lever Extending 1.360" Past Switch Body. Material: ABS/ThermoPlastic Listed UL/CSA. Rare - Difficult Micro Switch Configuration to Find. Note: Discounts provided for purchases of 2, 3, or 4 with "Make Offer" option limited to bulk purchases.
