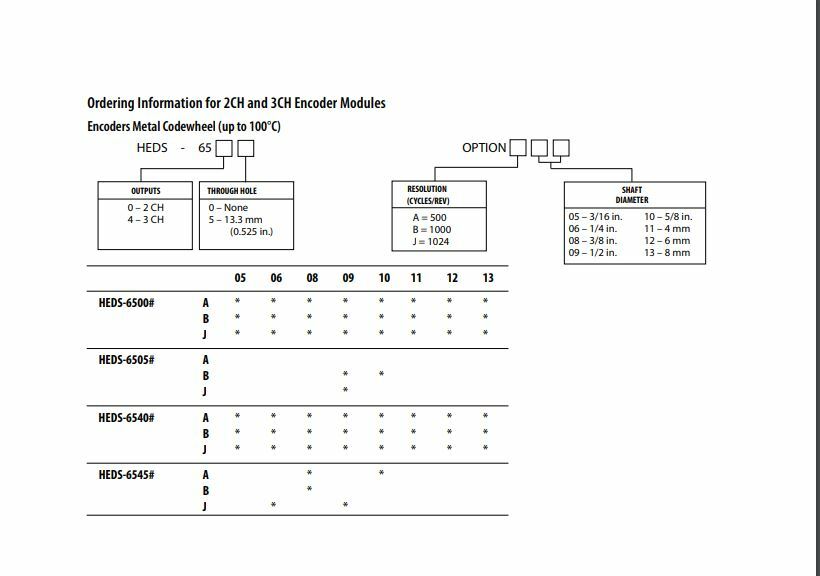

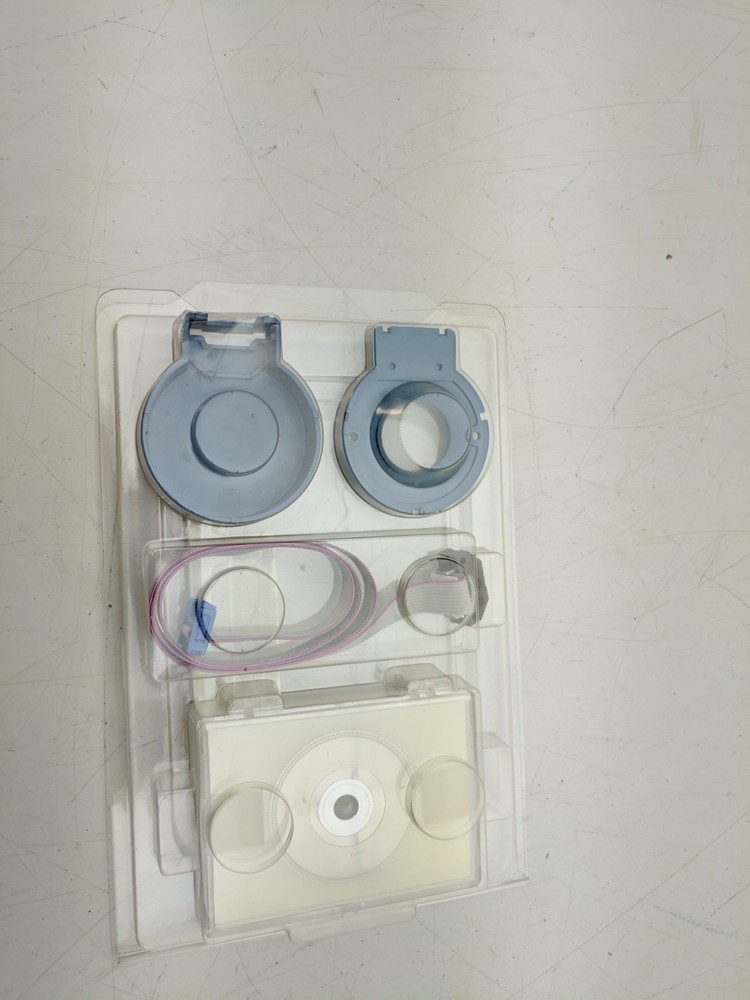

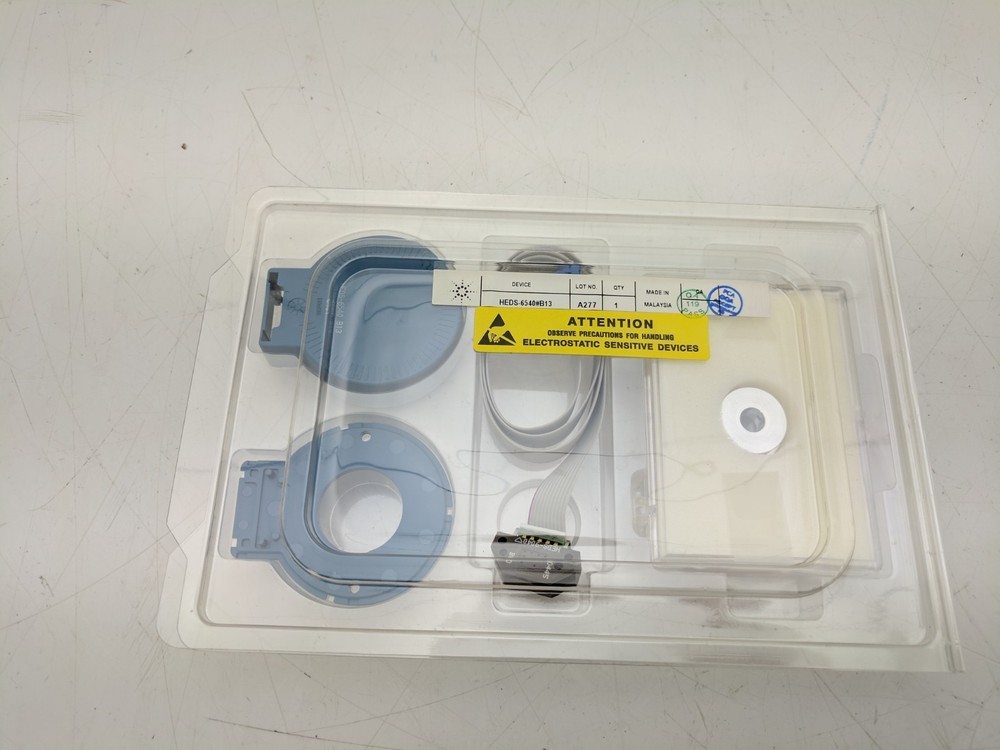

Check the listing for details. HP Agilent 56mm 1000PPR Three Channel Digital Optical Encoder HEDS-6540 #B13. Condition: New. Listed at 99.99 USD. Borrowed from the datasheet: Description: The HEDS-65xx/HEDL-65xx are high performance two and three channel optical incremental encoders. These encoders empha­size high reliability, high resolution, and easy assembly. Each encoder contains a lensed LED source (emitter), an integrated circuit with detectors and output cir­cuitry, and a codewheel which rotates between the emitter and detector integrated circuit. The outputs of the HEDS-6500 are two single ended square waves in quadrature. The HEDL-65xx outputs are differential. The HEDS-6540 / HEDL-6540 also have a third channel index output in addition to the two quadrature outputs. This index is an active high pulse that occurs once every full rotation of the codewheel. Resolutions up to 1024 Counts Per Revolution are available in the two and three channel versions. The line driver option offers enhanced performance when the encoder is used in noisy environ­ments, or when it is required to drive long distances. The line driver option utilizes an industry standard line driver IC AM26C31Q which provides com­ple­mentary outputs for each encoder channel. Thus the outputs of the line driver encoder are A and – A, B and – B, and I and – I for three channel versions. Suggested line receivers are 26C32 and 26C33. The quadrature signals are ac­cessed through a cable and 10-pin female connector. Please refer to the ordering information at the end of this data sheet for a selection matrix. Features• Two channel quadrature output with optionalindex pulse• TTL compatible single ended outputs on HEDS Series• 100ºC operating temperature for metal code wheel• 70°C operating temperature for mylar code wheel• Industry standard AM26C31Q CMOS line driver IC onHEDL Series• Easy assembly, no signal adjustment necessary• Resolutions up to 2048 counts per revolution Applications: The HEDS-65xx / HEDL-65xx provide motion detection to a very high resolution and accept avariety of shaft sizes up to a maximum of 5/8 inches.Typical applications include print­ers, plotters, tapedrives, position­ing tables, and automatic handlers.Note: Avago Technologies encoders are not recommended for use in safety critical applications. Eg. ABS brakingsystems, power steering, life support systems and criticalcare medical equipment. Please contact sales representative if more clarification is needed. See the full datasheet here: https://www.digikey.com/product-detail/en/broadcom-limited/HEDM-6540-T13/HEDM-6540-T13-ND/2219546 Note: The HEDS-65XX performance is guaranteed to 100 kHz but can operate at higher frequencies. For frequencies above 100 kHz it is recommended that the load capacitance not exceed 25 pF and pull up resistors of 3.3 kΩ between the output channels and Vcc are included. The part number breakdown is as follows: HEDS : Encoder with metal codewheel for up to 100 celsius- 65 : 56mm Large Diameter Housing4 : 3 channelOption:#B13 B: 1000 PPR13: 8mm shaft diameter International buyers ? please note: Import duties, taxes, and charges are not included in the item price or postage cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be, prior to bidding or buying. If you are using an International freight-forwarding or mail redirection ? You are not covered through the eBay money-back guarantee if your item was sent to another address after original delivery, unless you request to use the eBay Global Shipping Program or eBay International Standard Delivery. We are not responsible for any items after they have arrived at a third-party freight-forwarder or mail redirection service.
