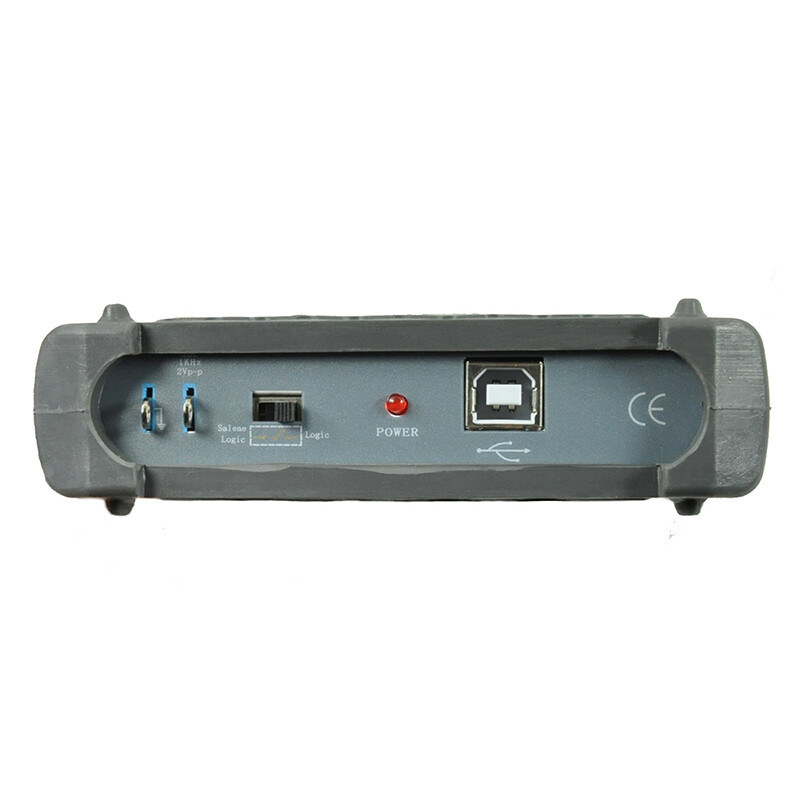

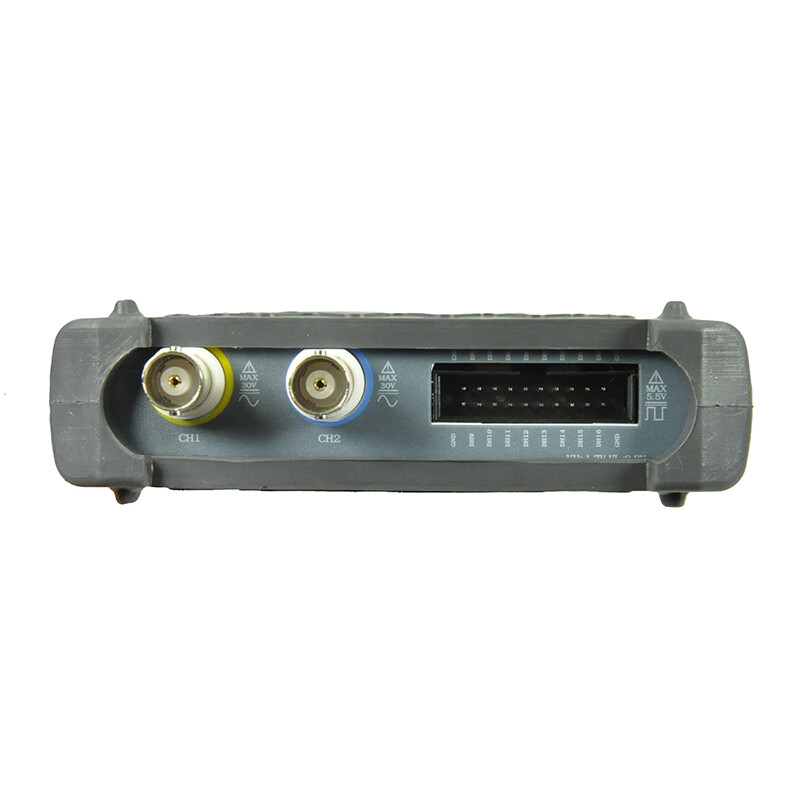

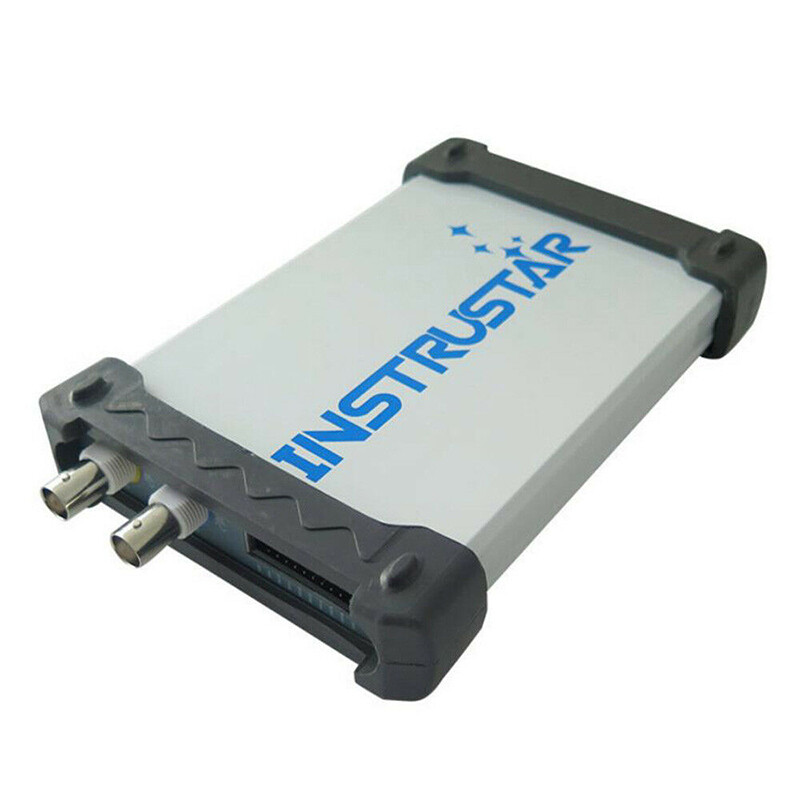

Check the listing for details. ISDS205C PC USB Analog Virtual oscilloscope 16 Channel Logic Circuit Analyzer. Condition: New. Listed at 75.19 USD. ISDS205C dual-channel digital oscilloscope, with "low-cost, high-performance" as the design goals. well-designed bandwidth of 20M, 48M sampling rate, 2 channels, alternating support X, Y and XY alternating pattern of two-channel virtual oscilloscope, spectrum analyzer, data recorder and logic analyzer. Logic analyzer support our Logic software and Saleae Logic 2 kinds of software, Saleae Logic supports SPI, IIC, UART, etc. 17 kinds protocol analysis. The device communicate with the PC via high speed USB2.0. Support Win XP,Win7(32)、Win7(64)、Win8(32)、Win8(64)、Win10(32)、Win10(64) Digital oscilloscope Spectrum analyzers Data recorder Logic Analyzer ISDS205C √ √ √ √ Characteristic Data: Digital oscilloscope Channels 2 Impedance 1MΩ 25pF Coupling AC/DC Vertical resolution 8Bit Gain range -6V ~ 6V(probe X1) -60V ~ 60V(probe X10) Vertical accuracy ±3% Timebase range 1ns-20s Input Protection Diode, 50Vpk Autoset Yes(10Hz to 20MHz) Trigger Mode Auto, Normal and Signal Trigger Type No, Rising edge, Falling edge, Rising edge or Falling edge Trigger level Yes Trigger Source CH1, CH2 Buffer Size 1MB/CH Bandwidth 20MHz Max sample 48MS/s Vertical mode CH1, CH2, ADD, SUB, MUL Display Mode X, Y-T, X-Y measurements Yes Wave save Osc(Private), Excel and Bmp Spectrum analyzers Channels 2 Bandwidth 20MHz Algorithm FFT(18 windows), correlation, power spectrum FFT points 8-1048576/CHN FFT measure Harmonic(1-7), SNR, SINAD, ENOB, THD, SFDR Filter processing FIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design. IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design Data recorder Channel 2 Impedance 1MΩ 25pF Coupling AC/DC Vertical resolution 8Bit Gain range -6V ~ 6V(probe X1) -60V ~ 60V(probe X10) Sample 1 channel : 1K~24M Hz 2 channel : 1K~16M Hz Save File The maximum 4G, recording time associated with the sampling rate Logic Analyzer Channel 16 Sample 8 channel: 250K~24M Hz 16 channel: 250K~16M Hz Sample points 1M-2GB Saleae Logic Logic Analyzer Channel 8 Sample 25K~24M Hz Protocol Analyzer Atmel SWI, BiSS C, SPI, I2C, CAN, UART, I2S/PCM, DMX-512, JTAG, LIN, Manchester, 1-WIRE, UNI/O, Simple Parallel, MDIO, USB1.1, PS/2 Keyboard/Mouse Sample points 1MB~10TB Kind photos Size 15(cm)*10(cm)*2.9(cm) Measured results 4.1 Simulation-simplified version of the software, all modeled on the traditional oscilloscope design. You get started the easy update, eliminating the need for study time.. 4.2 Powerful professional version of the software,using self-designed digital signal processing algorithms,integrated FFT spectrum, power spectrum, correlation, and digital filter. FFT Support the the 8-1048576 choice, Support the Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman,, Parzen, Lanczos, kaiser, gauss, dolph_chebyshev as many as 18 kinds of windows; Support measure Harmonic(1-7), SNR, SINAD, ENOB, THD, SFDR Power spectrum Support, self-power spectrum and cross-power spectrum calculation; Correlation Support, self-and cross-correlation calculation; Digital filter Support of IIR and FIR filter design. FIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design. IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design. Supports signals collected directly designed filter processing, and display filtering results let you design filters more simplistic. Package: 2 x oscilloscope probe 1 xUSB cable
