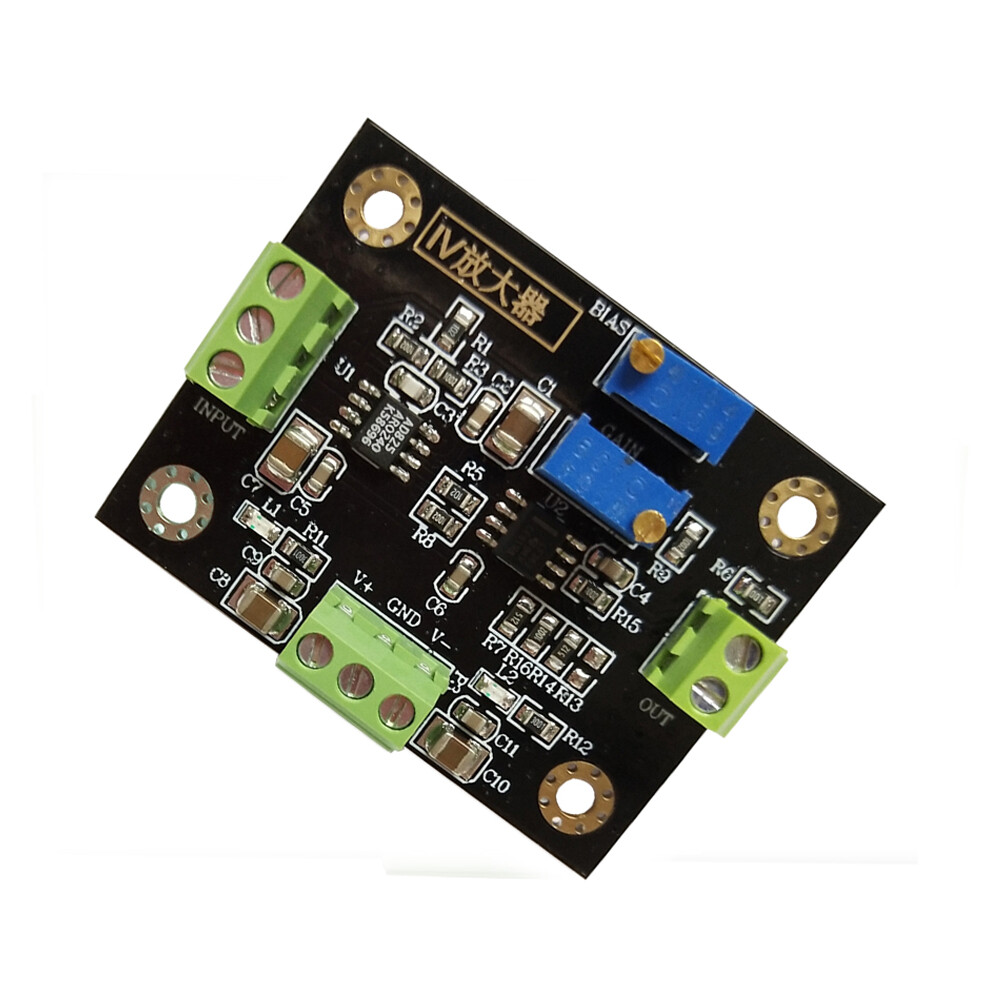

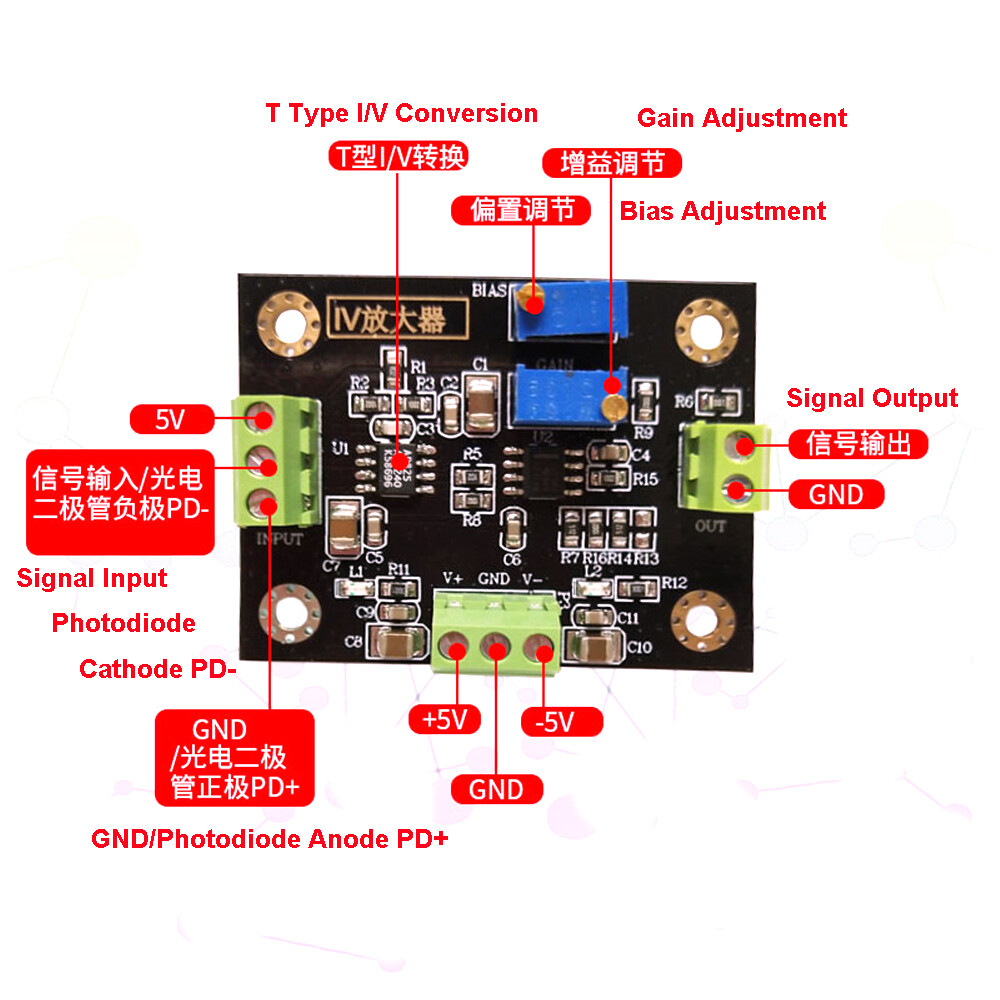

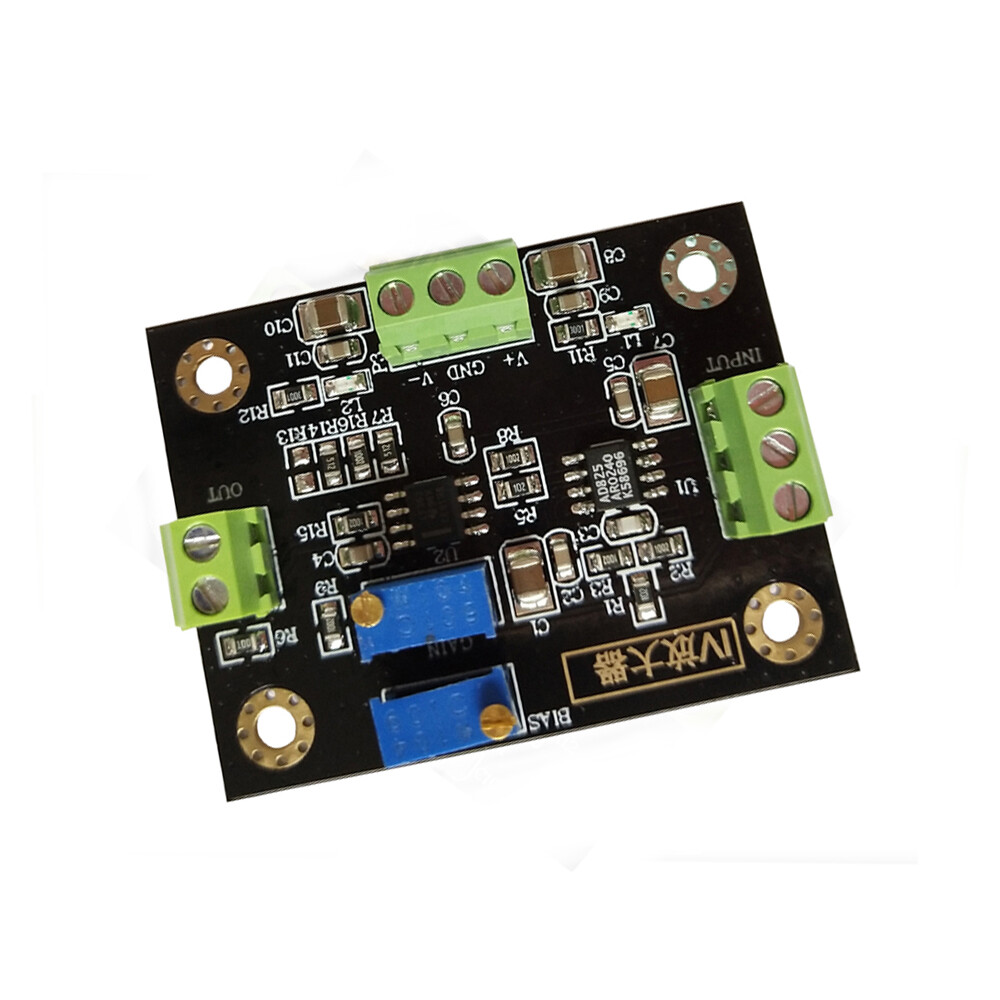

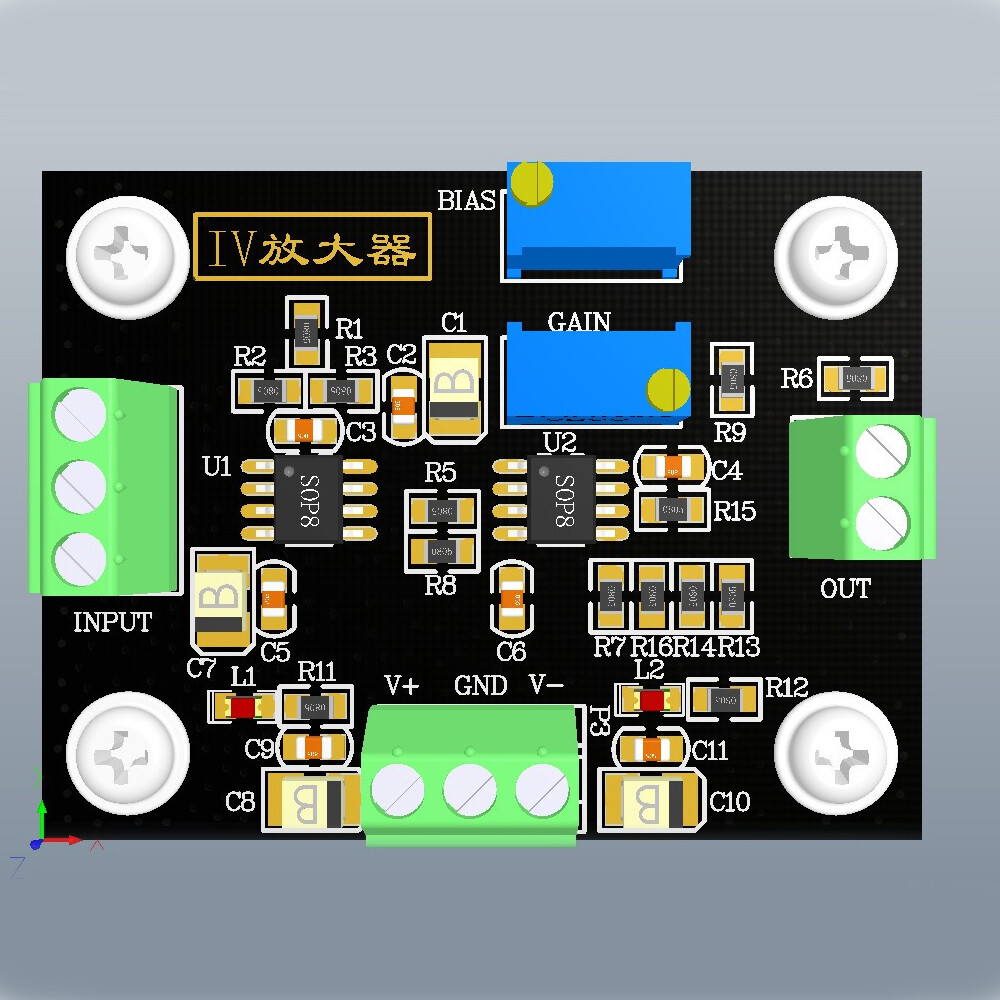

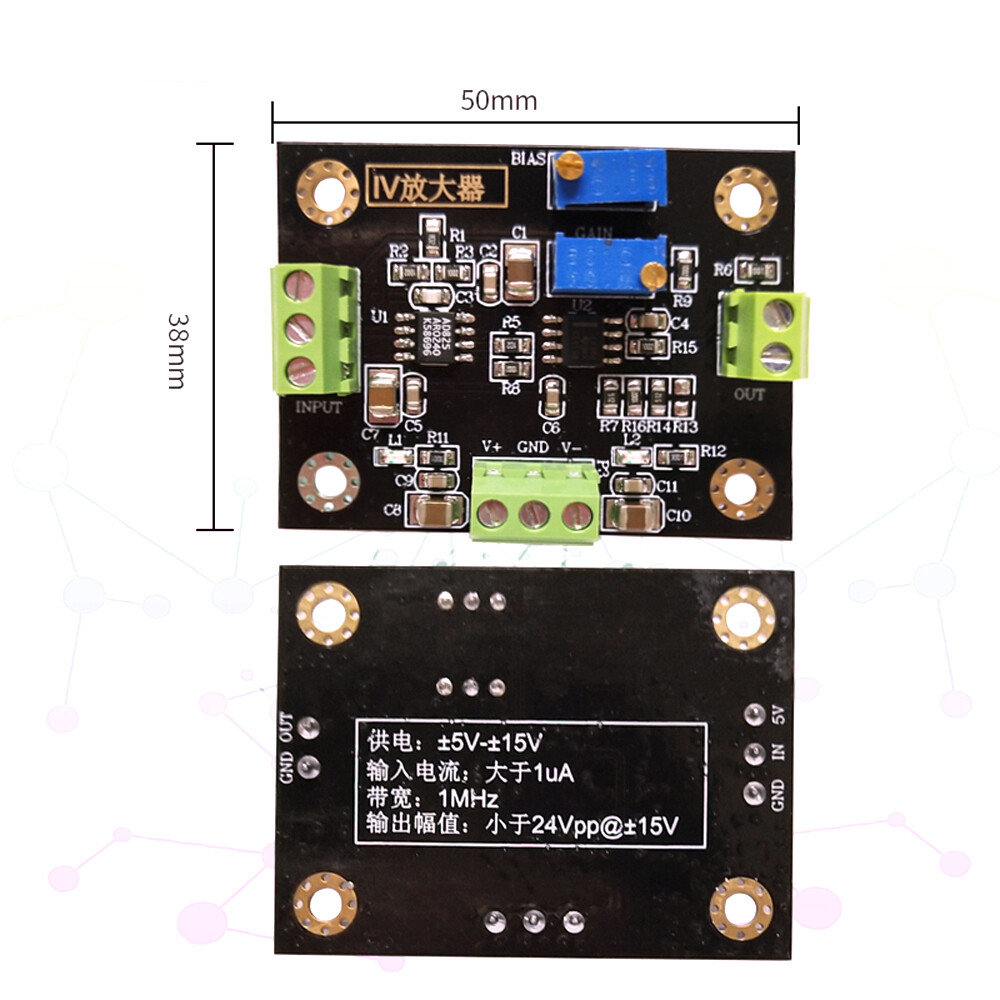

Check the listing for details. IV Conversion Amplifier Voltage Signal Amplifier Module Current To Voltage. Condition: New. Listed at 36.80 USD. Title： IV Conversion Amplifier Voltage Signal Photoelectric Amplifier Module Current To Voltage Amplifier Module model: IV conversion amplifier Module type: Current to voltage amplifier Module supply voltage: ±5V-15V Module power supply current: ±30mA Input signal form: Single-ended current Input current range: 500uA (MAX) within 100uA is linear, more than 100mA may not be linear Minimum input current resolution: 10nA Input frequency range: DC-100KHz, the gain will decrease when the frequency increases Input impedance: High impedance Output voltage range: 20Vpp (MAX), the output voltage is within the power supply Output current: ±20mA (MAX) Module gain range: 120000*100 (MAX) Bias voltage adjustment range: ±4.5V (the higher the power supply, the greater the adjustable range) Module weight: 20g Module protection: None (no reverse connection protection, unlimited current protection) Module specifications: 50x50x7mm Module heating: No heat sink (no heat dissipation required for normal operation) Module working temperature: -25℃--+75℃ (industrial grade) Module features: Output positive and negative power LED indication Power supply interface type: 3.81-3PIN terminal block Signal interface type: Input 3.81-3PIN terminal block Output 3.81-3PIN terminal block Application scope: Photodetector, data acquisition front end, weak signal detection, etc. Package: 1*Current to voltage amplifier On Oct-18-21 at 18:34:14 PDT, seller added the following information:
