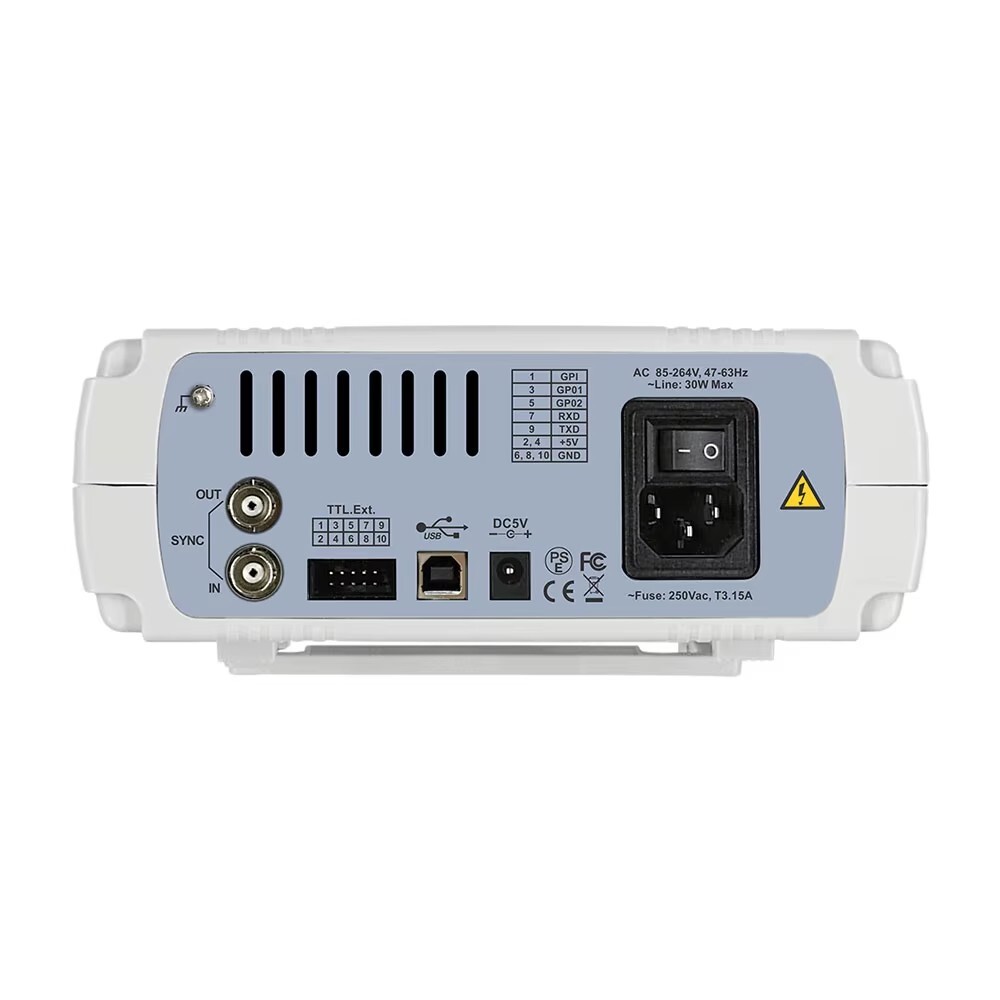

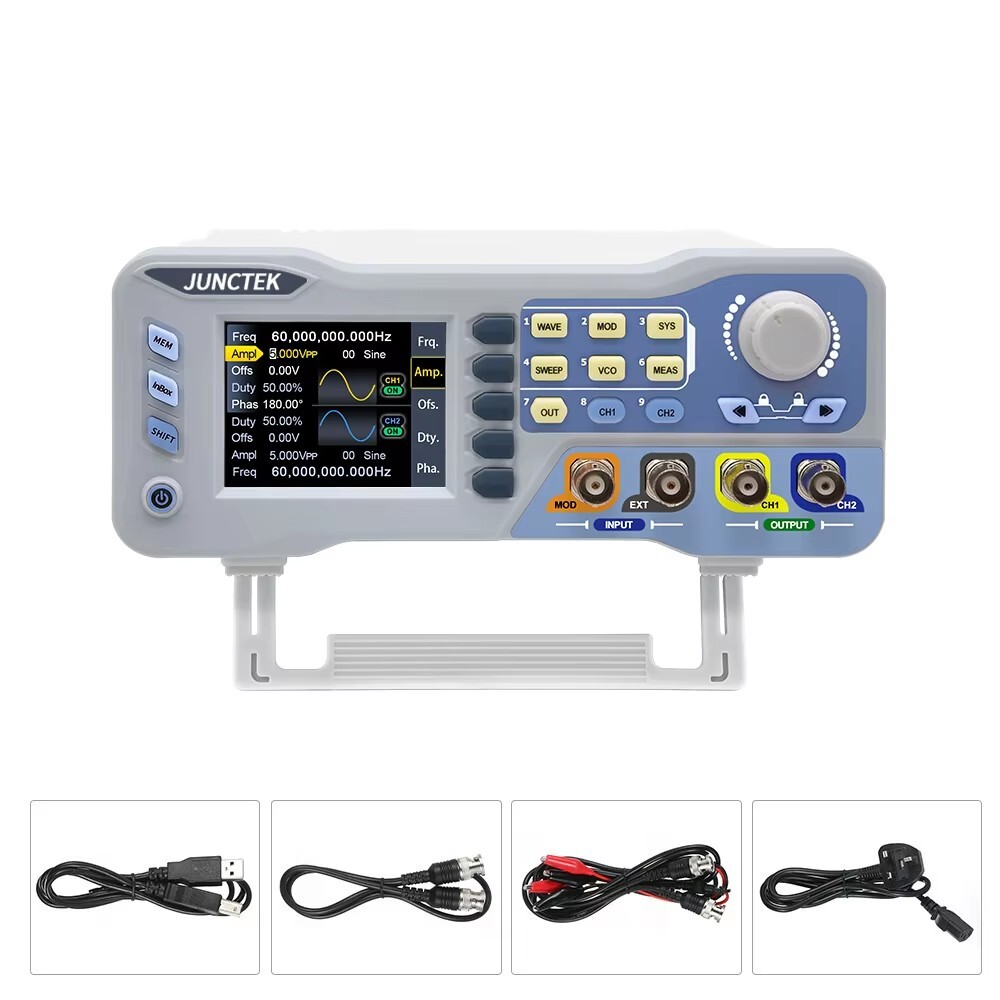

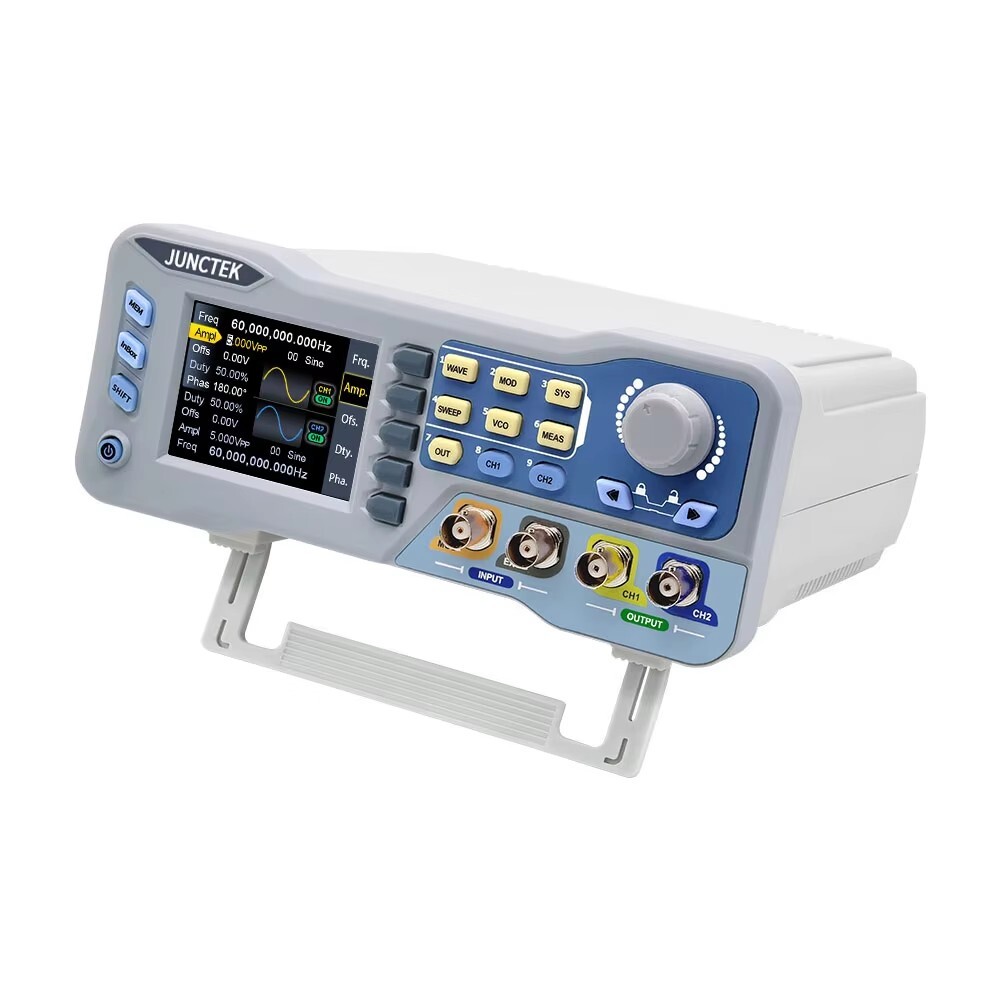

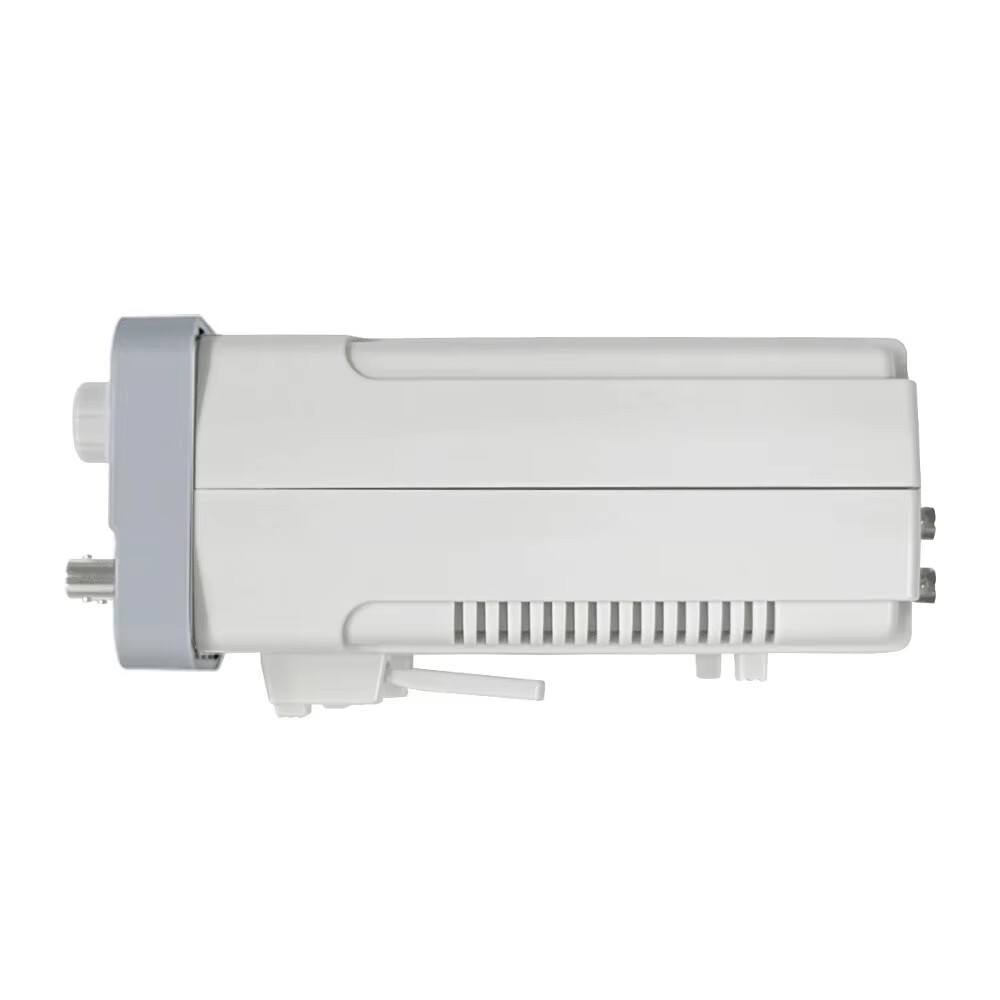

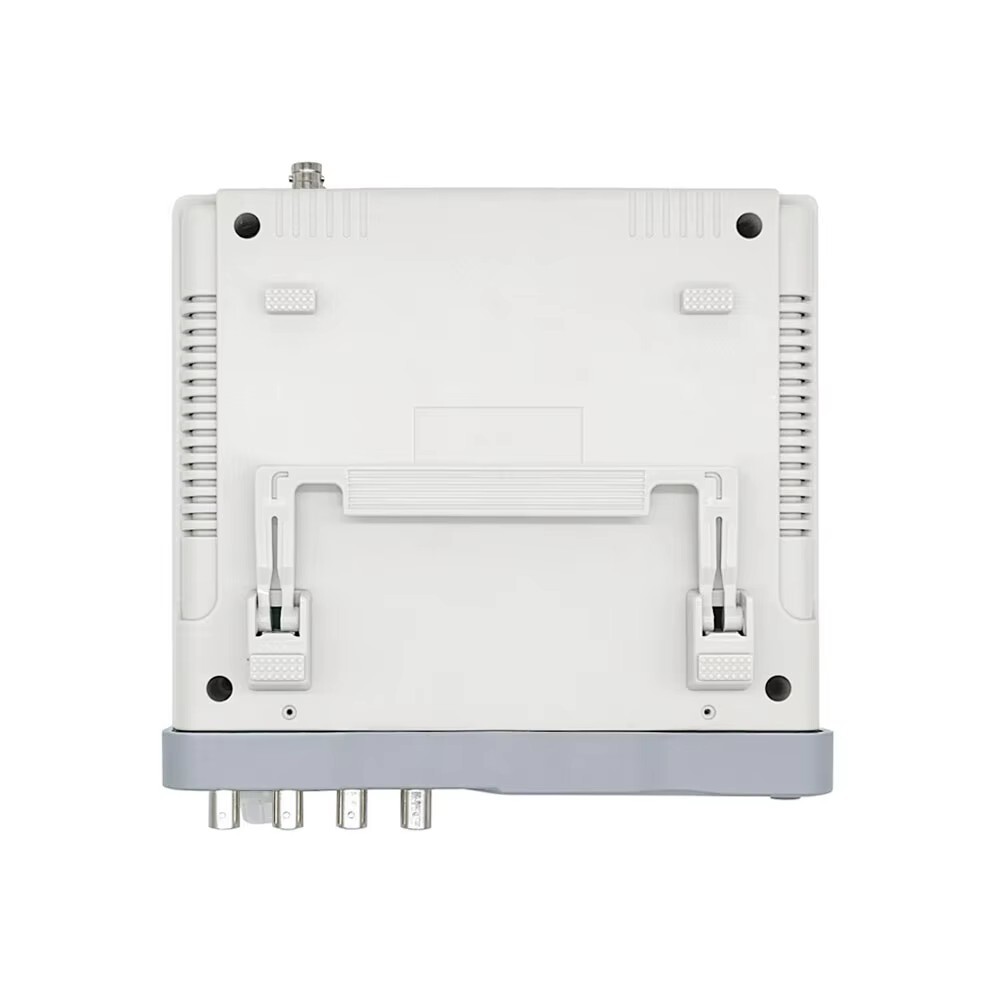

Check the listing for details. JDS8000 80MHz DDS Function Arbitrary Waveform Signal Source Generator Counter. Condition: New. Listed at 248.46 USD. ModelJDS8060JDS8080Channel2Sine wave frequency1nHz-60MHz1nHz-80MHzSampling Rate275MSA/SWave length8192 points/channelWaveform vertical resolution14 bitsWave typeSine wave, square wave, pulse wave (duty ratio, pulse width and cycle time can be precisely set), triangle wave, rising ramp, falling ramp, CMOS wave, DC level, half wave, full wave, positive step wave, Inverse staircase wave, exponential rise, exponential fall, Lorentz pulse wave, multisonic wave, random noise wave, trapezoidal pulse wave, Sinker pulse wave, and 99 sets of user-defined waveforms.Square wave1nHz-15MHzTriangle wave1nHz-15MHzFrequency resolution1nHzRise/Fall Time≤20nS≤10nSAmplitude rangeFrequency＜1MHz,2mVpp~25Vpp1MHz≤Frequency＜11MHz,2mVpp~10Vpp11MHz≤Frequency＜60MHz,2mVpp~5Vpp60MHz≤Frequency≤80MHz,2mVpp~3.6VppAmplitude resolution1mVppAmplitude stability± 1% ±1mVpp (@ 1kHz,>10mVpp)Amplitude flatnessFrequency≤10MHz：±1%(0.1dB)10MHz＜Frequency≤50MHz：±2%(0.2dB)50MHz＜Frequency≤60MHz：±10%(0.9dB)Offset range-9.99V-12.00VOffset resolution0.01VPhase adjustment range0°-359.99°Resolution0.01°Output impedance50Ω (typical)Modulation typeAM、FM、PM、ASK、FSK、PSK、PWMTrigger sourceManual burst, CH2 burst, external burst (AC), external burst (DC)Measurement functionFrequency, positive and negative pulse width, period, duty cycleCounter range0-4294967295Sweep functionSweep frequency, sweep amplitude, sweep dutySweep modeLinear, logarithmicVCO functionFrequency control, amplitude control, and duty cycle controlRunning modeDebugging、normal> With a sampling rate of up to 275MSa/s, more waveform data can be obtained perunit time, thereby making the displayed waveform more accurate.> 14-bit vertical resolution, more delicate waveform.> The longer the waveform storage depth is, the more waveform details are saved, and the signal details can be restored with high precision.Equivalent dual channels can output the same or different function signals orarbitrary waveform signals at the same time; All parameters can be adjustedindependently. The phase difference between the two channels is 0-359.99 degreescontinuously adjustable. After downloading and installing the APP, connect the instrument through Bluetooth, you can view all relevant data on the APP, and set all functions through the mobile APP. The interface is cool and powerful. It can be operated remotely by using the mobile APP, and supports the import and export of arbitrary wave data, which is convenient and fast.Instrument control: all functional operations are intuitively displayed in the softwareinterface, so that users can quickly adjust the functional parameters of the instrumentand greatly improve the working efficiency of the instrument.Arbitrary waveforms can be drawn using PC software; arbitrary waveform CSV table data can be imported and exported using mobile APP; secondary development can be turned into control by using communication protocols;Both the PC software and the mobile APP can complete all the operation settings of the machine, making your use more convenient; < Provide PC software and communication protocol free of charge >Built-in 160 kinds of arbitrary waveforms, in addition to meet the routine use, but alsogreatly facilitate the electronic engineering, biotechnology, medical, automotive.Thepractical application in many industries such as vehicle maintenance and mathematicsteaching reduces the cumbersome arbitrary wave drawing steps and improves the workefficiency. You can use sine wave, square wave, triangle wave, or arbitrary wave to generate pulse train, and the number of pulse period is continuously adjustable between 1-1048575. More types of modulated waveforms and more detailed modulation: the information of the signal generator is processed and loaded onto the carrier. The process of bringing it into a form suitable for channel transmission is the technique of changing the carrier wave with the signal. The frequency, amplitude and duty cycle of the output waveform can be controlled by an external analog voltage signal to realize the voltage-controlled sweep frequency, sweep amplitude and sweep duty cycle, which is widely used in the industrial debugging process.Pulse width adjustment range：０.020us-4sPulse period adjustment range：0.02us-40sThe pulse bias is continuously adjustable; the pulse amplitude is continuouslyadjustable, accurate to 0.01V.With independent operation interface, the function is clear; there is an independentcontrol switch, which is convenient for control.The pulse width and pulse cycle time of the pulse wave can be digitally adjustedprecisely and can realize the pulse waveform wide range of precise setting, nojitter output.Built-in 160 kinds of arbitrary waveforms, in addition to meet the routine use, but alsogreatly facilitate the electronic engineering, biotechnology, medical, automotive.Thepractical application in many industries such as vehicle maintenance and mathematics teaching reduces the cumbersome arbitrary wave drawing steps and improves the work efficiency.Why are our products so popular ？Because：1. It is small in size, high in power, high in efficiency and stable in operation;2. It integrates eight functions such as function signal generator, arbitrary waveformgenerator, sweep frequency signal generator, pulse signal generator, burst signalgenerator, modulation signal generator, frequency meter and counter.3.Meet the needs of 90% of people for various functions of the signal generator;widely used in electronic instrument maintenance, medical field, automobilemaintenance, school experimental teaching, electronic and electrical science researchand development, electronic design competition, production line debugging, aerospacefield Wait. 1.Signal generator 2.power cable 3.BNC male plug test lead 4.USB data cable 5.BNC to alligator clips test lead 6.Quick guide
