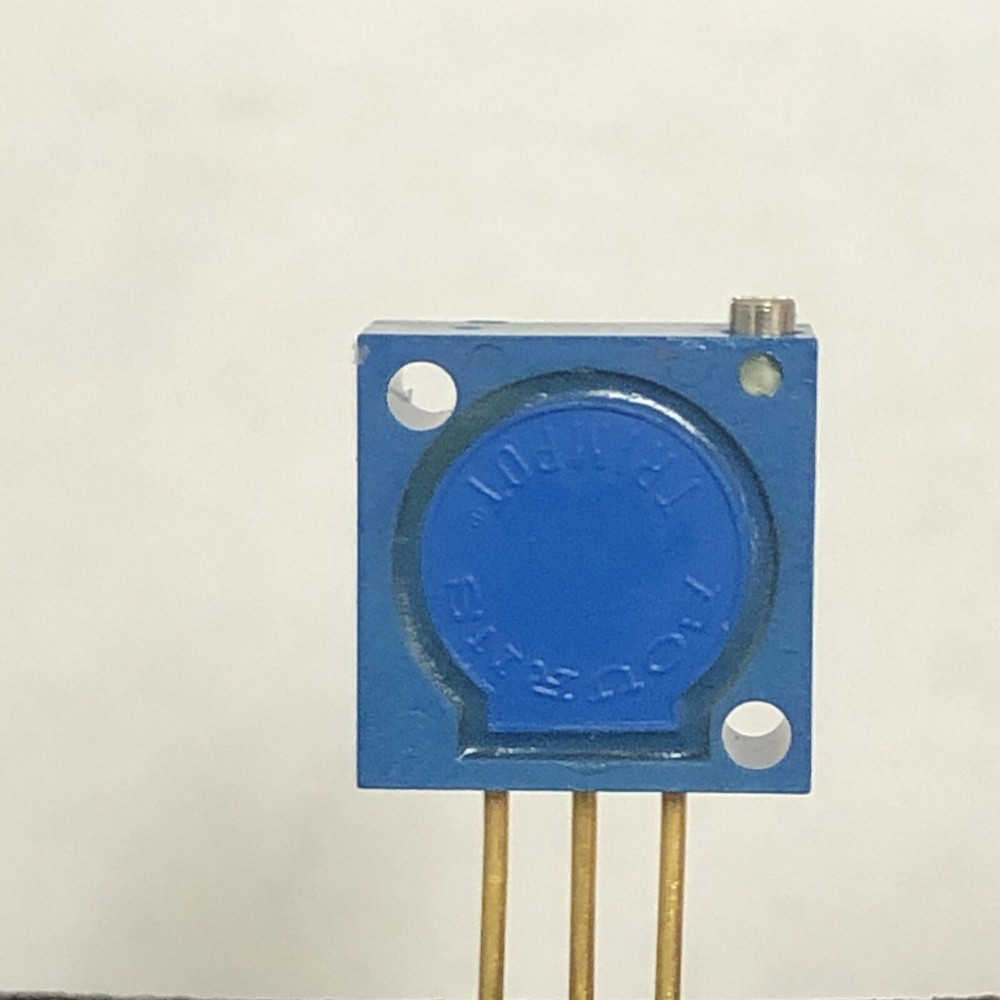

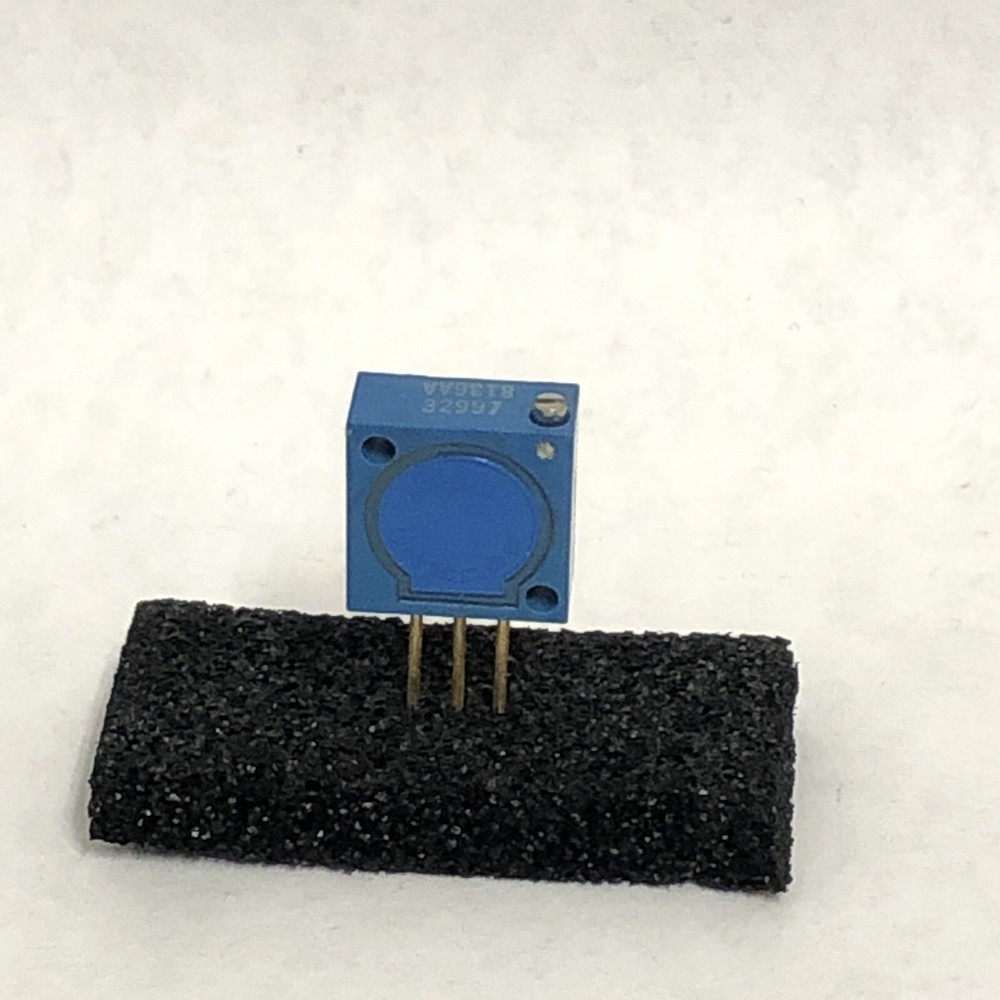

Check the listing for details. JM39015/2-003WP BOURNS RESISTOR (BLUE). Condition: New. Listed at 17.95 USD. JM39015/2-003WP RESISTOR JM39015/2-003WP ALSO KNOWN AS * RTR22DW501P * E101 LOT 33769Technical Data | NSN 5905-01-057-7721 Characteristic Specifications SECTION QUANTITY 1 ELECTRICAL RESISTANCE PER SECTION 500.0 OHMS SINGLE SECTION RESISTANCE TOLERANCE PER SECTION IN PERCENT -5.0 TO 5.0 SINGLE SECTION STANDARD TAPER CURVE PER SECTION A SINGLE SECTION TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS -50.0 TO 50.0 SINGLE SECTION POWER DISSIPATION RATING PER SECTION IN WATTS 0.75 FREE AIR SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER 85.0 SINGLE SECTION AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER 150.0 SINGLE SECTION BODY STYLE 32B RECTANGULAR W/MOUNTING HOLES BODY LENGTH 0.515 INCHES NOMINAL BODY WIDTH 0.205 INCHES NOMINAL BODY HEIGHT 0.500 INCHES NOMINAL LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS 0.520 INCHES NOMINAL ACTUATOR TYPE SINGLE SHAFT SHAFT STYLE 3C ROUND, SLOTTED SHAFT DIAMETER 0.078 INCHES NOMINAL SHAFT LENGTH 0.045 INCHES MAXIMUM ROTARY ACTUATOR TRAVEL IN ANGULAR DEG 7200.0 MINIMUM AND 15120.0 MAXIMUM ACTUATOR TRAVEL CONTROL FEATURE CLUTCH EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION 7200.0 MINIMUM AND 15120.0 MAXIMUM MOUNTING METHOD TERMINAL AND UNTHREADED HOLE MOUNTING FACILITY QUANTITY 2 MOUNTING HOLE DIAMETER 0.073 INCHES NOMINAL TERMINAL TYPE AND QUANTITY 3 PIN CENTER TO CENTER DISTANCE BETWEEN TERMINALS 0.200 INCHES NOMINAL CENTER TO CENTER DISTANCE BETWEEN CENTER TERMINAL AND OUTSIDE TERMINAL 0.100 INCHES NOMINAL TERMINAL LENGTH 0.172 INCHES MINIMUM TERMINAL LOCATION REAR END RELIABILITY INDICATOR ESTABLISHED RELIABILITY FAILURE RATE LEVEL IN PERCENT 0.100 TEST DATA DOCUMENT 81349-MIL-R-39015 SPECIFICATION SPECIFICATION/STANDARD DATA 81349-MIL-R-39015/2 GOVERNMENT SPECIFICATION III OVERALL HEIGHT 0.500 INCHES NOMINAL III OVERALL WIDTH 0.205 INCHES NOMINAL III CUBIC MEASURE 0.053 CUBIC INCHES III FRAGILITY FACTOR MODERATELY DELICATE MANUFACTURERS CODE 81349 NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MIL-R-39015/2 MANUFACTURERS CODE 81349 DEFINITIVE GOVERNMENT SPEC/STD REFERENCE M39015/2-003WP
