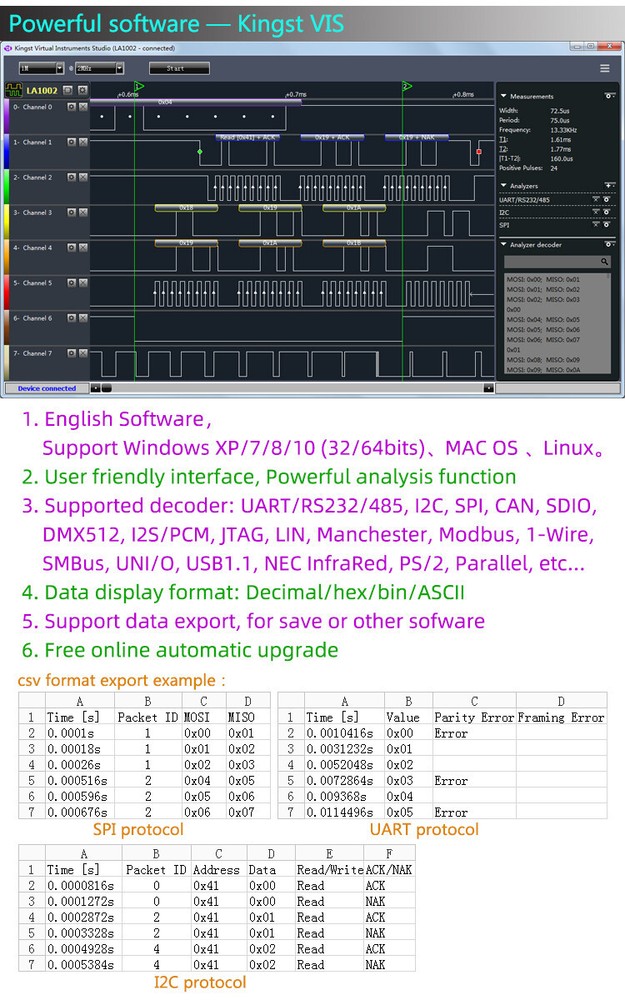

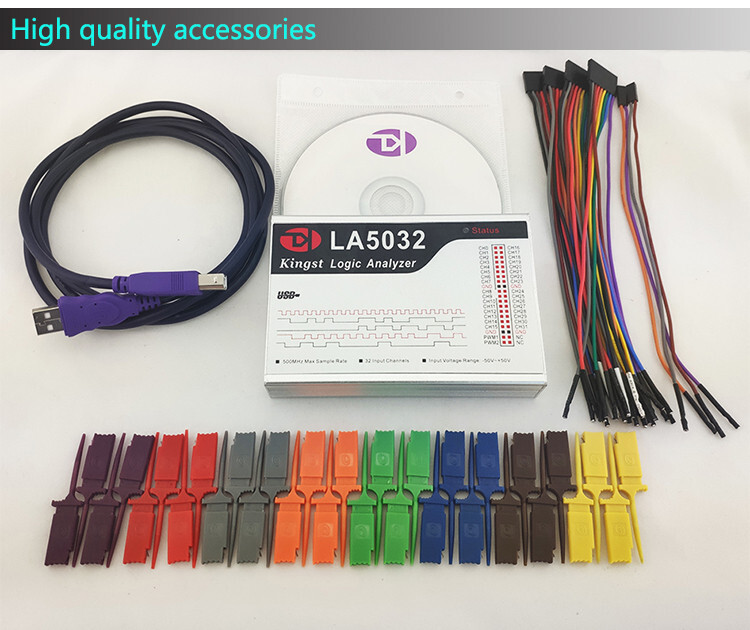

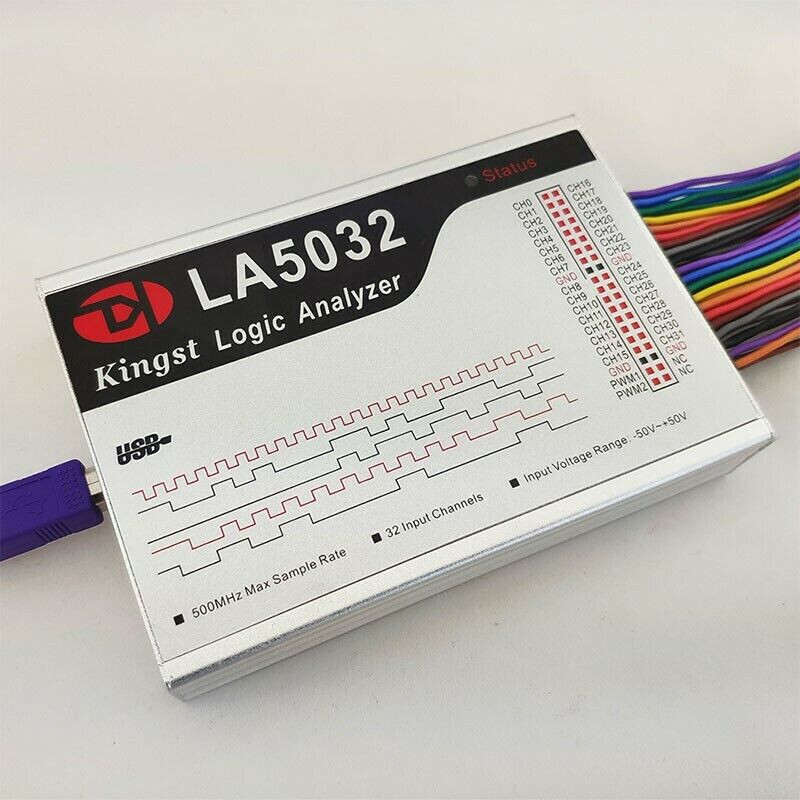

Check the listing for details. Kingst LA5032 USB Logic Analyzer 500M Max Sample Rate 32 Channels ARM FPGA Debug. Condition: New. Listed at 383.00 USD. LA5032 is a high-performance logic analyzer with 32 channels and 500M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc. LA5032 can sample 32 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved. LA5032 USB Logic Analyzer 500MHz Max Sample Rate 32 Channels ARM FPGA Debug Tool Normal 0 7.8 磅 0 2 false false false EN-US ZH-CN X-NONE Fast Shipping to USA, Canada, AU, Europe！ New LA5032 USB Logic Analyzer 500M Max Sample Rate 32 CH ARM FPGA Debug ToolSoftware Language: EnglishSoftware Supports: WINDOWS XP 7 / 8 / 10 LA5032 is a high-performance logic analyzer with 32 channels and 500M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc.LA5032 can sample 32 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved. Features:500M sampling rate@full channelsLarge sampling depth and support compressionThe built-in PWM generatorCompatible USB2.0/3.0 interfacePowerful software and easy to useSupport online upgrade automatically Specification:Input channels number: 32Max sampling rate: 500MMeasurement bandwidth: 80MMin pulse width can be captured: 6.25nsHardware memory size: 4GbitsHardware sampling depth: 100M/channelMax compressed depth: 10G/channelInput voltage range: -50V ~ +50VInput impedance: 220KΩ, 12pFAdjustable threshold voltage: -4V ~ +4V, step: 0.01VPWM channels number: 2PWM frequency range: 0.1 ~ 20MHzPWM frequency adjust step: 10nsPWM pulse width adjust step: 5nsPWM output voltage: +3.3VPWM output impedance: 50ΩStandby current: 400mAMax operating current: 480mASupport OS: Windows XP, Vista, Windows 7/8/10(32bit/64bit)Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG,LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc... Package Include:1 x LA5032 Logic Analyzer4 x 9P Test Lead Set2 x 2P Test Lead Set1 x USB 2.0 Cable1 x CD- ROM32 x Test Hook ClipInput impedance220KΩ, 12pFHardware sampling depth100M/channelInput voltage range-50V ~ +50VMPNLA5032Max compressed depth10G/channelMax operating current480mABrandUnbrandedHardware memory size4GbitsSample Rate500MHzNumber of Channels32ModelLA5032Measurement bandwidth80MCountry/Region of ManufactureChinaStandby current400mA
