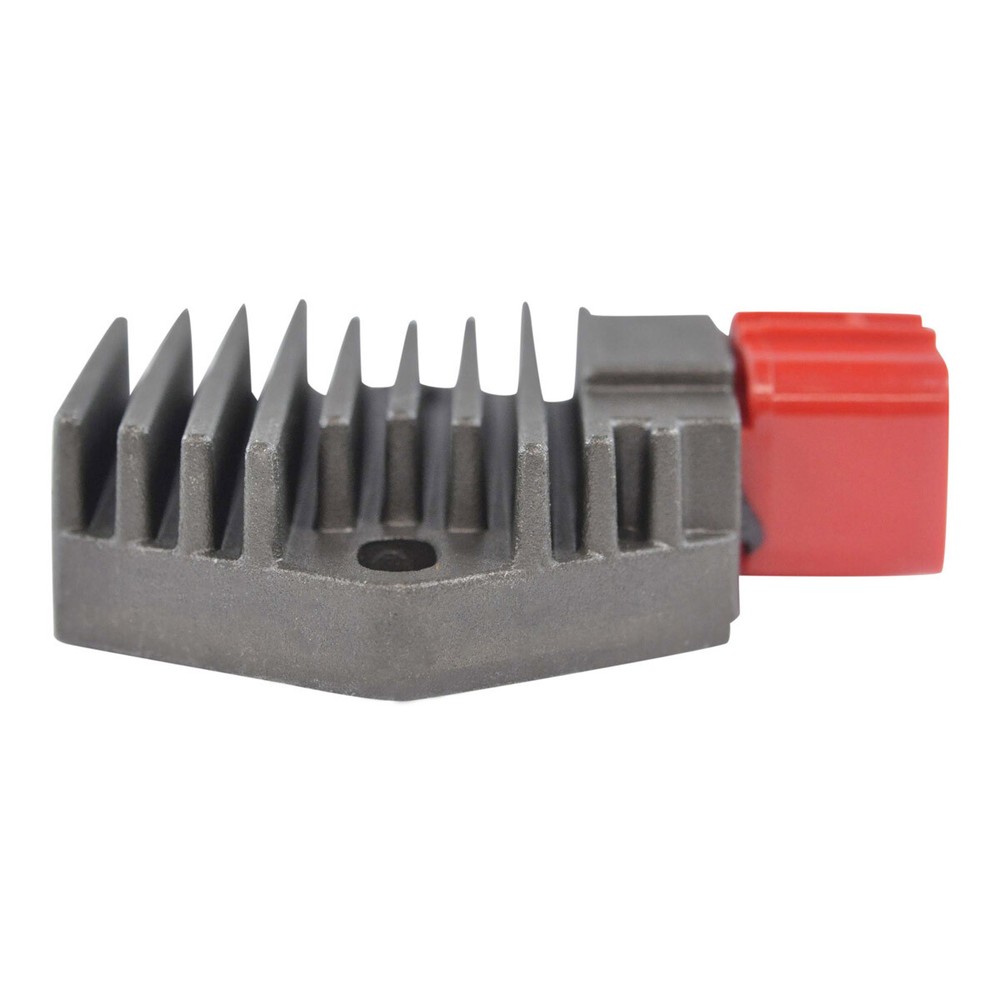

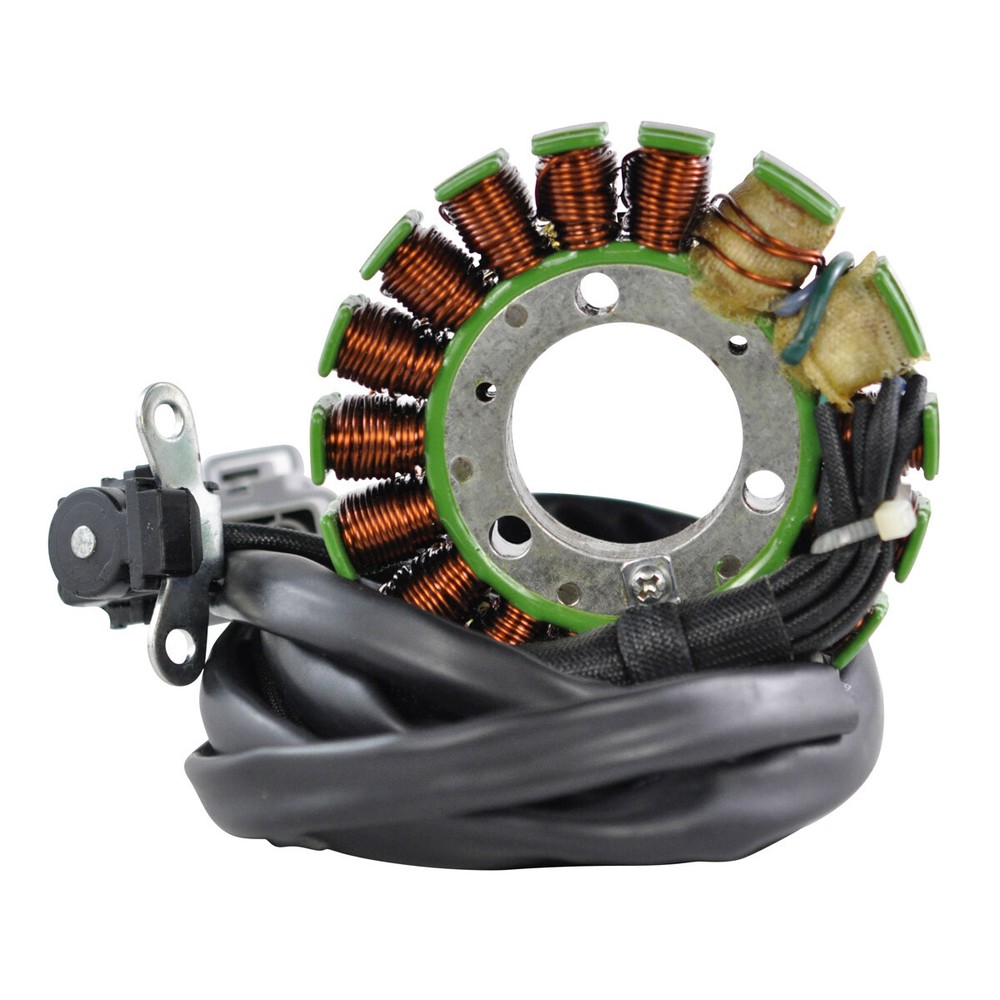

Check the listing for details. Kit High Output Stator Voltage Regulator Rectifier For Honda TRX 450 R 2004 2005. Condition: New. Listed at 248.00 USD. Free shipping in USA 2 year warranty Same day shipping visit our store > --> find parts for : ATV / UTV / SXS Motorcycles Snowmobiles Watercraft Other Menu Store Home ATV / UTV / SXS Motorcycles Snowmobiles Watercraft Other Kit High Output Stator + Voltage Regulator Rectifier for Honda TRX 450 R 2004-2005&nbsp KEY FEATURES&nbsp Brand new kit high output stator + voltage regulator rectifier Direct replacement to your original unit The quality exceeds OEM equipment All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part All products shipped are tested DESCRIPTION&nbsp Brand new high output Stator + Voltage Regulator Rectifier Kit Direct replacement to your original unit Plug-and-play, direct fit, easy installation All shipped products are tested All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part. High Output Stator: Highest grade of lamination materials Highest grade of copper winding, resistant to 200 degrees Celsius Pick up pulsar coil included Connector included Rubber grommet included We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues. Voltage Regulator Rectifier: No assembly required Higher grade of electric components Improved heat sink and charging capabilities The quality exceeds the OEM equipment Vehicle models fitment&nbsp Honda TRX 450 R -- 2004-2005 OEM part replacement&nbsp RM23001-R00 Specifications&nbsp Dimensions Stator : Interior diameter : 34mm Exterior diameter : 92mm Thickness : 15mm Length of wires stator to grommet : 75mm Length of wires grommet to plug : 900mm Length of pickup coil's wire to grommet : 80mm Other specifications : Number of wires : 8 Number of plugs : 3 Number of pins : 8 Wire to wire resistance : Alternator : Yellow between each Yellow = 0.4ohms +/-20% Alternator : Yellow to Ground = 0.L Pickup : Green to Blue = 250ohms +/-20% Source : Black/Red to Blue = 36ohms +/-20% Source 2 : Blue to White = 7ohms +/-20% Dimensions Voltage Regulator Rectifier: Width : 63mm Length : 80mm Height: 22mm Fixation holes center to center : 60mm Other specifications : Number of plugs : 1 Number of pins : 5 Minimum Charging Voltage: 14.5V +/- 0.5V Maximum Charging Current: 25A-35A/300W-500W Open Circuit Voltage: Operation Temperature: -20? to 85? instructions&nbsp Before installing your new stator Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors Our stator may use a different wire color code than your original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010??. Before installing your new voltage regulator rectifier; Check the AC output of the stator. Replace any burned or corroded connectors on stator and regulator/rectifier Check and repair any melted wiring. Use hi-temp dielectric grease on all connectors. Warning: Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction. Item Delivery&nbsp Our multiple North American locations, from which we ship our products, allows us to deliver 99.7% of our orders within the specified time period. If your item is not available in our main Colorado facility, we still guarantee that your order will be delivered within the specified time period. If your item is not delivered within this time period, we will offer you a 5.00$ discount on your order. This guarantee applies to shipments delivered in the 48 continental USA states, excluding PO boxes. customer service AsK seller a question duties & taxes International Buyers: Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. More than 20 years of assisting mechanics around the world resolving the worst electrical problems made us know our stuff. When it comes to vehicle electrics, we definitively are the power in powersports. Customer service Part requestAbout usAbout seller pageAdd seller to favorite
