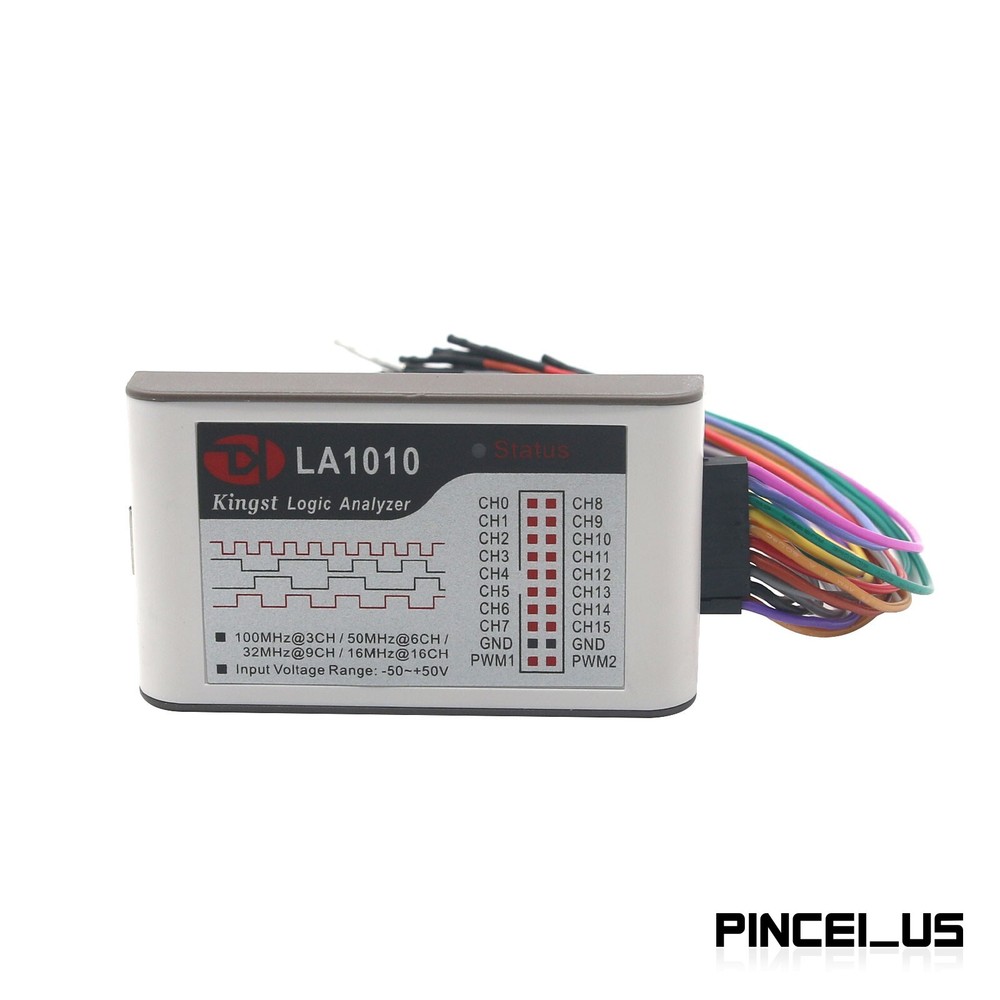

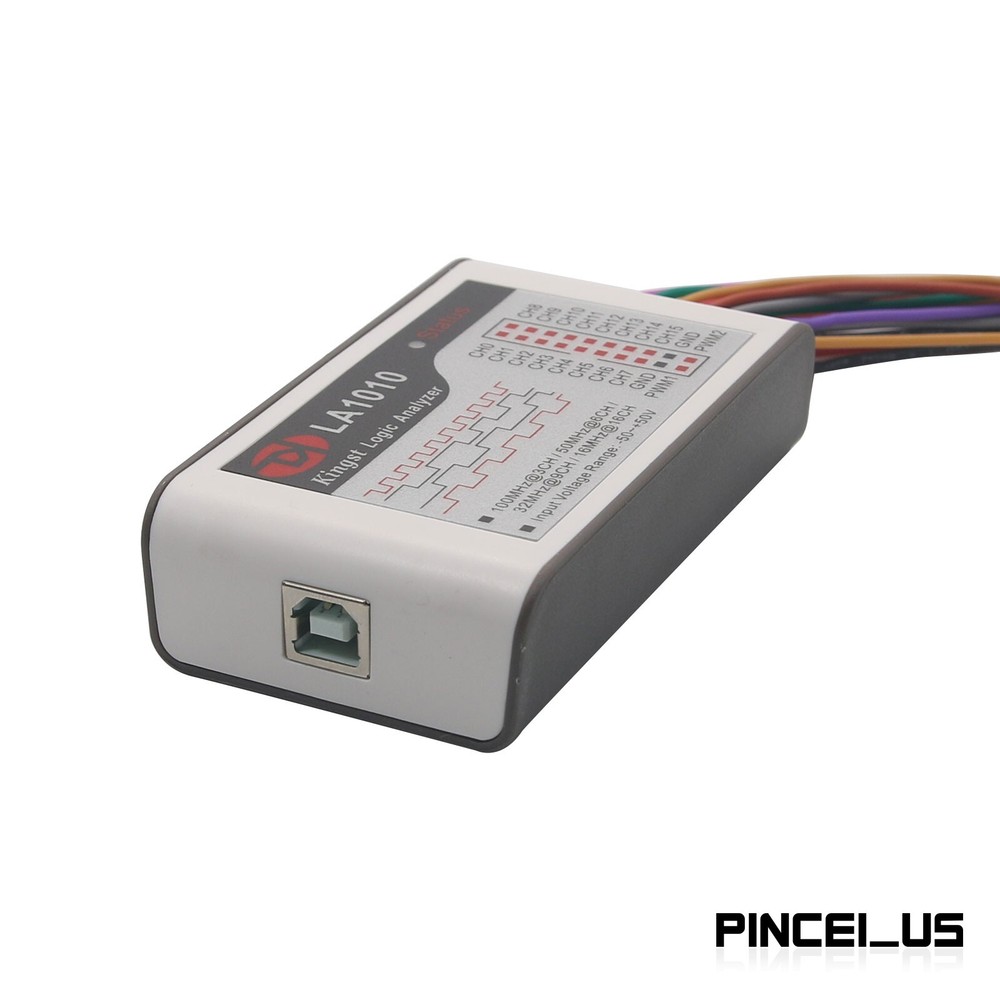

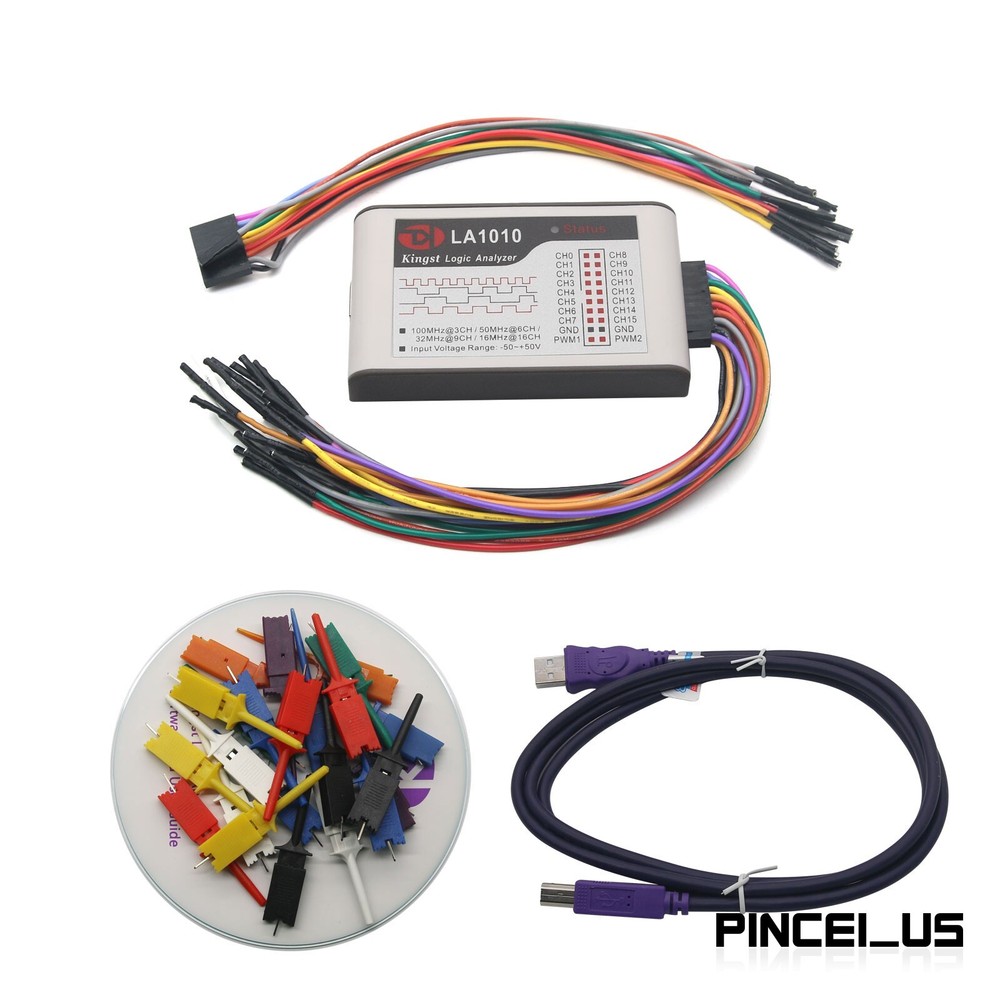

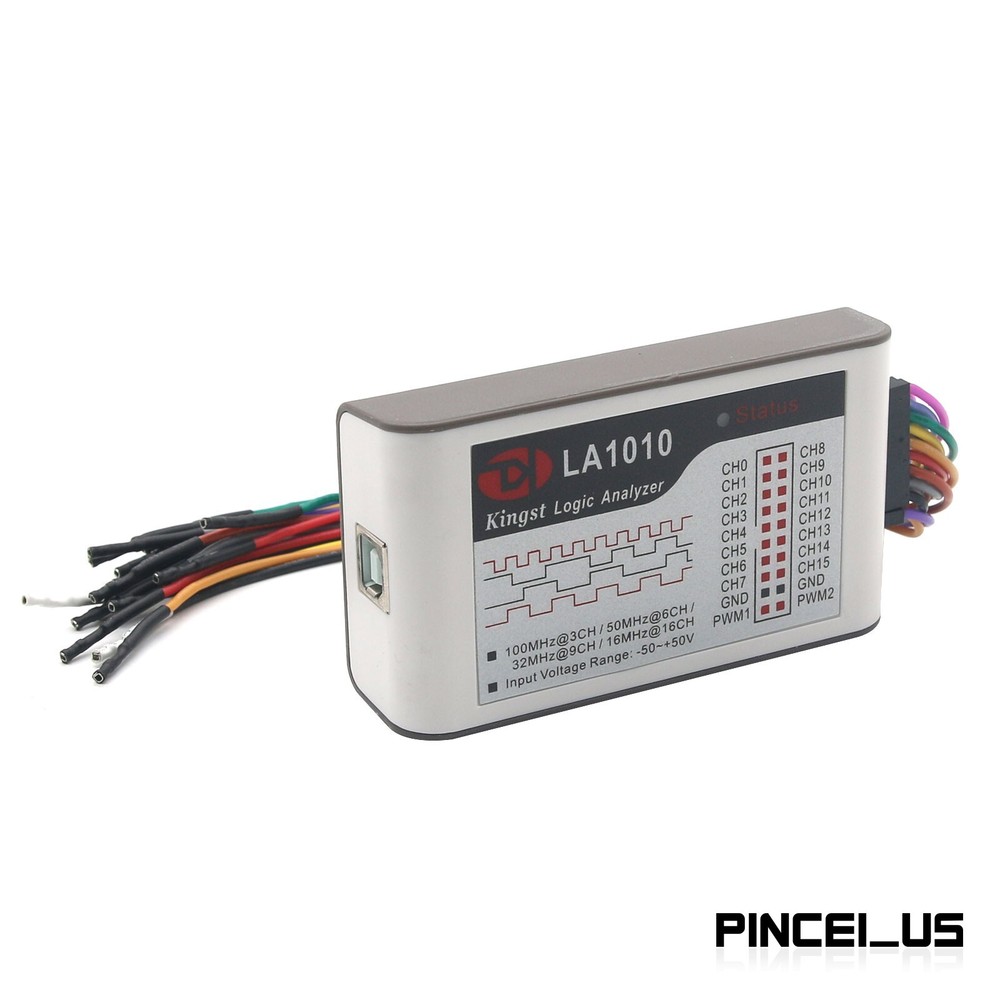

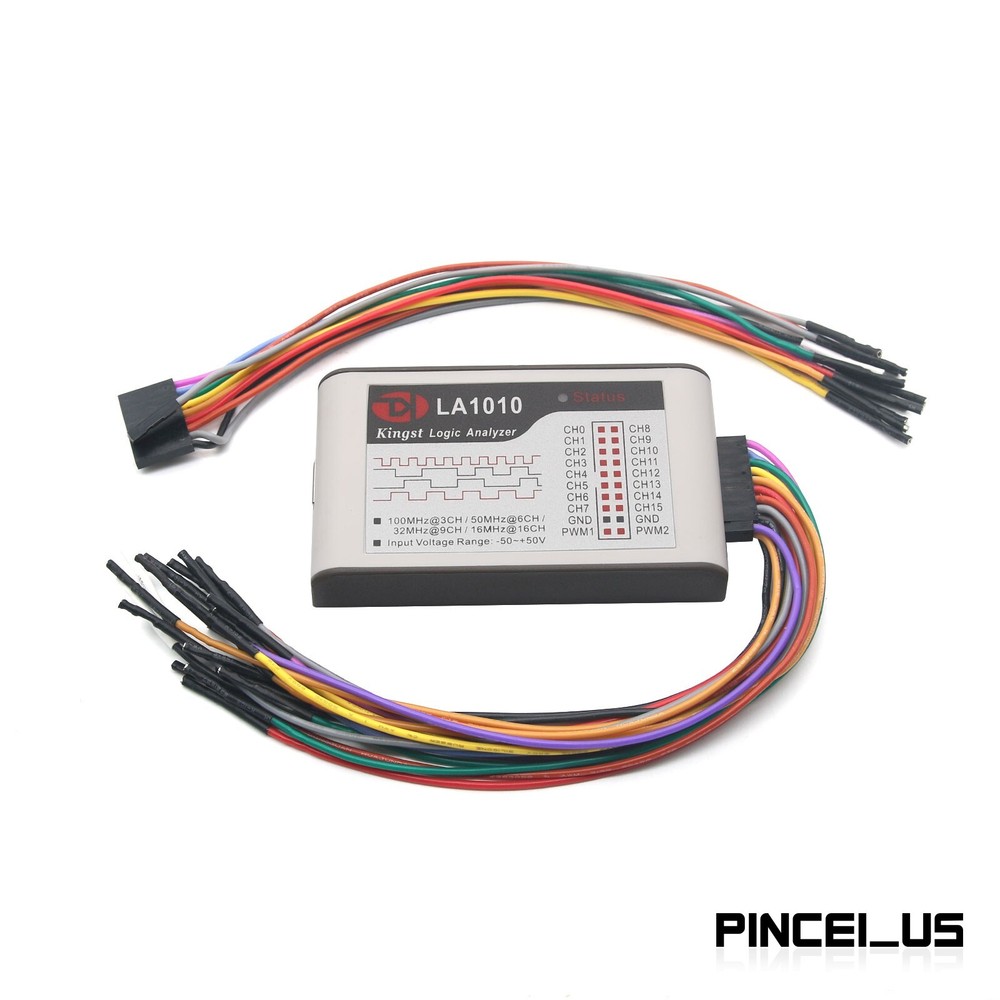

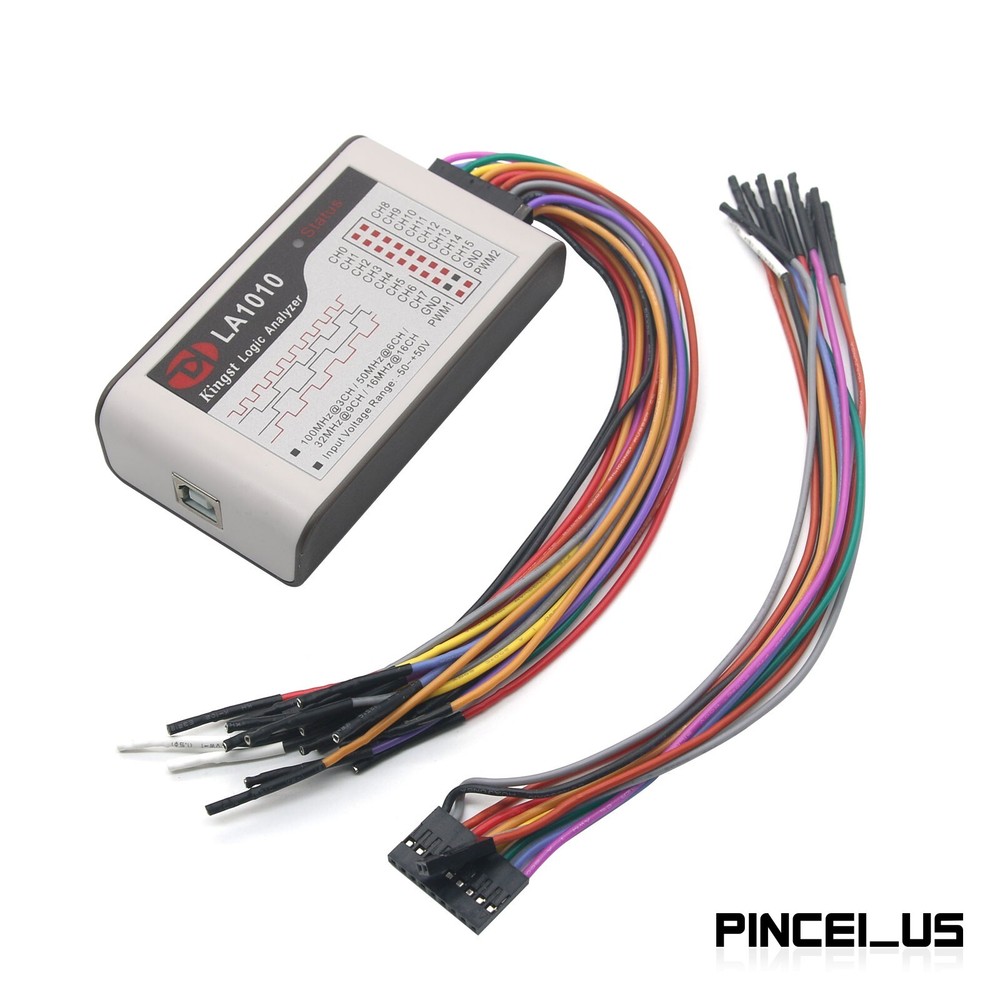

Check the listing for details. LA1010 Logic Analyzer USB2.0 16M 16CH 10G MCU ARM FPGA DSP Debugging Tools pe66. Condition: New. Listed at 59.48 USD. Description Kingst LA1010 Logic Analyzer High Performance USB2.0 16M 16CH 10G MCU ARM FPGA DSP Debugging Tools Description: LA1010 is a logic analyzer product with high cost performance. It has 16 input channels and the sample rate is up to 100MHz. Along with the PC software KingstVIS, 16 channels of digital signal could be sampled at the same time, and then they could be converted to digital waveform and displayed on the PC screen. The signal could be analyzed with many standard protocols, to get more straightforward communication data. It helps a lot in testing and analyzing digital system(MCU/ARM/FPGA, etc.), developing and debugging several communication programs, or monitoring and recording some digital signals for a long time. Features: ·Portable and lightweight ·Max sampling rate: 100M@3channels, 50M@6channels, 32M@9channels, 16M@16channels ·Large sampling depth and support compression ·The built-in PWM generator ·Compatible USB2.0/3.0 interface ·Powerful software and easy to use ·Support online upgrade automatically Specifications: ·Input channels number: 16 ·Max sampling rate: 100M ·Measurement bandwidth: 20M ·Min pulse width can be collected: 20ns ·Max sampling depth: 10G/channel ·Input voltage range: -50V ~ +50V ·Input impedance: 220KΩ, 12pF ·Adjustable threshold voltage: -4V ~ +4V, step: 0.01V ·PWM channels number: 2 ·PWM frequency range: 0.1 ~ 10MHz ·PWM frequency adjust step: 10ns ·PWM pulse width adjust step: 10ns ·PWM output voltage: +3.3V ·PWM output impedance: 50Ω ·Standby current: 100mA ·Max operating current: 150mA ·Dimensions: 95mm * 55mm * 23mm ·Supported OS: Windows XP, Vista, Windows 7/8/10(32/64bit) ·Supported standard protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, UNI/O, SDIO, SMBus, USB1.1, PS/2, NEC InfraRed, Parallel, etc. Documents ·Software and user guide: www.qdkingst.com/en/h-col-105.html or click www.kingst.org/download?fl=vis.zipPayment Terms 1. We accept PayPal,Payoneer,Visa Card,Google pay,Credit card etc. 2. We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay.Shipping Terms 1. We will process the order within the handling time ,if you have any questions, please contact us via eBay message or email. 2. For remote regions of DHL/FedEx..., extra shipping costs might be charged. Usually it costs about 30USD-50USD. We will contact you if shipping company informed us your address belongs to remote area. Thanks for your understanding.Return Terms If you receive the item that not satisfied or defective, please do not open case and kindly notify us within 30 days. We will guide you the returning process for replacement or refund.Custom Duties & Taxes 1. It is buyer's responsibility to cover the import duties, taxes.We do not charge any taxes and fees, and the possible taxes and fees will be collected by the platform or by third parties such as customs and carriers. 2. Please check with your country's customs office and inform us what/how much should declare before shipping.Feedback 1. Please kindly leave us a positive feedback and 5 star DSR if you satisfied with our product and service. Please feel free to contact us firstly if you have any problem with your order, we are responsible and credible seller and will solve the issue it for you asap. 2. If you are dissatisfied for any reason, please don't be quick to leave us neutral or negative feedback. We work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. On Dec 13, 2023 at 07:18:03 PST, seller added the following information:
