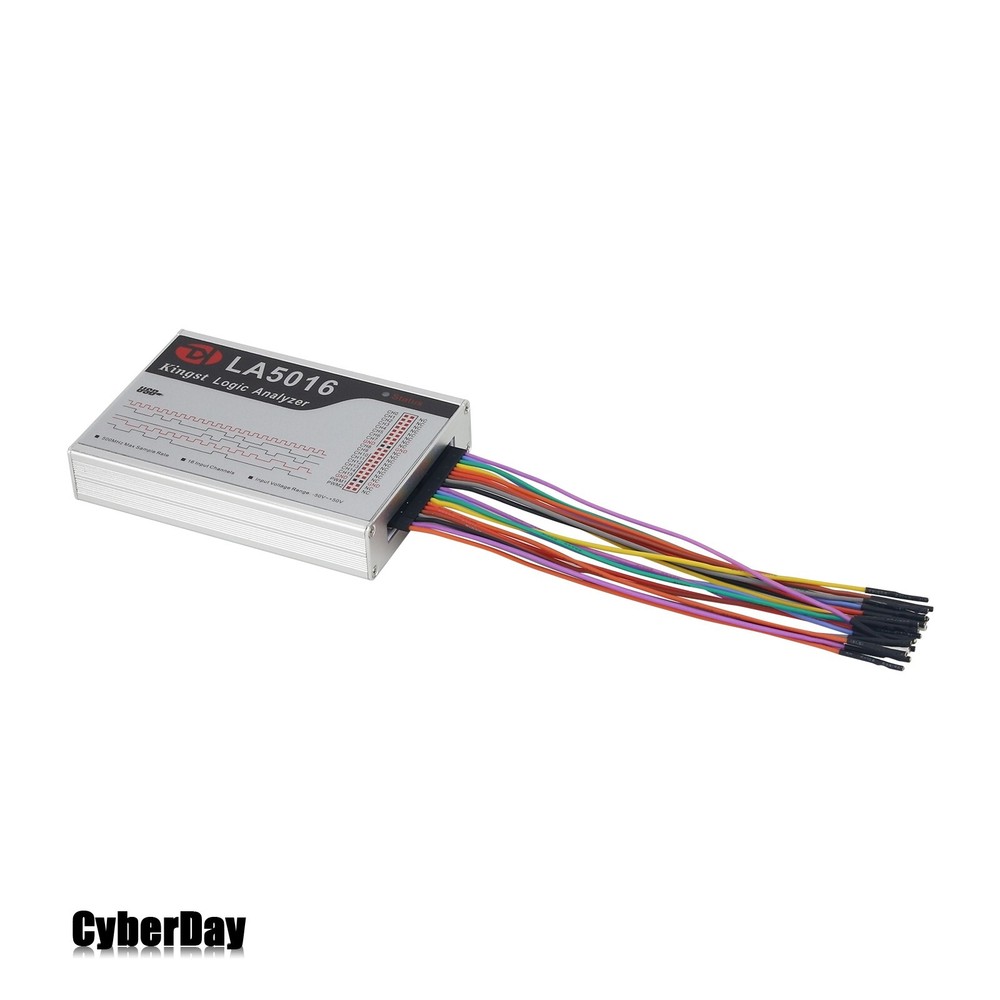

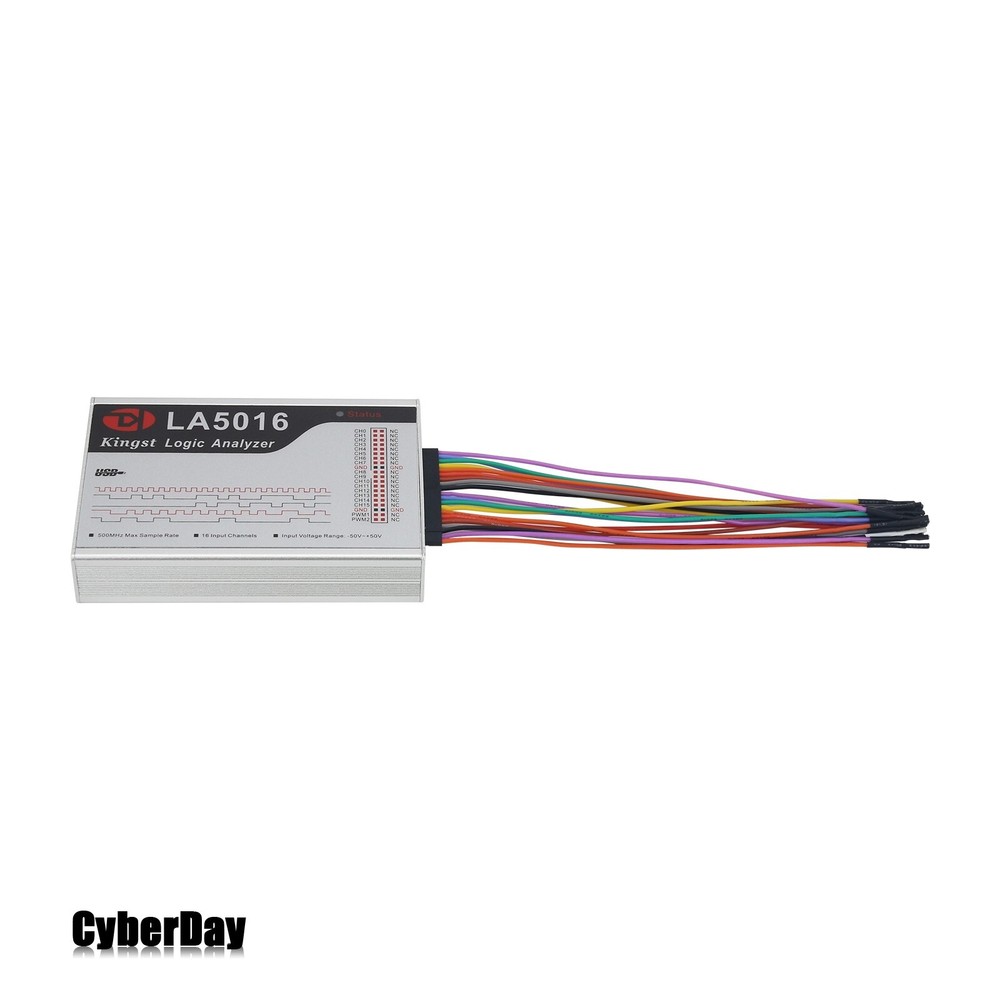

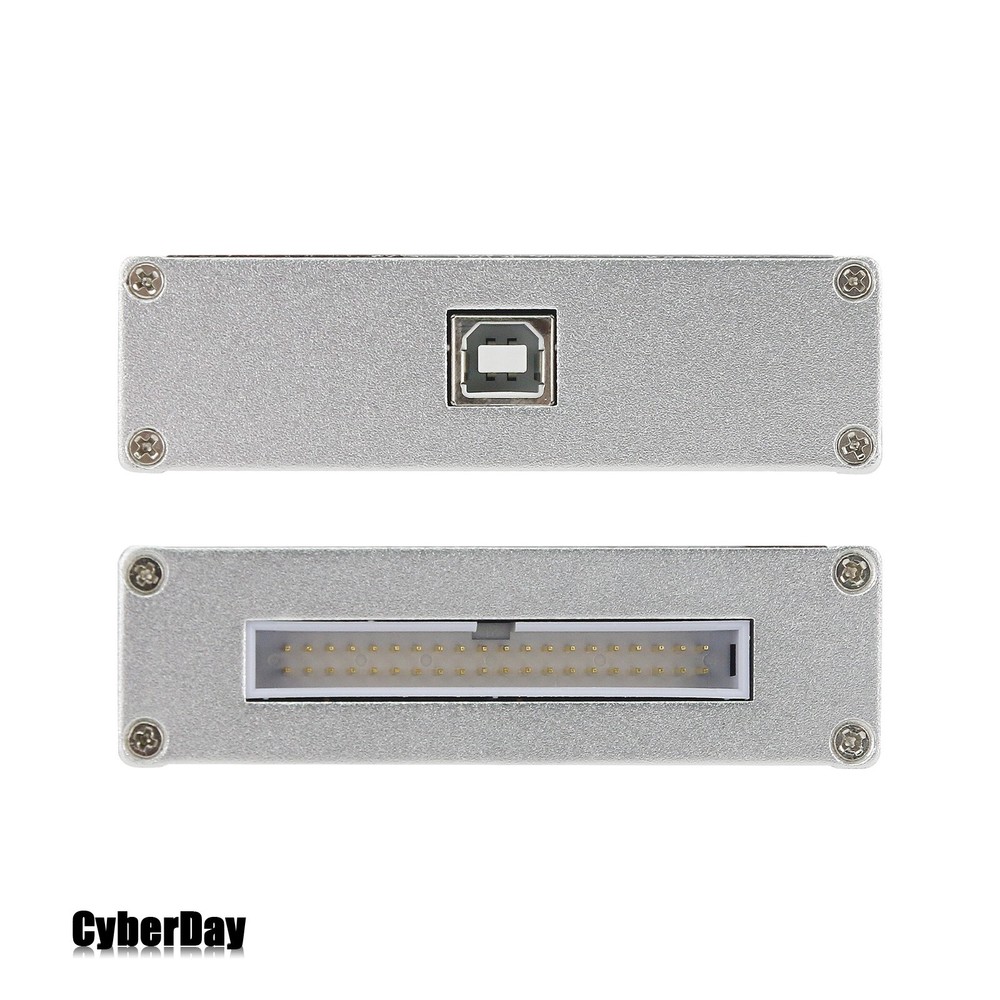

Check the listing for details. LA5016 USB Logic Analyzer 16 Channel Sampling Rate 500M 10G Depth PWM Output. Condition: New. Listed at 235.10 USD. Description LA5016 USB Logic Analyzer 16 Channels Max Sampling Rate 500M 10G Depth Adjustable PWM Output Download Software & User Guide: http://www.qdkingst.com/en Description: LA5016 is a high-performance logic analyzer with 16 channels and 500M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc. LA5016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved. Features: - Portable and lightweight - 500M sampling rate at full channels - Large sampling depth and support compression - The built-in PWM generator - Compatible USB2.0/3.0 interface - Powerful software and easy to use - Support online upgrade automatically Specifications: Measurement Input Parameters: - Channels number: 16 - Max sampling rate: 500MHz - Measurement bandwidth: 80MHz - Min. pulse width can be catched: 6.25ns - Hardware memory capacity: 2Gbits - Hardware storage depth: 100M/channel - Max compressed depth: 10G/channel - Input voltage range: -50V to 50V - Equivalent input impedance: 220KΩ, 12pF - Threshold voltage: adjustable threshold: -4 to 4V; adjustment step: 0.01V PWM Output Parameters: - Channels number: 2 - Output frequency range: 0.1 ~ 20MHz - Period adjustment step: 10ns - Pulse width adjustment step: 5ns - Output voltage: +3.3V - Output impedance: 50Ω Power Supply Parameters: - Power Supply Port: USB 2.0/3.0 - Standby Current: 200mA - Max. Operating Current: 400mA Computer Software: - Supported Protocols: UART/RS-232/485, I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Manchester, Midi, Modbus, 1-Wire, UNI/O, SDIO, SMBus, SWD, USB1.1, PS/2 mouse keyboard, NEC IR, parallel port - Support OS: For Windows XP/7/8/10 (32bit/64bit), Vista, MAC OS, Linux, etc. Package Included: - 1 x LA5016 main unit - 2 x 9P FFC cables - 1 x 2P FFC cable - 16 x Gray test hooks - 2 x Black test hooks - 1 x Premium USB cable 1.Support English / Simple Chinese languages. For Windows XP/7/8/10, Linux, MAC OS, and other operation systems. 2.User friendly interface with powerful analysis function. 3.Support multiple protocols: For UART/RS232/485, I2C, SPI, CAN, SDIO, DMX512, I2S/PCM, JTAG, LIN, Manchester, Modbus, 1-Wire, SMBus, UNI/O, USB1.1, NEC IR, PS/2 mouse keyboard, parallel port, etc. 4.Data display in decimal / hexadecimal / 2 binary / ASCII code format for easy observation and analysis 5.Sampling data and analytical data can be exported, which is convenient for archive or other analysis software 6.Free online updates forever, more efficient and more intimate measurement tools Payment Terms 1. We accept PayPal,Payoneer,Visa Card,Google pay,Credit card etc. 2. We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. Shipping Terms 1. We will process the order within the handling time ,if you have any questions, please contact us via eBay message or email. 2. For remote regions of DHL/FedEx..., extra shipping costs might be charged. Usually it costs about 30USD-50USD. We will contact you if shipping company informed us your address belongs to remote area. Thanks for your understanding. Return Terms If you receive the item that not satisfied or defective, please do not open case and kindly notify us within 30 days. We will guide you the returning process for replacement or refund. Custom Duties & Taxes 1. It is buyers responsibility to cover the import duties, taxes.We do not charge any taxes and fees, and the possible taxes and fees will be collected by the platform or by third parties such as customs and carriers. 2. Please check with your countrys customs office and inform us what/how much should declare before shipping. Feedback 1. Please kindly leave us a positive feedback and 5 star DSR if you satisfied with our product and service. Please feel free to contact us firstly if you have any problem with your order, we are responsible and credible seller and will solve the issue it for you asap. 2. If you are dissatisfied for any reason, please dont be quick to leave us neutral or negative feedback. We work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers.
