| Country of Origin | United States |
|---|---|
| Brand | LABLT |
| MPN | QS816864QR |
| Collet Chuck Type | ER16 Collet Chuck |
| Run Out (TIR) | 0.0003″ |
| Shank With Flat | Flat |
| Holder Type | ER Collet Holder |
| Clamping Range | 3/16"-3/8″ |
| Clamping Size | ER16 |
| Shank Type | Lathe Chuck |
| Collet Nut | ER16 Mini |
| Balance | Max 15,000 RPM |
| Shank Diameter | 3/4" |
| Overall Length | 3" |
| Shank Length | 2" |
| Neck Diameter | 1.20" |
| Warranty | 1 Year |
| Material | Alloy Steel |

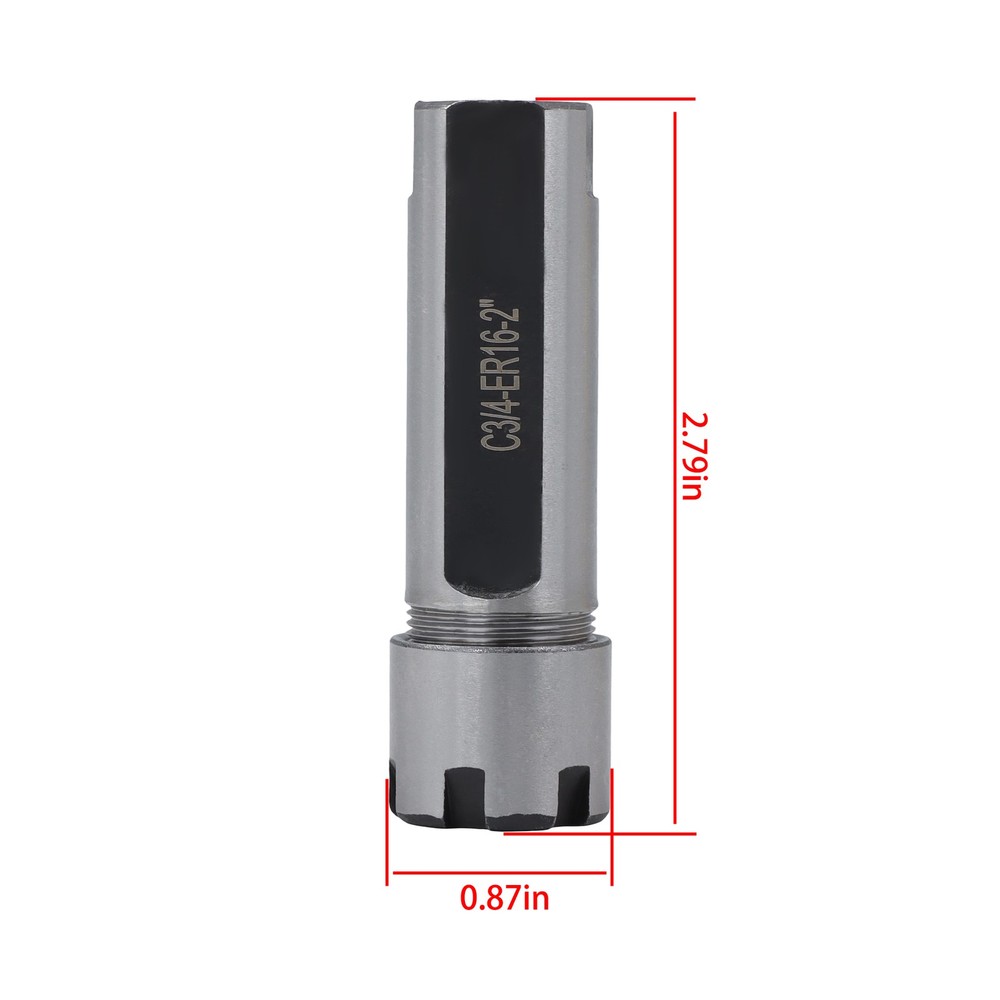

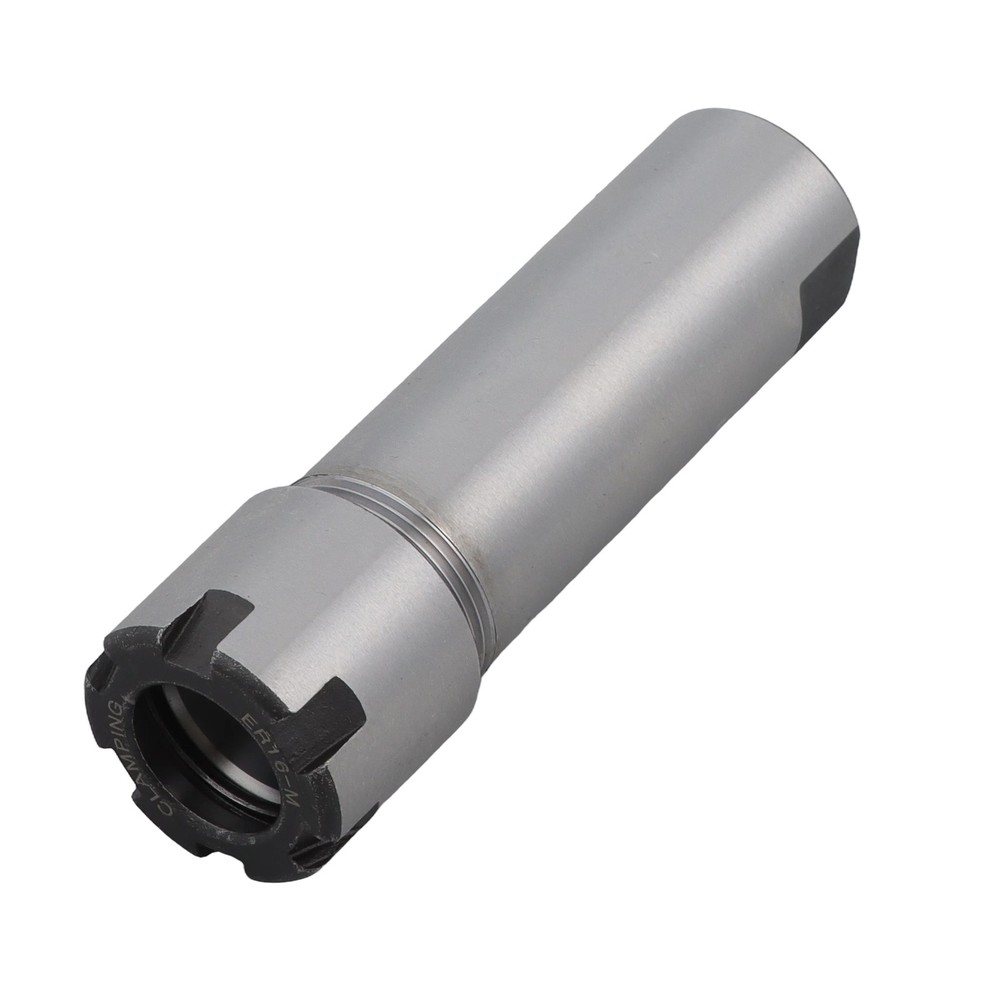

Check the listing for details. LABLT ER16 Collet Chuck 3/4" Straight Extended Tool 3/16-3/8″ Range Shank 2". Condition: New, Made in United States. Listed at 20.58 USD. Specifics and features: Model: ER16 Collet Chuck Run Out (TIR): 0.0003″ Neck Diameter: 1.2″ Holder Type: ER Collet Holder Clamping Range: 3/16"-3/8″ Shank Type: Lathe Chuck Collet Nut: ER16 Mini Balance: Max 15,000rpm Shank Diameter: 3/4" Overall Length: 3" Shank Length: 2" Material: Alloy Steel Shank With Flat: Flat Flange Diameter: 1.50" Compatible with: ER16 Collet Chuck Tool Holder 3/4 Inch Straight Shank 2 Inch Extension Length. Package includes: C3/4" Straight Shank ER16 Collet Chuck Tool Holder Extension Holder Length 2" .
