| Country of Origin | United States |
|---|---|
| Brand | LABLT |
| MPN | OM388926OC |
| Voltage | 24V |
| Type | Linear Actuator |
| Warranty | 1 Year |
| Stroke Work Size | 100mm |

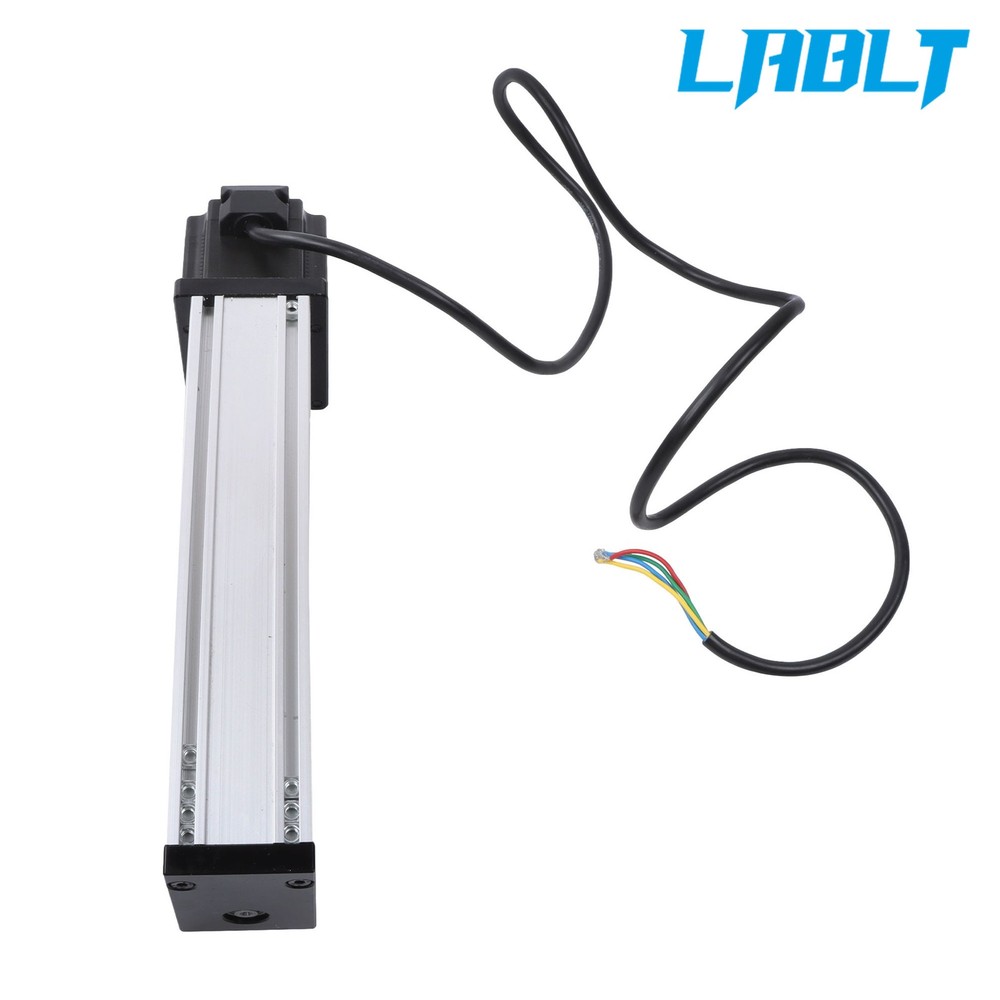

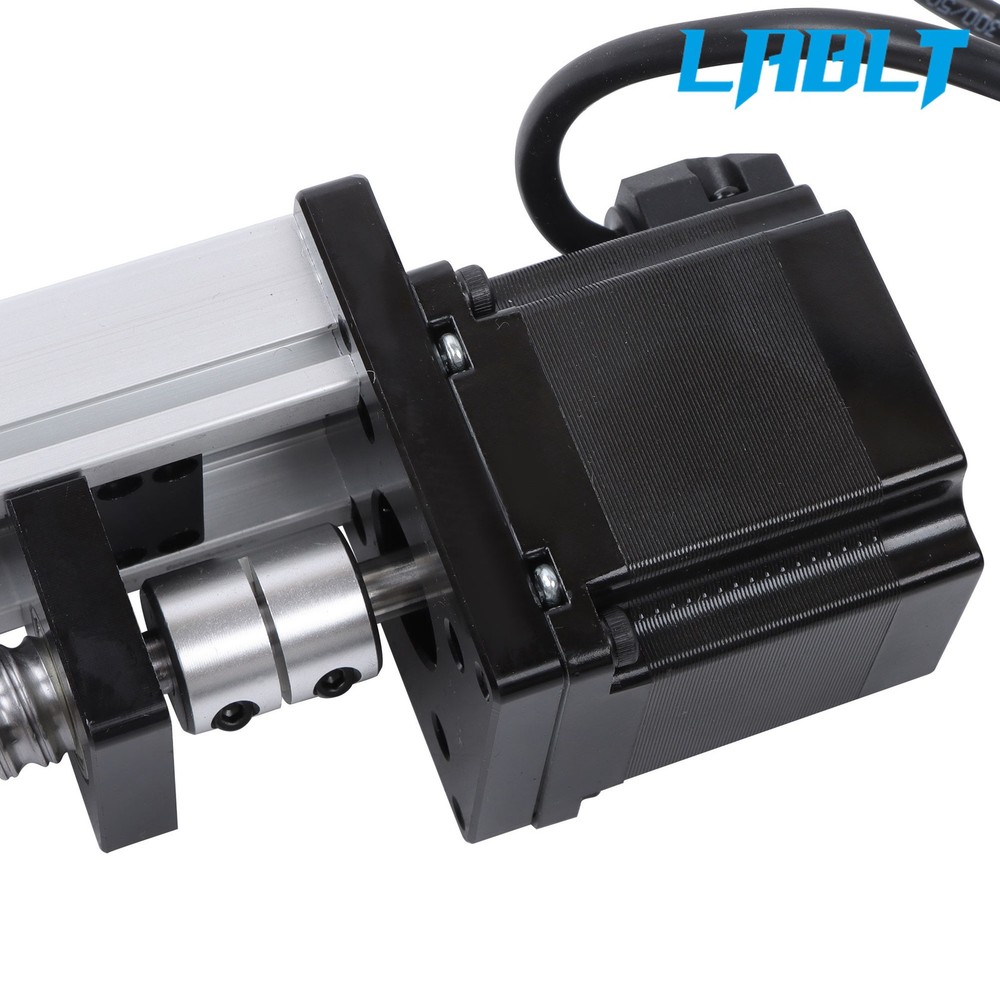

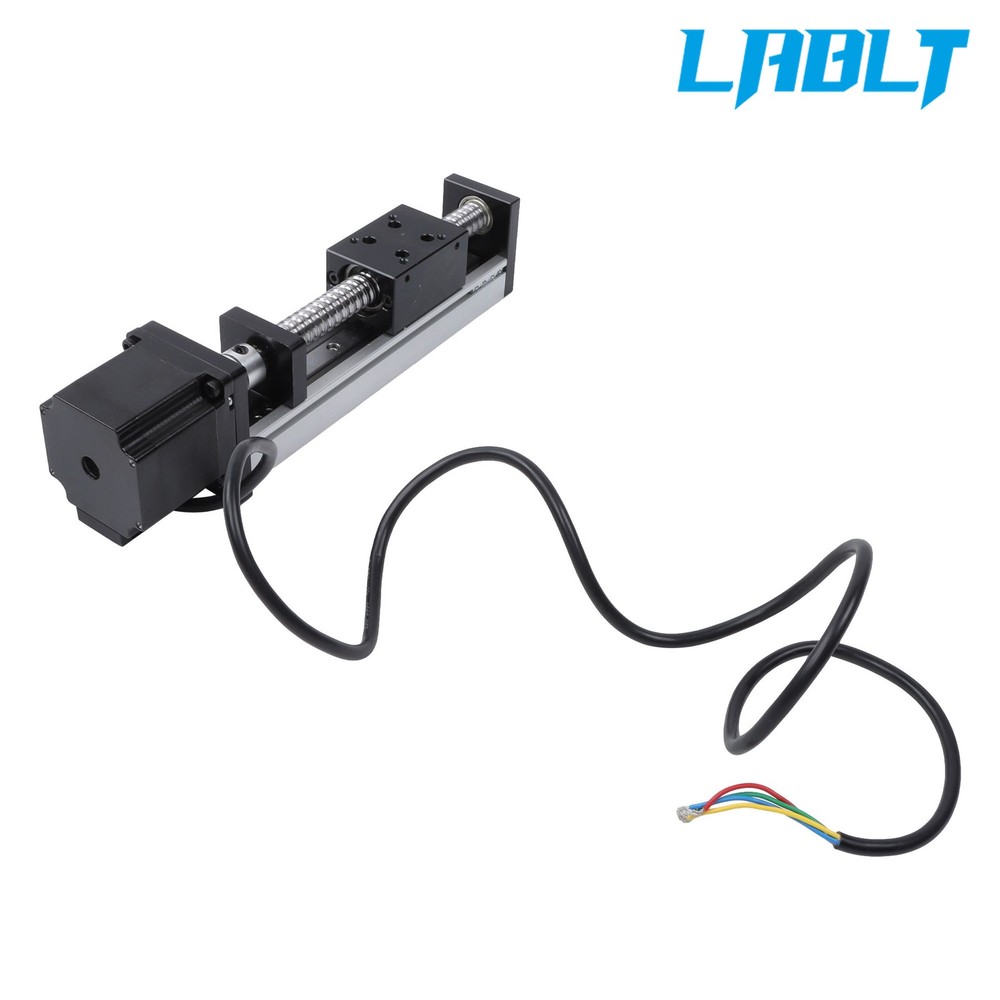

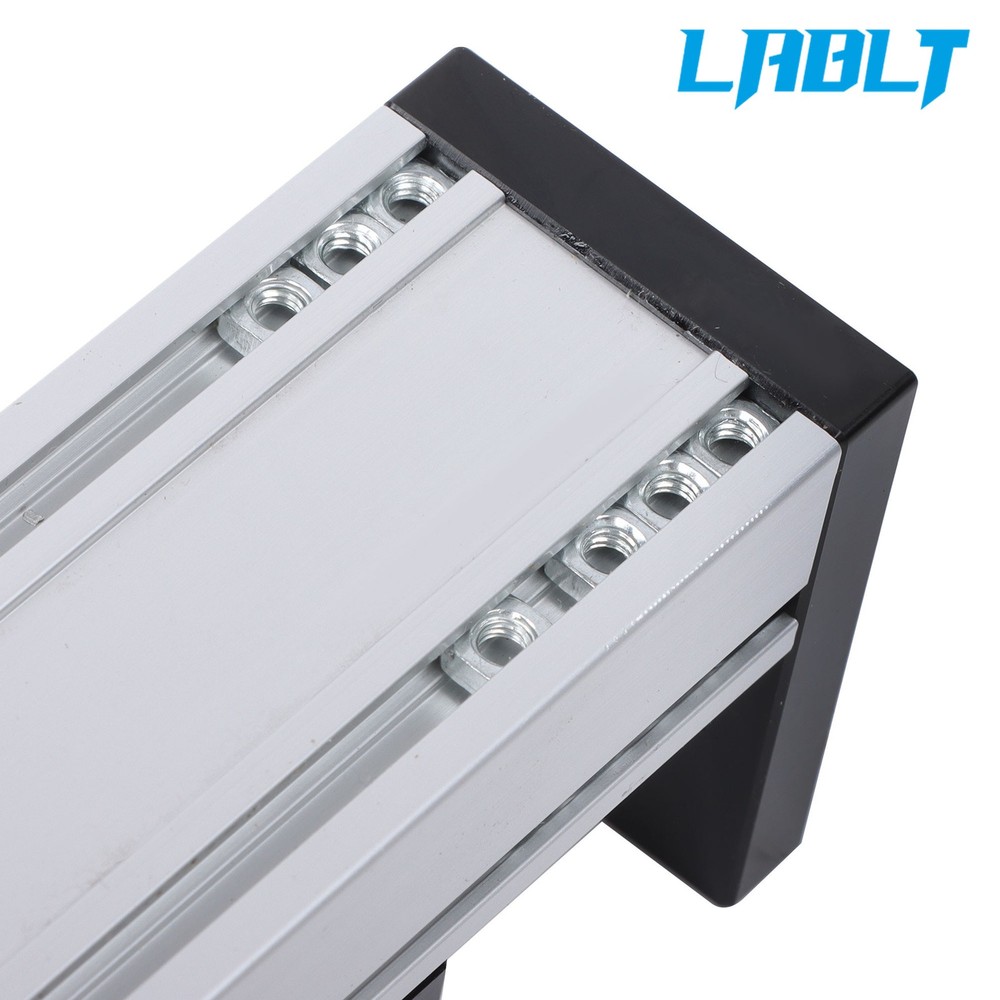

Check the listing for details. LABLT Linear System Moulde Linear Stage Actuator with NEMA23(5756) Stepper Motor. Condition: New, Made in United States. Listed at 139.22 USD. Description: Voltage: 24V Type: Linear Actuator Stroke Work Size: 100mm Linear rail special made nema 23(5756) stepper motor with max speed up to 1200 rpm.max speed:255mm/s[no loading],max horizontal speed up to 180mm/s[max loading],max vertical speed up to 80mm/s[max loading]. Economical and practical screw module, high cost performance, suitable for medium and low load, medium speed requirements, stable environment conditions. Linear rail fully aluminum structure and ballscrew offer excellent strength and avoid rusting.accuracy up to ±0.02mm,horizontal loading capacity up to 25kgs,vertical loading capacity up to 20kgs.also low noise when working. Application for: .
