| Country of Origin | United States |
|---|---|
| Brand | labwork |
| MPN | TL48510Q |
| Type | Roller Chains |
| ANSI Chain No. | #40 |
| Lenght | 5 feet |
| Pitch (P) | 0.5 inch (12.7 mm) |
| Roller Diameter (d1 max) | 0.313 inch (7.95 mm) |
| Width Between Inner Plates (b1 min) | 0.310 inch (7.85 mm) |
| Pin Diameter (d2 max) | 0.156 inch (3.96 mm) |
| Pin Lenght (L max) | 0.654 inch (16.60 mm) |
| Pin Lenght (Lc max) | 0.701 inch (17.80 mm) |
| Inner Plate Depth (h2 max) | 0.472 inch (12.0 mm) |
| Plate Thickness (T max) | 0.059 inch (1.50 mm) |
| Ultimate Tensile Strenght (Q min) | 14.10/3205 kN/LB |
| Average Tensile Strenght (Qo) | 17.5 kN |
| Warranty | 1 Year |

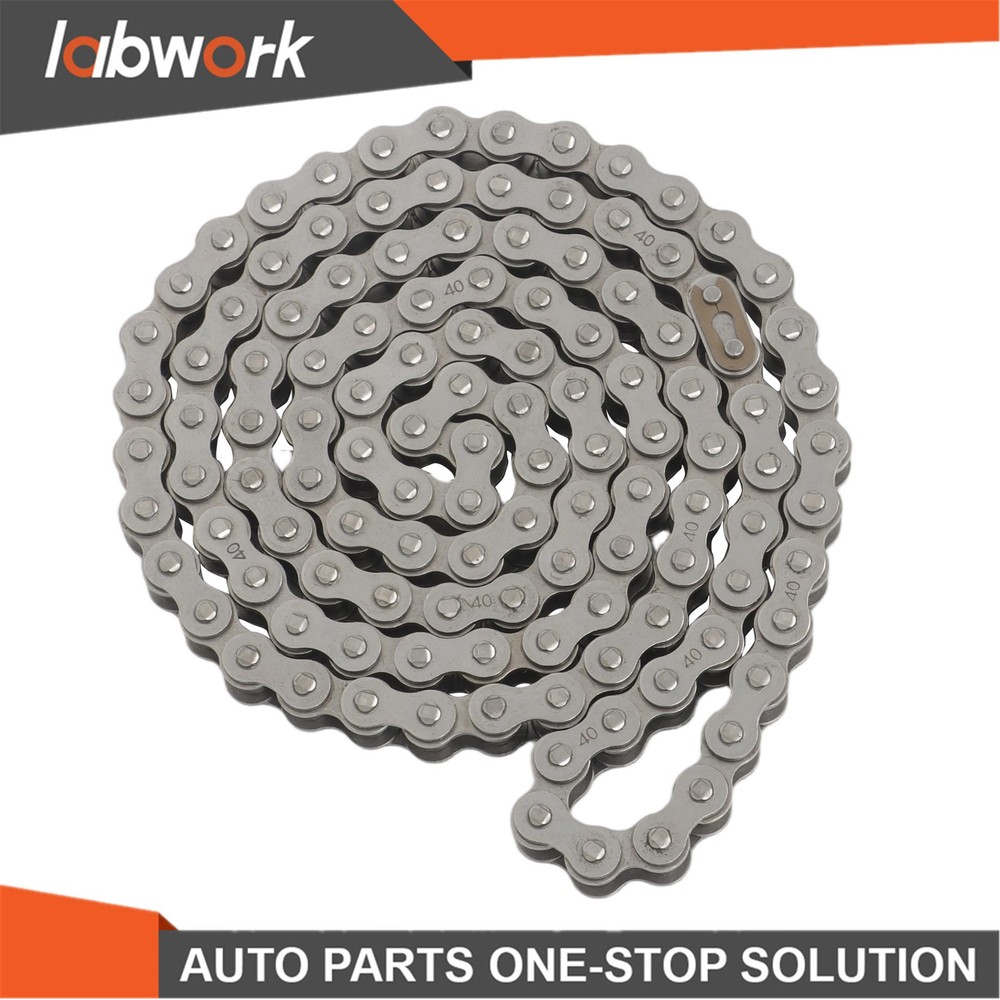

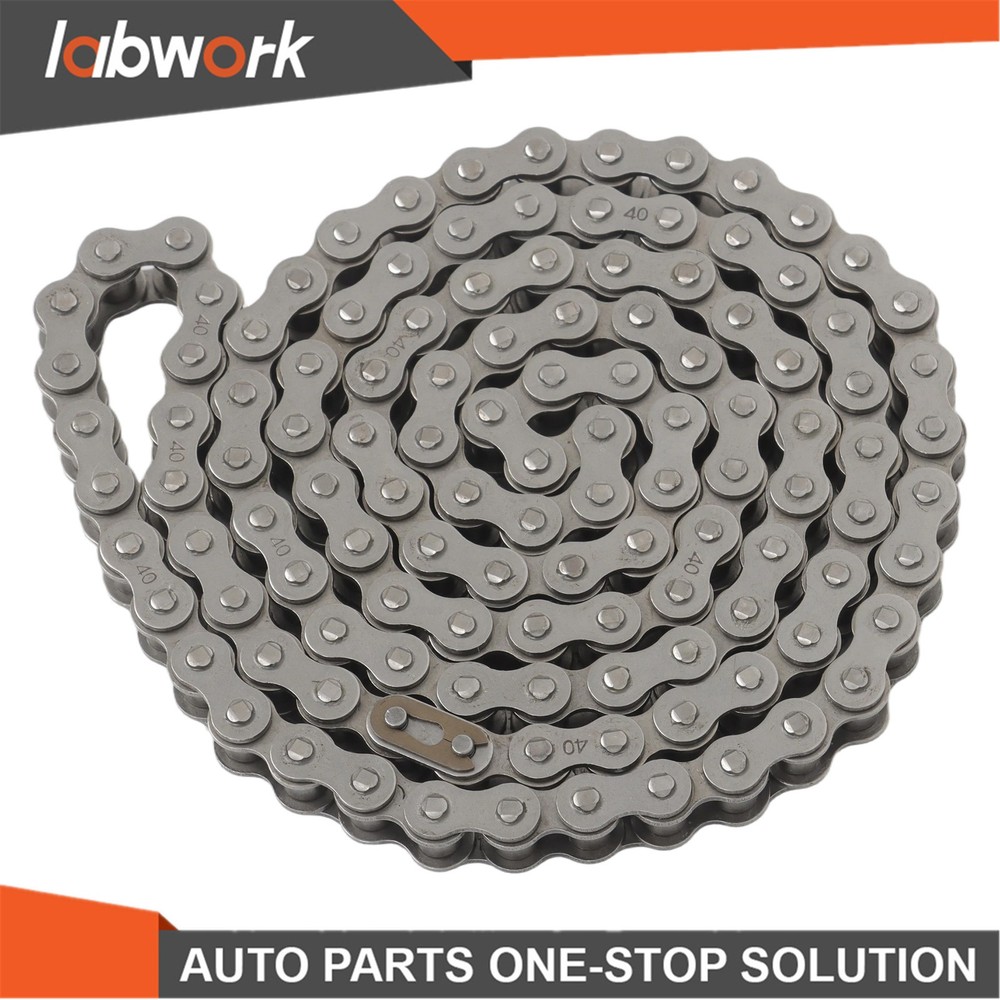

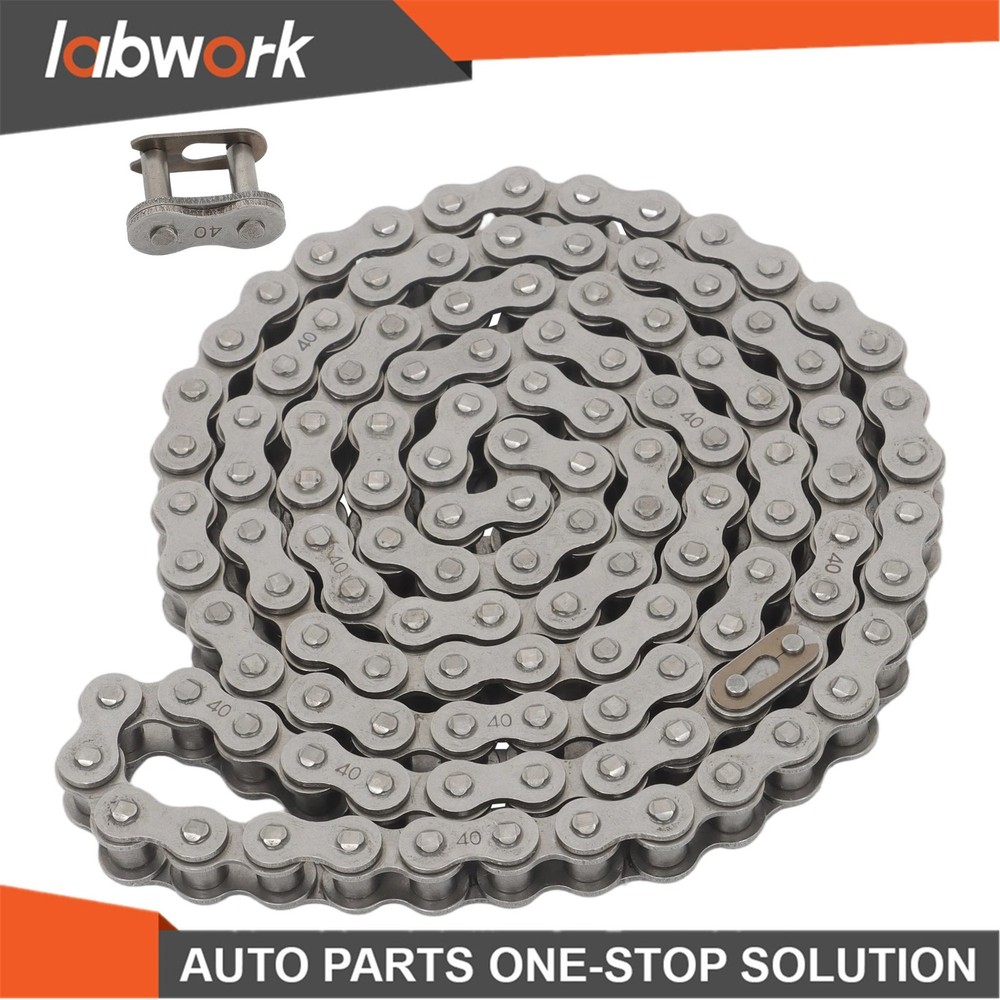

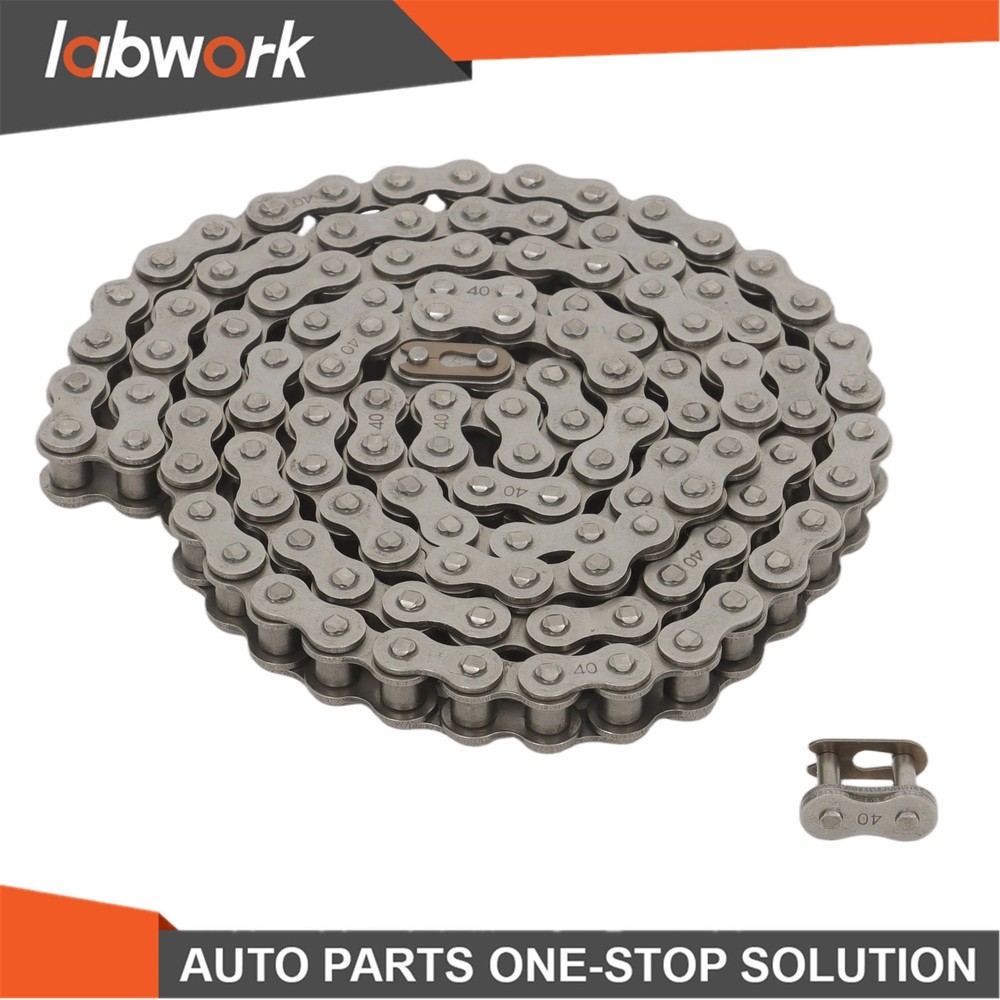

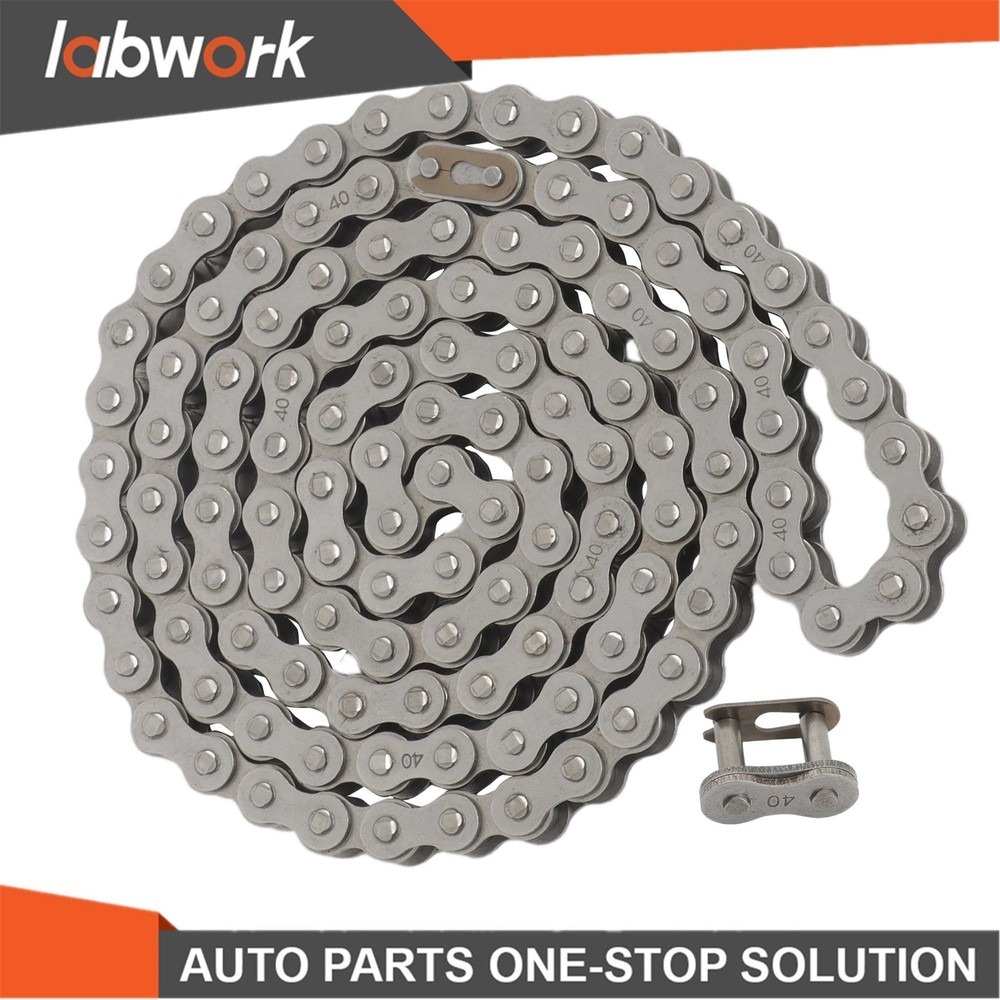

Check the listing for details. Labwork 5 Feet of #40 Roller Chain Includes 2 Free Connecting Links. Condition: New, Made in United States. Listed at 17.59 USD. Fitment: #40 Roller Chain 5 Feet Long with 2 Free Connecting Links Included Description： ANSI Chain No.: #40 Lenght: 5 feet Pitch (P): 0.5 inch (12.7 mm) Roller Diameter (d1 max): 0.313 inch (7.95 mm) Width Between Inner Plates (b1 min): 0.310 inch (7.85 mm) Pin Diameter (d2 max): 0.156 inch (3.96 mm) Pin Lenght (L max): 0.654 inch (16.60 mm) Pin Lenght (Lc max): 0.701 inch (17.80 mm) Inner Plate Depth (h2 max): 0.472 inch (12.0 mm) Plate Thickness (T max): 0.059 inch (1.50 mm) Ultimate Tensile Strenght (Q min): 14.10/3205 kN/LB Average Tensile Strenght (Qo): 17.5 kN .
You may also like
$113.5
Tsubaki RS80-NP-1-RP-U Single Roller Chain 10ft 1in
$5.86
Renold Hydro-Service 80HS CONN LK SF SC 80A1HSS26I
$35.99
DID 50 Roller Chain 10 Ft Long D.I.D. 192 Links
$30

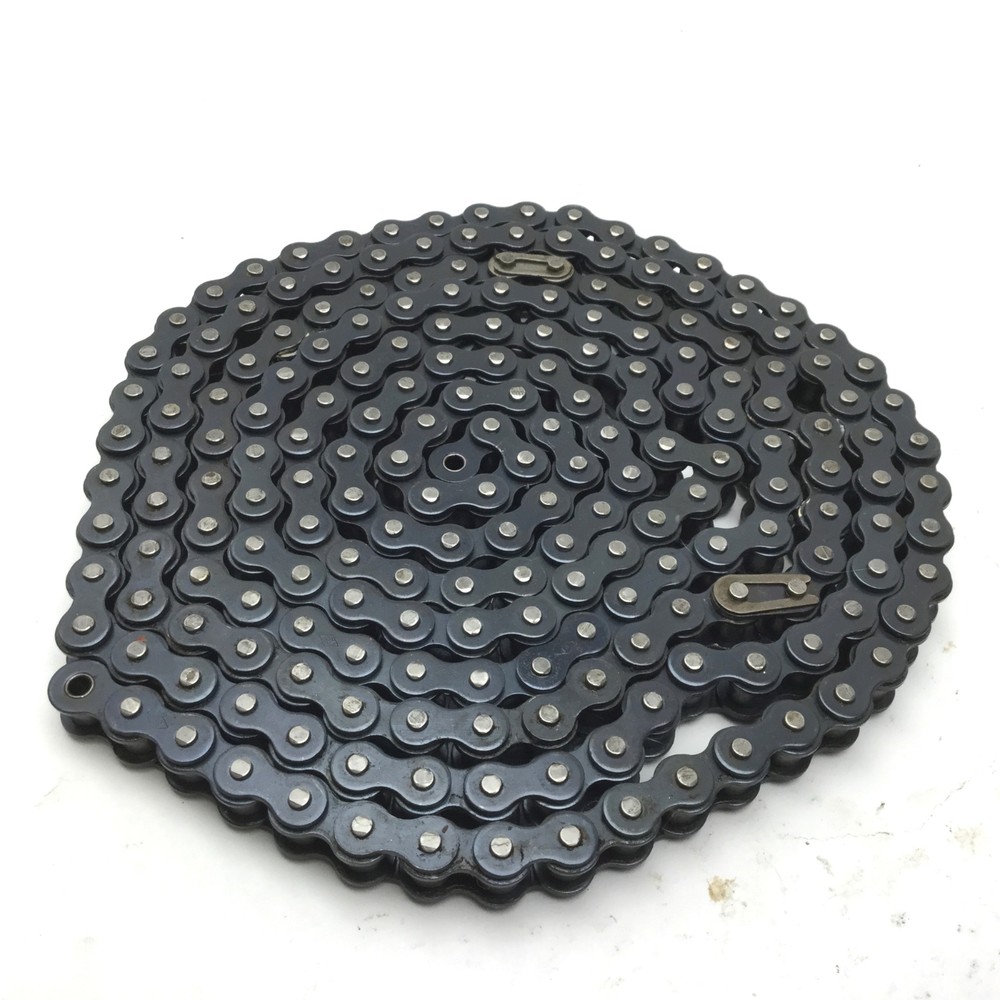

ICM 50 Roller Chain Length: 10' (120") with Master Link
$61.84
#50-2 Roller Chain Double Strand 10 Feet With 2 Connecting Master Links 0.625"
$14
DIAMOND CHAIN C-44366-18/08-1-P CONNECTING LINK NSMP
$43
Renold 40RLRF Single Roller Chain 10in X 1/2in
$15.75
HD40-3 C/L LYNX Heavy Duty Roller Chain Connecting Link
$33.59
10 Feet #40SS Stainless Steel Roller Chain With 1 Connector New
$100
New SKF PHC 50-2X10FT Roller Chain (X3DW1)
$15.75
HD81X C/P C/L LYNX Heavy Duty Roller Chain Connecting Link
$25

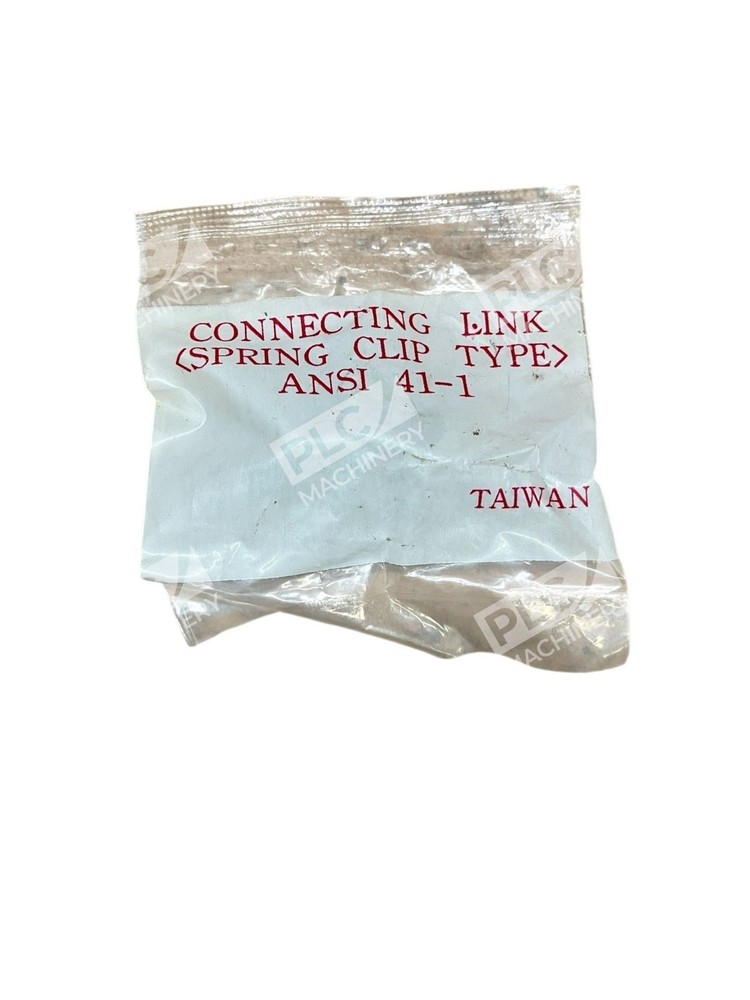

ANSI #41-1 Roller Chain Master Link Spring Clip Connecting Link 1/2"
