| Operating Temperature | 0~40℃ |
|---|---|
| Usage | Distance Sensor |
| Place of Origin | Sichuan,China |
| Warranty | 1 Year |
| Theory | Optical Sensor |
| Size | Sensor Module |
| Storage temperature | -25~60℃ |
| Output Configuration | TTL/RS232 |
| Model Number | BA6A-100R2-220114 |
| Size / Dimension | 64*40*18mm |
| Weight | 13g |
| Measuring time | 0.4~4s |
| Brand | factory |
| Accuracy | +/-3mm |
| Measuring Range | 0.03~100m |
| Laser type | 620~690nm,<1mW |
| Voltage - Supply | DC2.0~3.3V |
| Output | Digital Sensor |
| Laser class | Class 2 |
| Frequency | 3Hz |
| Continuous measurement | YES |
| Laser Beam Color | Red |
| Resolution (Bits) | 1mm |
| Certificate | ISO9001 CE ROHS FCC |

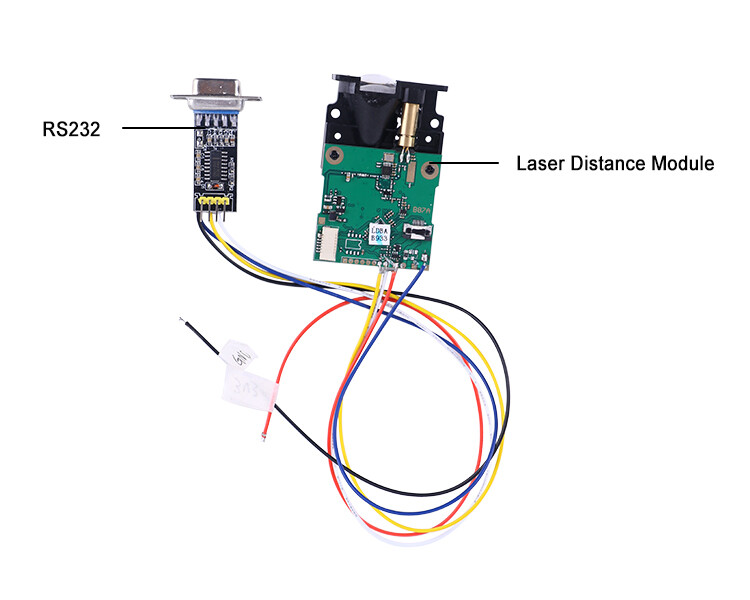

Check the listing for details. Laser Rangefinder Digital Output High Precision100m Laser Distance Meters Module. Condition: New. Listed at 142.49 USD. Class II, red beam. Laser class. Laser type. Storage temperature. Working temperature. DC2.0~3.3V. 64 40 18mm.
