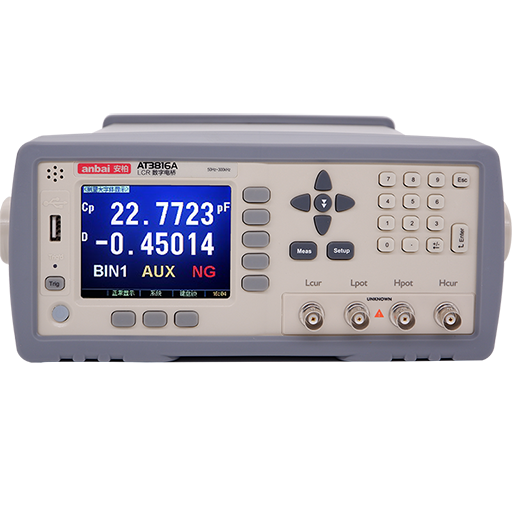

Check the listing for details. LCR Meter 10Hz-200KHz Capacitance Inductance Resistance Tester DCR Replacement. Condition: New. Listed at 1599.84 USD. LCR Meter 10Hz-200KHz Capacitance Inductance Resistance Tester DCR Replacement*Adopt true color TFT-LCD display. Displayed in large fonts, readings are more intuitive.*With continuous frequency point of 10Hz~200kHz with a resolution of 0.001Hz. Test signal level 0.01Vrms ~ 2.00Vrms (10mV step), add DCR measurement and internal DC bias (DC BIAS, ±2.5V) .*Can test the 4 parameters of the component at the same time. Each parameter can be arbitrarily configured. The newly improved instrument realizes full 6-bit display of the main and auxiliary four parameters. *Can scan 10 kinds of frequencies or level lists, and can also be used for 3 groups. *User frequency is corrected to improve accuracy. *Built-in comparator, through the HANDLER interface combined with PLC to complete the automatic sorting of components.*Built-in RS232/RS485/USB interfaces and GPIB inteface optional, SCPI and Modbus support.Feature:*True color TFT-LCD display.*Store 999 LCD screen files, trigger delay, automatic level control (ALC)*Correction function: full-scale open circuit and short-circuit sweep frequency clear, three groups of users point frequency calibration.*Multi-frequency test: support 10 frequency scan tests*Multi-level test: support 10 level scan tests*10 sets of file management for full storage of instrument status, list scan settings and comparator settings.*Enhanced comparator (sorting) function: Programmable P1~P9 Nine-segment sorting, main parameters HI, IN, LO display and output, NG, AUX, SREJ, IDX, EOM, etc. Output.*Absolute deviation (ABS) comparison mode, relative deviation (PER) and order (SEQ) comparison.*Switchable accessory file (AUX) sorting.*Programmable from 1 to 200 times to provide stability.*Custom sorting results are heard.*Built-in RS232/RS485/USB interfaces and Handler interface, GPIB interface optional.*Protocol: SCPI and Modbus.*1000V super shock protection Specification:Test FunctionsCs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCRAccuracySLOW/MED: 0.05%; FAST: 0.1%Measurement Frequency10Hz～200kHz (Resolution 0.01Hz）Measurement RangeAUTO/HOLD/NOMINAL 9 RangesMeasurement Speed40 times/s, 10 times/s, 3 times/sDisplay RangeL: 0.00001μH-9999.99HC: 0.00001pF – 9999.99μFR,X,Z: 0.00001Ω - 99.9999MΩD, 0.00001 – 9.99999Q: 0.00001 – 99999.9Δ%: -999999% - 999999%θ(deg): -179.999° -179.999°θ(rad):-3.14159 – 3.14159DCR: 0.00001Ω ~ 99.9999MΩSource Resistance30Ω, 50Ω and 100ΩMonitor ParameterZ, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%Display Reader6 digits: 999999Equivalent CircuitSerial and ParallelSignal Level10.00mV~2.00V AC (ALC)100.0μA~20.00mA AC (ALC)DC BIAS-2.5V~+2.5V (0.5%+0.005V)Average1~256Trigger ModeINT/HOLD/MAN/BUSTrigger Delay0.01ms~60sComparatorOK: 10-BINS NG:1-BIN AUX: 1-BINList Test10 Steps (Frequency/Voltage/Current)Comparator ModeSEQ/ABS/PERAdjustmentOPEN/SHORT Zeroing (ALL,SPOT)Filesbuilt-in 10 files and USB Disk 10 filesData Logger9999 Log Files (.csv)Beep FeatureOFF/PASS/FAILInterfaceRS232/RS485/USB/HANDLER/GPIB(OPTION)ProtocolSCPI/ModbusOther FunctionsAUTO LCZPower SupplyAC 100V-240V, 50Hz-60Hz20W MAXDimension & Weight264(W)x107(H)x350(L)3kg, net
